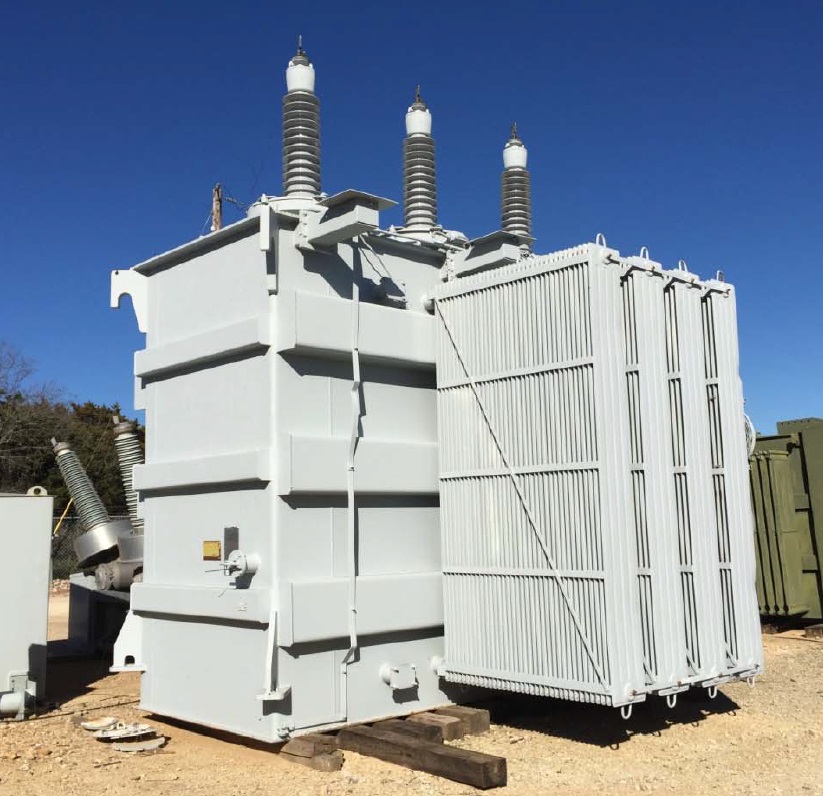

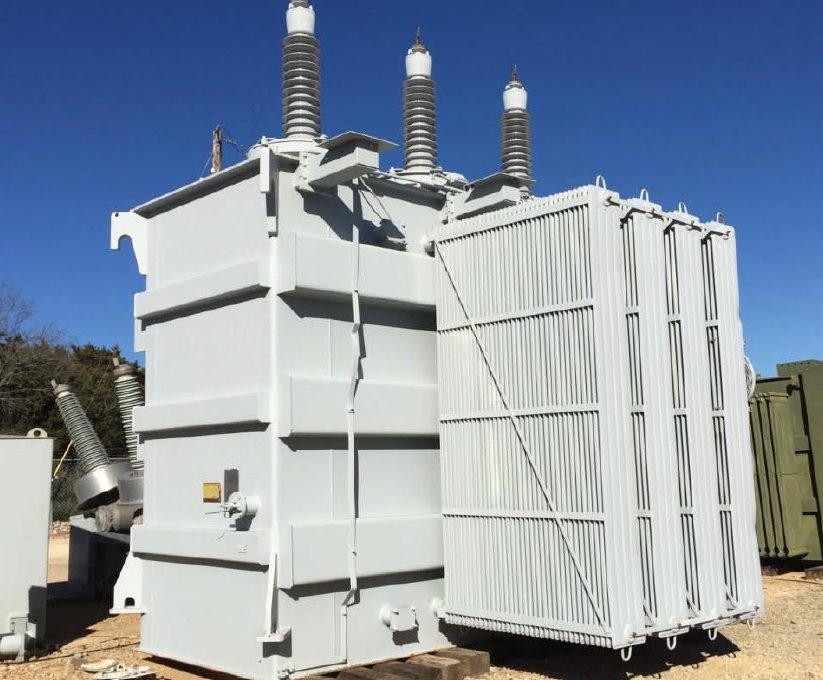

Westinghouse Substation Transformer with Load Tap Changer
Product ID: 5609
Westinghouse Substation Stepdown Transformer, 10.6% Impedance
- Size: 12/16/20/22.4
- HV_H: 138000
- HV 2:
- Dual HV:
- HV TC Type: OLTC
- LV_1_X: 26180
- LV_2_Y: 13090
- LV2 Type:
- Dual LV:
- LV TC Type: LTC
- See Notes: Yes
- High Voltage Vector: Delta
- Low Voltage Vector: Wye
- High 2 Voltage Vector:
- Low 2 Voltage Vector: Wye
- High Voltage Bushing: Top
- Low Voltage Bushing: Top
- HV2 Bushing:
- LV2 Bushing:
- Station Type: Substation Stepdown
- Live Dead:
- Feed:
- Type: Oil
- Width:
- Length:
- Height:
- Weight: 149900
- Phase: 3
- HZ: 60
- DOM:
- MFG: Westinghouse
