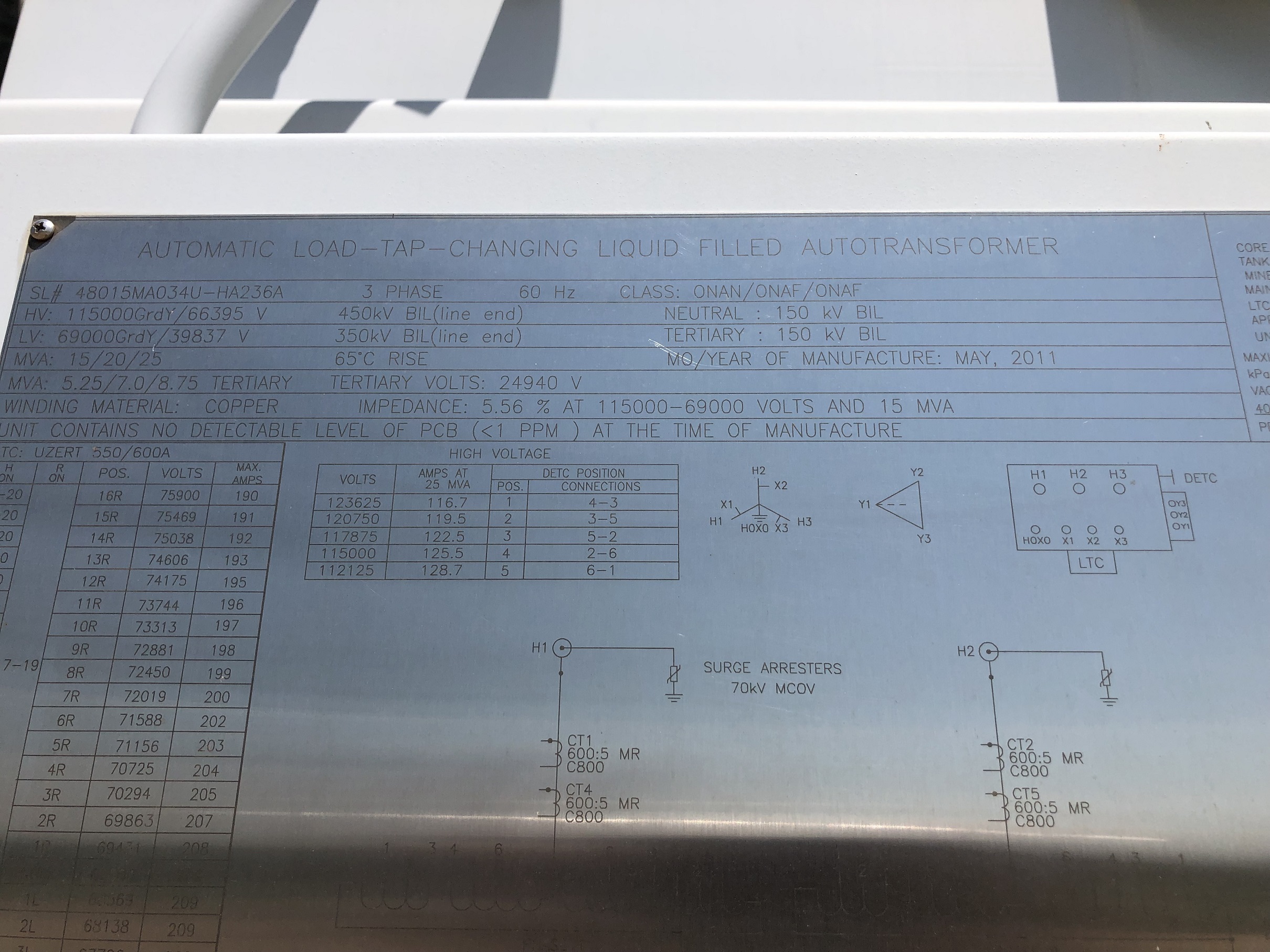

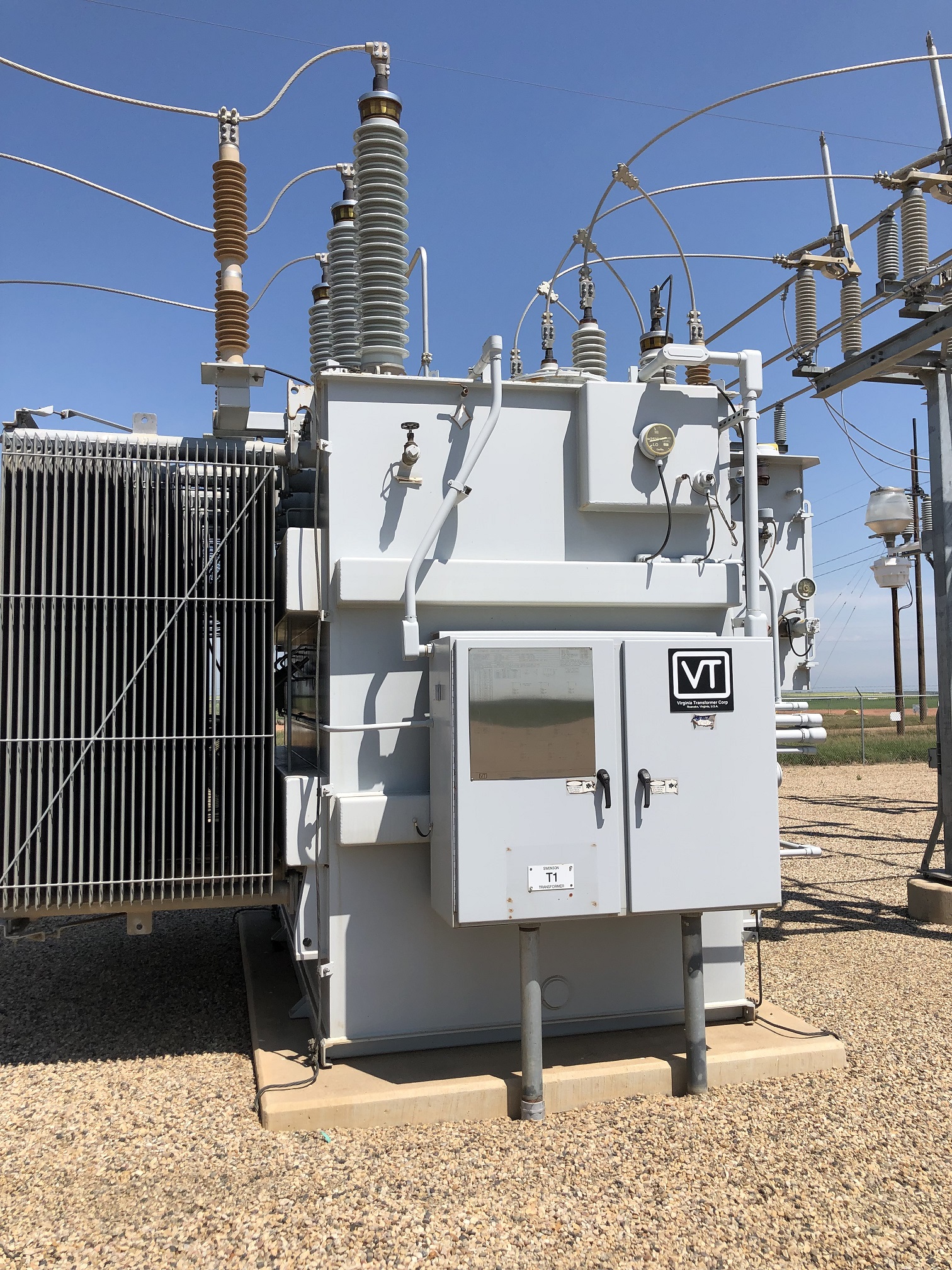

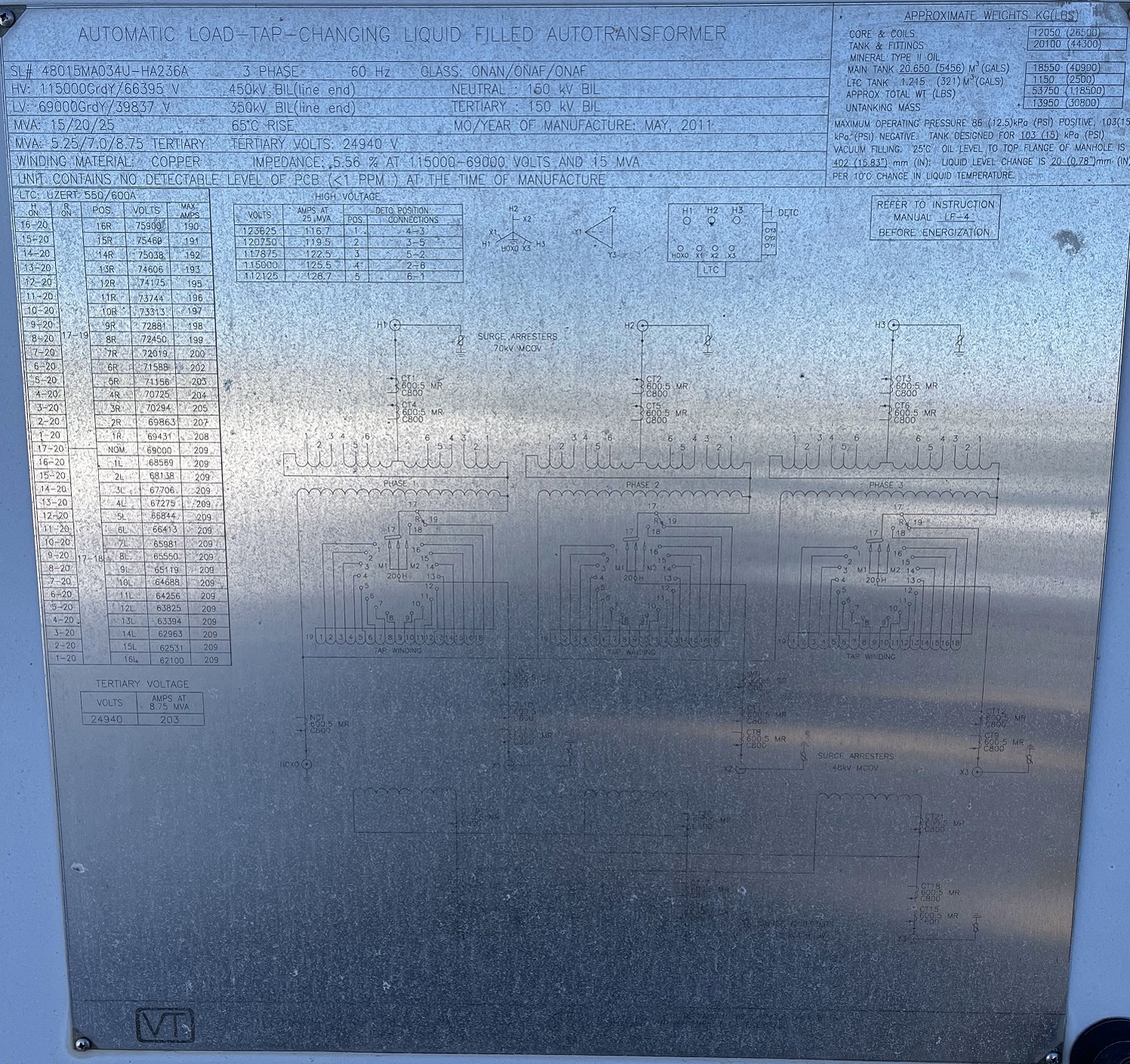

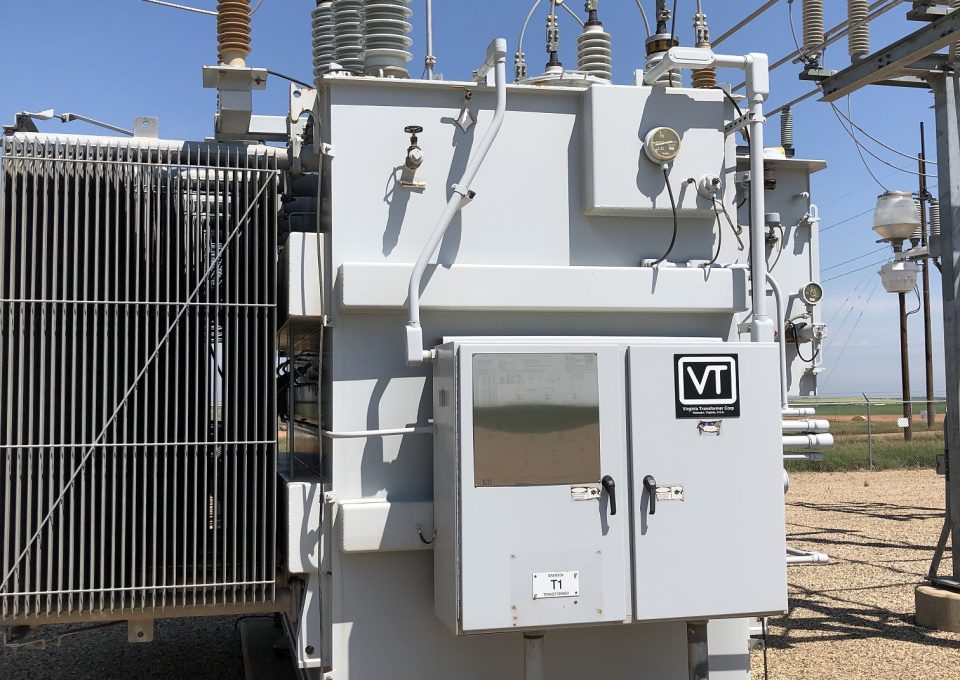

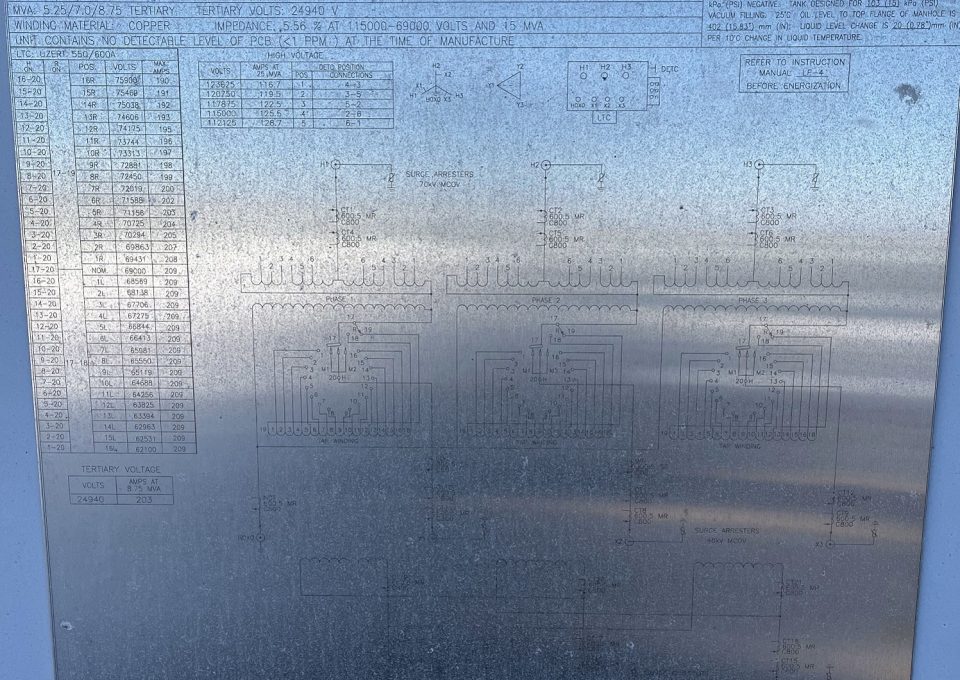

VTCU Load Tap Changing Auto Transformer
Product ID: 5744
15/20/25 MVA Virginia Transformer (VTCU) Load Tap Changing Auto Transformer. 115 kV Wye Primary with Off Load Tap Changer. 69 kV Wye Secondary with Load Tap Changer. Mineral Oil Filled Transformer.
- Size: 15/20/25 MVA
- HV_H: 115000
- HV 2:
- Dual HV:
- HV TC Type: Off Load Tap Changer
- LV_1_X: 69000
- LV_2_Y:
- LV2 Type:
- Dual LV:
- LV TC Type: Load Tap Changer
- See Notes: Yes
- High Voltage Vector: Wye
- Low Voltage Vector: Wye
- High 2 Voltage Vector:
- Low 2 Voltage Vector:
- High Voltage Bushing: Top cover mounted
- Low Voltage Bushing: Top Cover Mounted
- HV2 Bushing:
- LV2 Bushing:
- Station Type: Auto Transformer
- Live Dead:
- Feed:
- Type:
- Width: 180
- Length: 192
- Height: 196

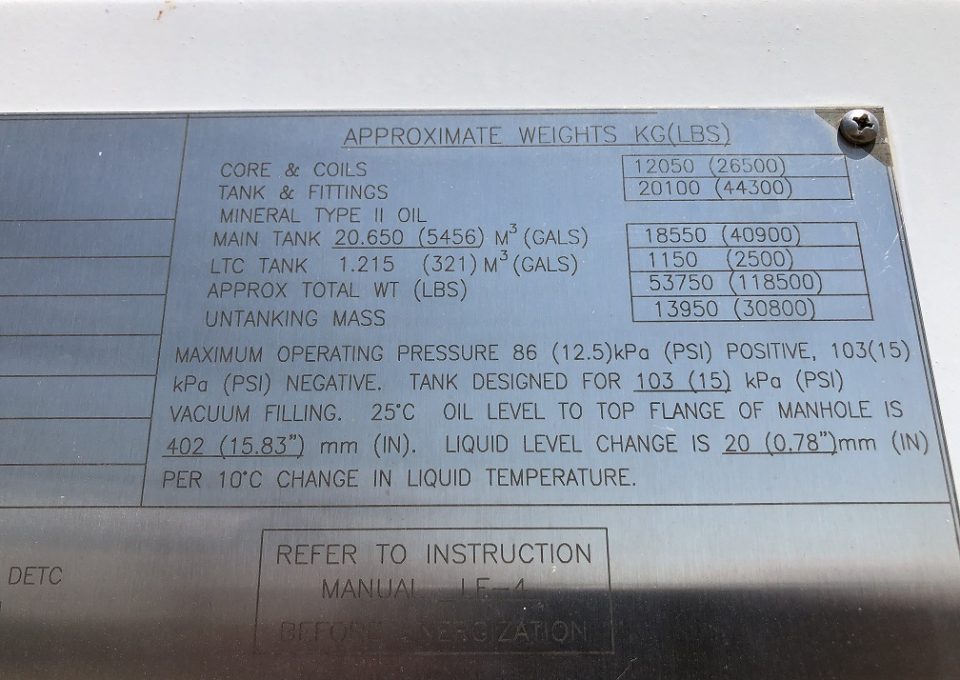

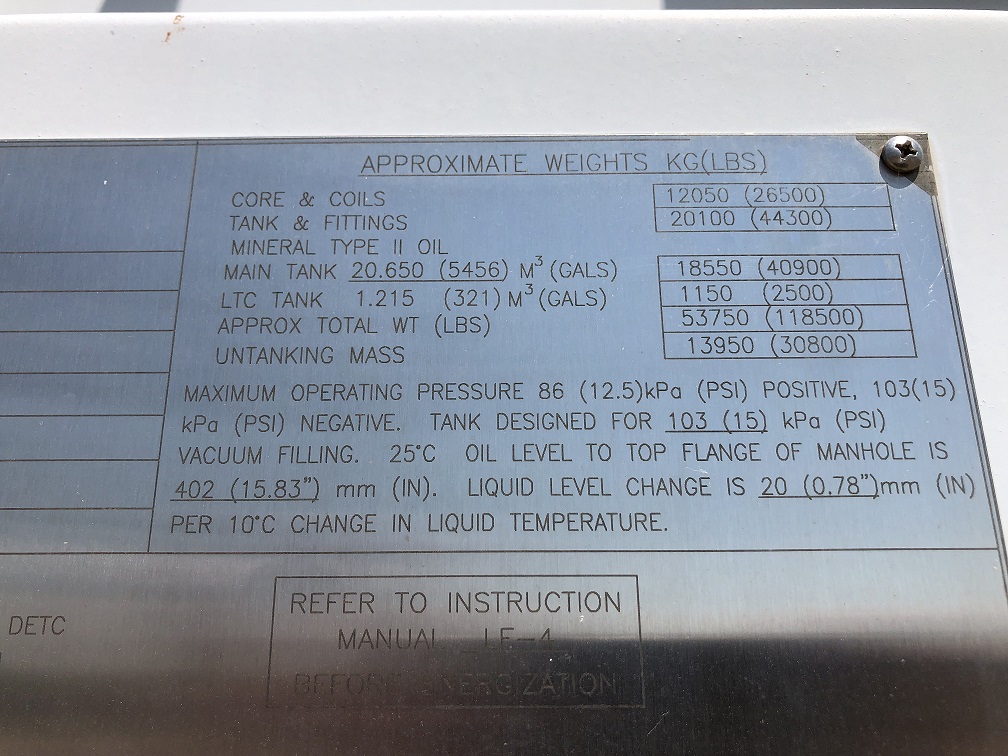

- Weight: 118500
- Phase: 3
- HZ:
- DOM: 2011
- MFG: Virginia Transformer (VTCU)
