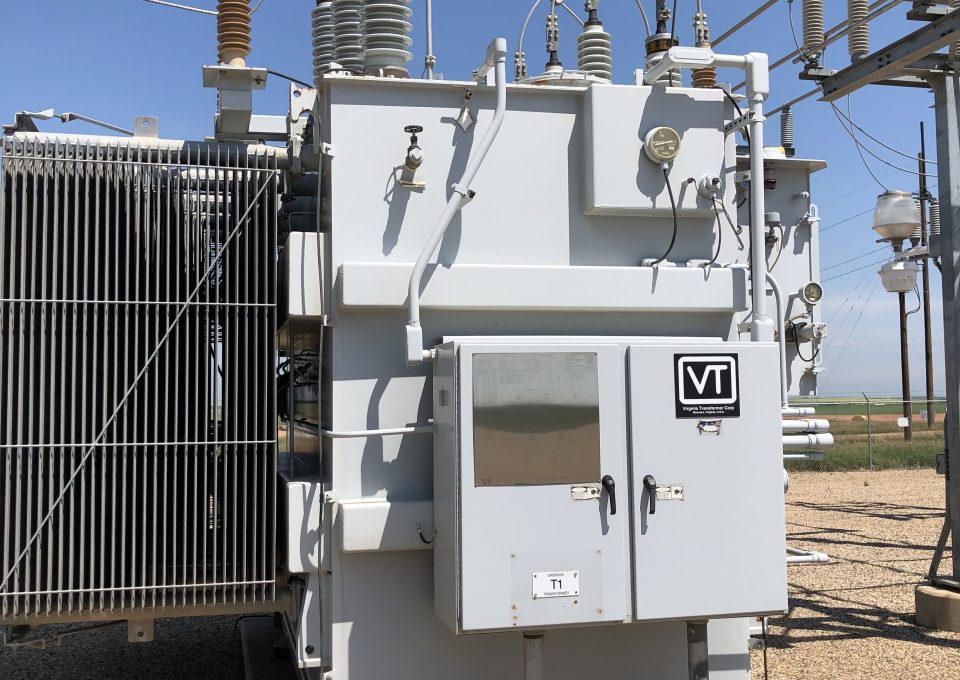

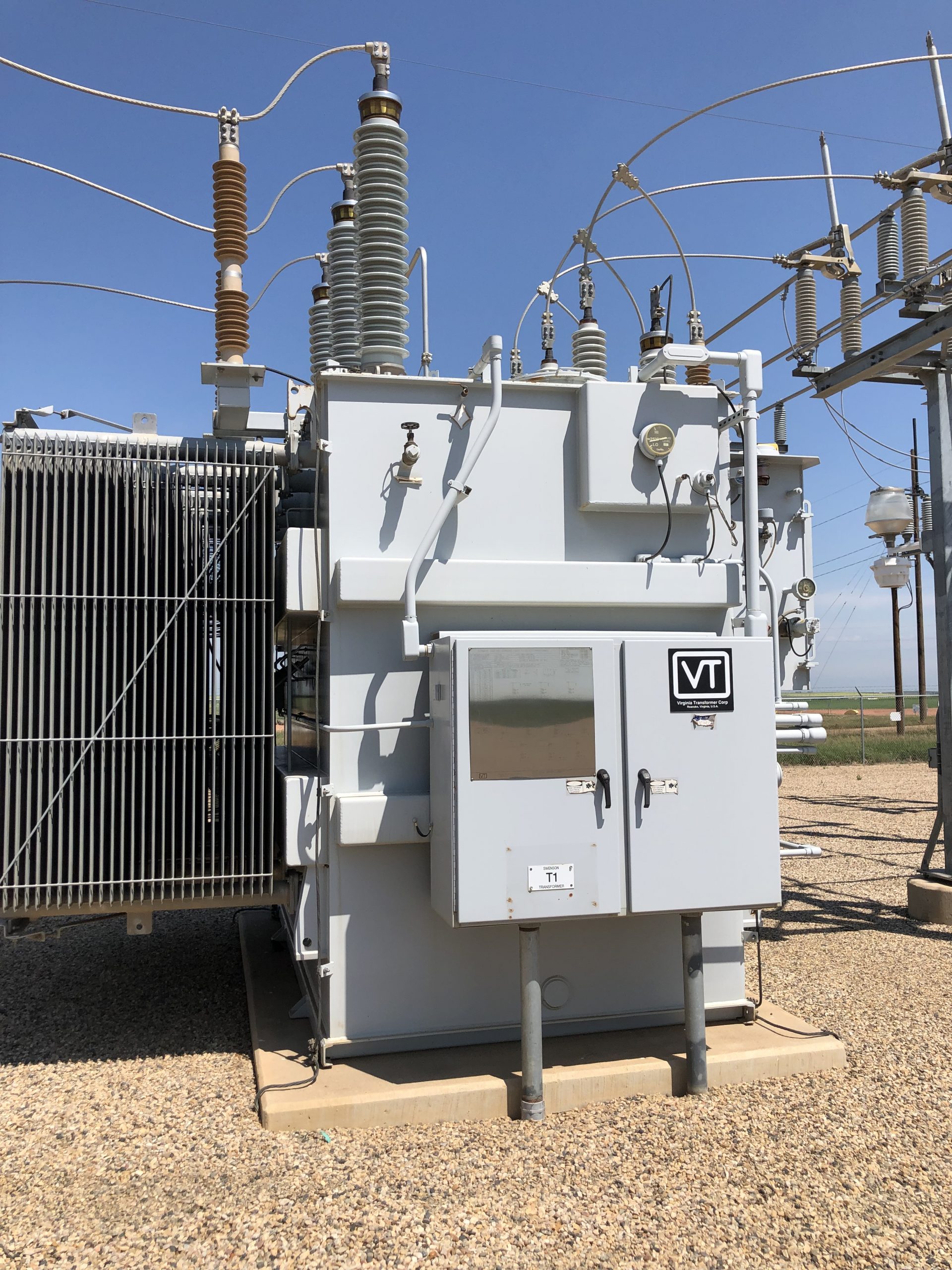

Virginia Auto Transformer
Product ID: 5738

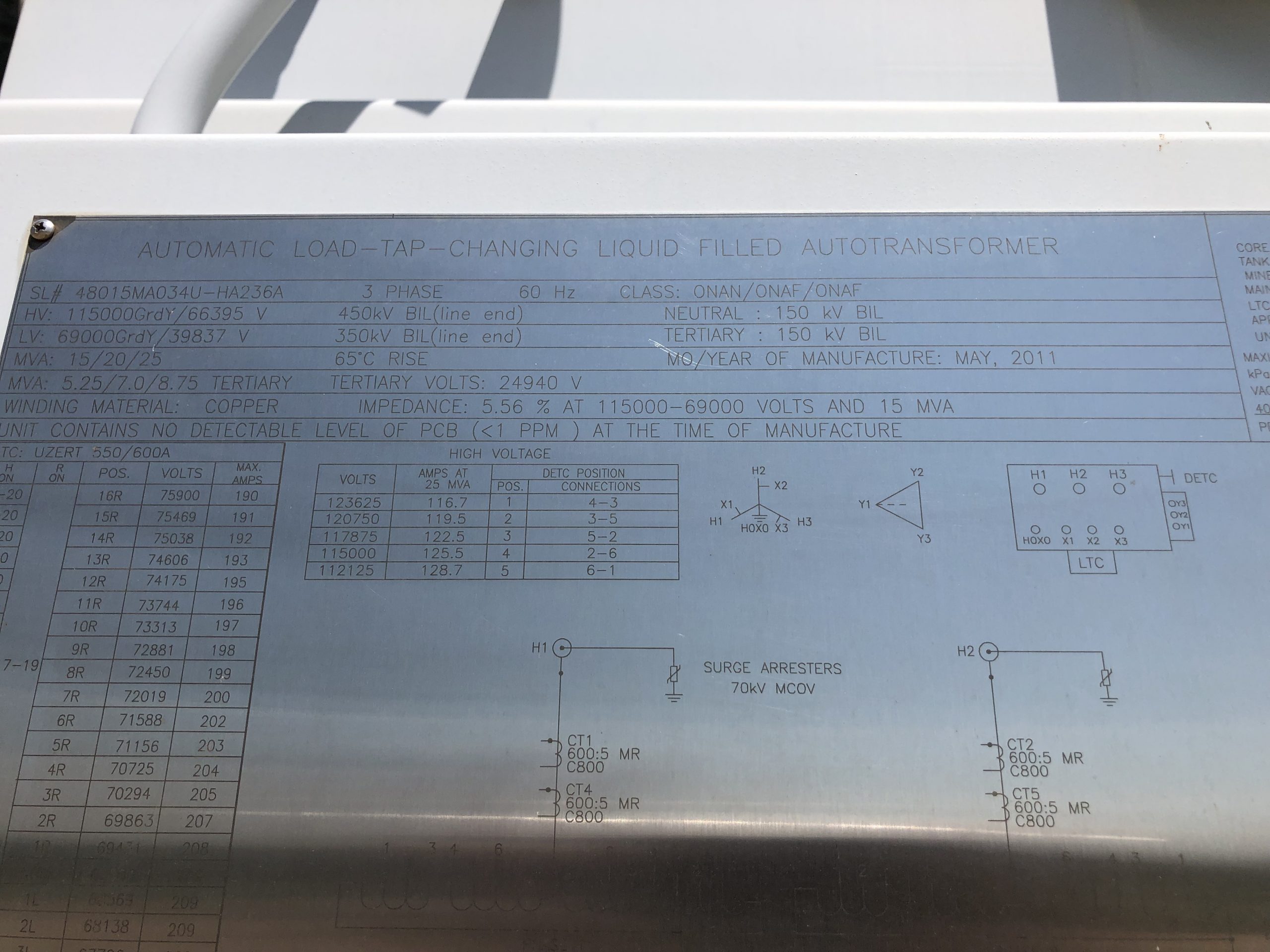

Virginia Transformer Auto Transformer, 115 kV Wye primary, 69 kV Wye secondary, 24.94 kV Delta Tertiary, 15/20/25 MVA, Oil filled transformer
- Size: 15/20/25 MVA
- HV_H: 115000
- HV 2:
- Dual HV:
- HV TC Type: Off Load Tap Changer
- LV_1_X: 69000
- LV_2_Y: 24940
- LV2 Type:
- Dual LV:
- LV TC Type: Load Tap Changer
- See Notes: Yes
- High Voltage Vector: Wye
- Low Voltage Vector: Wye
- High 2 Voltage Vector:
- Low 2 Voltage Vector: Delta
- High Voltage Bushing: Top cover mounted
- Low Voltage Bushing: Top Cover Mounted
- HV2 Bushing:
- LV2 Bushing: Sidewall tank mounted
- Station Type: Auto Transformer
- Live Dead:
- Feed:
- Type: Mineral Oil Filled

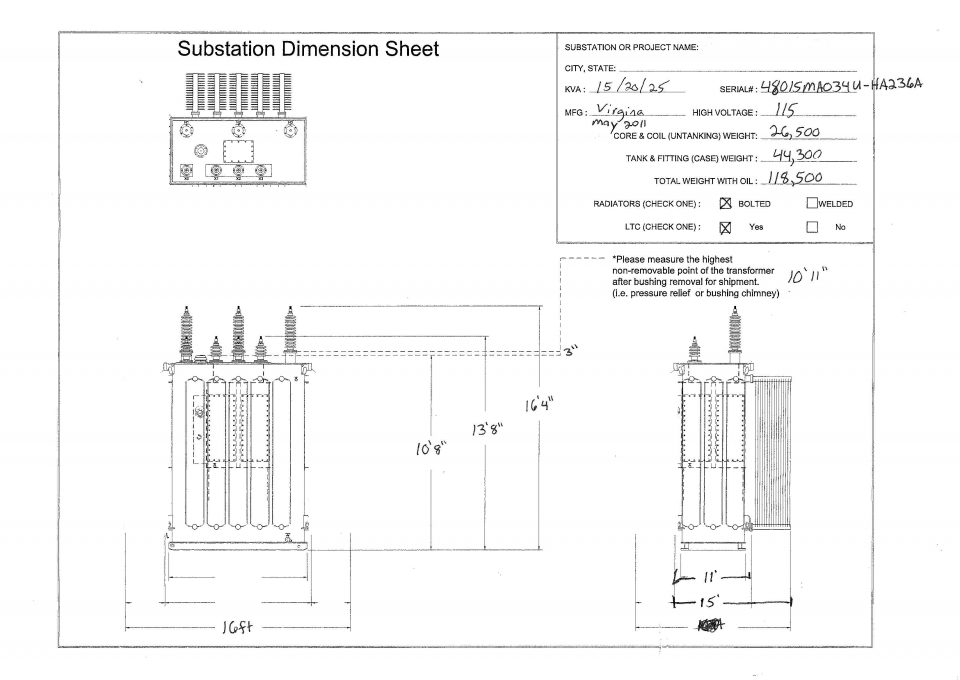

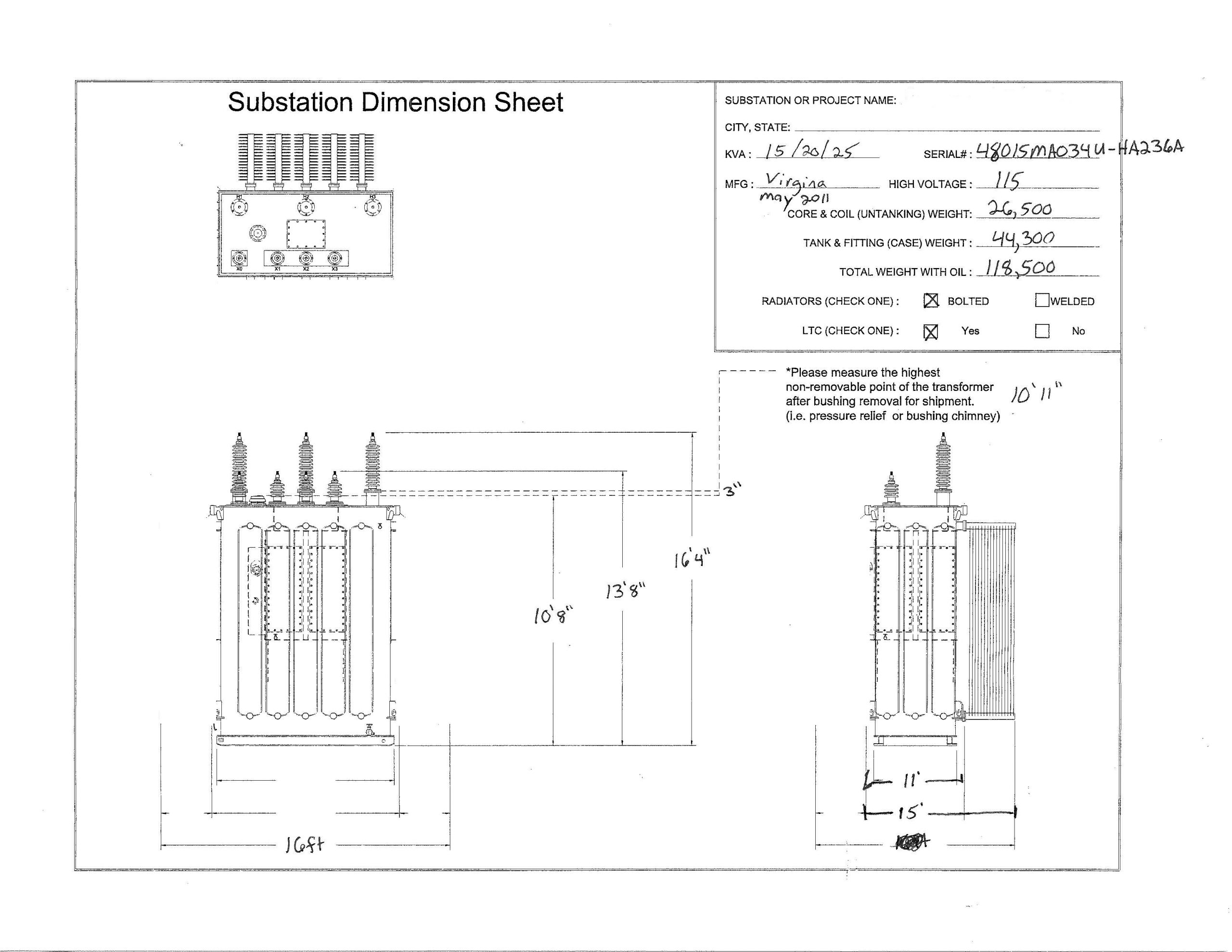

- Width: 192
- Length: 180
- Height: 196
- Weight: 118500
- Phase: 3
- HZ: 60
- DOM: 2011
- MFG: Virginia Transformer
