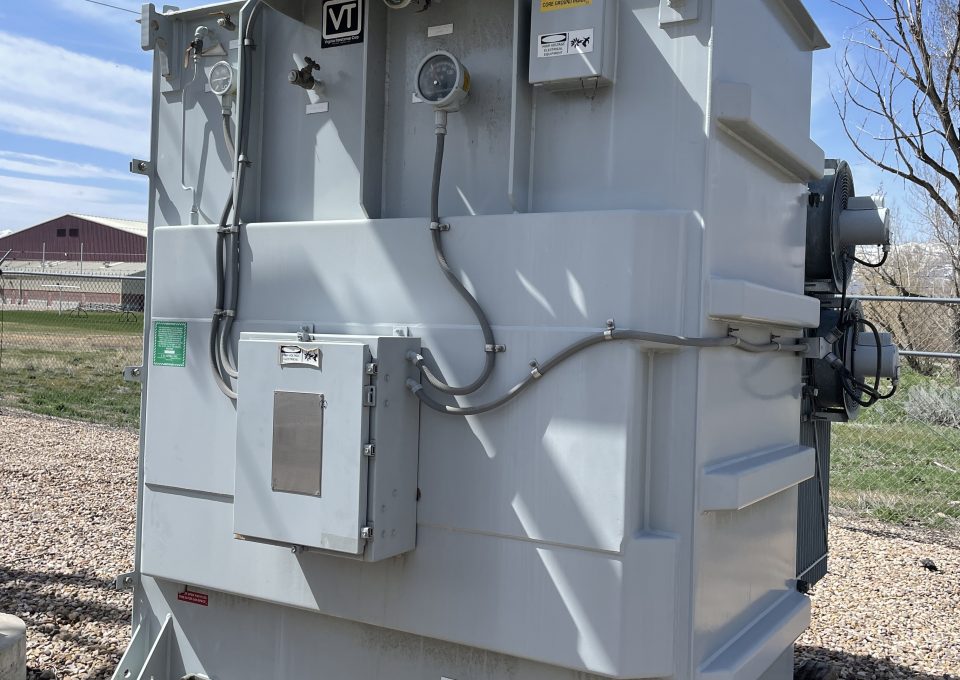

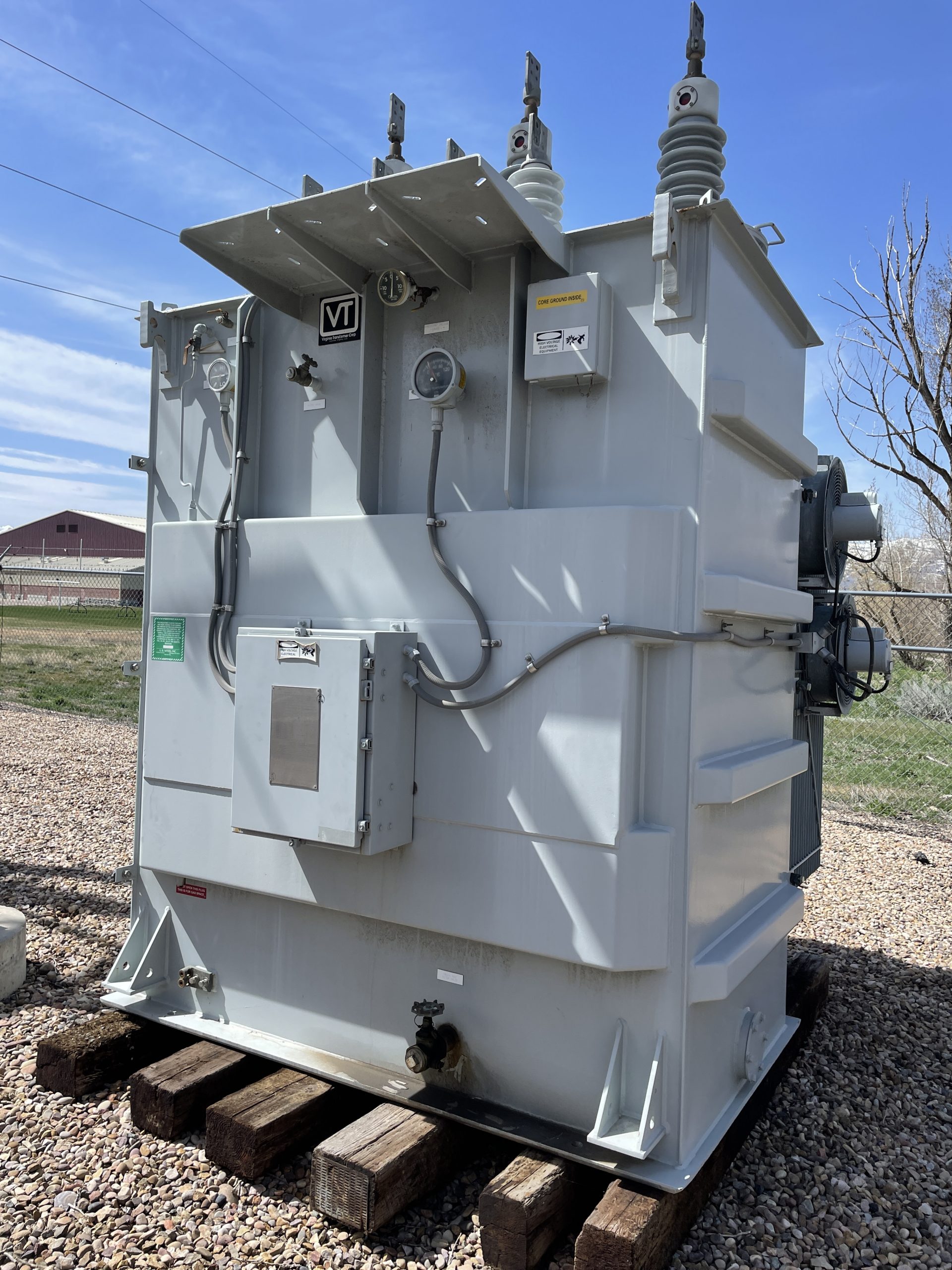

Virginia Transformer 5 MVA

Product ID: 5736

5/6.25 MVA, Oil filled substation stepdown transformer, 43800 v delta primary, 12470/7200 v wye secondary, top/top bushing configuration

  • Size: 5/6.25 MVA
  • HV_H: 43800
  • HV 2:
  • Dual HV:
  • HV TC Type: Off Load Tap Changer
  • LV_1_X: 12470
  • LV_2_Y:
  • LV2 Type:
  • Dual LV:
  • LV TC Type:
  • See Notes: Yes
  • High Voltage Vector: Delta
  • Low Voltage Vector: Wye
  • High 2 Voltage Vector:
  • Low 2 Voltage Vector:
  • High Voltage Bushing: Top cover mounted
  • Low Voltage Bushing: Top Cover Mounted
  • HV2 Bushing:
  • LV2 Bushing:
  • Station Type: Substation Stepdown
  • Live Dead:
  • Feed:
  • Type: Mineral Oil Filled
  • Width:
  • Length:
  • Height:
  • Weight: 34000
  • Phase: 3
  • HZ: 60
  • DOM: 2012
  • MFG: Virginia Transformer
