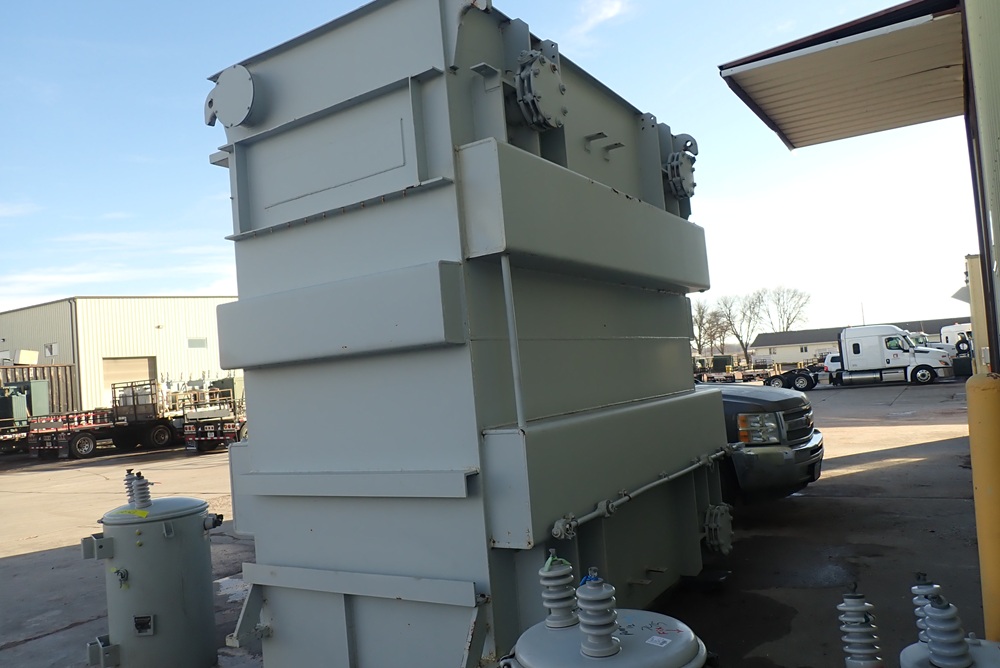

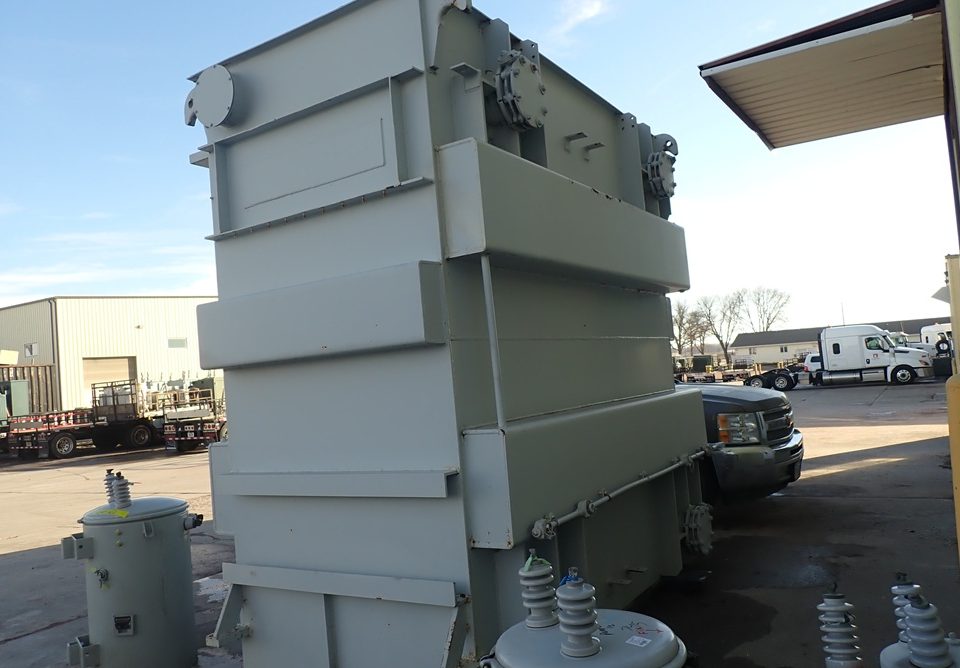

Transformer Network Substation Stepdown Transformer 69 kV D – 34.5 kV Y
Product ID: 215
Transformer Network Substation Stepdown Transformer 69 kV D - 34.5 kV Y
- Size: 12/16/20/22.4 MVA
- HV_H: 69000
- HV 2:
- Dual HV:
- HV TC Type: Off Load
- LV_1_X: 34500
- LV_2_Y:
- LV2 Type:
- Dual LV:
- LV TC Type:
- See Notes:
- High Voltage Vector: Delta
- Low Voltage Vector: Wye
- High 2 Voltage Vector:
- Low 2 Voltage Vector:
- High Voltage Bushing: Top Cover Mounted
- Low Voltage Bushing: Top Cover Mounted
- HV2 Bushing:
- LV2 Bushing:
- Station Type: Transformer Network Substation Stepdown Transformer 69 kV D - 34.5 kV Y
- Live Dead:
- Feed:
- Type: Mineral Oil Filled
- Width:
- Length:
- Height:
- Weight: 90390
- Phase: 3
- HZ: 60
- DOM:
- MFG: ransformer Network
