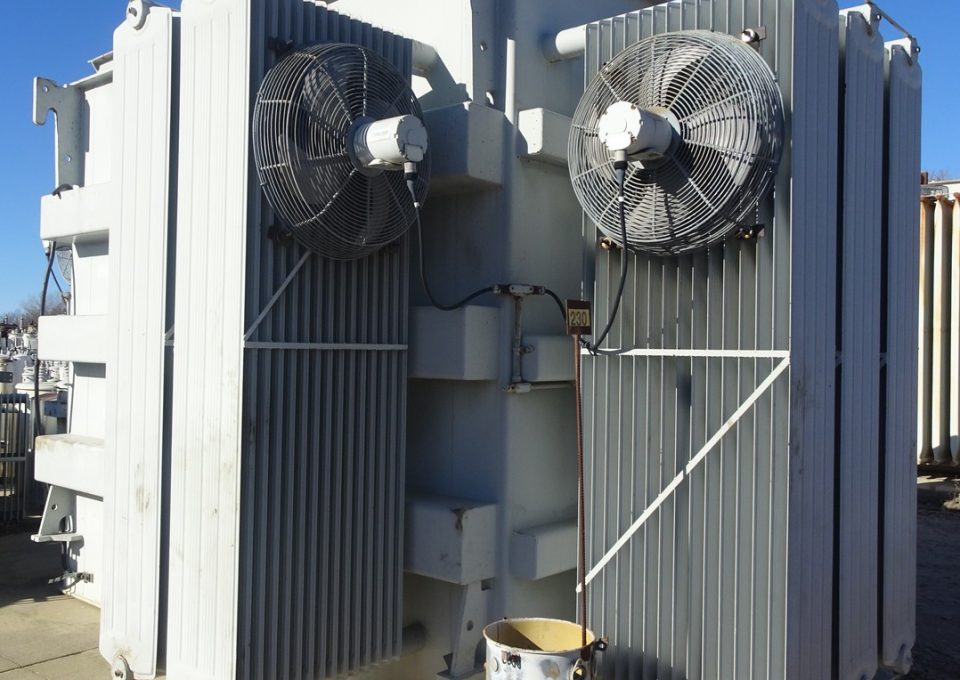

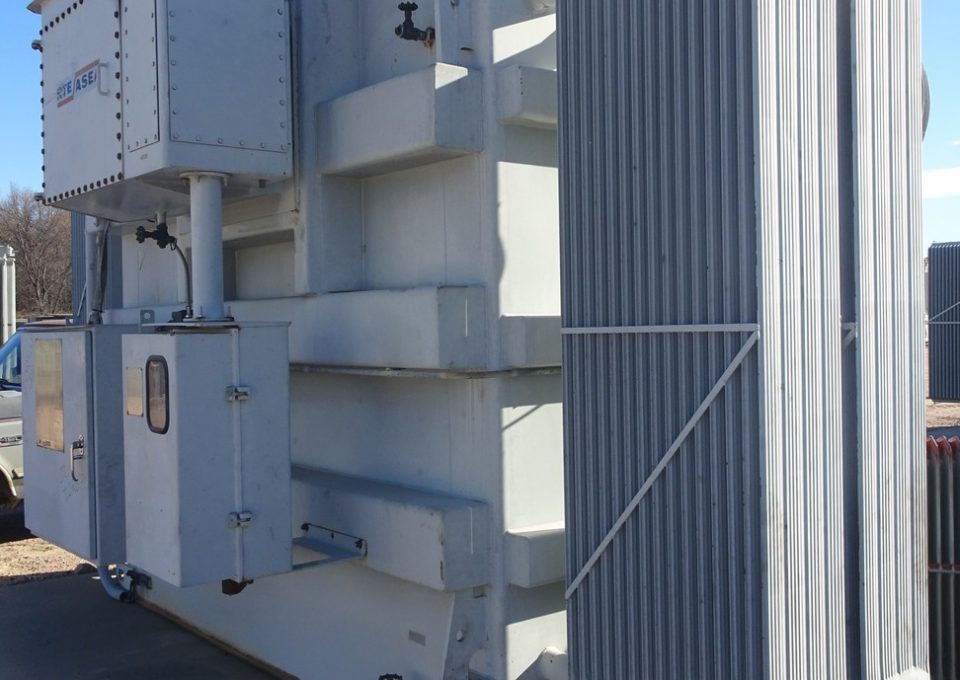

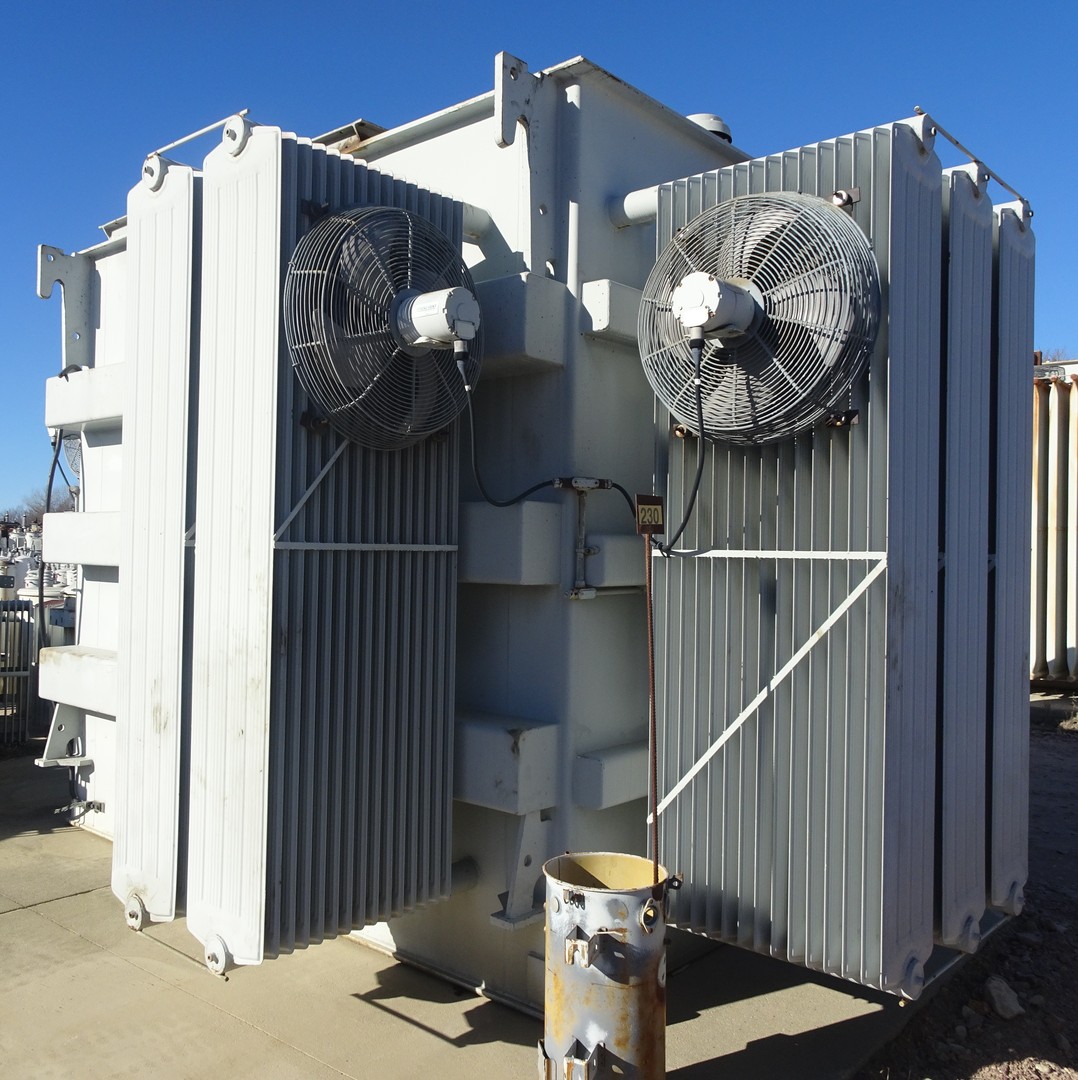

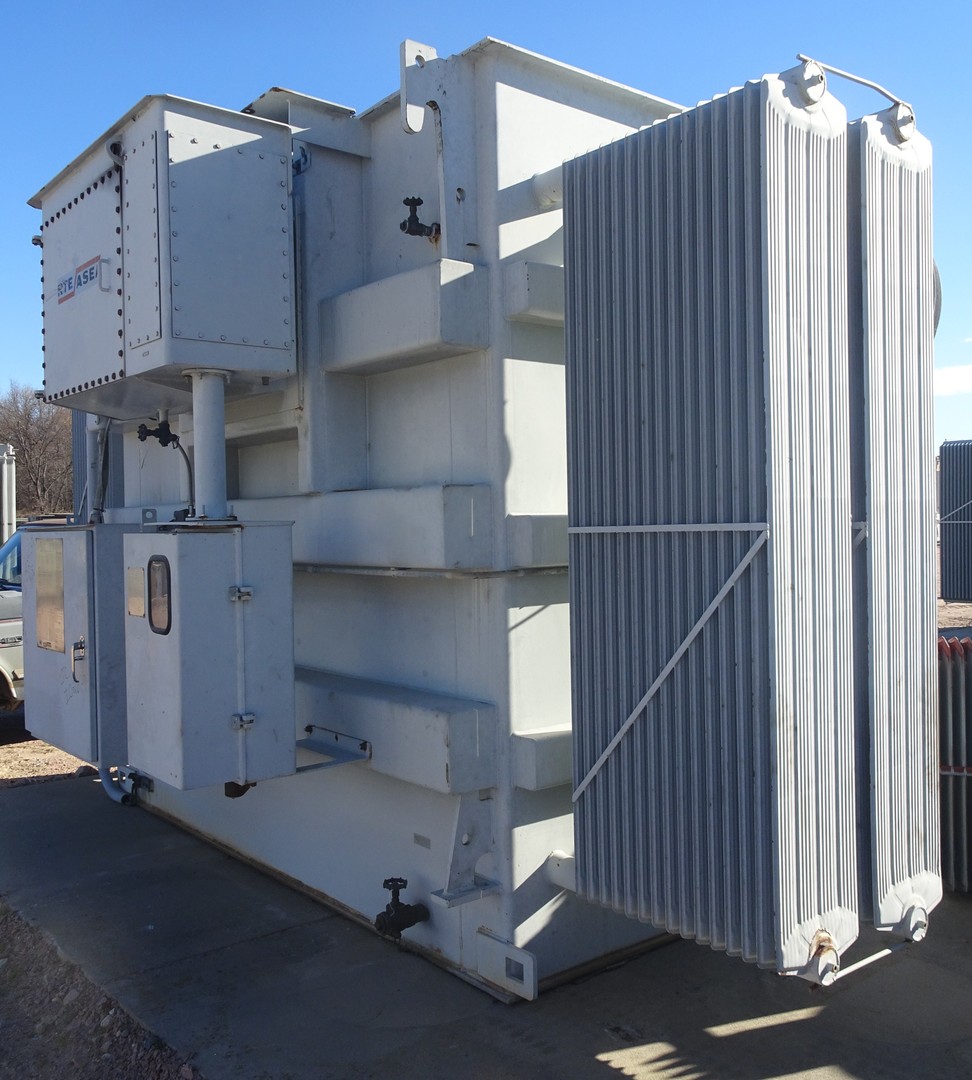

RTE/ASEA Substation Stepdown Transformer

Product ID: 5635

10 up to 14 MVA 34.4 kV Delta to 12.47 kV Wye complete with load tap changer

  • Size: 10/11.2/12.5/14 MVA
  • HV_H: 34400
  • HV 2:
  • Dual HV:
  • HV TC Type: OLTC
  • LV_1_X: 12470
  • LV_2_Y:
  • LV2 Type:
  • Dual LV:
  • LV TC Type: LTC
  • See Notes: Yes
  • High Voltage Vector: Delta
  • Low Voltage Vector: Wye
  • High 2 Voltage Vector:
  • Low 2 Voltage Vector:
  • High Voltage Bushing: Top Mounted
  • Low Voltage Bushing: Top Mounted
  • HV2 Bushing:
  • LV2 Bushing:
  • Station Type: Substation Stepdown
  • Live Dead:
  • Feed:
  • Type: Oil Filled
  • Width:
  • Length:
  • Height:
  • Weight: 78700
  • Phase: 3
  • HZ: 60
  • DOM:
  • MFG: RTE/ASEA
