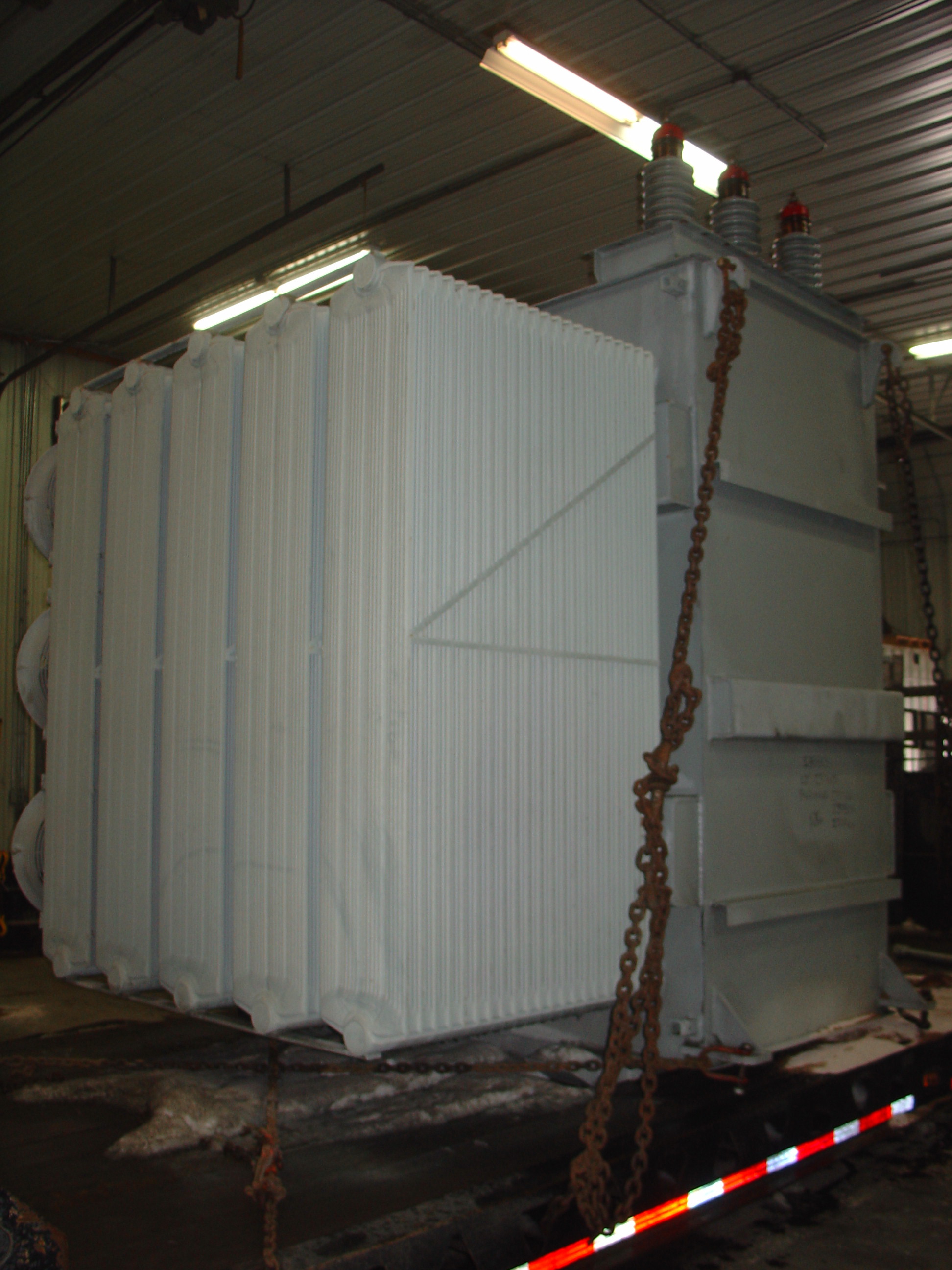

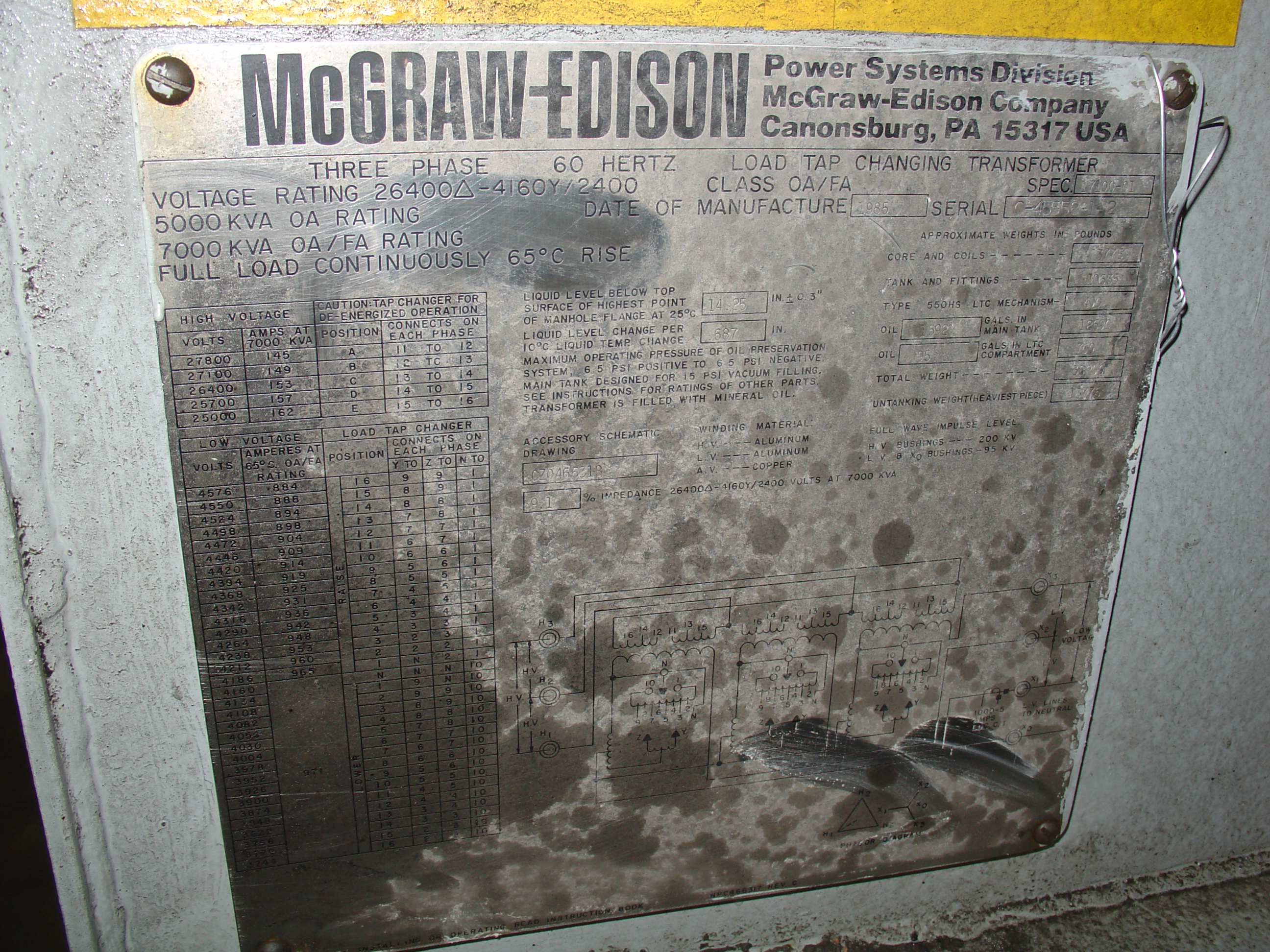

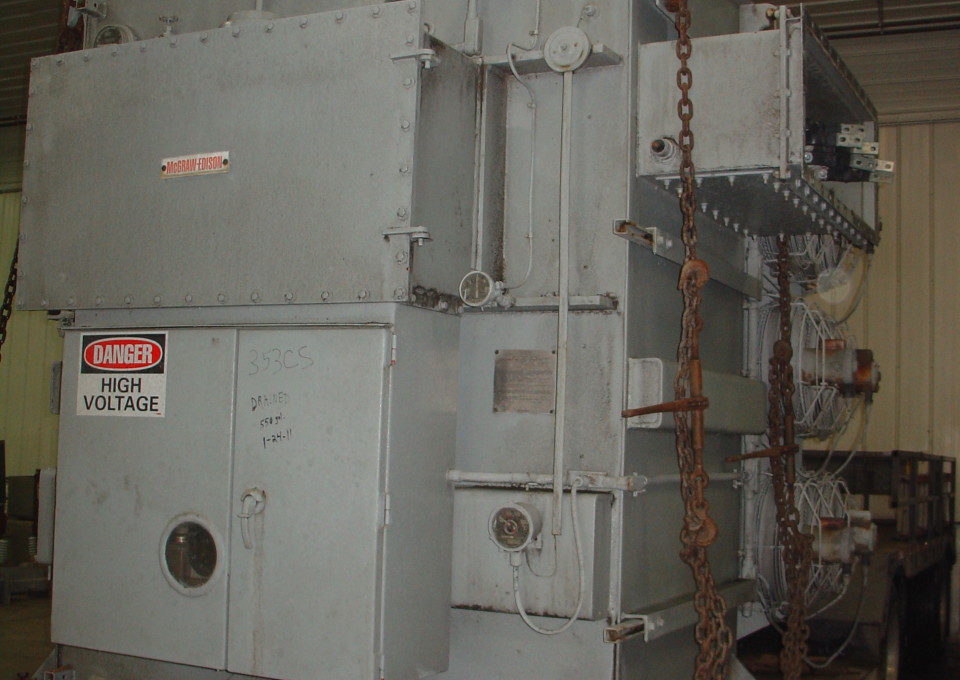

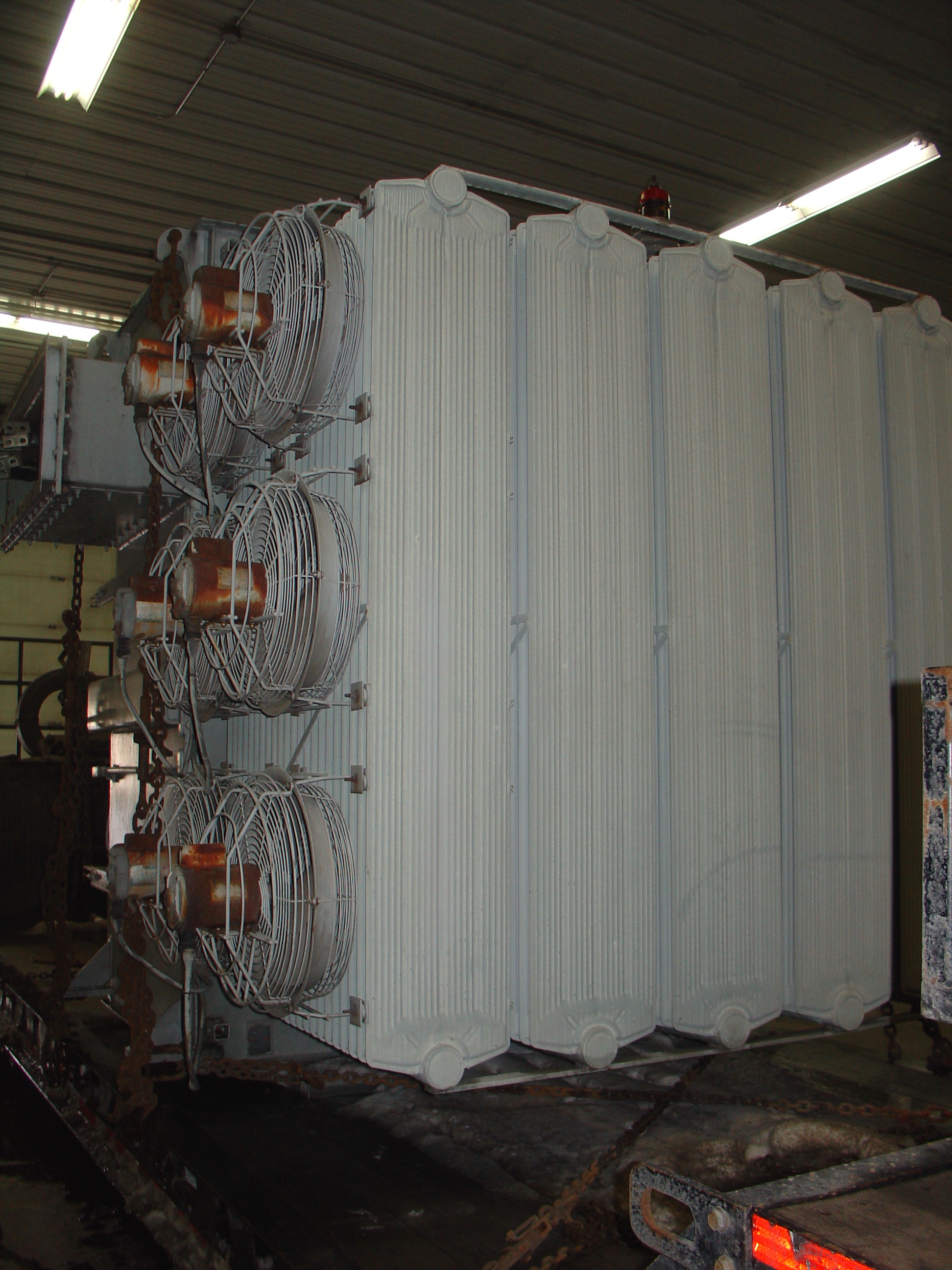

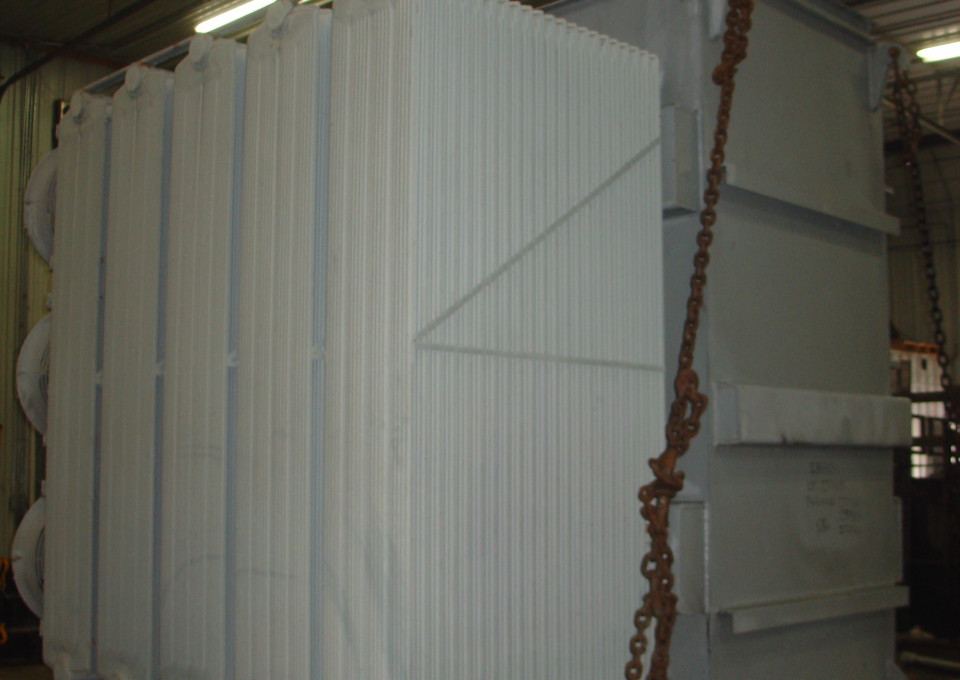

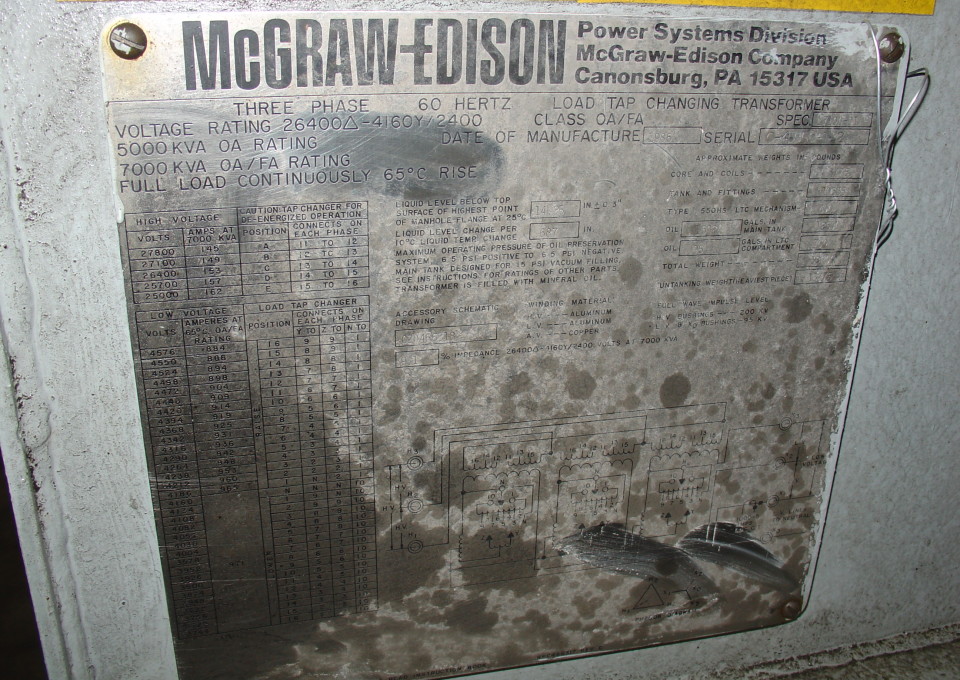

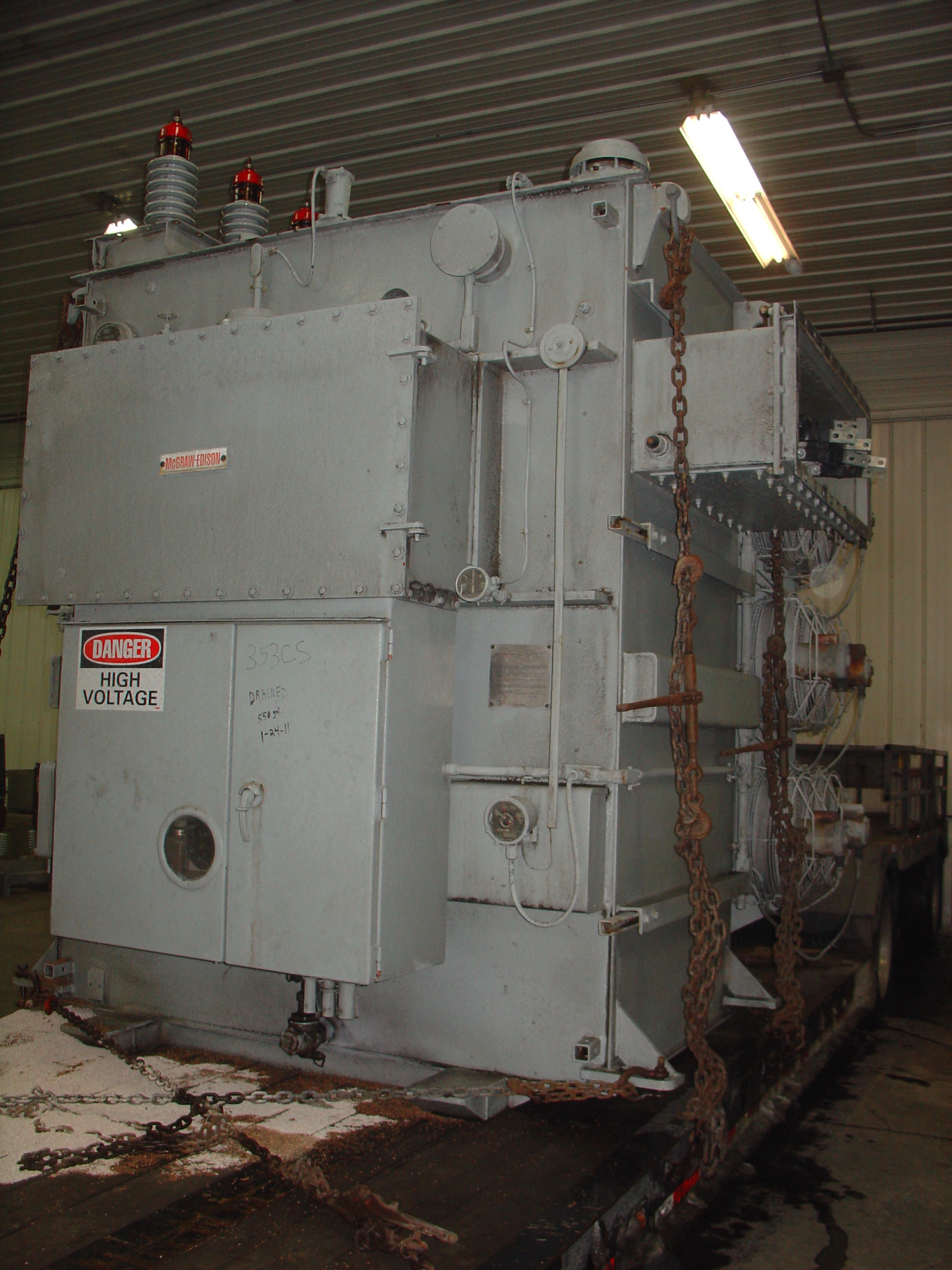

McGraw Edison Three Phase Load Tap Changing Power Transformer, 5 MVA

Product ID: 5576

  • Size: 5/7 MVA
  • HV_H: 26400
  • HV 2:
  • Dual HV:
  • HV TC Type: OLTC
  • LV_1_X: 4160
  • LV_2_Y:
  • LV2 Type:
  • Dual LV:
  • LV TC Type: LTC
  • See Notes: Yes
  • High Voltage Vector: Delta
  • Low Voltage Vector: Wye
  • High 2 Voltage Vector:
  • Low 2 Voltage Vector:
  • High Voltage Bushing: Top
  • Low Voltage Bushing: End
  • HV2 Bushing:
  • LV2 Bushing:
  • Station Type: Substation
  • Live Dead:
  • Feed:
  • Type: Oil
  • Width:
  • Length:
  • Height:
  • Weight: 38200
  • Phase: 3
  • HZ: 60
  • DOM: 1986
  • MFG: McGraw Edison
