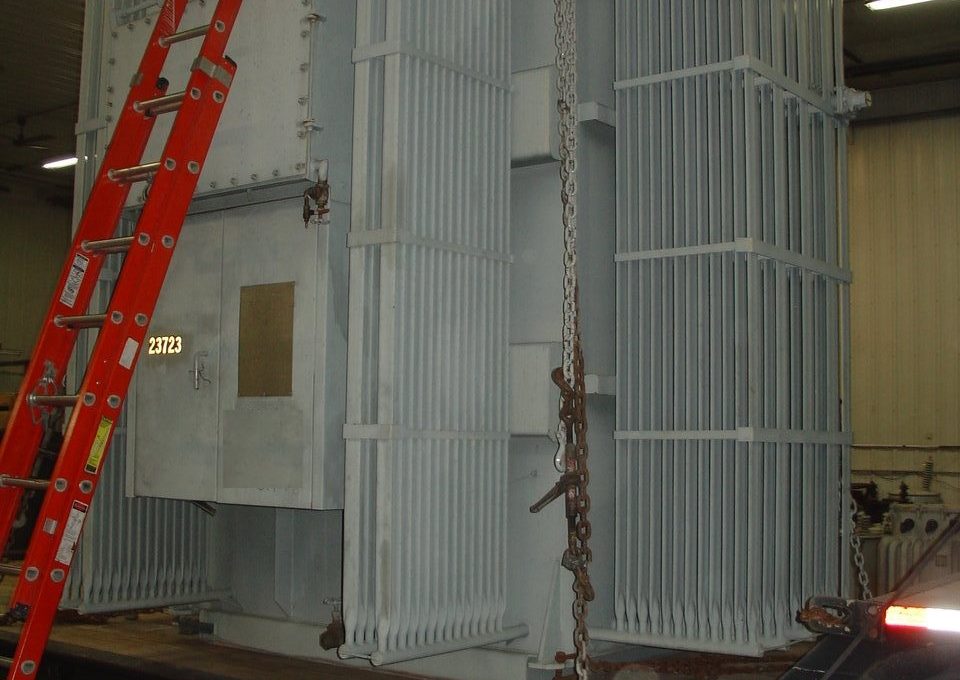

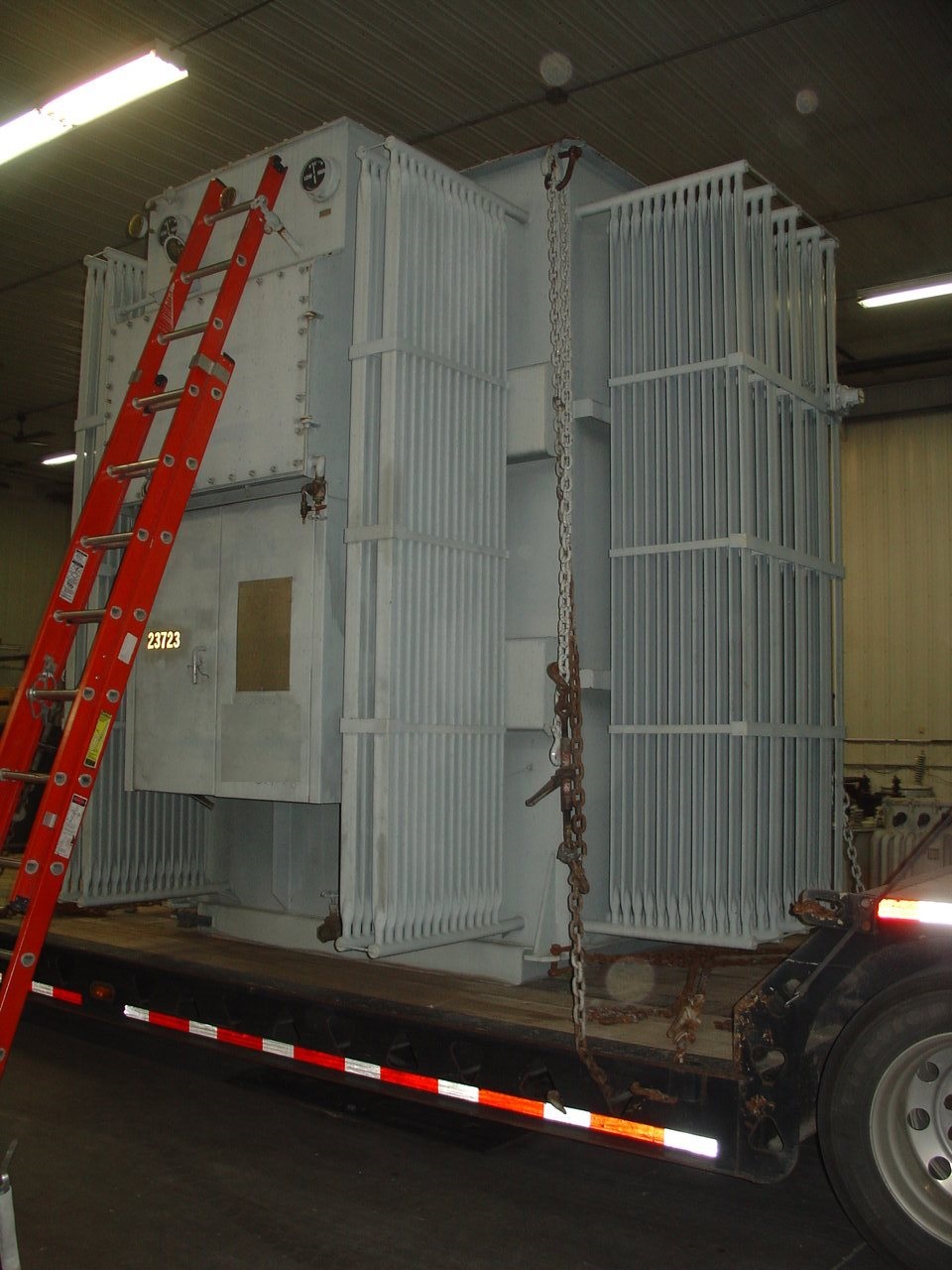

GE Load Tap Changing Transformer
Product ID: 5649
7.5 MVA Base rated oil filled transformer. 67 kV Delta to 12.47 kV Wye with load tap changer.
- Size: 7.5/9.375/10.5 MVA
- HV_H: 67000
- HV 2:
- Dual HV:
- HV TC Type: OLTC
- LV_1_X: 12470
- LV_2_Y:
- LV2 Type:
- Dual LV:
- LV TC Type: LTC
- See Notes: Yes
- High Voltage Vector: Delta
- Low Voltage Vector: Wye
- High 2 Voltage Vector:
- Low 2 Voltage Vector:
- High Voltage Bushing: Top Mounted
- Low Voltage Bushing: Top Mounted
- HV2 Bushing:
- LV2 Bushing:
- Station Type: Substation Stepdown
- Live Dead:
- Feed:
- Type: Oil Filled

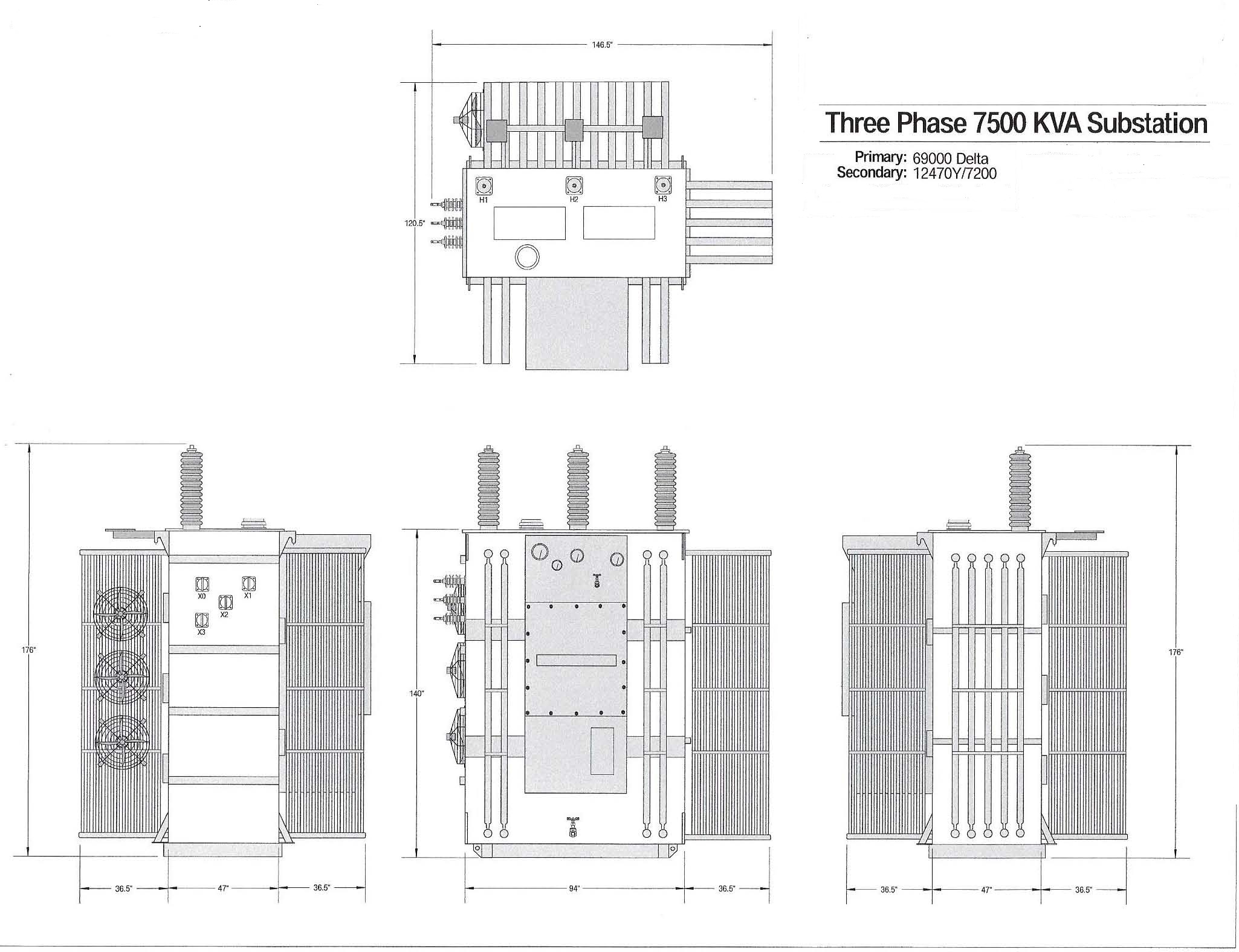

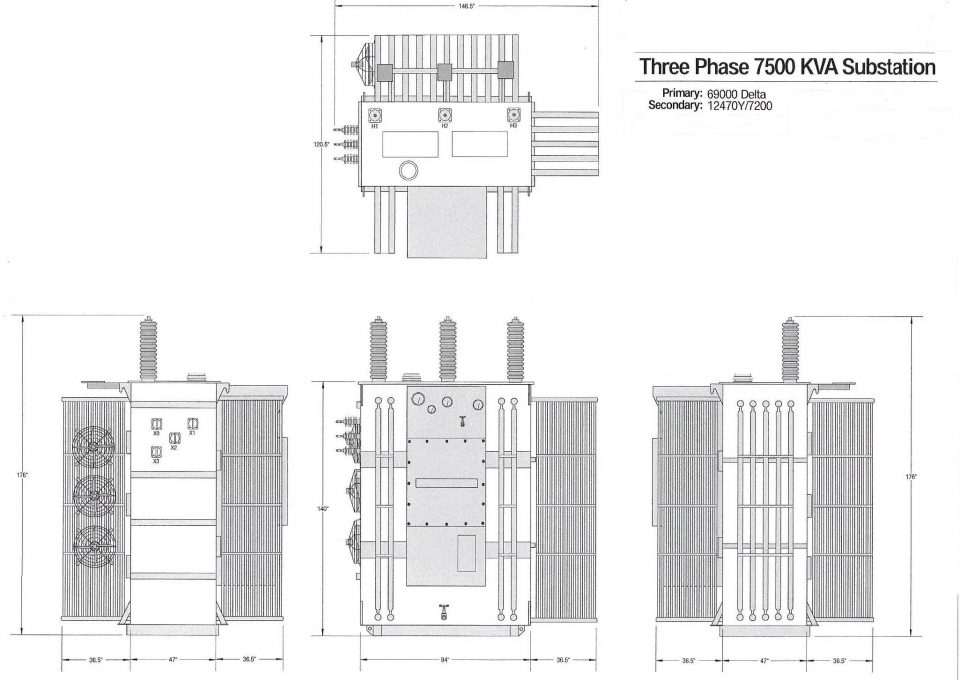

- Width: 120.5
- Length: 146.5
- Height: 173
- Weight: 46500
- Phase: 0
- HZ: 60
- DOM:
- MFG: GE - General Electric
