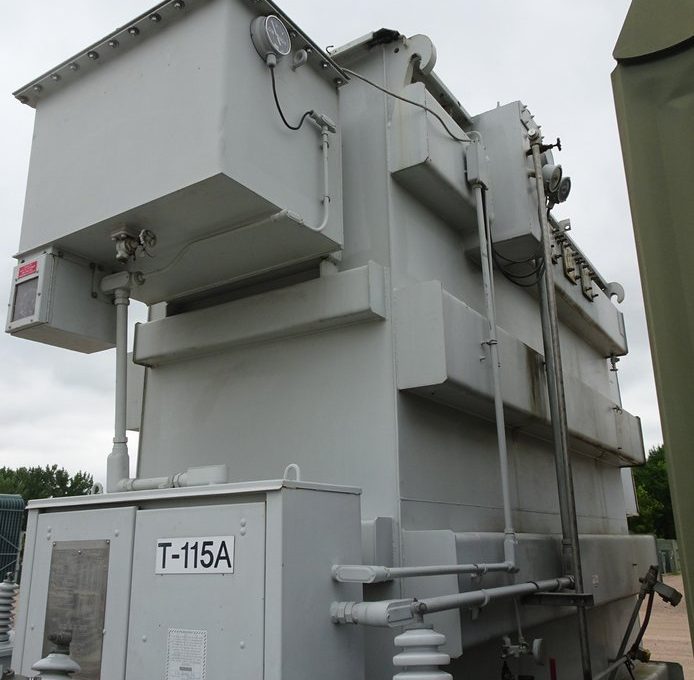

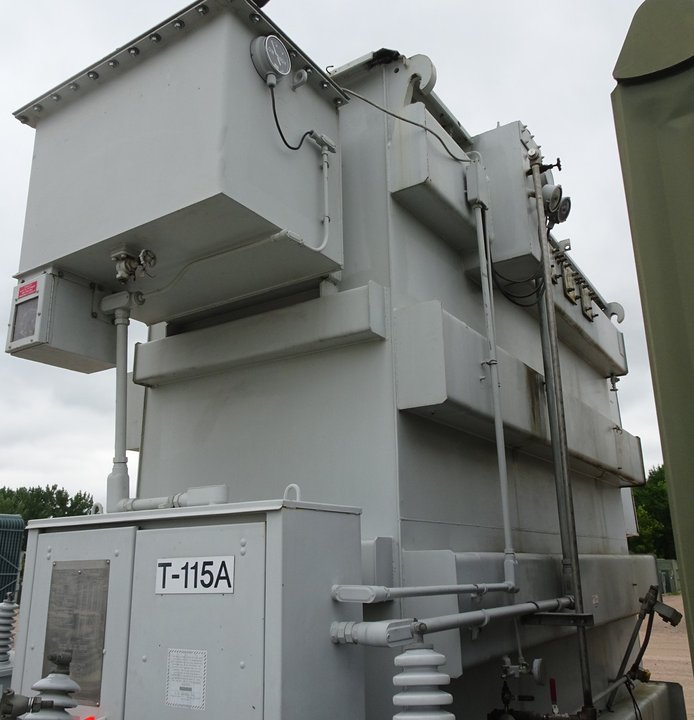

Load Tap Changing Transformer

Product ID: 5731

20/26.6/33.3/37.3 MVA Load Tap Changing Transformer, General Electric, 20 MVA Base rated unit, Substation Stepdown, Mineral oil filled

  • Size: 20/26.6/33.3/37.3 MVA
  • HV_H: 120000
  • HV 2:
  • Dual HV:
  • HV TC Type: Off Load Tap Changer
  • LV_1_X: 13800
  • LV_2_Y:
  • LV2 Type:
  • Dual LV:
  • LV TC Type: Load Tap Changer
  • See Notes: Yes
  • High Voltage Vector: Delta
  • Low Voltage Vector: Wye
  • High 2 Voltage Vector:
  • Low 2 Voltage Vector:
  • High Voltage Bushing: Top cover mounted
  • Low Voltage Bushing: Sidewall Tank Mounted
  • HV2 Bushing:
  • LV2 Bushing:
  • Station Type: Substation Stepdown
  • Live Dead:
  • Feed:
  • Type: Mineral Oil Filled
  • Width:
  • Length:
  • Height:
  • Weight: 126500
  • Phase: 3
  • HZ: 60
  • DOM:
  • MFG: General Electric
