7.5 MVA 138 kV Delta – 26.4 X 13.2 kV Wye LTC
Product ID: 5723

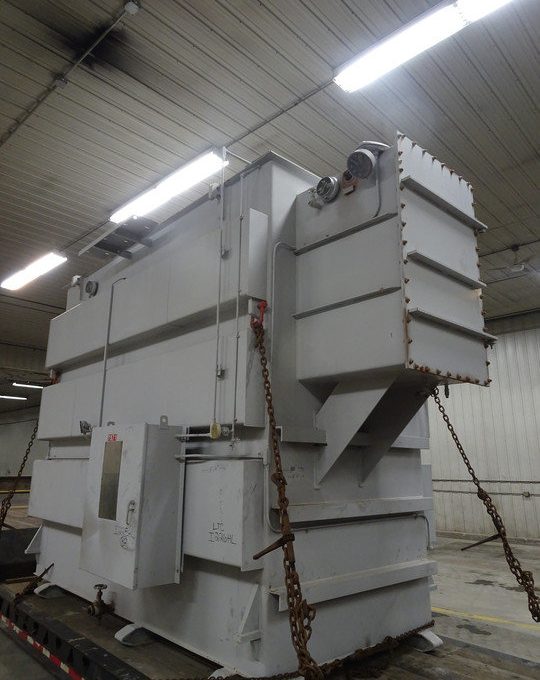

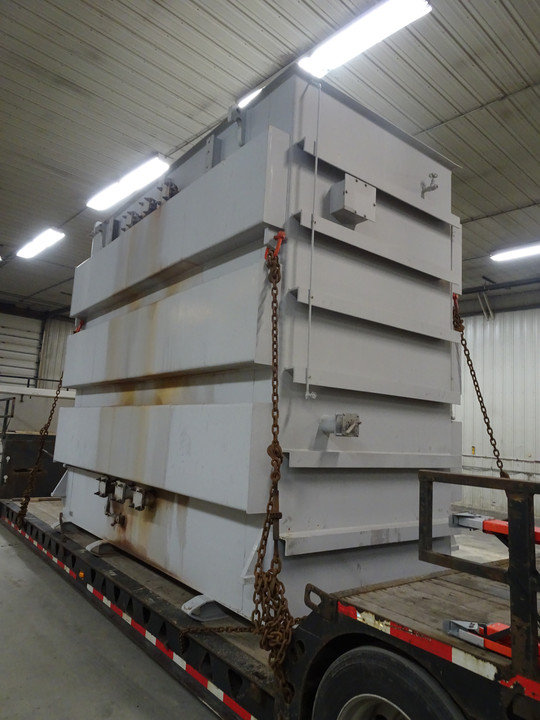

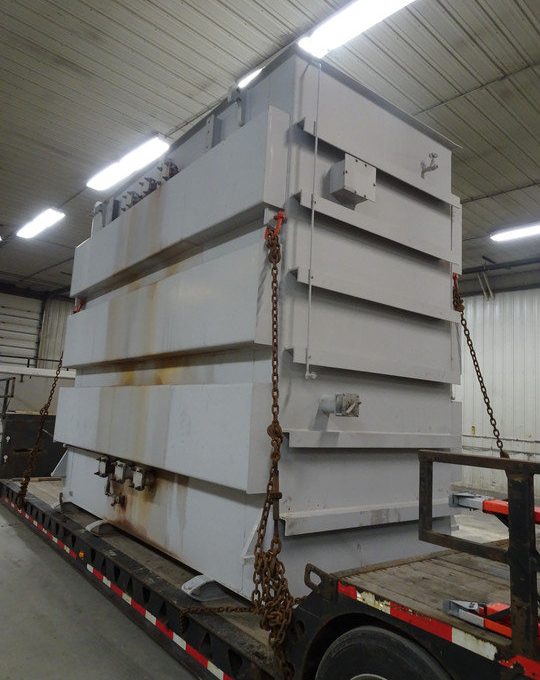

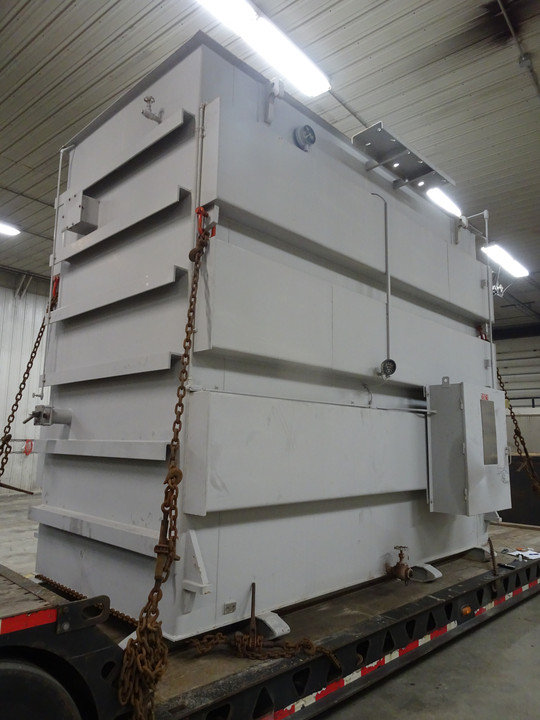

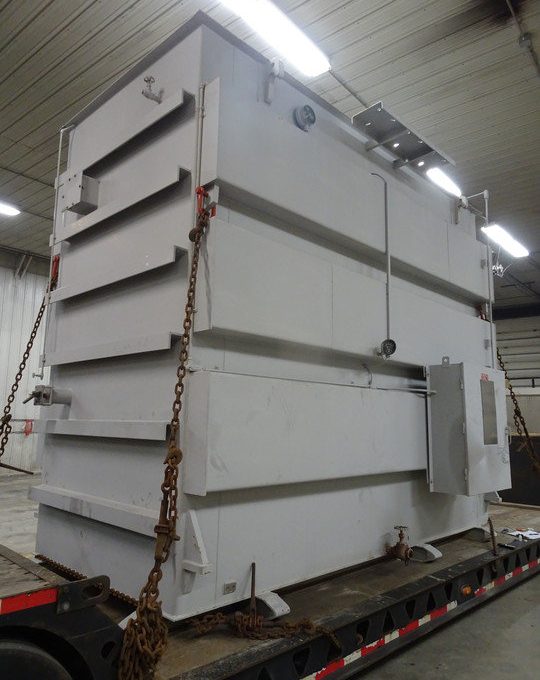

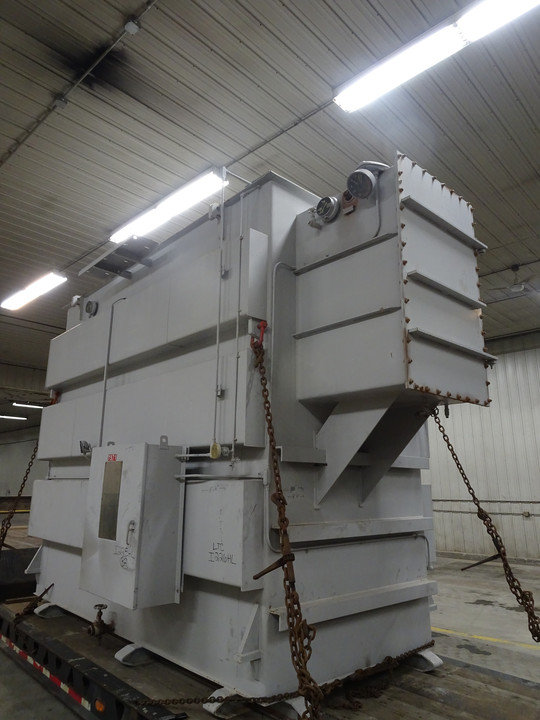

7.5/10.5 MVA Kuhlman Electric Load TAp Changing Transformer. 138 kV Delta Primary. 26.4 X 13.2 kV Wye Dual Secondary. Substation Stepdown Transformer
- Size: 7.5/10.5 MVA
- HV_H: 138000
- HV 2:
- Dual HV:
- HV TC Type: Off Load Tap Changer
- LV_1_X: 26400
- LV_2_Y: 13200
- LV2 Type:
- Dual LV: 1
- LV TC Type: Load Tap Changer
- See Notes: Yes
- High Voltage Vector: Delta
- Low Voltage Vector: Wye
- High 2 Voltage Vector:
- Low 2 Voltage Vector: Wye
- High Voltage Bushing: Top cover mounted Segment 3
- Low Voltage Bushing: Top cover mounted Segment 1
- HV2 Bushing:
- LV2 Bushing:
- Station Type: Substation Stepdown
- Live Dead:
- Feed:
- Type: Mineral Oil Filled
- Width: 202
- Length: 103
- Height: 150
- Weight: 111597
- Phase: 3
- HZ: 60
- DOM:
- MFG: Kuhlman Electric
