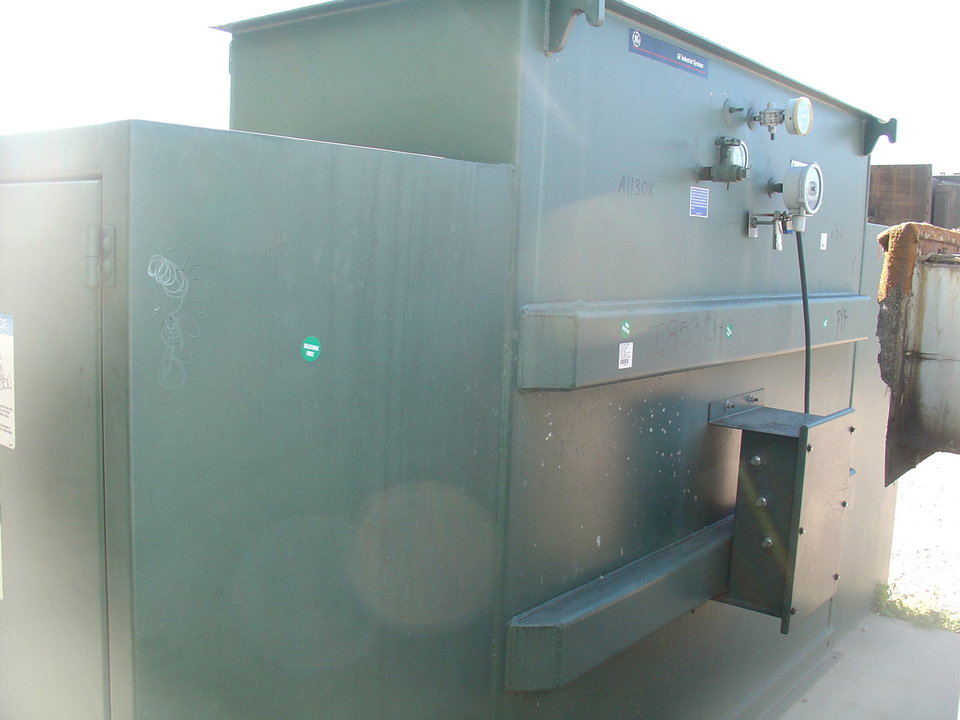

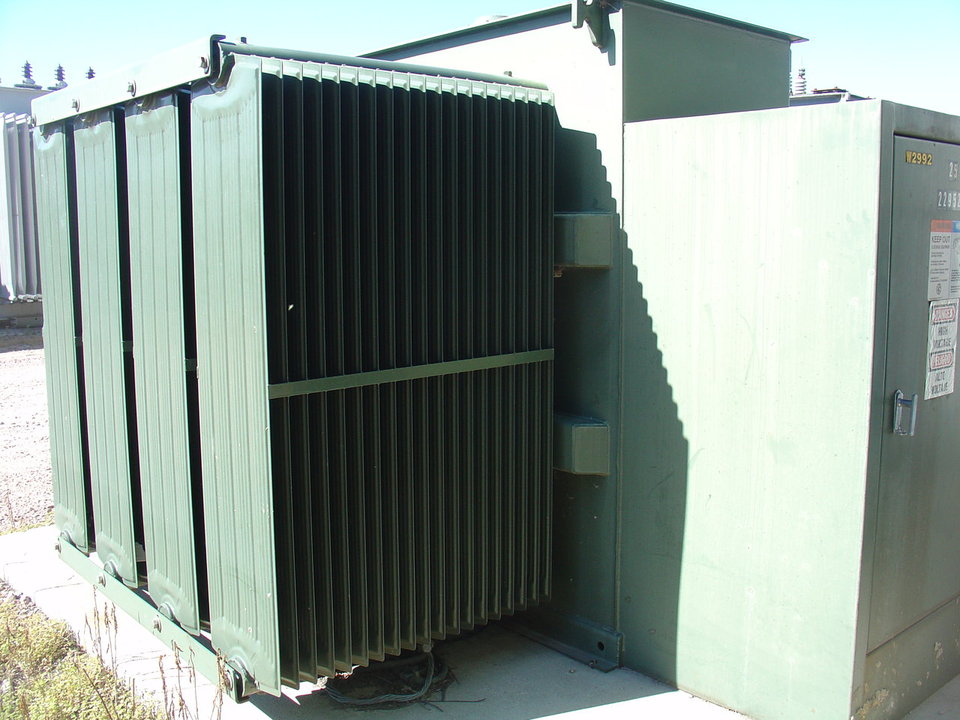

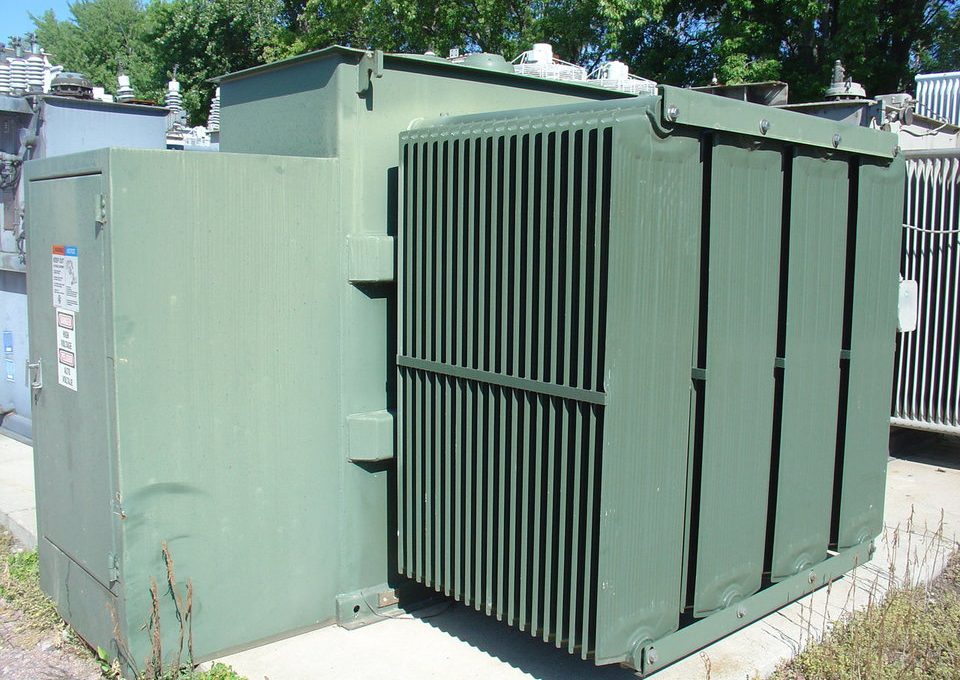

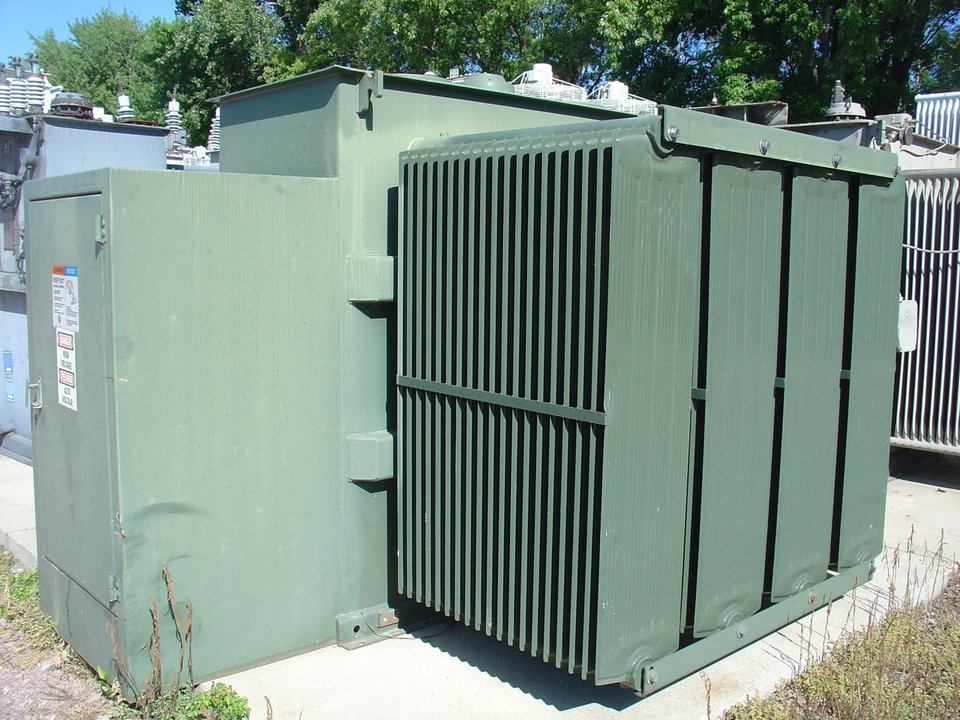

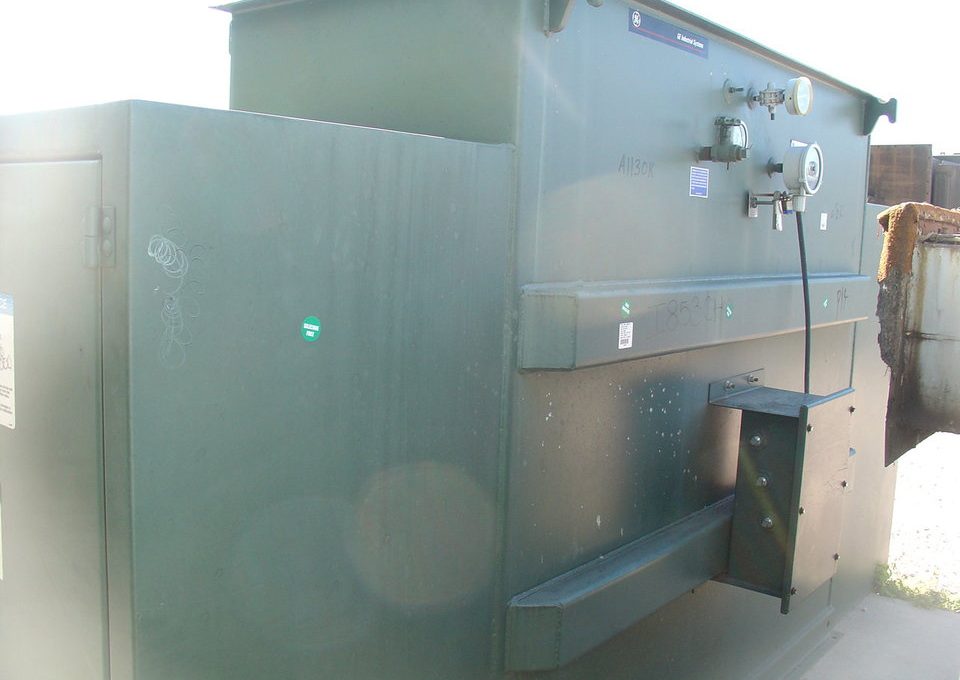

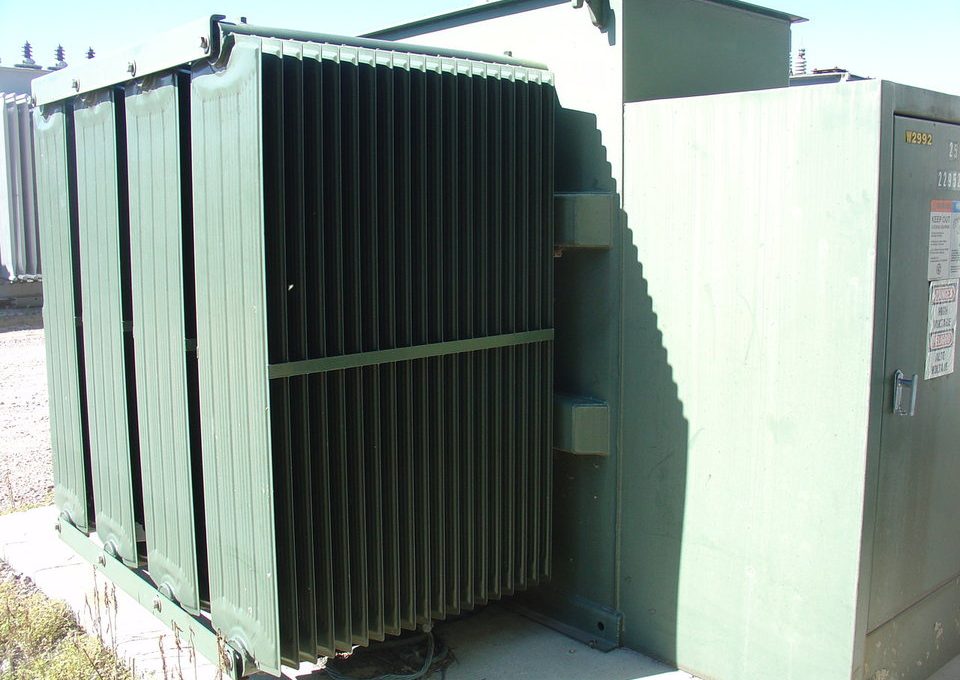

GE 5 MVA Unit Substation

Product ID: 5714

GE 5 MVA End/End Unit Substation, 24940 Delta Primary, 4160/2400 Wye Secondary

  • Size: 5/6.25 MVA
  • HV_H: 24940
  • HV 2:
  • Dual HV:
  • HV TC Type: Off Load Tap Changer
  • LV_1_X: 4160
  • LV_2_Y:
  • LV2 Type:
  • Dual LV:
  • LV TC Type:
  • See Notes: Yes
  • High Voltage Vector: Delta
  • Low Voltage Vector: Wye
  • High 2 Voltage Vector:
  • Low 2 Voltage Vector:
  • High Voltage Bushing: Side wall Mounted
  • Low Voltage Bushing: Side Wall Mounted
  • HV2 Bushing:
  • LV2 Bushing:
  • Station Type: Substation Step down
  • Live Dead:
  • Feed:
  • Type: Mineral Oil Filled
  • Width:
  • Length:
  • Height:
  • Weight: 19830
  • Phase: 3
  • HZ: 60
  • DOM: 2002

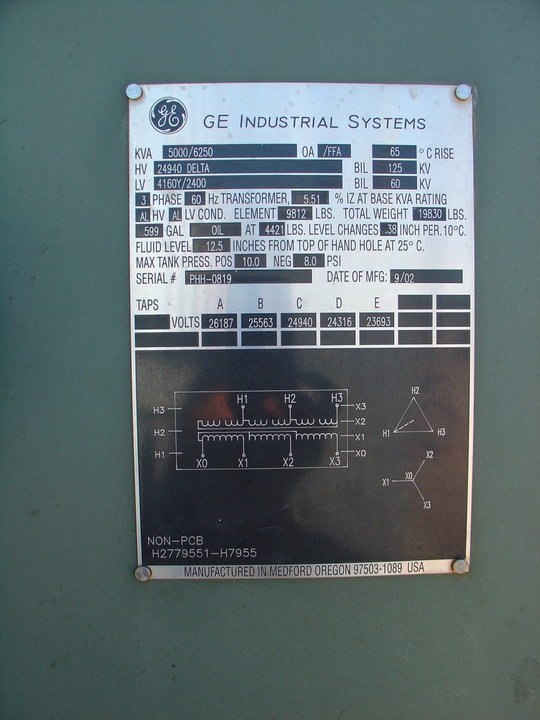

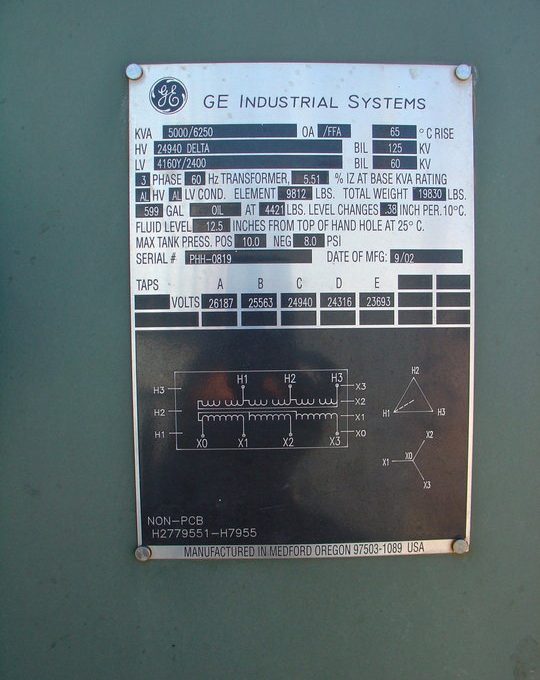

  • MFG: General Electric
