Westinghouse 24 MVA Mobile 67 X 33.5 kV Delta 13.09 kV Wye
Product ID: 6004

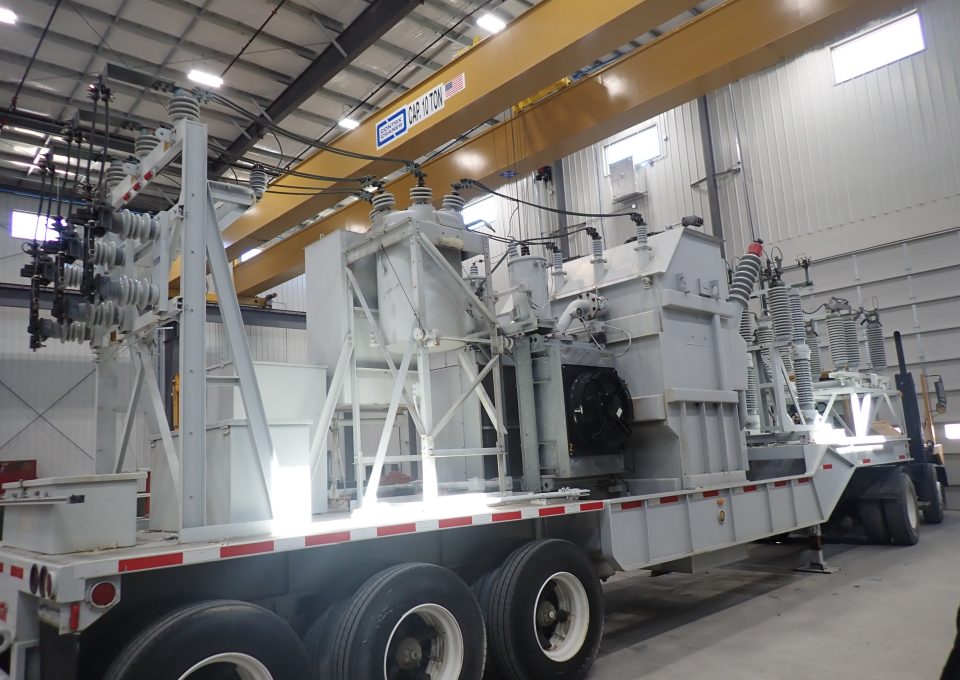

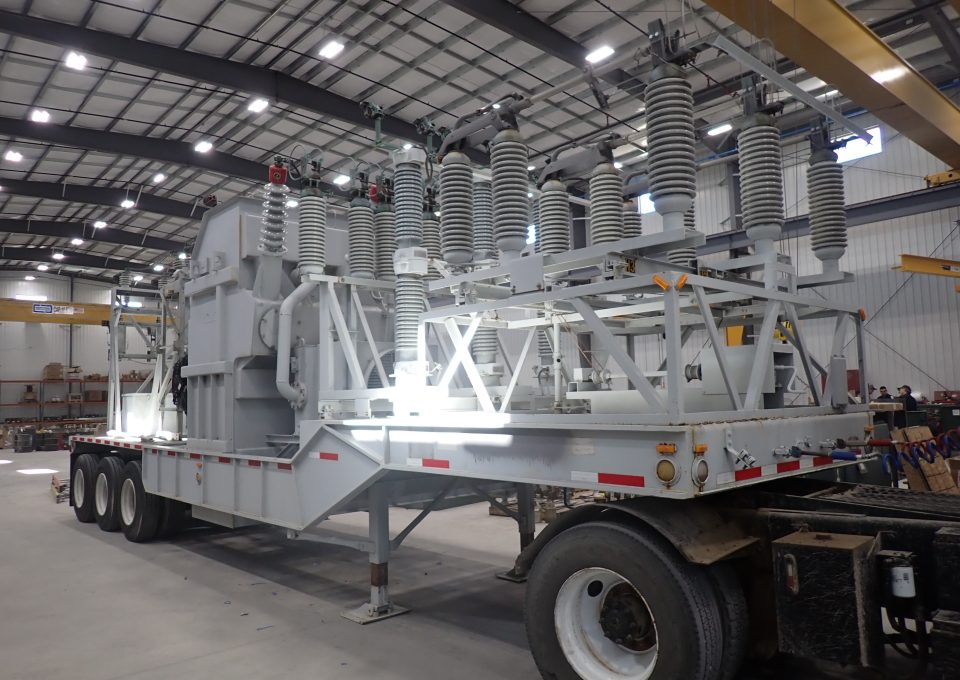

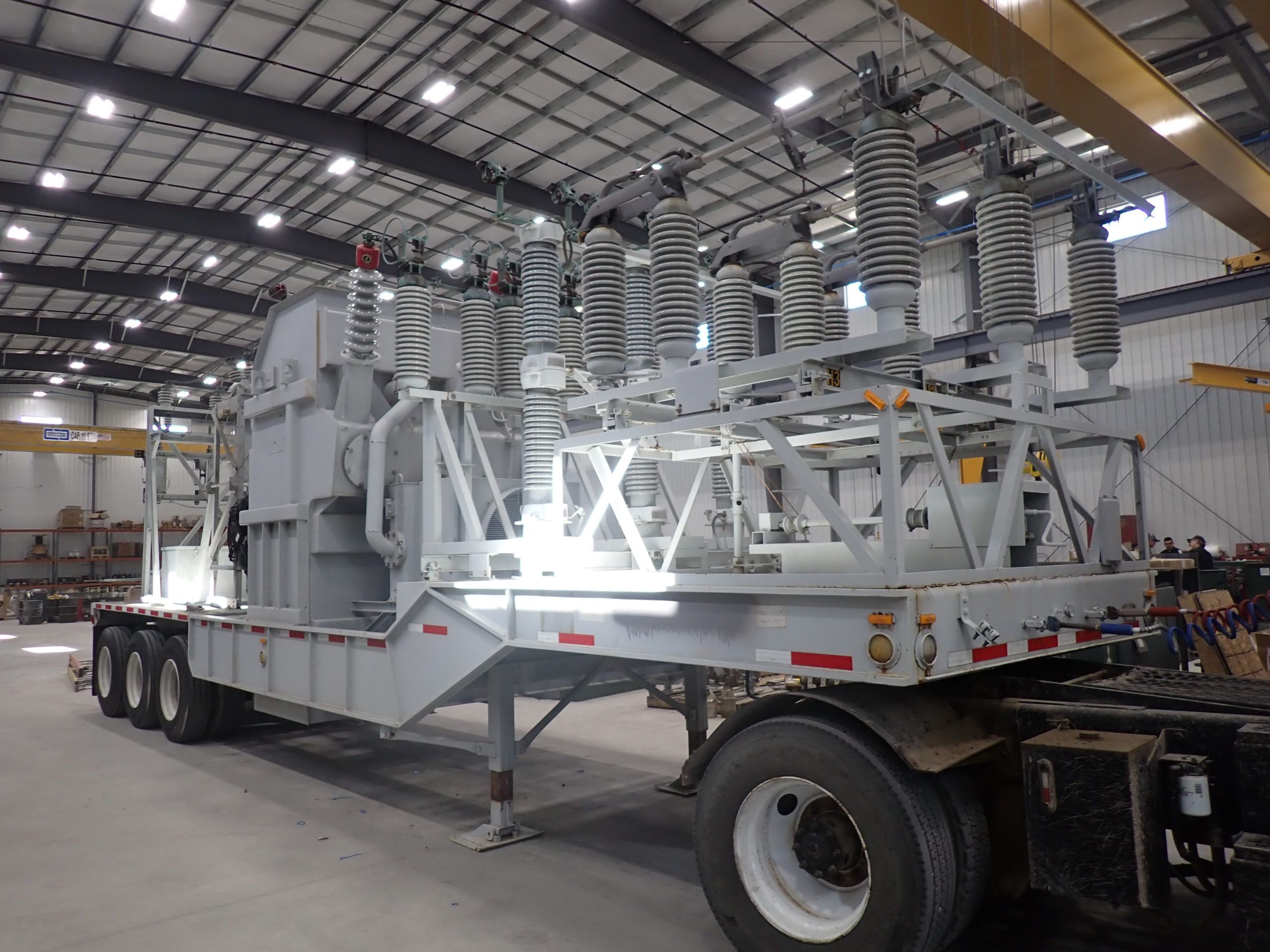

Westinghouse Mobile Substation Stepdown Transformer 24 MVA Dual HV 67 X 33.5 kV Delta to 13.09/7.56 kV Wye
- Size: 24 MVA
- HV_H: 67000
- HV 2: 33500
- Dual HV: 1
- HV TC Type: Off Load
- LV_1_X: 13090
- LV_2_Y:
- LV2 Type:
- Dual LV:
- LV TC Type:
- See Notes: Yes
- High Voltage Vector: Delta
- Low Voltage Vector: Wye
- High 2 Voltage Vector: Delta
- Low 2 Voltage Vector:
- High Voltage Bushing: Top Cover Mounted
- Low Voltage Bushing: Top Cover Mounted
- HV2 Bushing:
- LV2 Bushing:
- Station Type: Mobile Substation Stepdown
- Live Dead:
- Feed:
- Type: Mineral Oil Filled
- Width:
- Length:
- Height:
- Weight: 71000
- Phase: 3
- HZ: 60
- DOM: 1976
- MFG: Westinghouse
