Federal Pacific Substation 67 kV Delta – 13.2/7.62 kV Wye
Product ID: 6002

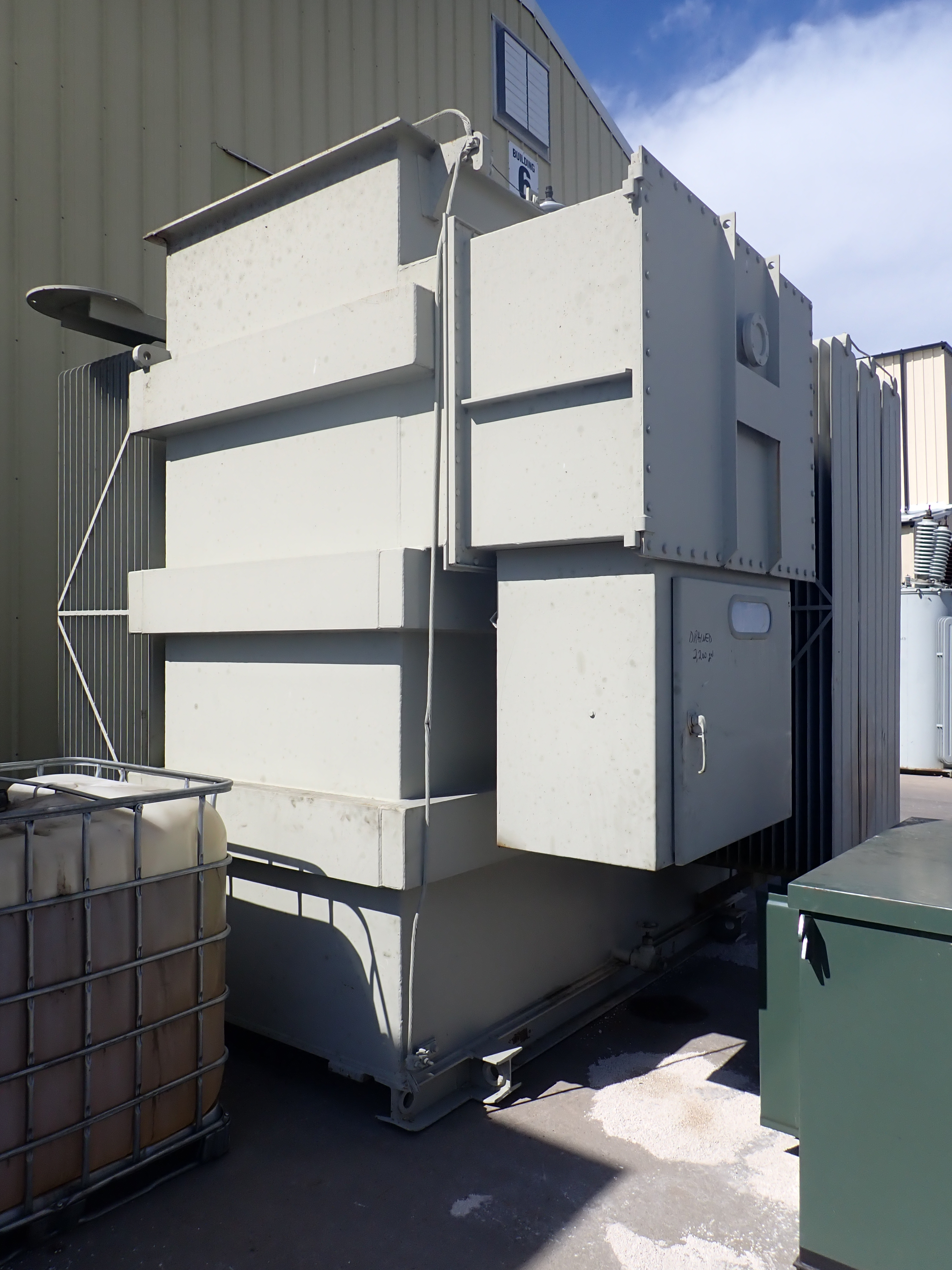

Federal Pacific Mineral Oil Filled Substation Stepdown Transformer 67 kV Delta HV 13.2/7.62 kV Wye LV with Load Tap Changer 7500 kva with future provisions for 9375 kva
- Size: 7.5/9.375 MVA
- HV_H: 67000
- HV 2:
- Dual HV:
- HV TC Type: Off Load
- LV_1_X: 13200
- LV_2_Y:
- LV2 Type:
- Dual LV:
- LV TC Type: Load Tap Changer
- See Notes: Yes
- High Voltage Vector: Delta
- Low Voltage Vector: Wye
- High 2 Voltage Vector:
- Low 2 Voltage Vector:
- High Voltage Bushing: Top Cover Mounted
- Low Voltage Bushing: Top Cover Mounted
- HV2 Bushing:
- LV2 Bushing:
- Station Type: Substation Stepdown
- Live Dead:
- Feed:
- Type: Mineral Oil Filled
- Width:
- Length:
- Height:
- Weight: 60800
- Phase: 3
- HZ: 60
- DOM:
- MFG: Federal Pacific
