Delta Star LTC Transformer
Product ID: 5743

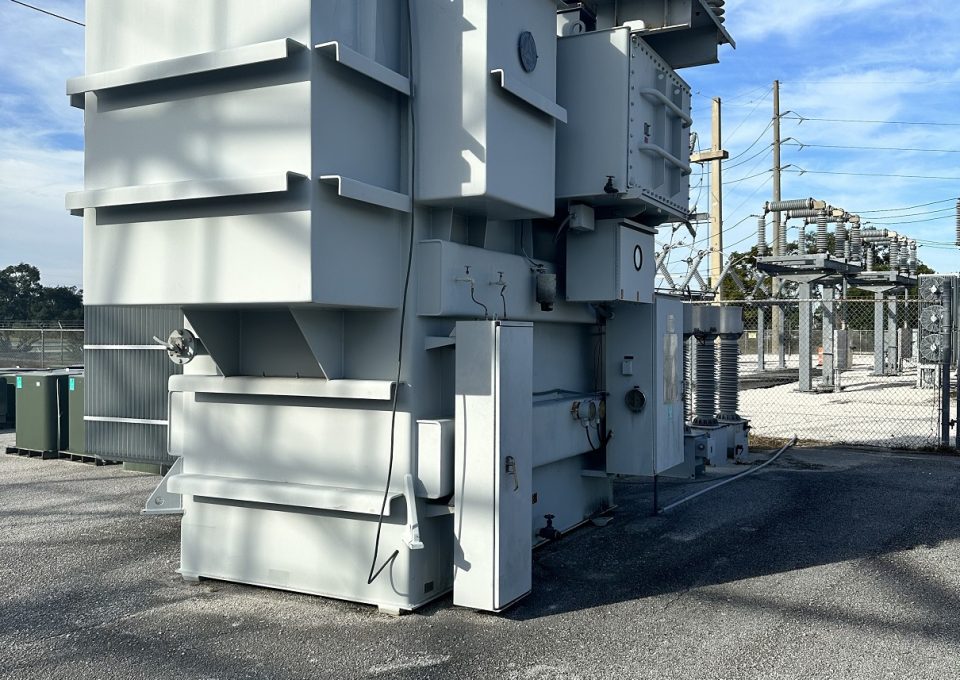

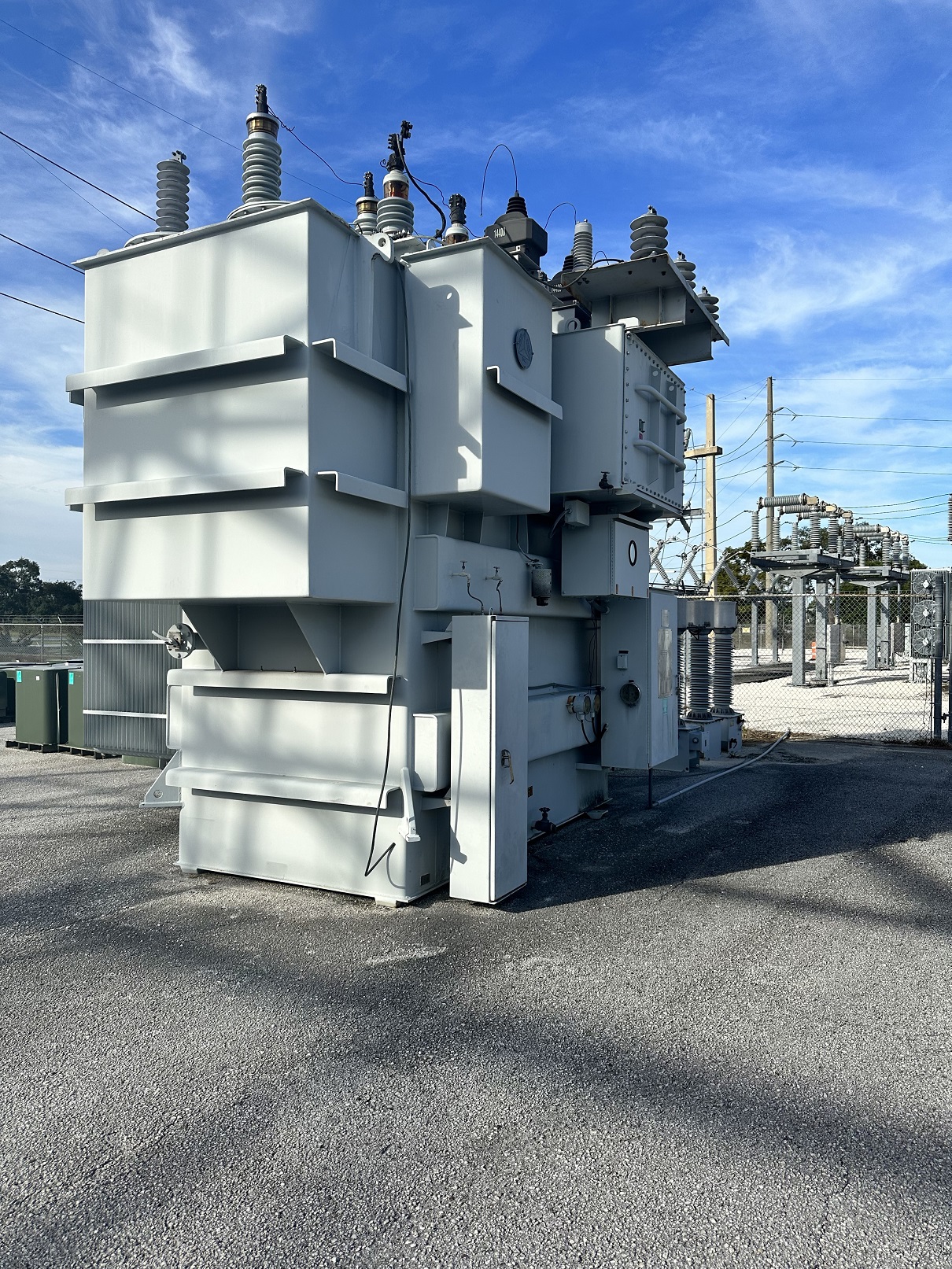

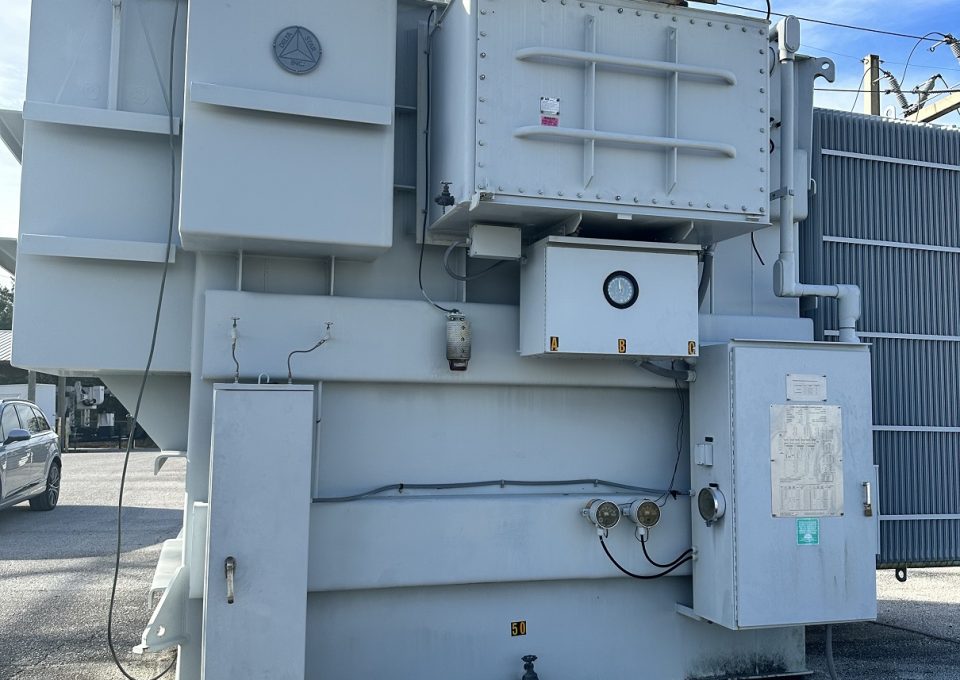

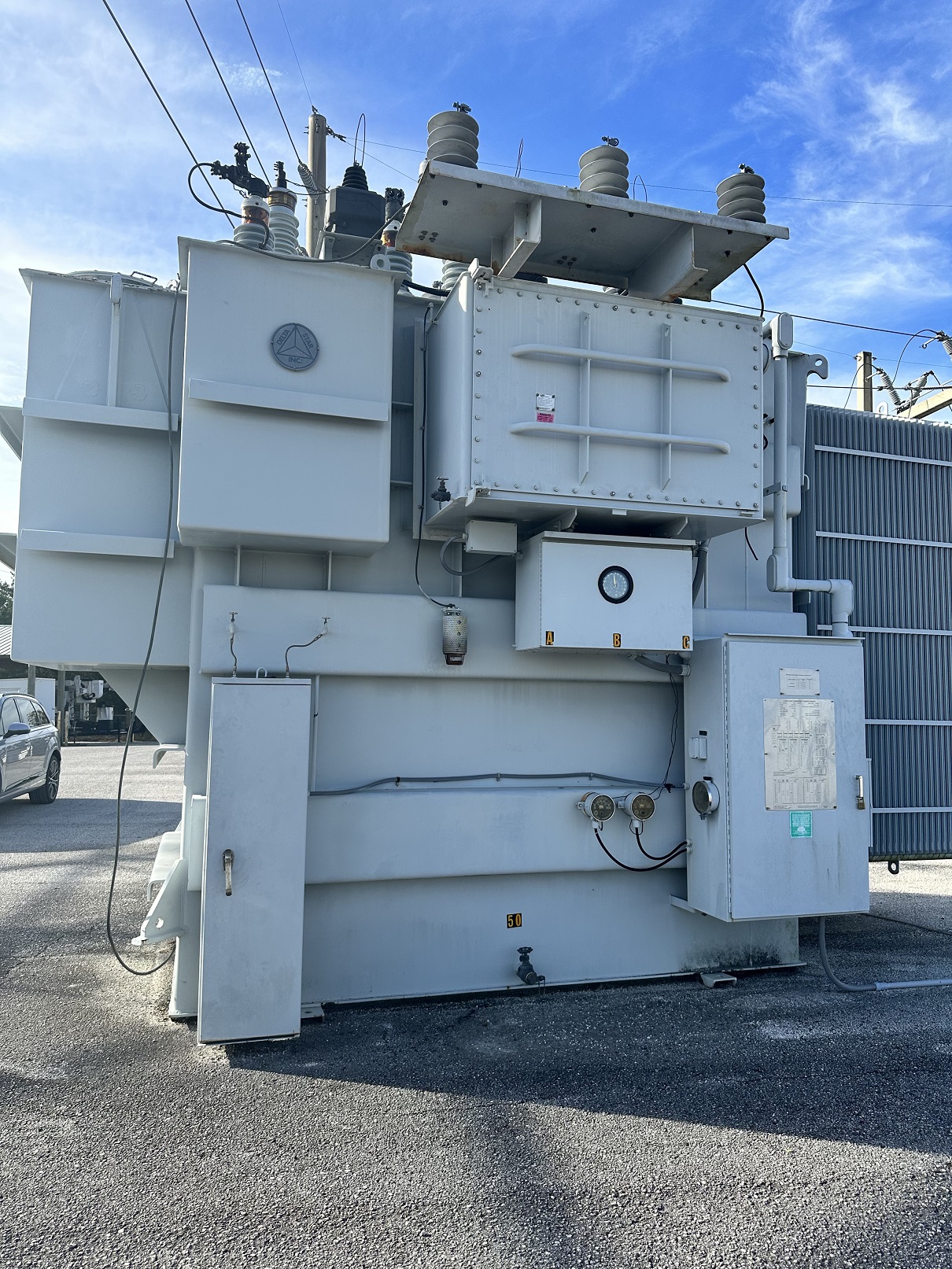

30/40/50 MVA Delta Star Load Tap Changing Transformer. 115 kv Delta Primary with Off Load Tap Changer. Selectable 24.9 or 12.47 kV Wye Secondary with Load Tap Changer. Mineral Oil Filled Substation Step Down Transformer. Immediately Available due to a system upgrade. Transformer is stored with oil and fully assembled
- Size: 30/40/50 MVA
- HV_H: 115000
- HV 2:
- Dual HV:
- HV TC Type: Off Load Tap Changer
- LV_1_X: 24940
- LV_2_Y: 12470
- LV2 Type:
- Dual LV:
- LV TC Type: Load Tap Changer
- See Notes: Yes
- High Voltage Vector: Delta
- Low Voltage Vector: Wye
- High 2 Voltage Vector:
- Low 2 Voltage Vector: Wye
- High Voltage Bushing: Top cover mounted
- Low Voltage Bushing: Top Cover Mounted
- HV2 Bushing:
- LV2 Bushing: Top Cover Mounted
- Station Type: Substation Stepdown
- Live Dead:
- Feed:
- Type: Mineral Oil Filled
- Width: 205
- Length: 257
- Height: 210
- Weight: 185800
- Phase: 3
- HZ: 60
- DOM: 2001
- MFG: Delta Star
