ABB Three Phase Transformer

Product ID: 5737

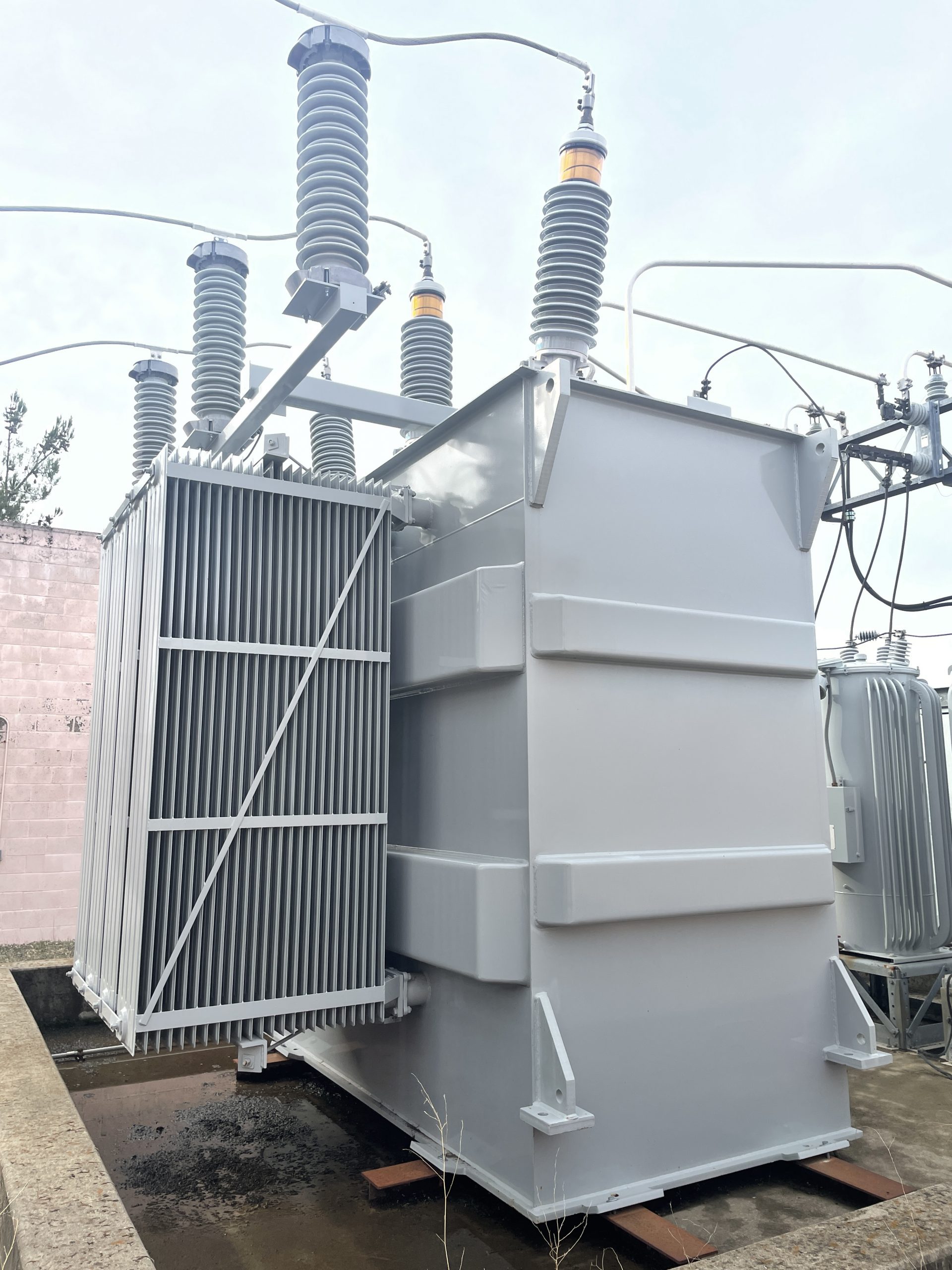

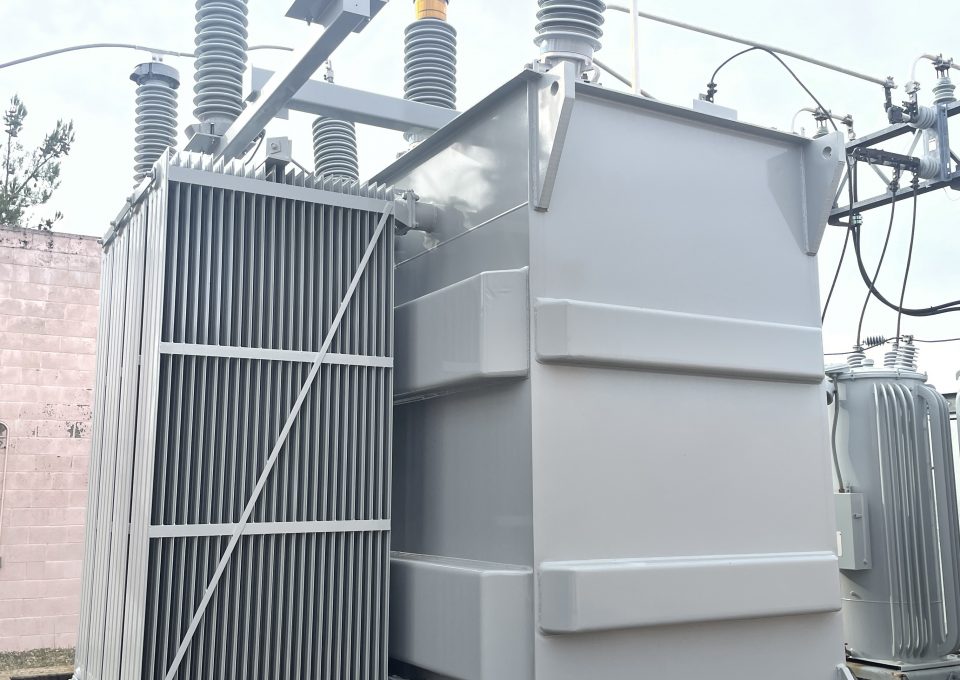

ABB three phase transformer, 10/12.5 MVA, oil filled substation stepdown transformer, 115 kV delta primary, 12.47/7.2 kV wye secondary

  • Size: 10/12.5 MVA
  • HV_H: 115000
  • HV 2:
  • Dual HV:
  • HV TC Type: Off Load Tap Changer
  • LV_1_X: 12470
  • LV_2_Y:
  • LV2 Type:
  • Dual LV:
  • LV TC Type:
  • See Notes: Yes
  • High Voltage Vector: Delta
  • Low Voltage Vector: Wye
  • High 2 Voltage Vector:
  • Low 2 Voltage Vector:
  • High Voltage Bushing: Top cover mounted
  • Low Voltage Bushing: Top Cover Mounted
  • HV2 Bushing:
  • LV2 Bushing:
  • Station Type: Substation Stepdown
  • Live Dead:
  • Feed:
  • Type: Mineral Oil Filled
  • Width:
  • Length:
  • Height:
  • Weight: 75801
  • Phase: 3
  • HZ:
  • DOM: 1996
  • MFG: ABB
