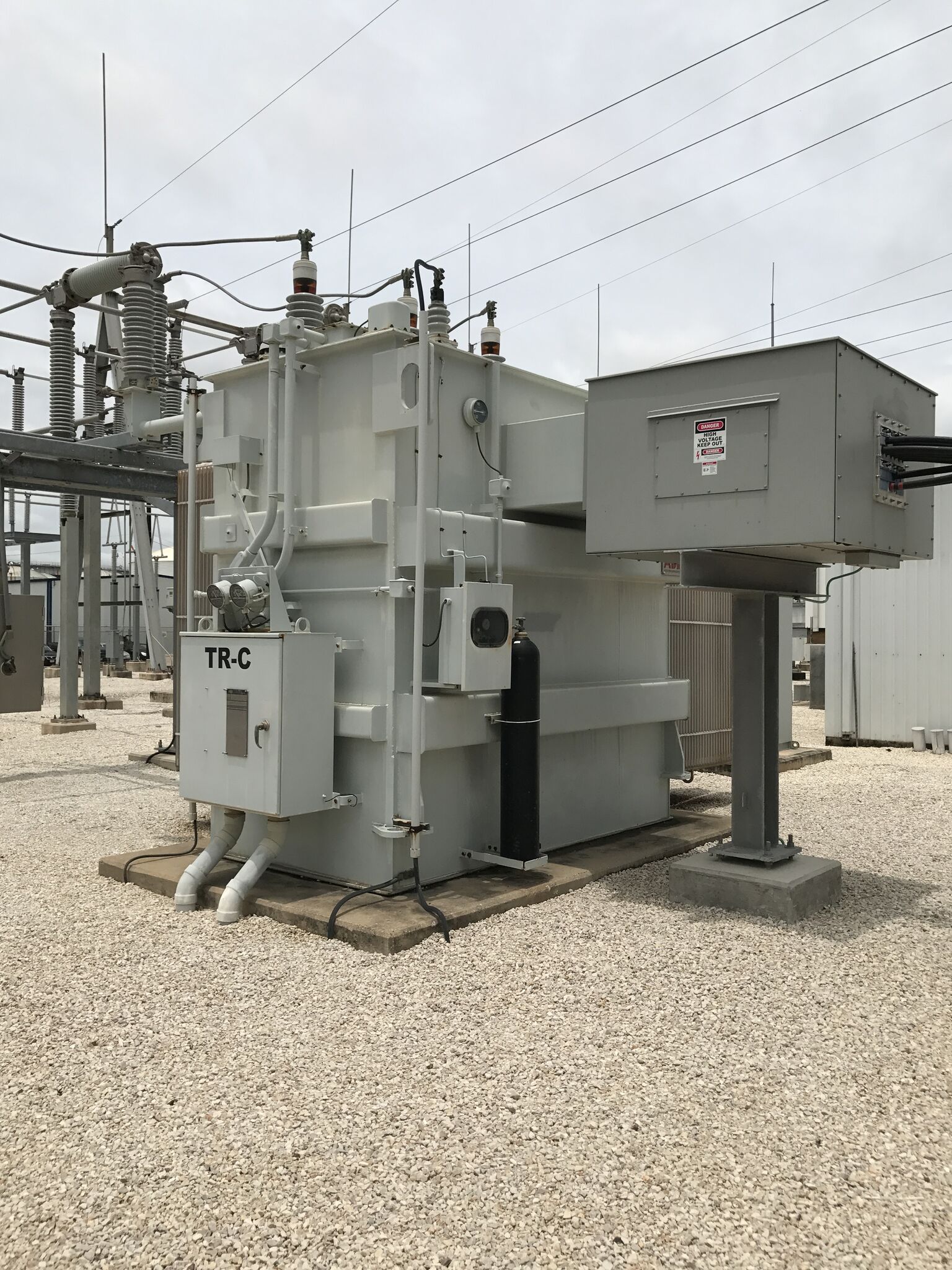

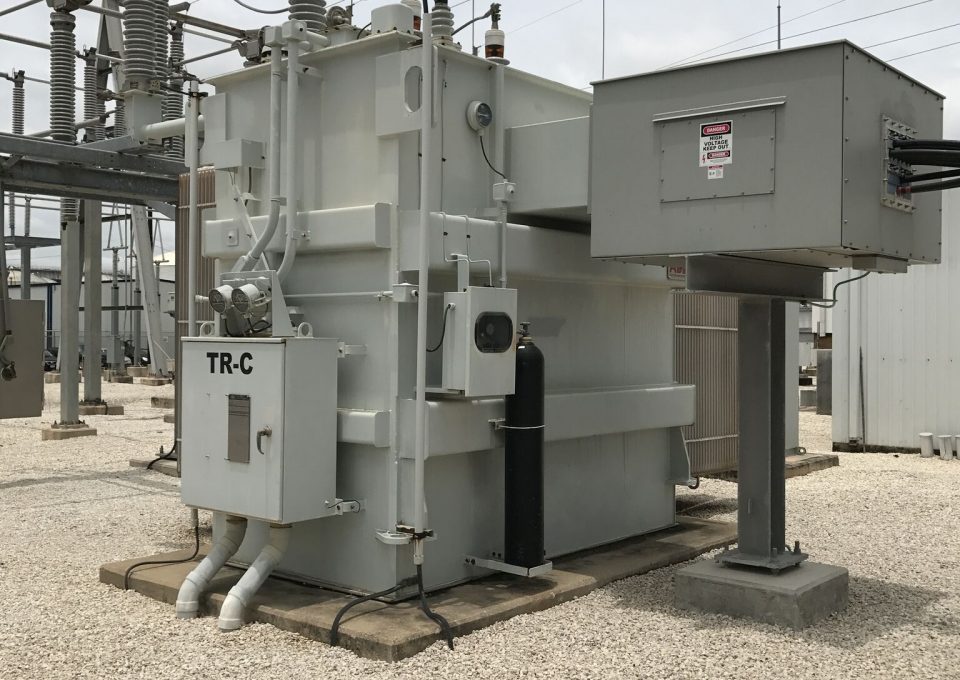

ABB Power Substation Transformer

Product ID: 5658

ABB Power Substation Stepdown Transformer

  • Size: 20/33.3/41.667 MVA
  • HV_H: 67000
  • HV 2:
  • Dual HV:
  • HV TC Type: OLTC
  • LV_1_X: 12360
  • LV_2_Y:
  • LV2 Type:
  • Dual LV:
  • LV TC Type:
  • See Notes: Yes
  • High Voltage Vector: Delta
  • Low Voltage Vector:
  • High 2 Voltage Vector:
  • Low 2 Voltage Vector: Wye
  • High Voltage Bushing: Top Mounted
  • Low Voltage Bushing: Top Mounted
  • HV2 Bushing:
  • LV2 Bushing:
  • Station Type: Substation Stepdown
  • Live Dead:
  • Feed:
  • Type: Oil Filled
  • Width:
  • Length:
  • Height:
  • Weight: 109493
  • Phase: 3
  • HZ: 60
  • DOM: 1991
  • MFG: ABB Power
