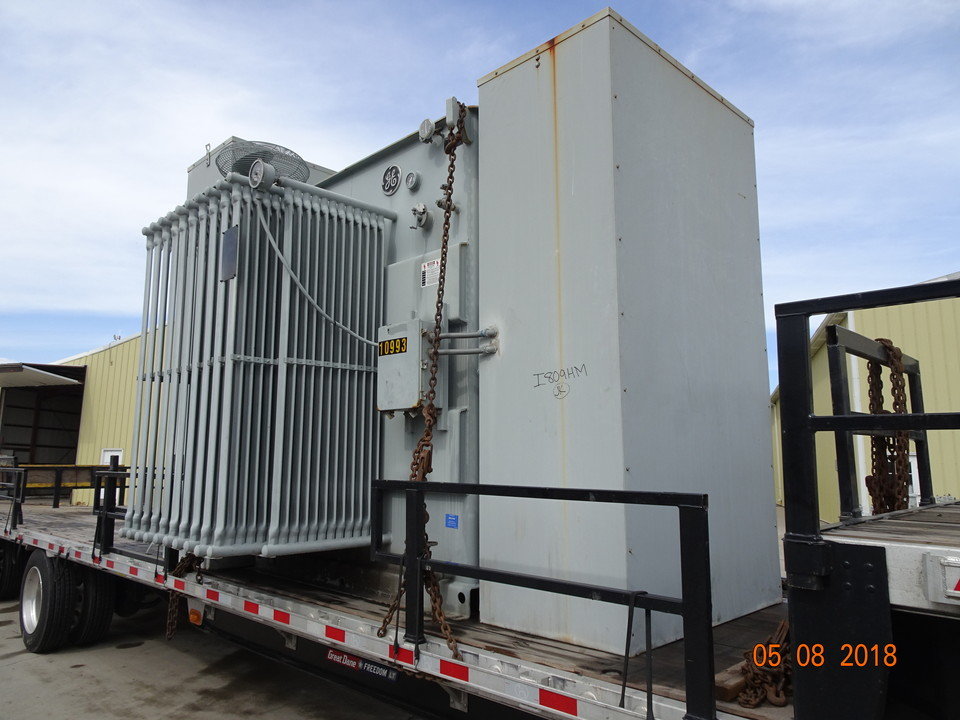

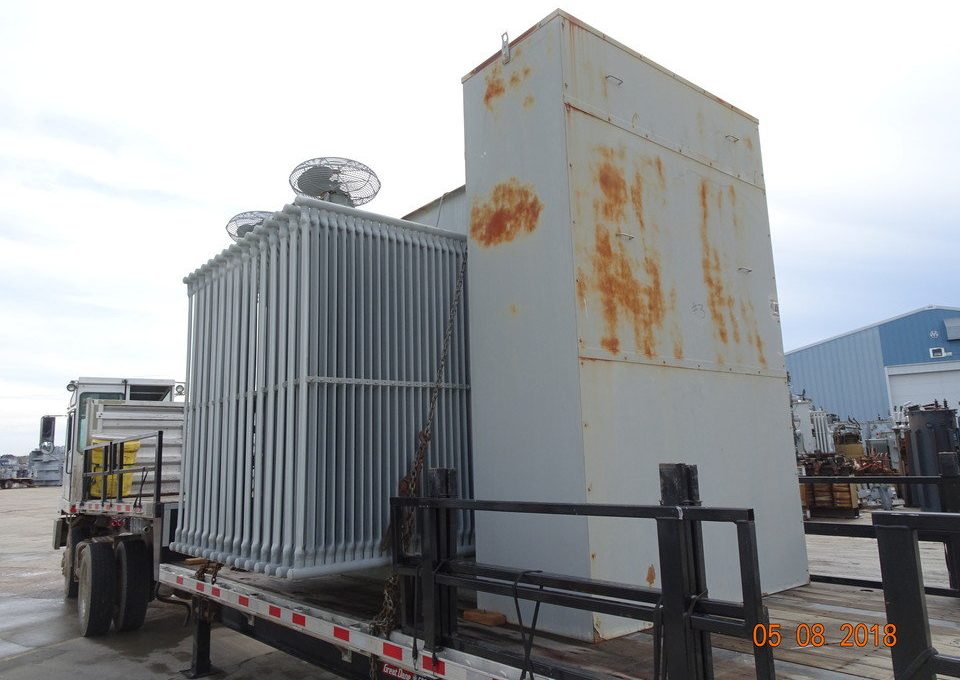

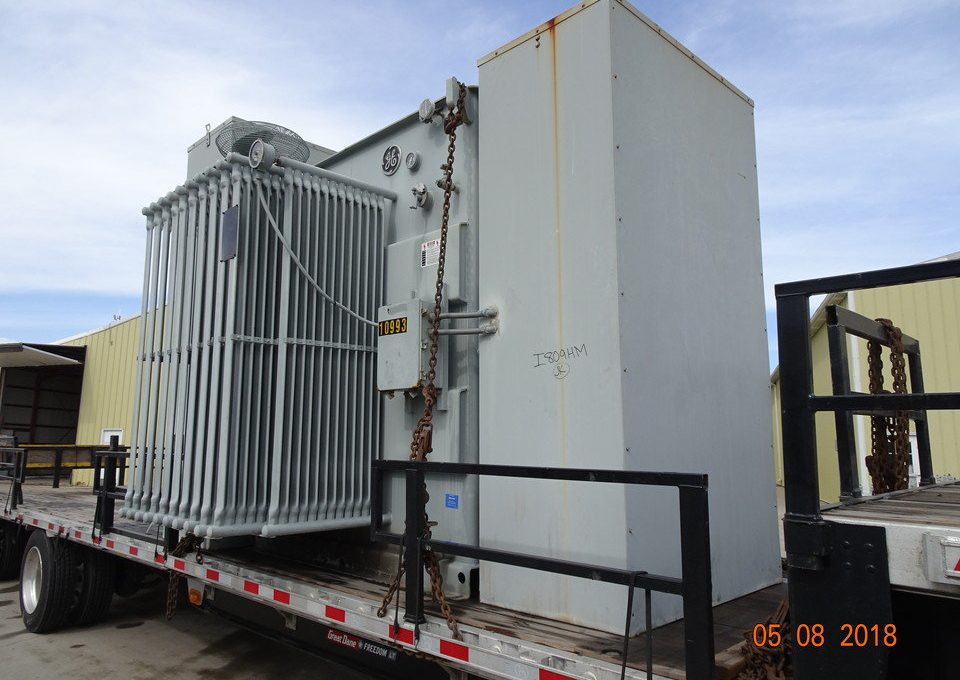

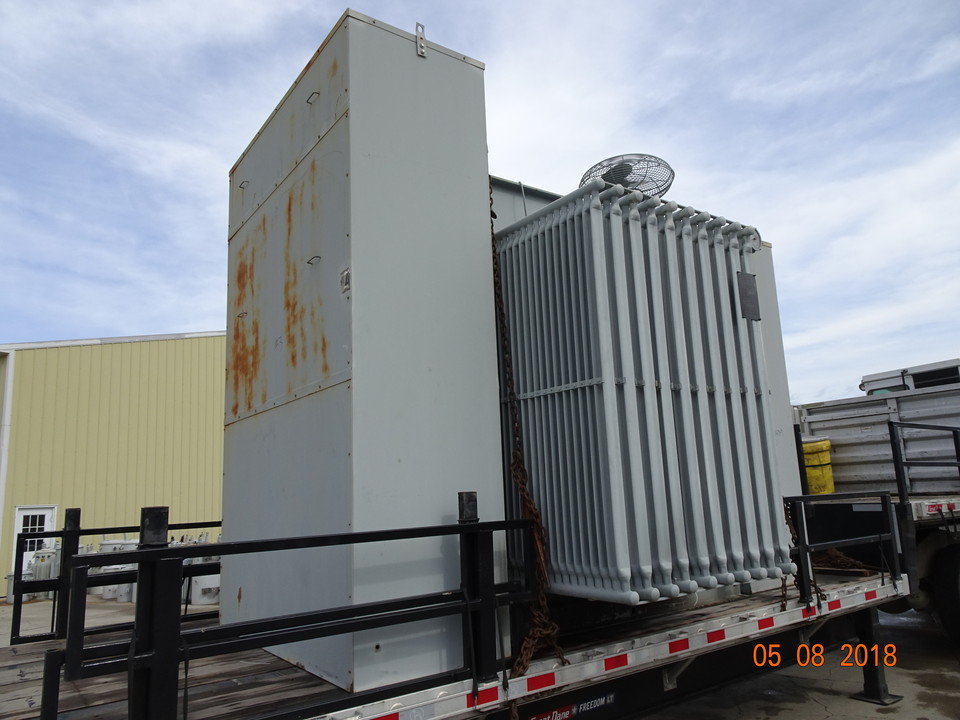

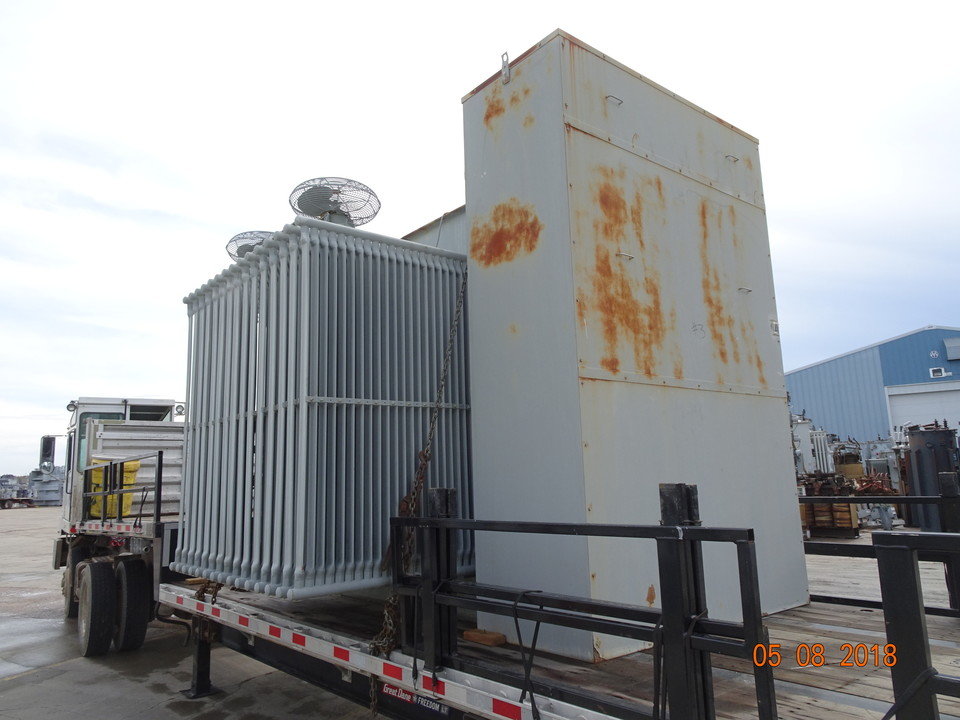

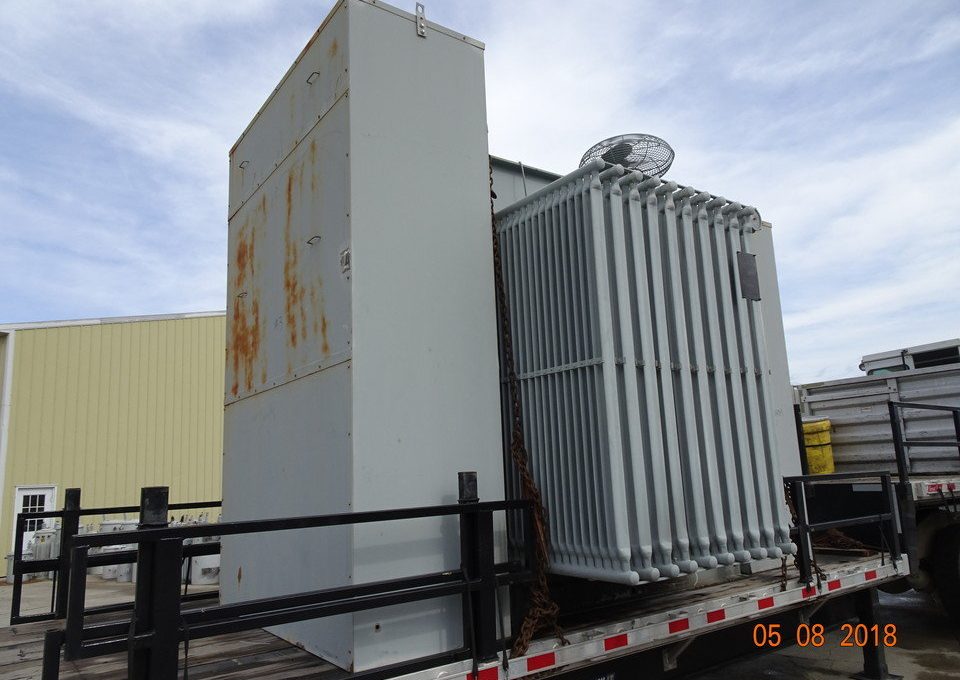

8 MVA GE 26.4 kV Delta – 13.2 kV Wye
Product ID: 5725
8/10 MVA 26.4 kV Delta - 13.2 kV Wye , Oil filled Substation Stepdown Transformer, 6.47% Impedance
- Size: 8/10 MVA
- HV_H: 26400
- HV 2:
- Dual HV:
- HV TC Type: Off Load Tap Changer
- LV_1_X: 13200
- LV_2_Y:
- LV2 Type:
- Dual LV:
- LV TC Type:
- See Notes: Yes
- High Voltage Vector: Delta
- Low Voltage Vector: Wye
- High 2 Voltage Vector:
- Low 2 Voltage Vector:
- High Voltage Bushing: Sidewall Mounted Segment 2
- Low Voltage Bushing: Sidewall Mounted Segment 4
- HV2 Bushing:
- LV2 Bushing:
- Station Type:
- Live Dead:
- Feed:
- Type: Mineral Oil Filled
- Width:
- Length:
- Height:
- Weight: 31605
- Phase: 3
- HZ: 60
- DOM: 2000
- MFG: GE General Electric
