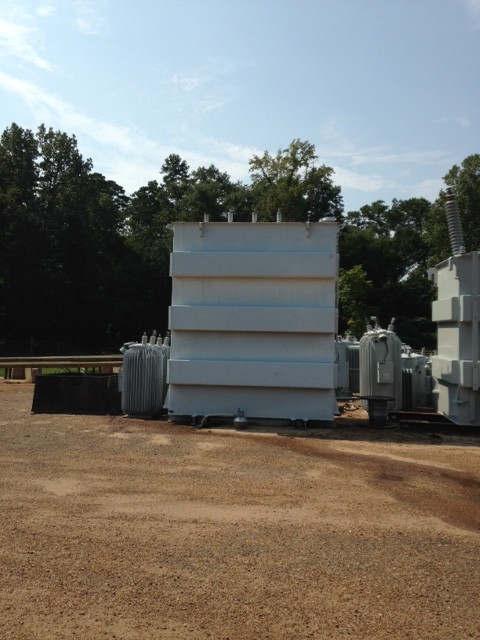

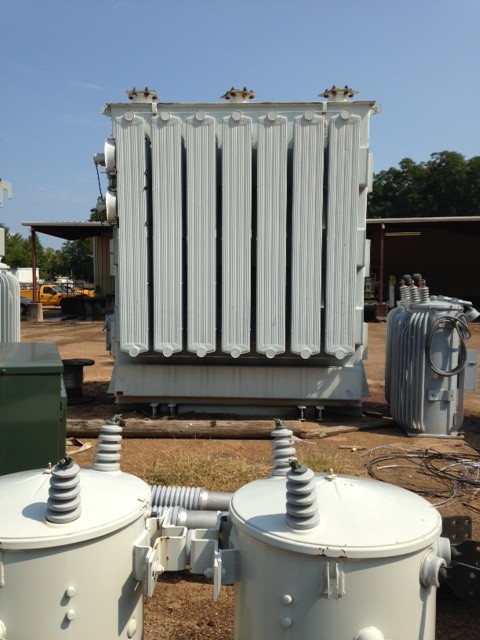

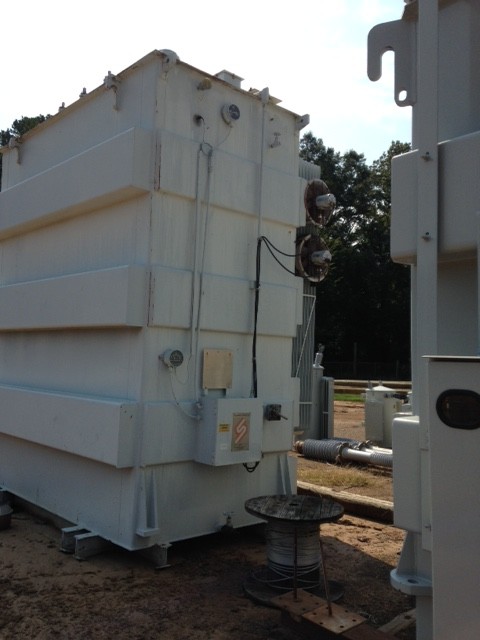

Southwest Electric Substation Transformer, 138 X 69 kV – 12.47 kV

Product ID: 5568

  • Size: 10/12.5
  • HV_H: 138000
  • HV 2: 69000
  • Dual HV: 1
  • HV TC Type: OLTC
  • LV_1_X: 12470
  • LV_2_Y:
  • LV2 Type:
  • Dual LV:
  • LV TC Type:
  • See Notes: Yes
  • High Voltage Vector: Delta
  • Low Voltage Vector: Wye
  • High 2 Voltage Vector: Delta
  • Low 2 Voltage Vector:
  • High Voltage Bushing: Top
  • Low Voltage Bushing: Top
  • HV2 Bushing:
  • LV2 Bushing:
  • Station Type: Substation Step Down
  • Live Dead:
  • Feed:
  • Type: Oil
  • Width:
  • Length:
  • Height:
  • Weight: 111030
  • Phase: 3
  • HZ: 60
  • DOM:
  • MFG: Southwest Electric
