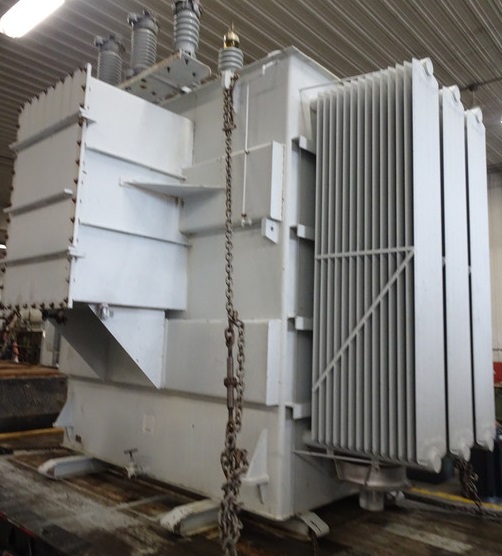

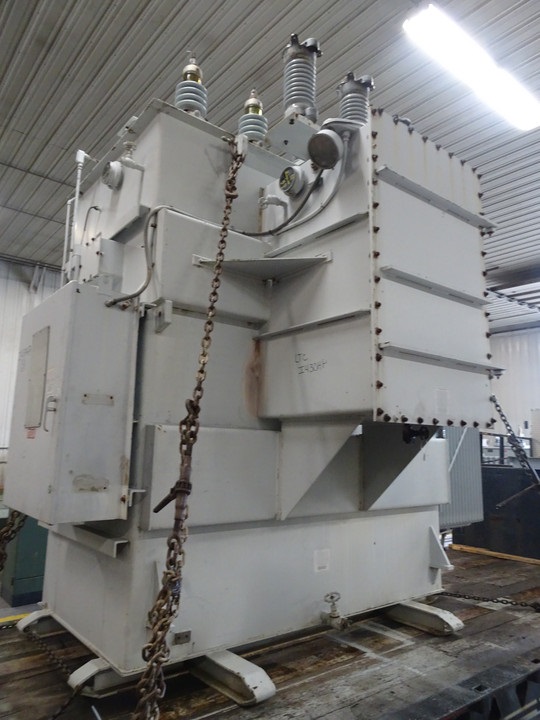

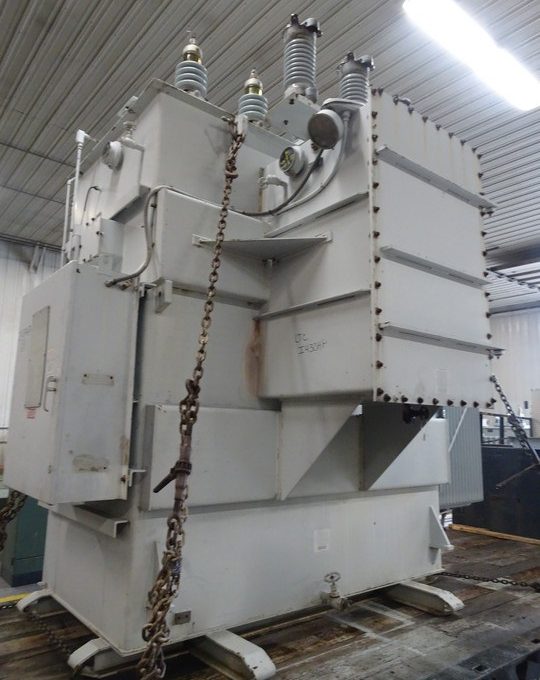

3750 kva Kuhlman Load Tap Changing

Product ID: 5695

3750 kva Kuhlman Load Tap Changing Transformer, 67 kV Delta - 26.4 kV Wye with LTC

  • Size: 3.75/4.2 MVA
  • HV_H: 67000
  • HV 2:
  • Dual HV:
  • HV TC Type: Off Circuit Tap Switch
  • LV_1_X: 26400
  • LV_2_Y:
  • LV2 Type:
  • Dual LV:
  • LV TC Type: Load Tap Changer
  • See Notes: Yes
  • High Voltage Vector: Delta
  • Low Voltage Vector: Wye
  • High 2 Voltage Vector:
  • Low 2 Voltage Vector:
  • High Voltage Bushing: Top Cover Mounted
  • Low Voltage Bushing: Top Cover Mounted
  • HV2 Bushing:
  • LV2 Bushing:
  • Station Type: Substation Stepdown
  • Live Dead:
  • Feed:
  • Type: Oil Filled
  • Width:
  • Length:
  • Height:
  • Weight: 49250
  • Phase: 3
  • HZ: 60
  • DOM: 1981
  • MFG: Kuhlman
