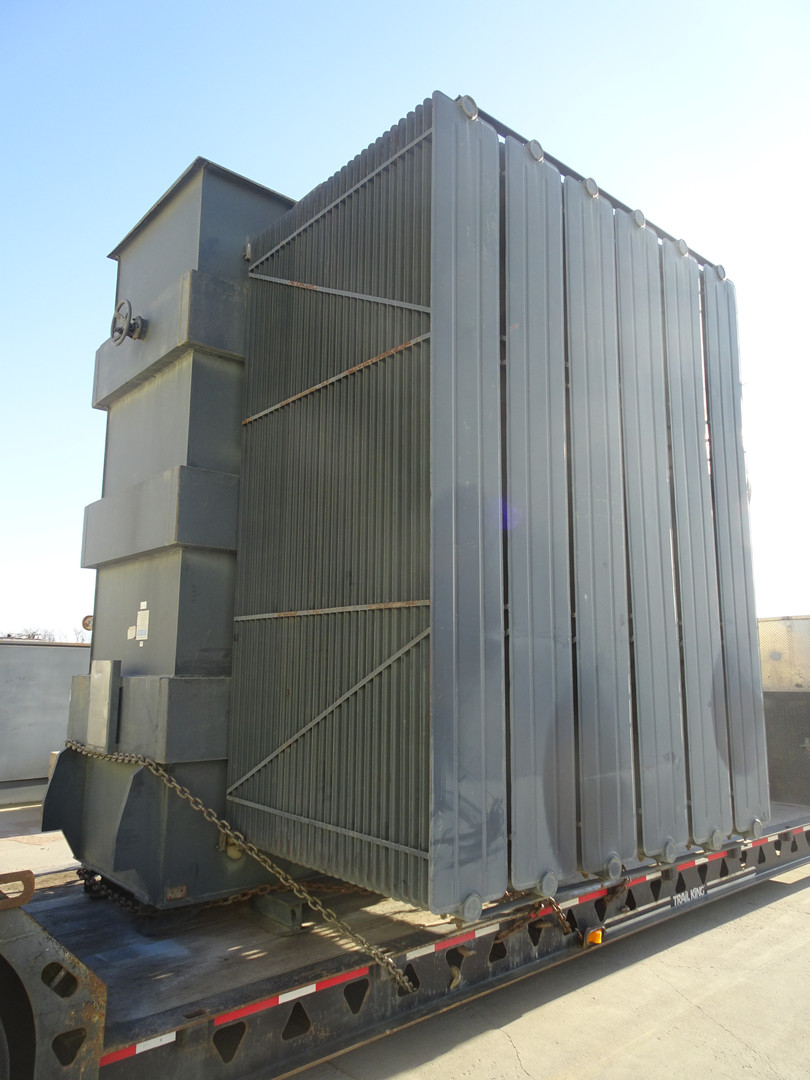

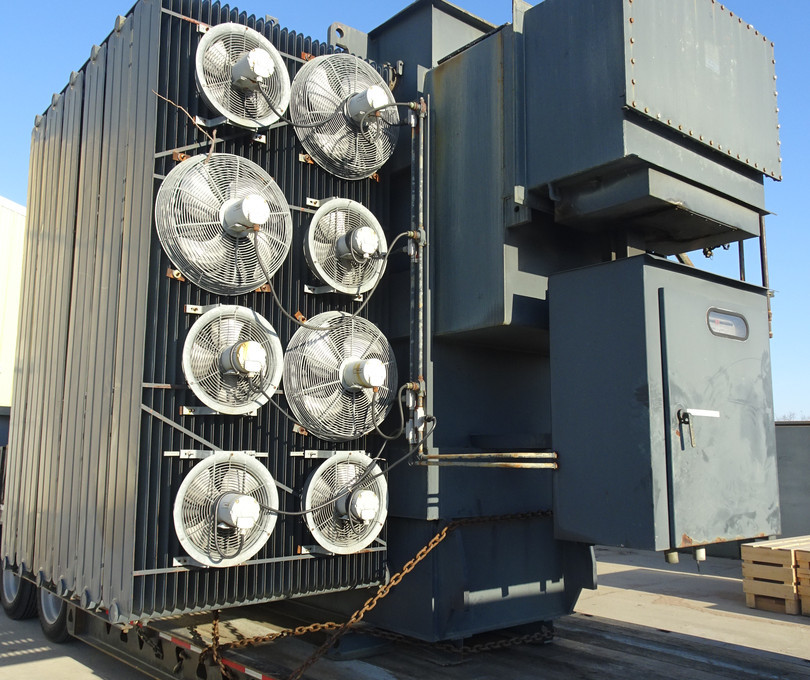

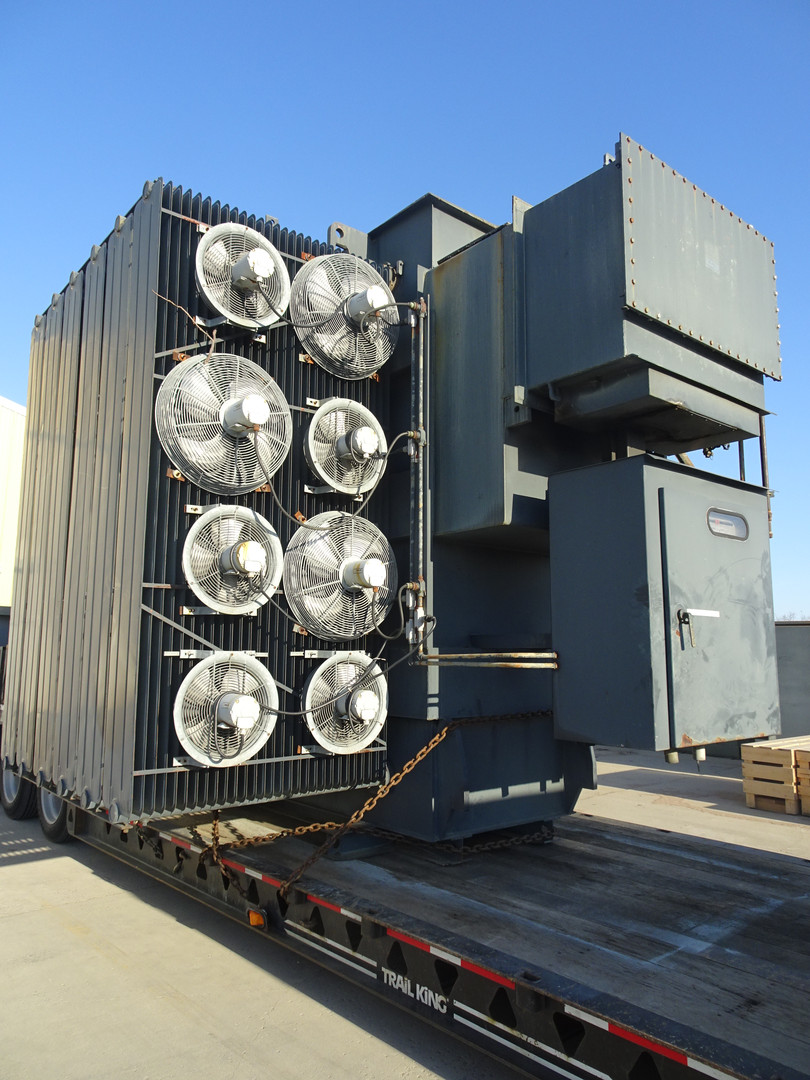

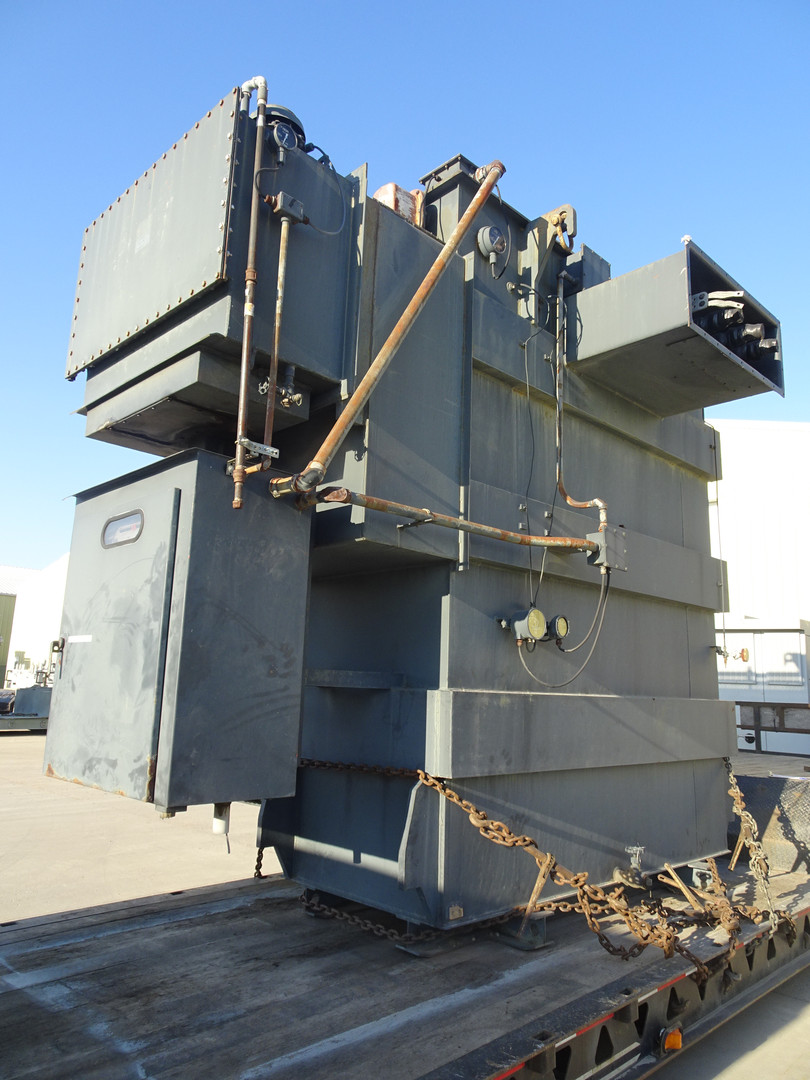

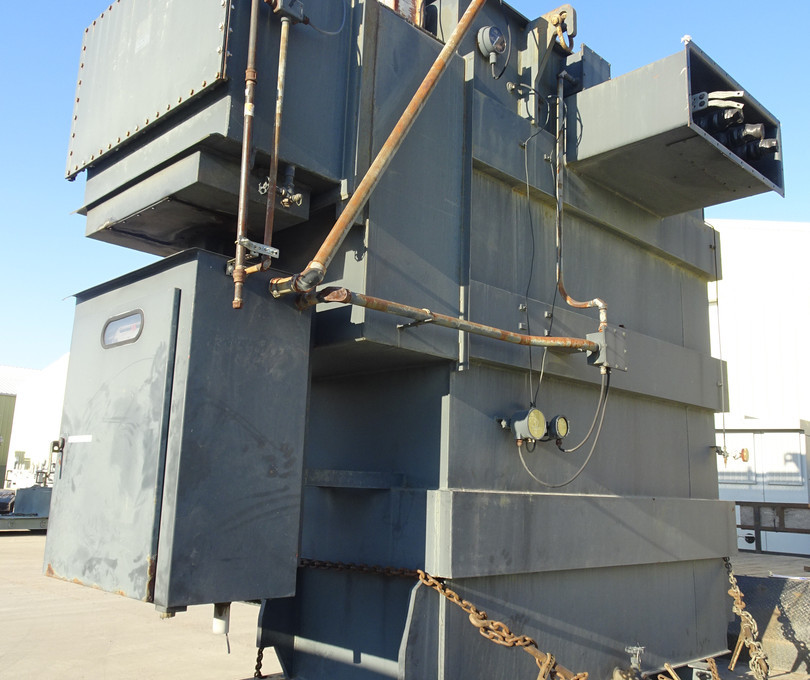

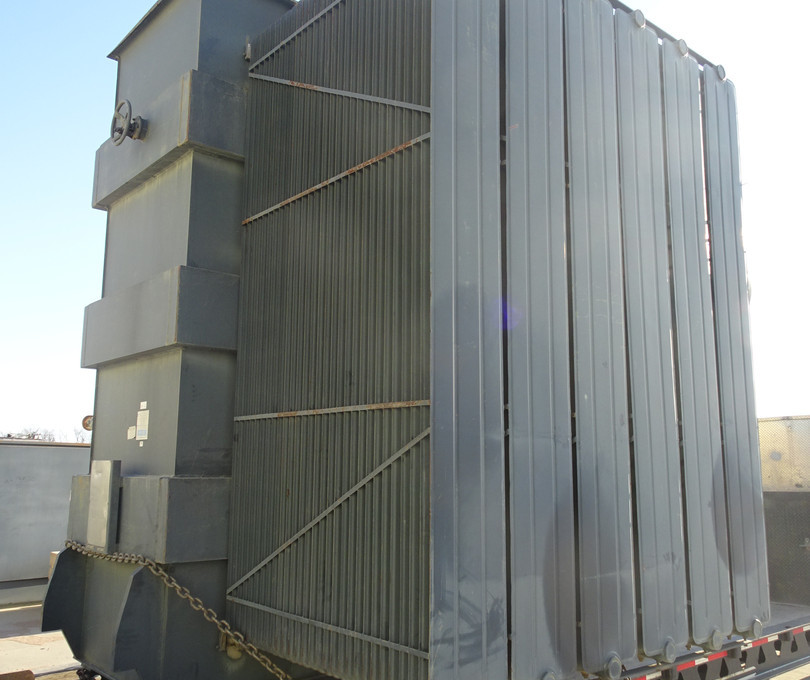

12/16/20 MVA Substation Transformer 67 kV Delta – 12.47 kV Wye LTC
Product ID: 5577
12/16/20 MVA load tap changing oil filled transformer, Substation style, Off load tap changer on HV, LTC on low voltage
- Size: 12/16/20 MVA
- HV_H: 67000
- HV 2:
- Dual HV:
- HV TC Type: OLTC
- LV_1_X: 12470
- LV_2_Y:
- LV2 Type:
- Dual LV:
- LV TC Type: LTC
- See Notes: Yes
- High Voltage Vector: Delta
- Low Voltage Vector: Wye
- High 2 Voltage Vector:
- Low 2 Voltage Vector:
- High Voltage Bushing: Top
- Low Voltage Bushing: Side - Can be relocated
- HV2 Bushing:
- LV2 Bushing:
- Station Type: Substation
- Live Dead:
- Feed:
- Type: Oil
- Width:
- Length:
- Height:
- Weight: 75650
- Phase: 3
- HZ: 60
- DOM: 1980

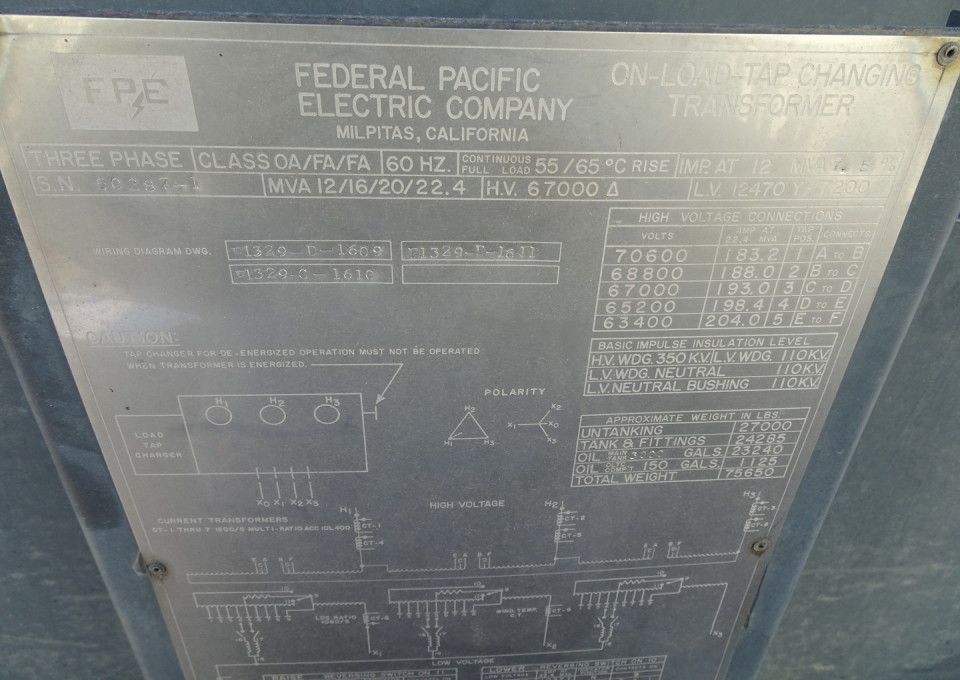

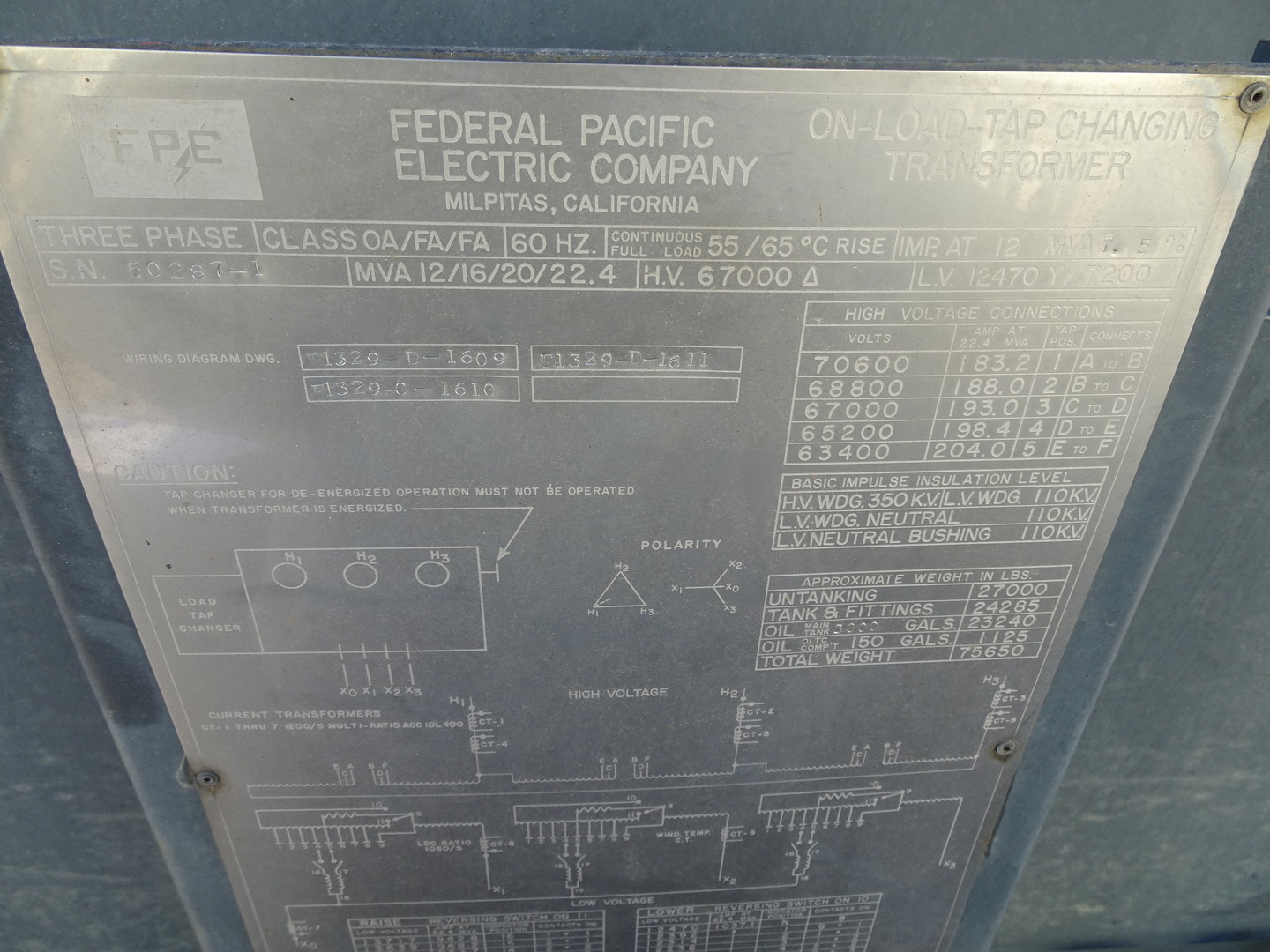

- MFG: Federal Pacific
