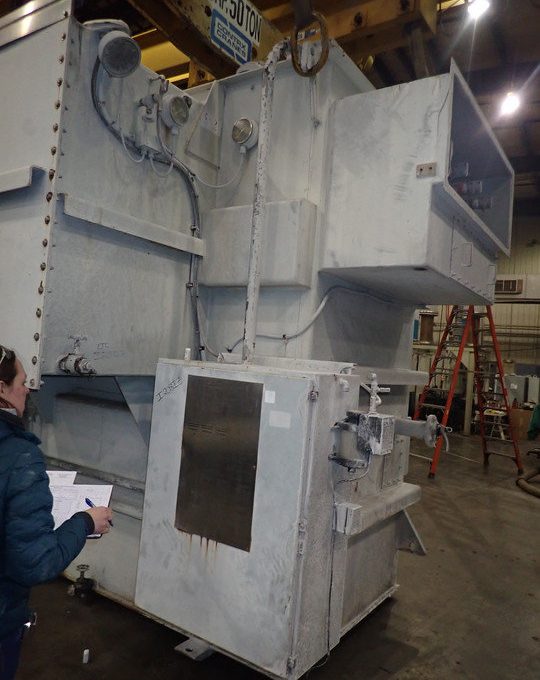

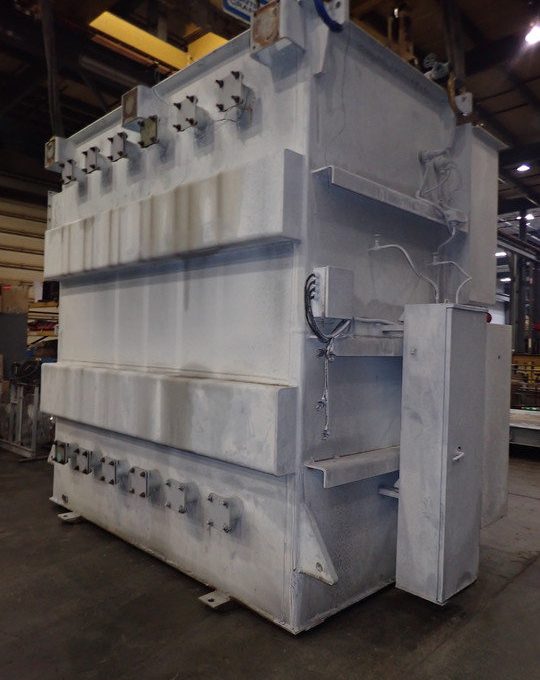

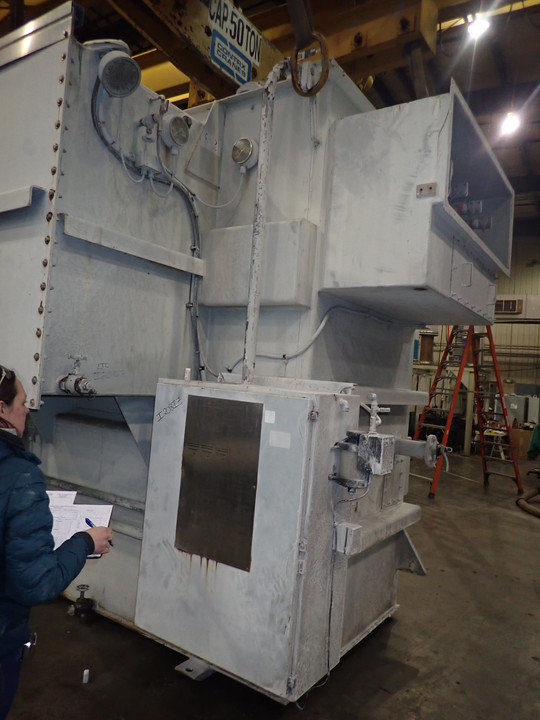

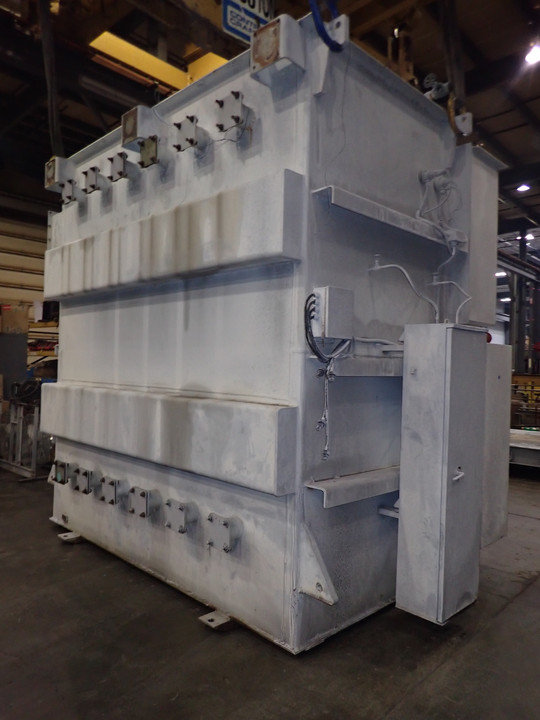

Load Tap Changing Transformer
Product ID: 5732
12/16/20 MVA Load Tap Changing Transformer, ASEA, 115 kV Delta, 13.8 kV Wye, Mineral Oil Filled Substation Stepdown
- Size: 12/16/20 MVA
- HV_H: 115000
- HV 2:
- Dual HV:

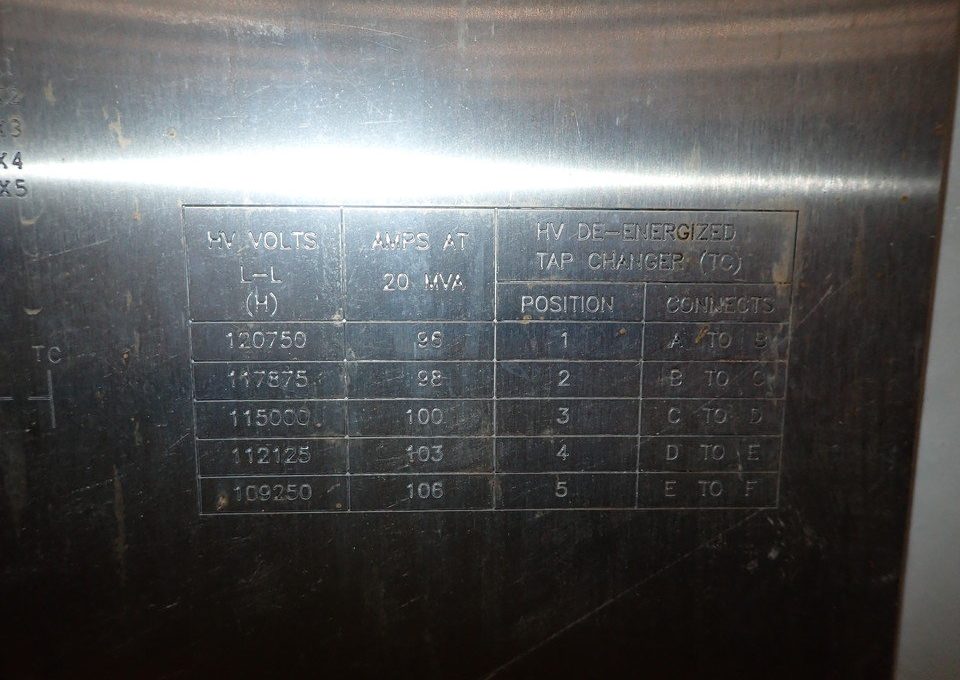

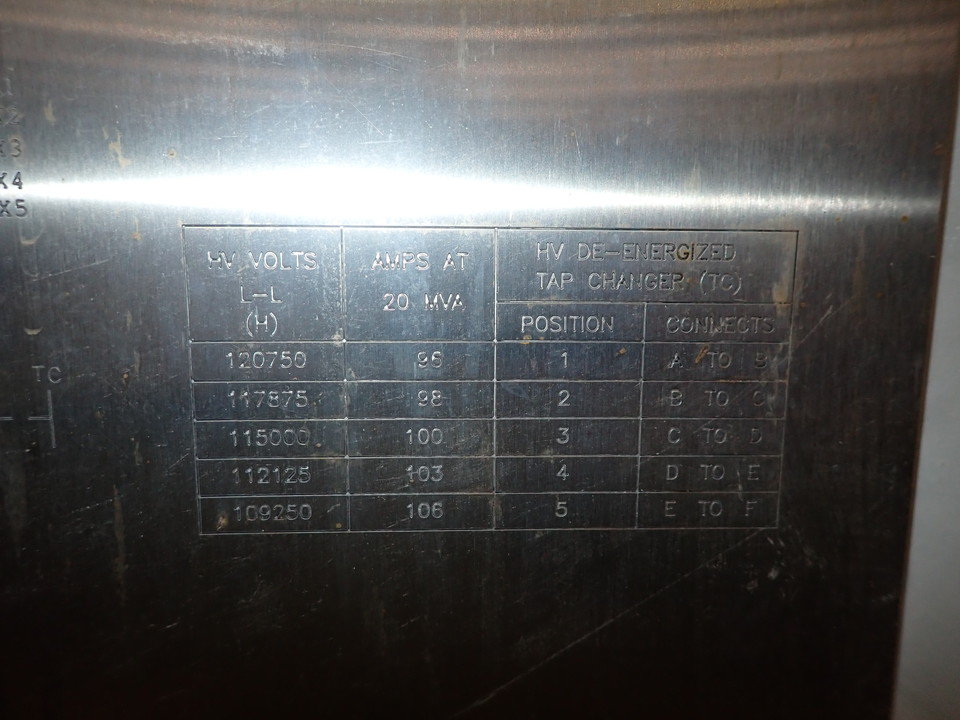

- HV TC Type: Off Load Tap Changer
- LV_1_X: 13800
- LV_2_Y:
- LV2 Type:
- Dual LV:
- LV TC Type: Load Tap Changer
- See Notes: Yes
- High Voltage Vector: Delta
- Low Voltage Vector: Wye
- High 2 Voltage Vector:
- Low 2 Voltage Vector:
- High Voltage Bushing: Top cover mounted
- Low Voltage Bushing: Sidewall Tank Mounted
- HV2 Bushing:
- LV2 Bushing:
- Station Type: Substation Stepdown
- Live Dead:
- Feed:
- Type: Mineral Oil Filled
- Width:
- Length:
- Height:
- Weight:
- Phase: 3
- HZ: 60
- DOM:
- MFG: ASEA
