10 MVA Waukesha Transformer
Product ID: 5678

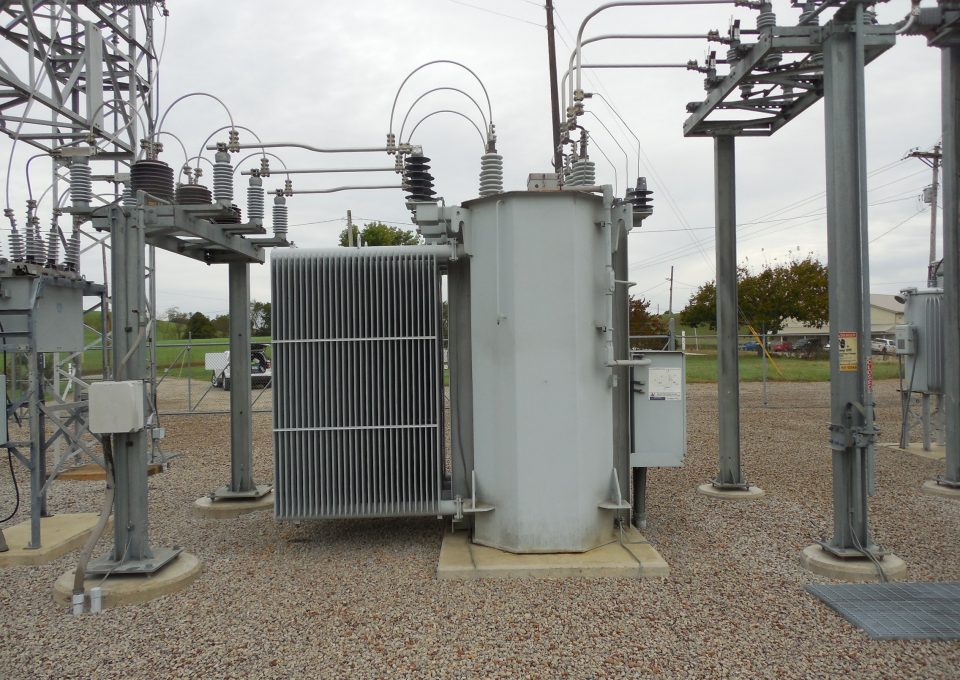

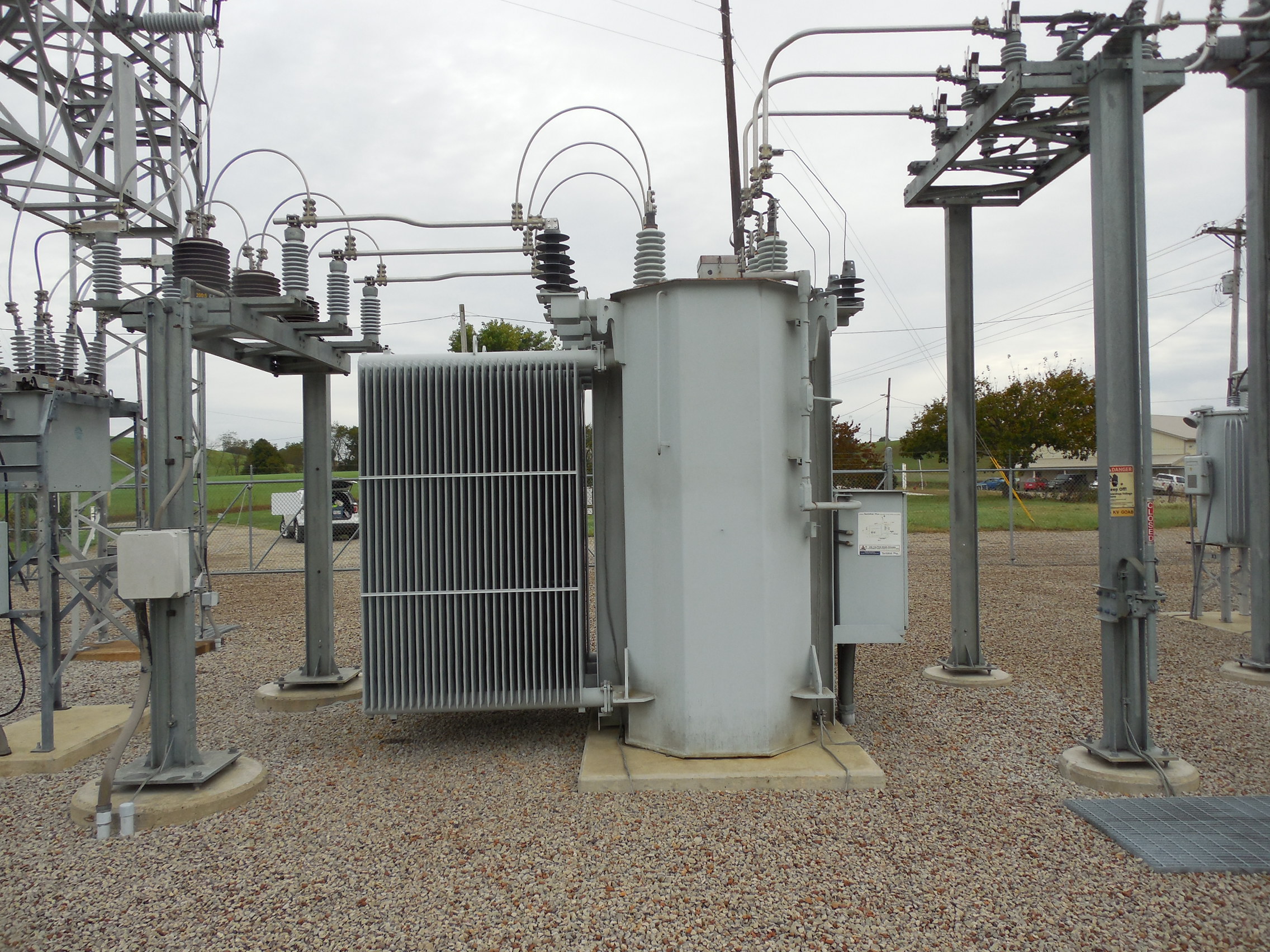

10 MVA Waukesha substation stepdown transformer , 34.4 kV Delta to 13.09 kV Wye
- Size: 10/12.5
- HV_H: 34400
- HV 2:
- Dual HV:
- HV TC Type: Off Load Tap Changer
- LV_1_X: 13090
- LV_2_Y:
- LV2 Type:
- Dual LV:
- LV TC Type:
- See Notes: Yes
- High Voltage Vector: Delta
- Low Voltage Vector: Wye
- High 2 Voltage Vector:
- Low 2 Voltage Vector:
- High Voltage Bushing: Top Mounted
- Low Voltage Bushing: Top Mounted
- HV2 Bushing:
- LV2 Bushing:
- Station Type: Substation Stepdown
- Live Dead:
- Feed:
- Type: Oil Filled
- Width:
- Length:
- Height:
- Weight: 45300
- Phase: 3
- HZ: 60
- DOM: 1997
- MFG: Waukesha
