McGraw Edison Padmont

Product ID: 5667

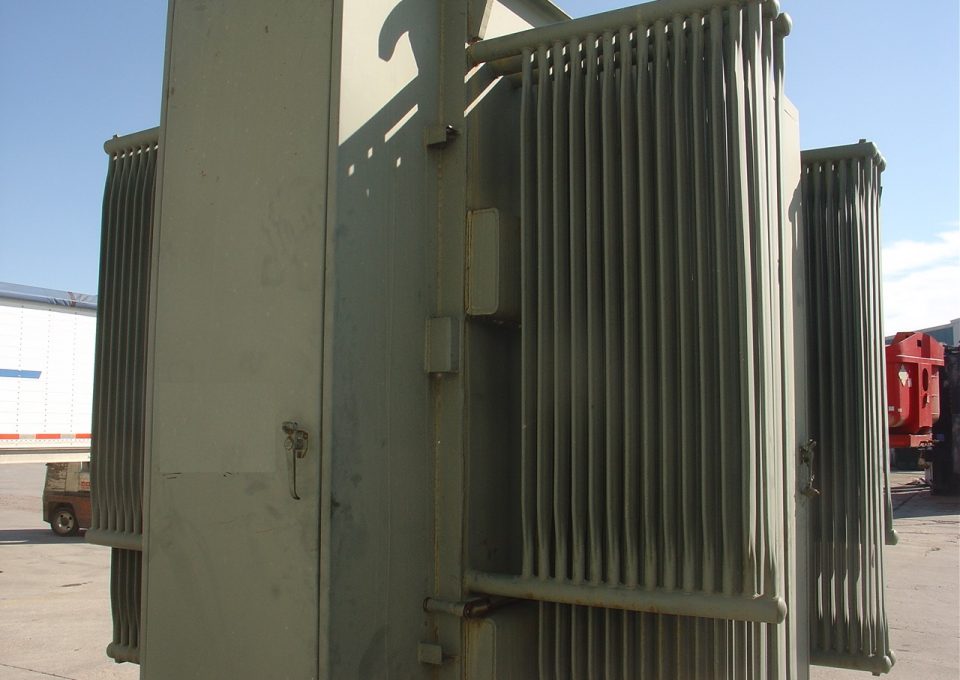

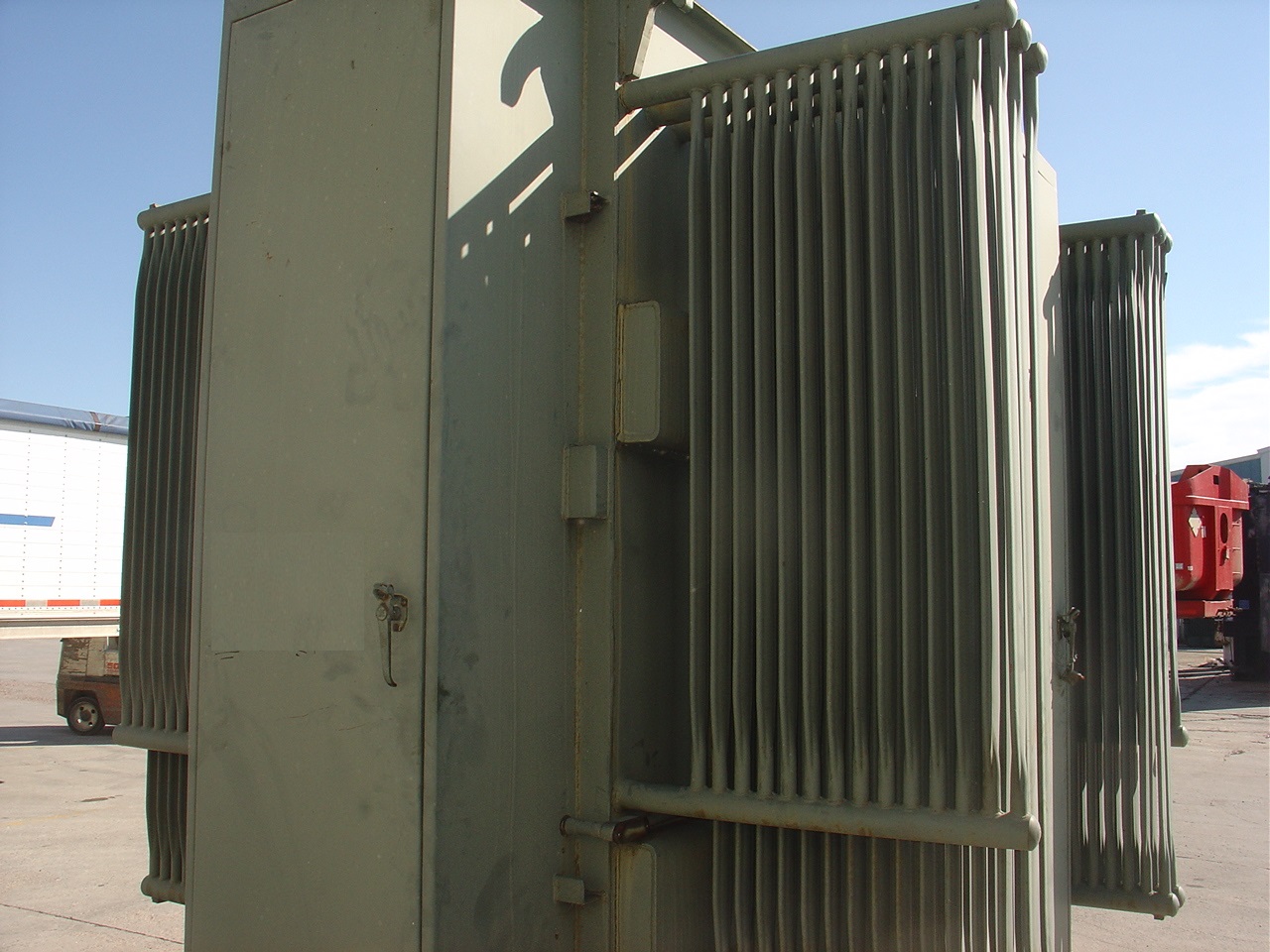

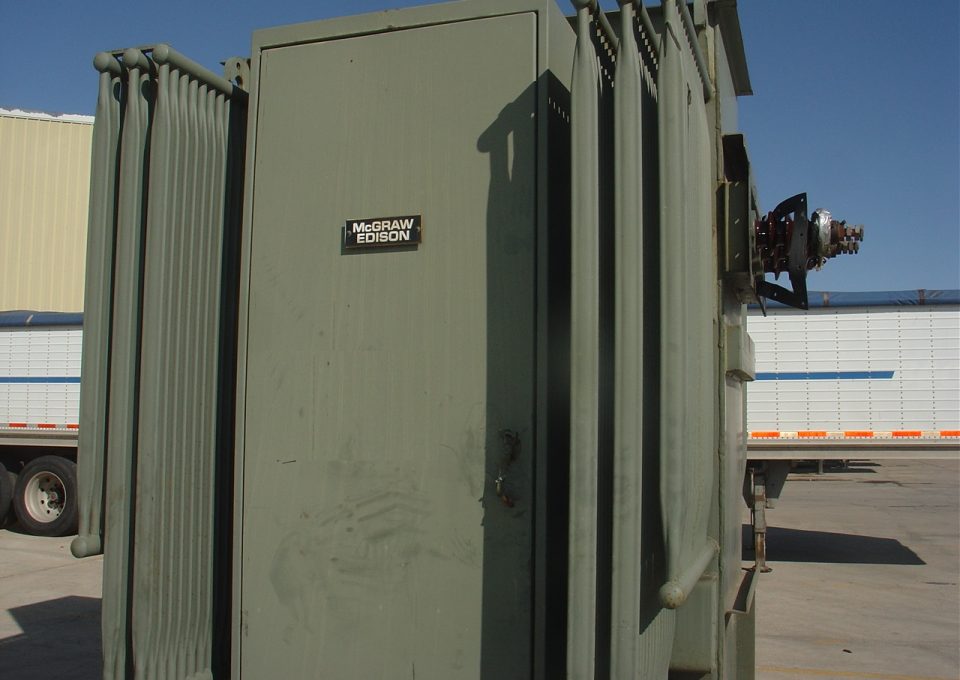

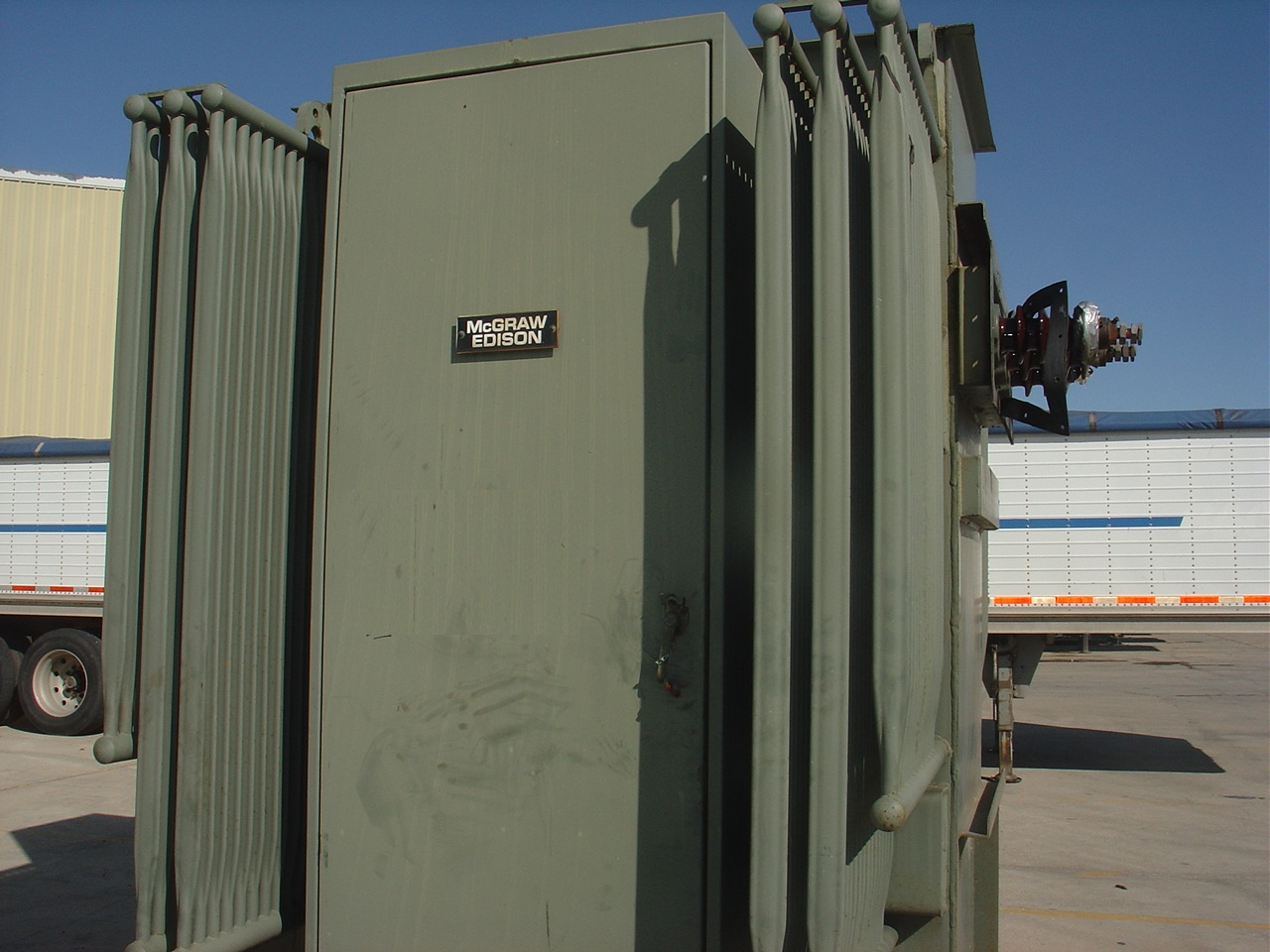

22.9 kV Delta to 4.16/2.4 kV Wye Pad mounted transformer

  • Size: 3750 kva
  • HV_H: 22900
  • HV 2:
  • Dual HV:
  • HV TC Type: Off Circuit Tap Changer
  • LV_1_X: 4160
  • LV_2_Y:
  • LV2 Type:
  • Dual LV:
  • LV TC Type:
  • See Notes: Yes
  • High Voltage Vector: Delta
  • Low Voltage Vector: Wye
  • High 2 Voltage Vector:
  • Low 2 Voltage Vector:

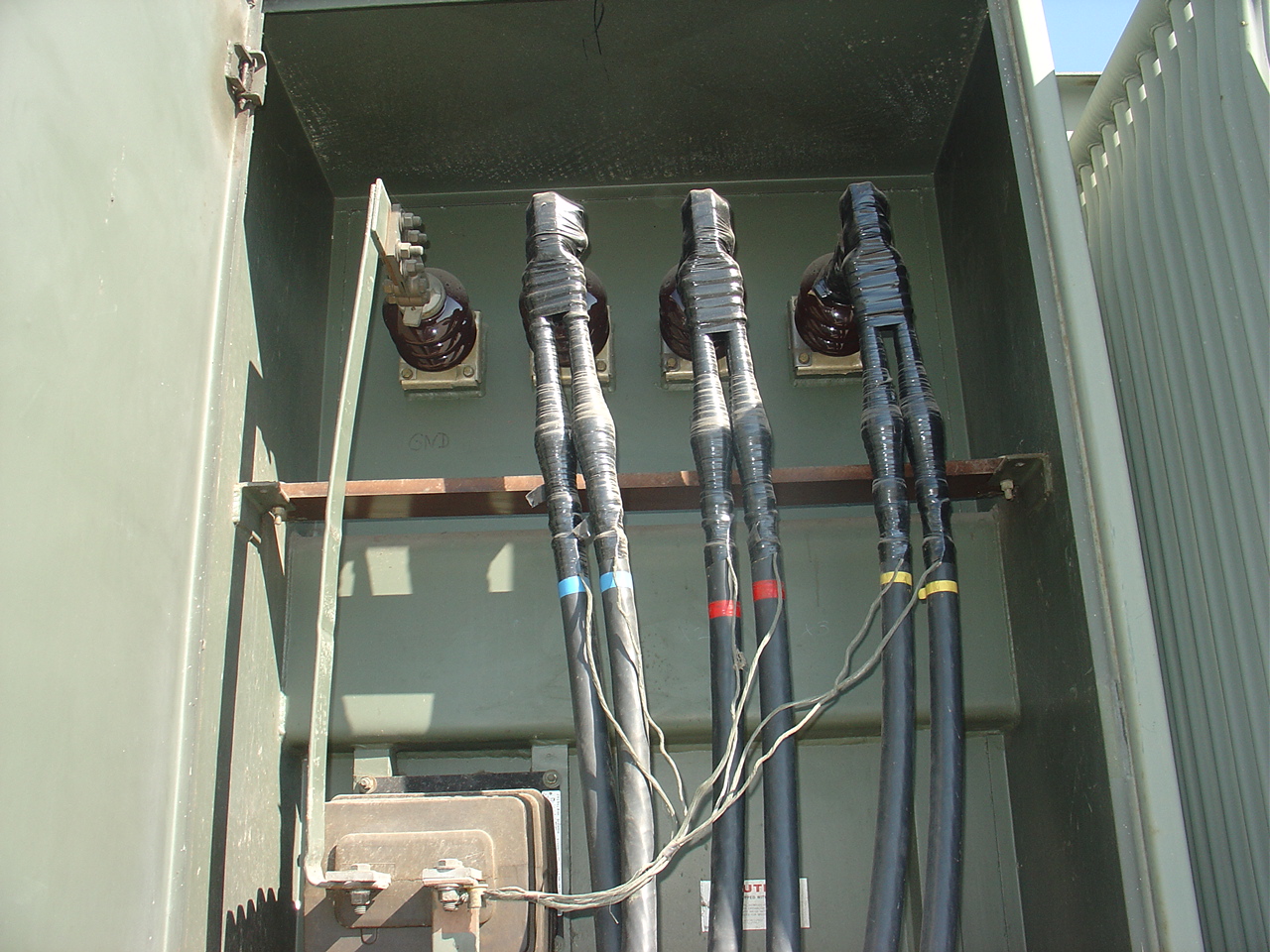

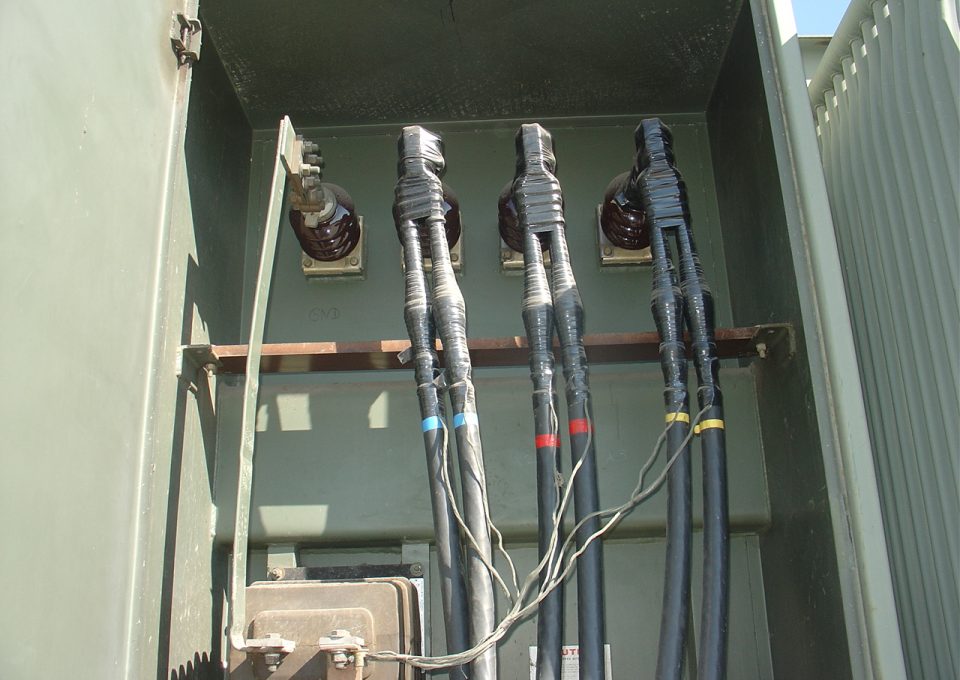

  • High Voltage Bushing: Tank Wall
  • Low Voltage Bushing: Tank Wall
  • HV2 Bushing:
  • LV2 Bushing:
  • Station Type: Padmount
  • Live Dead: Live
  • Feed: Radial
  • Type: Oil Filled
  • Width:
  • Length:
  • Height:
  • Weight: 25300
  • Phase: 3
  • HZ: 60
  • DOM: 1973
  • MFG: McGraw Edison

Request a quote:
