3 MVA Substation Transformer

Product ID: 5696

T&R Electric Remanufactured Transformer 69 kV Delta to 4.16 kV Wye

  • Size: 3/3.75
  • HV_H: 69000
  • HV 2:
  • Dual HV:
  • HV TC Type: Off Circuit Tap Switch
  • LV_1_X: 4160
  • LV_2_Y:
  • LV2 Type:
  • Dual LV:
  • LV TC Type:
  • See Notes: Yes
  • High Voltage Vector: Delta
  • Low Voltage Vector: Wye
  • High 2 Voltage Vector:
  • Low 2 Voltage Vector:

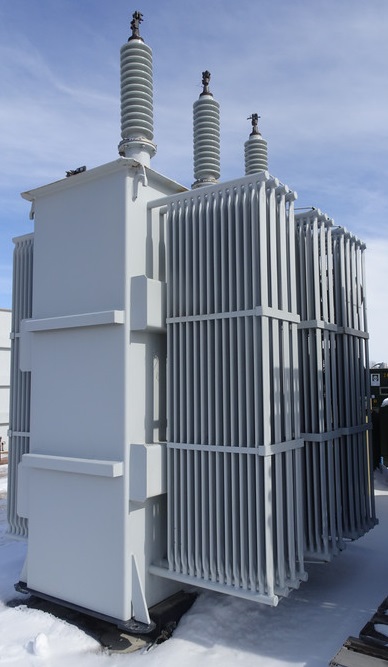

  • High Voltage Bushing: Top Cover Mounted
  • Low Voltage Bushing: Top Cover Mounted
  • HV2 Bushing:
  • LV2 Bushing:
  • Station Type: Substation Stepdown
  • Live Dead:
  • Feed:
  • Type: Oil Filled
  • Width:
  • Length:
  • Height:
  • Weight: 37000
  • Phase: 3
  • HZ: 60
  • DOM: 2013
  • MFG: T&R Electric
