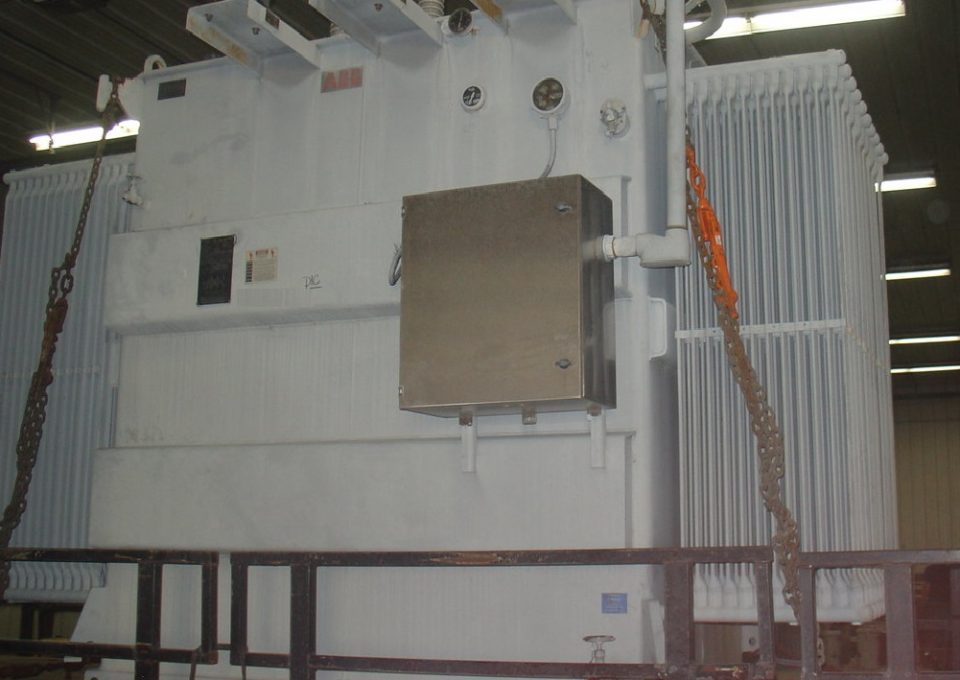

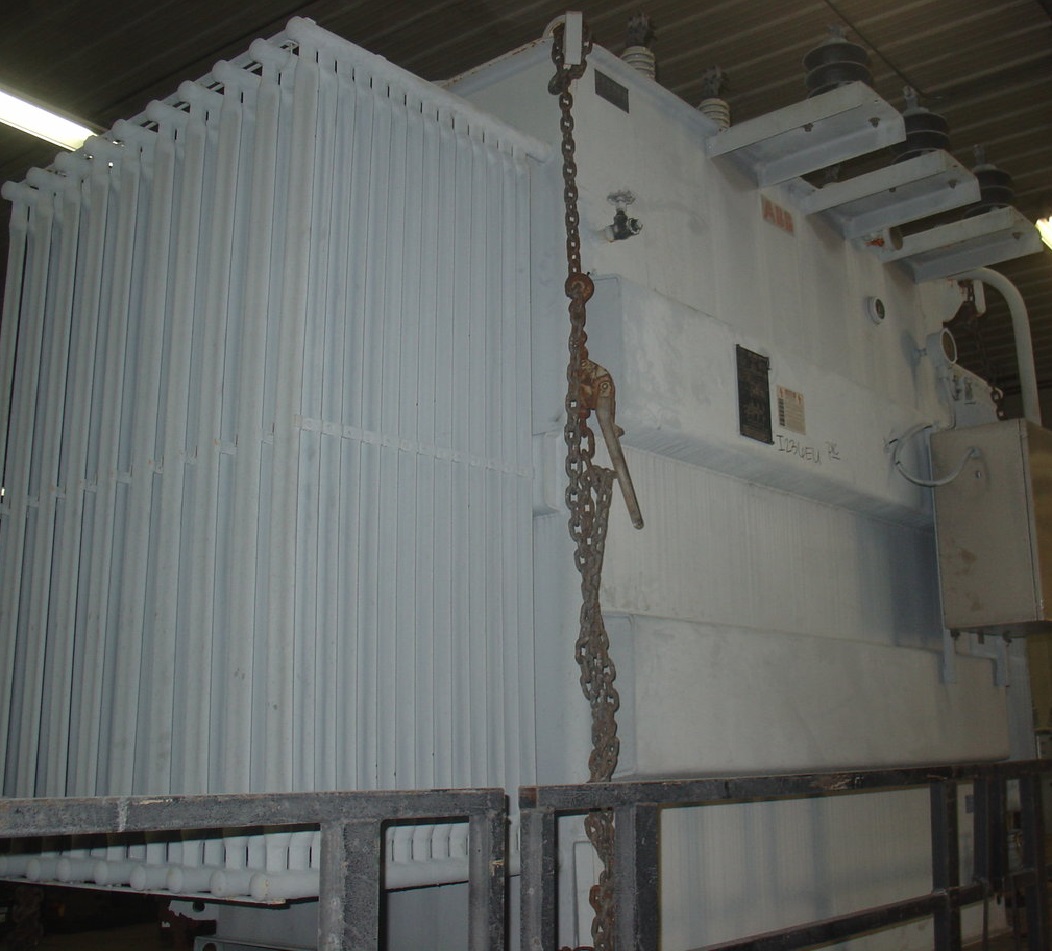

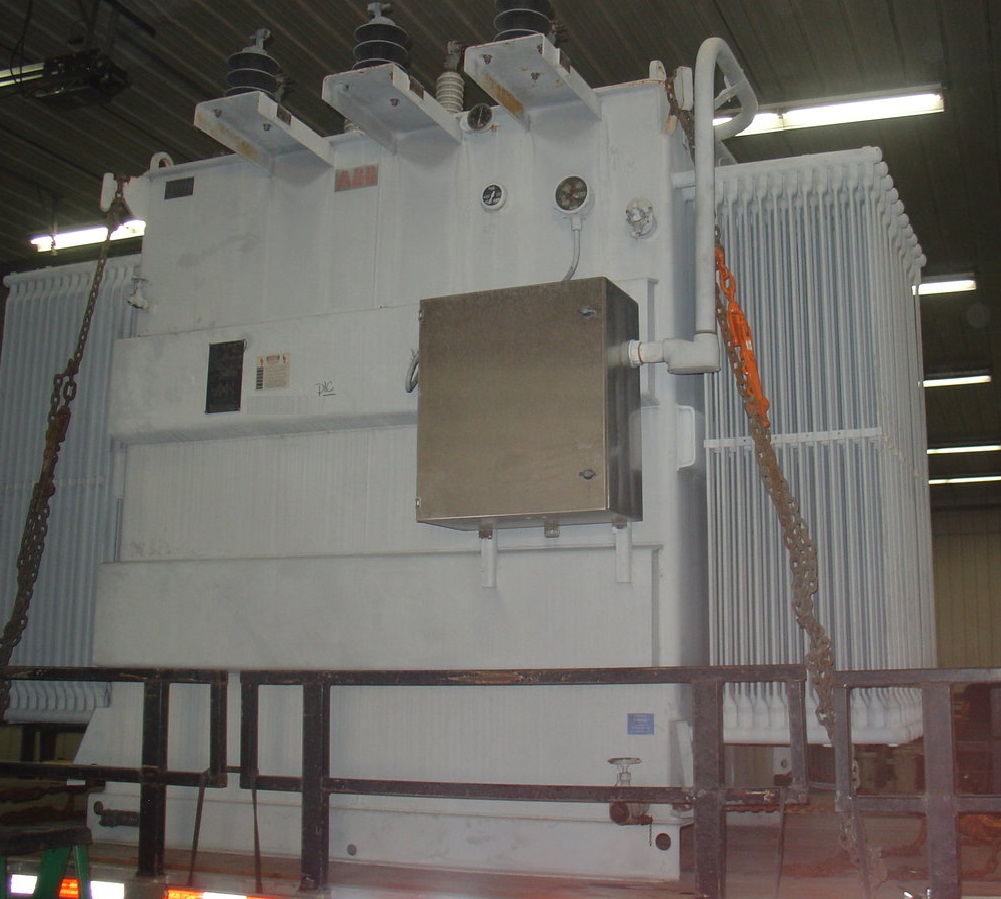

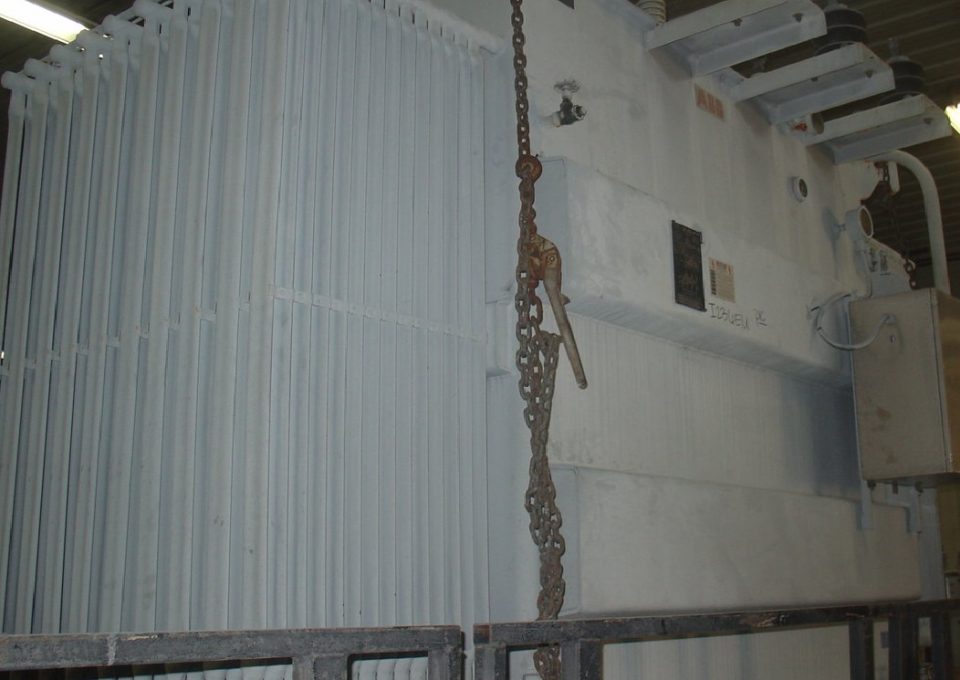

7.5 MVA ABB Substation Transformer
Product ID: 5628

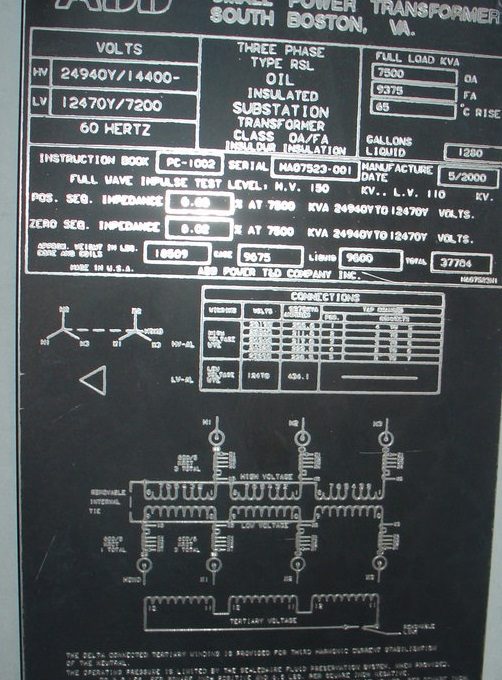

7.5 MVA Substation Transformer, Wye - Wye vector configuration, Buried Delta Tertiary
- Size: 7.5
- HV_H: 24940
- HV 2:
- Dual HV:
- HV TC Type: OLTC
- LV_1_X: 12469
- LV_2_Y:
- LV2 Type:
- Dual LV:
- LV TC Type:
- See Notes: Yes
- High Voltage Vector: Wye
- Low Voltage Vector: Wye
- High 2 Voltage Vector:
- Low 2 Voltage Vector:
- High Voltage Bushing: Top Mounted
- Low Voltage Bushing: Top Mounted
- HV2 Bushing:
- LV2 Bushing:
- Station Type: Substation Auto
- Live Dead:
- Feed:
- Type: Oil Filled
- Width:
- Length:
- Height:
- Weight: 37764
- Phase: 3
- HZ: 60
- DOM: 2000
- MFG: ABB
