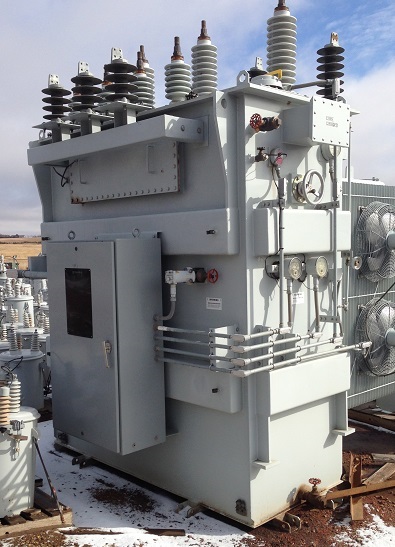

10/12.5 MVA 69 kV Delta – 24.9 kV Wye Oil Filled Transformer, 8.08% Impedance
Product ID: 5585
10/12.5 MVA Substation Stepdown Transformer, Oil filled, 8.08% Impedance
- Size: 10/12.5
- HV_H: 69000
- HV 2:
- Dual HV:
- HV TC Type: OLTC
- LV_1_X: 24940
- LV_2_Y:
- LV2 Type:
- Dual LV:
- LV TC Type:
- See Notes: Yes
- High Voltage Vector: Delta
- Low Voltage Vector: Wye
- High 2 Voltage Vector:
- Low 2 Voltage Vector:
- High Voltage Bushing: Top
- Low Voltage Bushing: Top
- HV2 Bushing:
- LV2 Bushing:
- Station Type: Substation Stepdown
- Live Dead:
- Feed:
- Type: Oil
- Width:
- Length:
- Height:
- Weight: 49200
- Phase: 3
- HZ: 60
- DOM: 2008

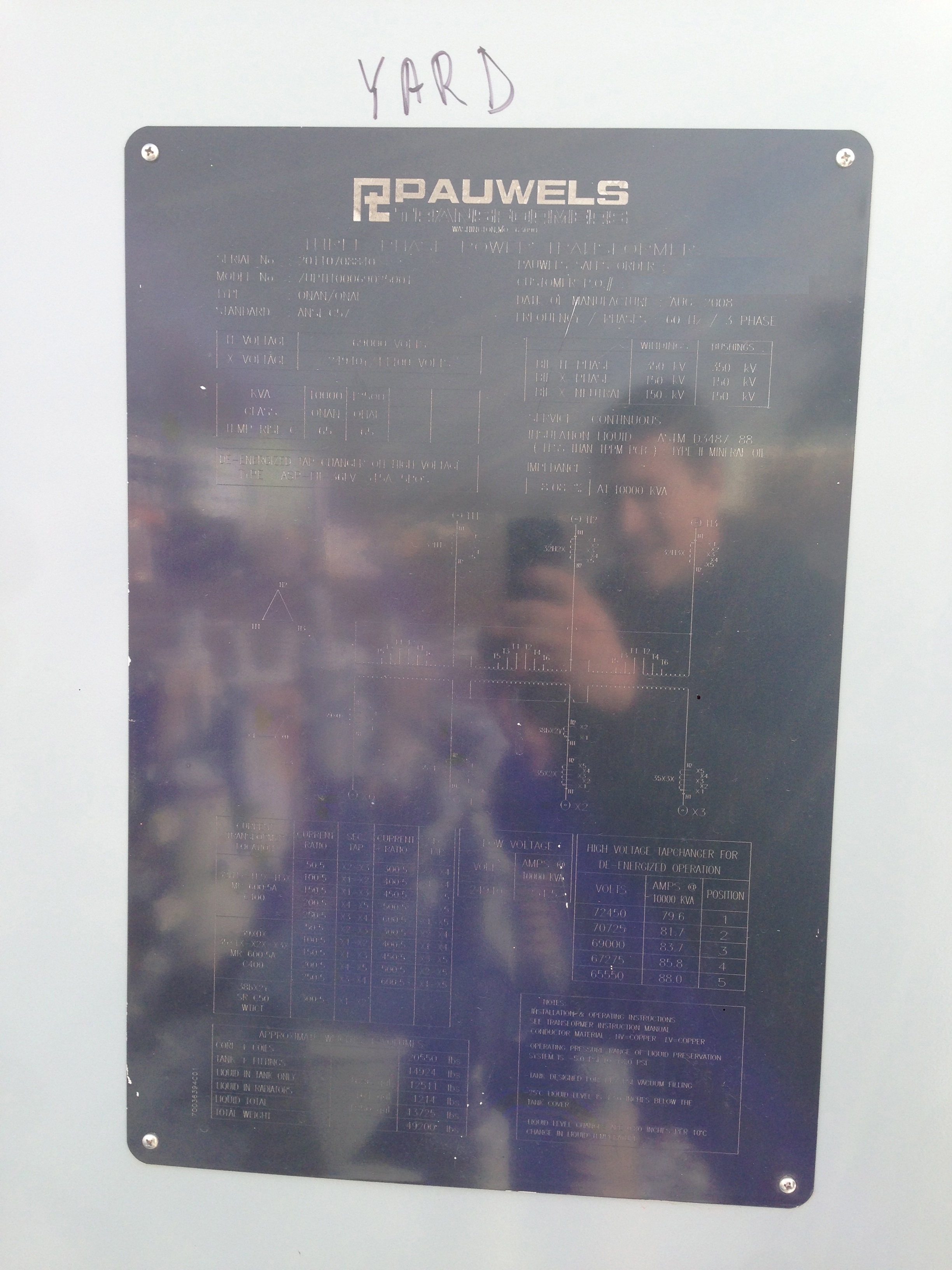

- MFG: Pauwels
