Waukesha Substation Transformer

Product ID: 5733

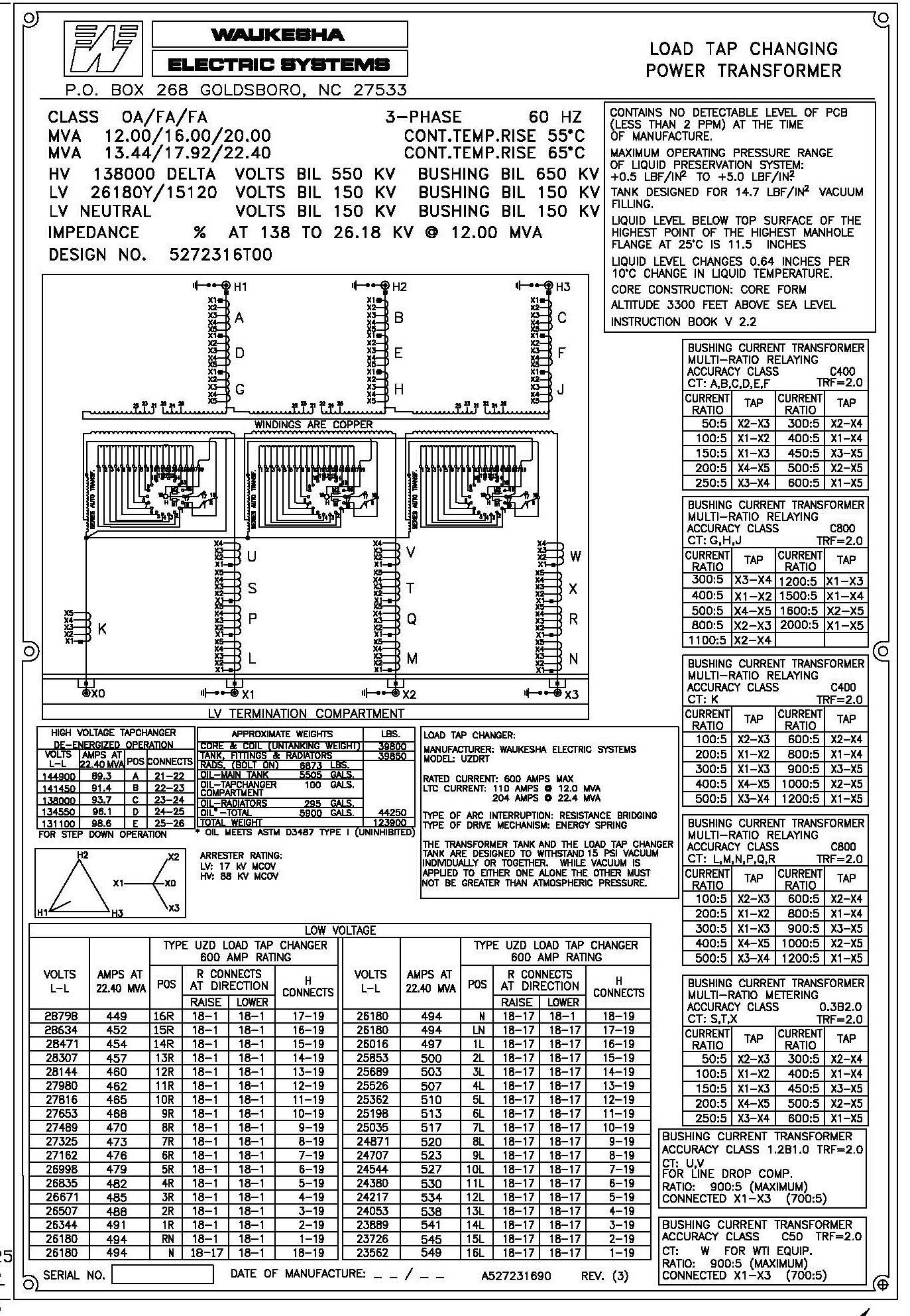

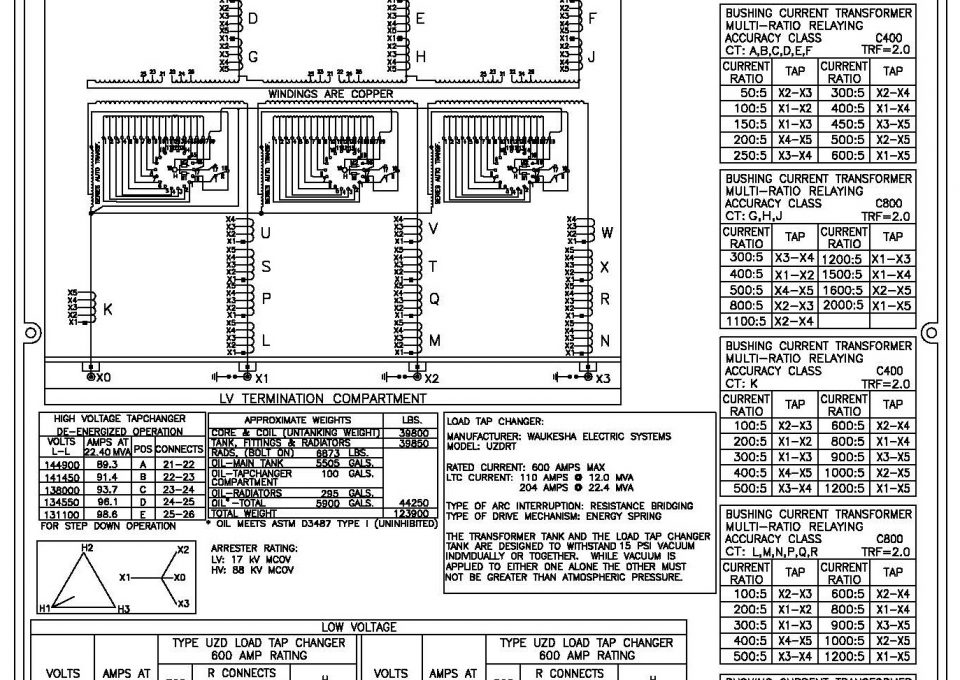

12/16/20/22.4 MVA Oil filled substation stepdown transformer. 138 kV delta primary, 26.1 kV Wye secondary with load tap changer

  • Size: 12/16/20/22.4 MVA
  • HV_H: 138000
  • HV 2:
  • Dual HV:
  • HV TC Type: Off Load Tap Changer
  • LV_1_X: 26180
  • LV_2_Y:
  • LV2 Type:
  • Dual LV:
  • LV TC Type: Load Tap Changer
  • See Notes: Yes
  • High Voltage Vector: Delta
  • Low Voltage Vector: Wye
  • High 2 Voltage Vector:
  • Low 2 Voltage Vector:
  • High Voltage Bushing: Top cover mounted
  • Low Voltage Bushing: Sidewall Tank Mounted
  • HV2 Bushing:
  • LV2 Bushing:
  • Station Type: Substation Stepdown
  • Live Dead:
  • Feed:
  • Type: Mineral Oil Filled

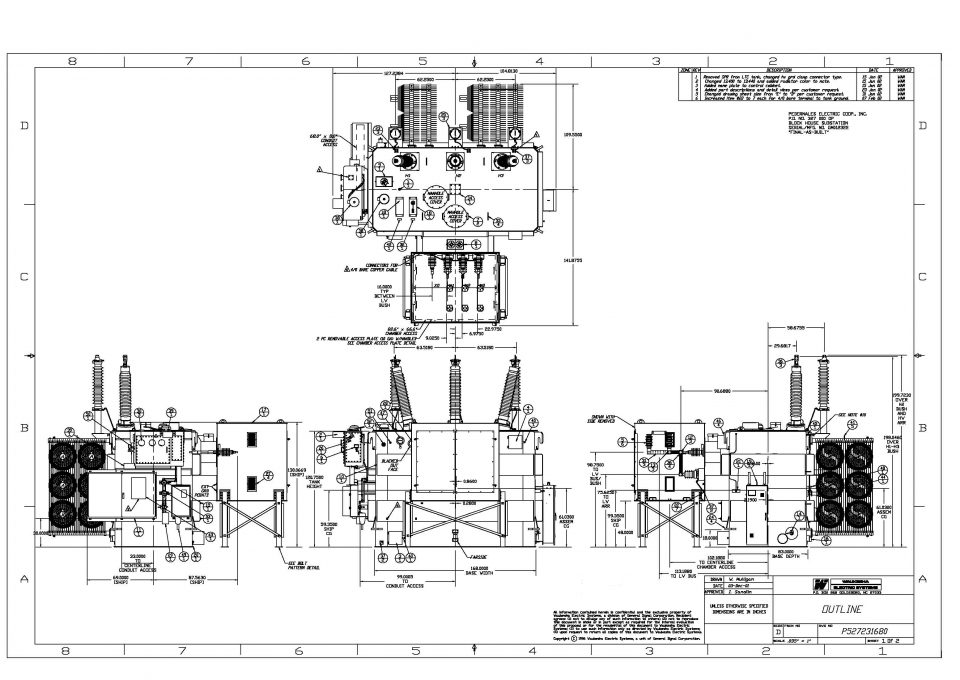

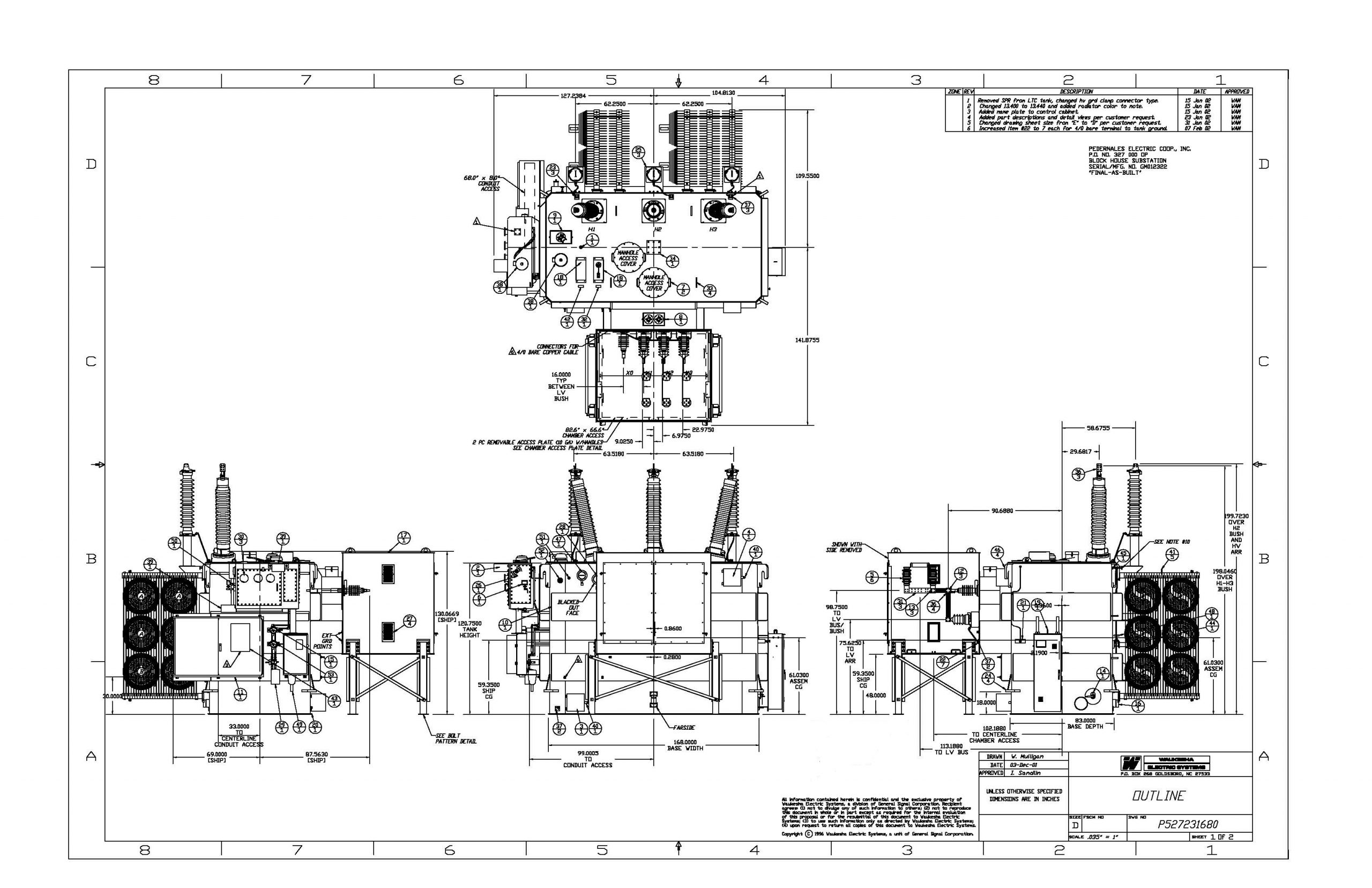

  • Width: 250
  • Length: 232
  • Height: 200
  • Weight: 123900
  • Phase: 3
  • HZ: 60
  • DOM: 2001
  • MFG: Waukesha
