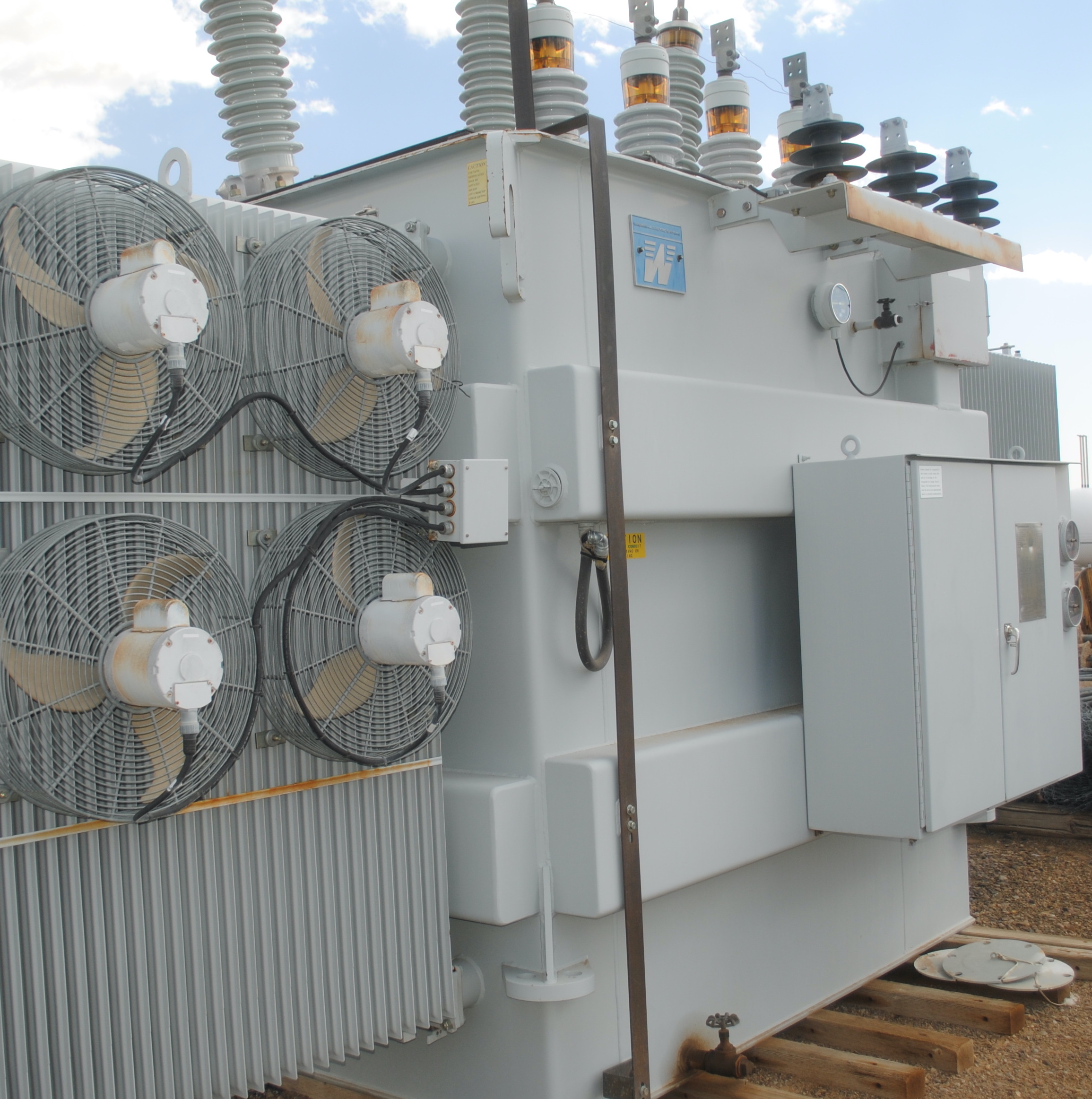

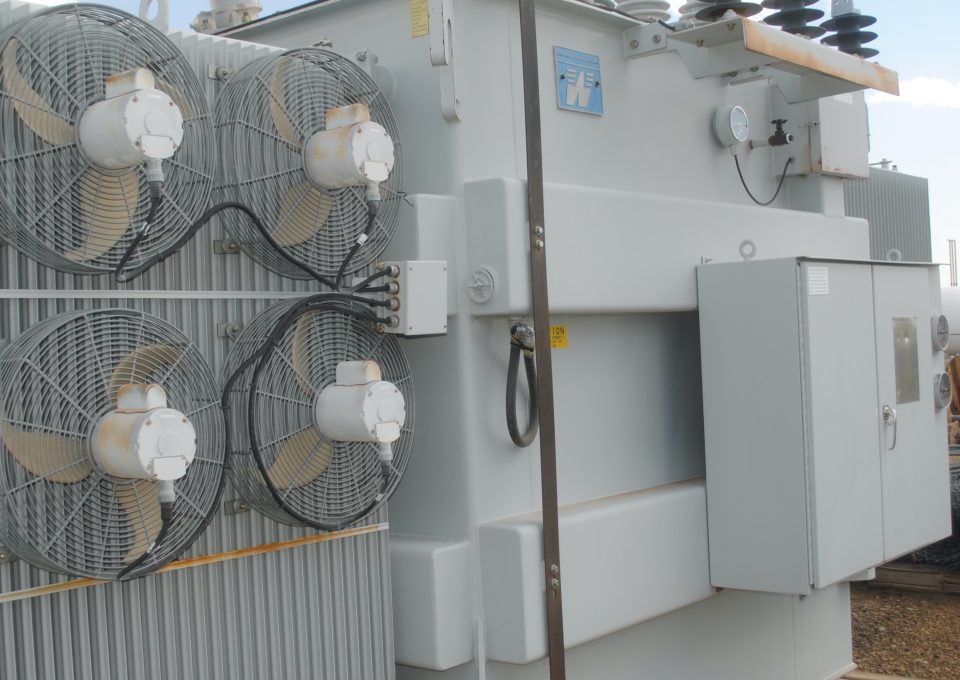

Waukesha Power Transformer

Product ID: 5712

15/20/25 MVA Waukesha Power Transformer, 115 kV Delta Primary, 12.47 kV Wye Secondary, Mineral Oil Filled, 2000:5 MRCT 2 per phase LV, 600:5 MRCT per HV phase

  • Size: 15/20/25/28 MVA
  • HV_H: 115000
  • HV 2:
  • Dual HV:
  • HV TC Type: Off Load Tap Changer
  • LV_1_X: 12470
  • LV_2_Y:
  • LV2 Type:
  • Dual LV:
  • LV TC Type:
  • See Notes: Yes
  • High Voltage Vector: Delta
  • Low Voltage Vector: Wye
  • High 2 Voltage Vector:
  • Low 2 Voltage Vector:
  • High Voltage Bushing: Top Cover Mounted
  • Low Voltage Bushing: Top Cover Mounted
  • HV2 Bushing:
  • LV2 Bushing:
  • Station Type: Substation Step down
  • Live Dead:
  • Feed:
  • Type: Mineral Oil Filled
  • Width:
  • Length:
  • Height:
  • Weight: 77000
  • Phase: 3
  • HZ: 60
  • DOM: 2000
  • MFG: Waukesha
