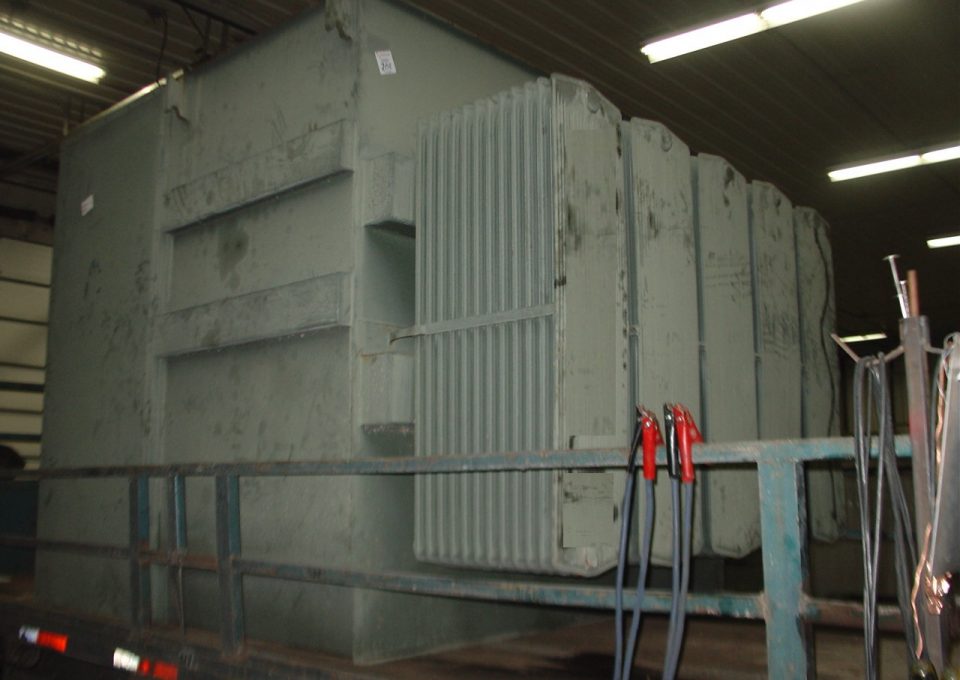

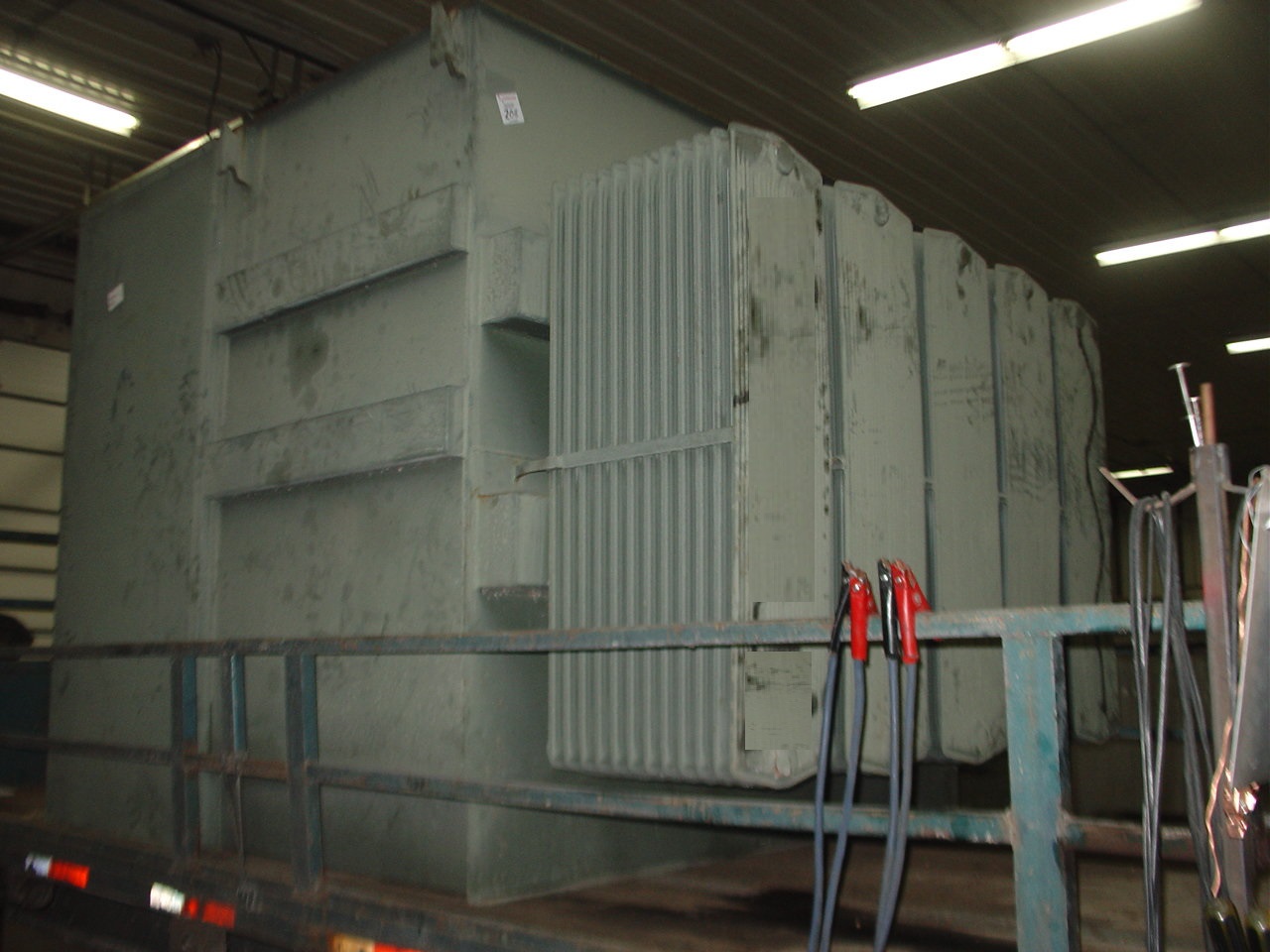

Three Phase Pad Mount Transformer

Product ID: 5691

Three Phase Pad Mount Transformer, 34.5/19.9 kV Wye live front primary, 13.2/7.62 kV Wye Live Front Secondary,

  • Size: 5 MVA
  • HV_H: 34500
  • HV 2:
  • Dual HV:
  • HV TC Type: Off Circuit Tap Switch
  • LV_1_X: 13200
  • LV_2_Y:
  • LV2 Type:
  • Dual LV:
  • LV TC Type:
  • See Notes: Yes
  • High Voltage Vector: Wye
  • Low Voltage Vector: Wye
  • High 2 Voltage Vector:
  • Low 2 Voltage Vector:

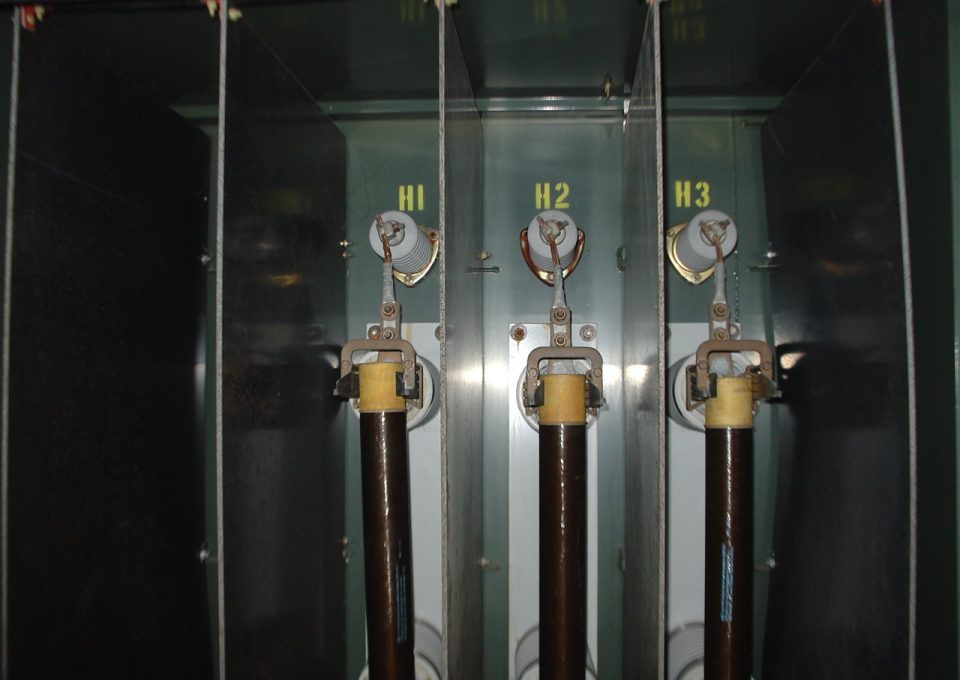

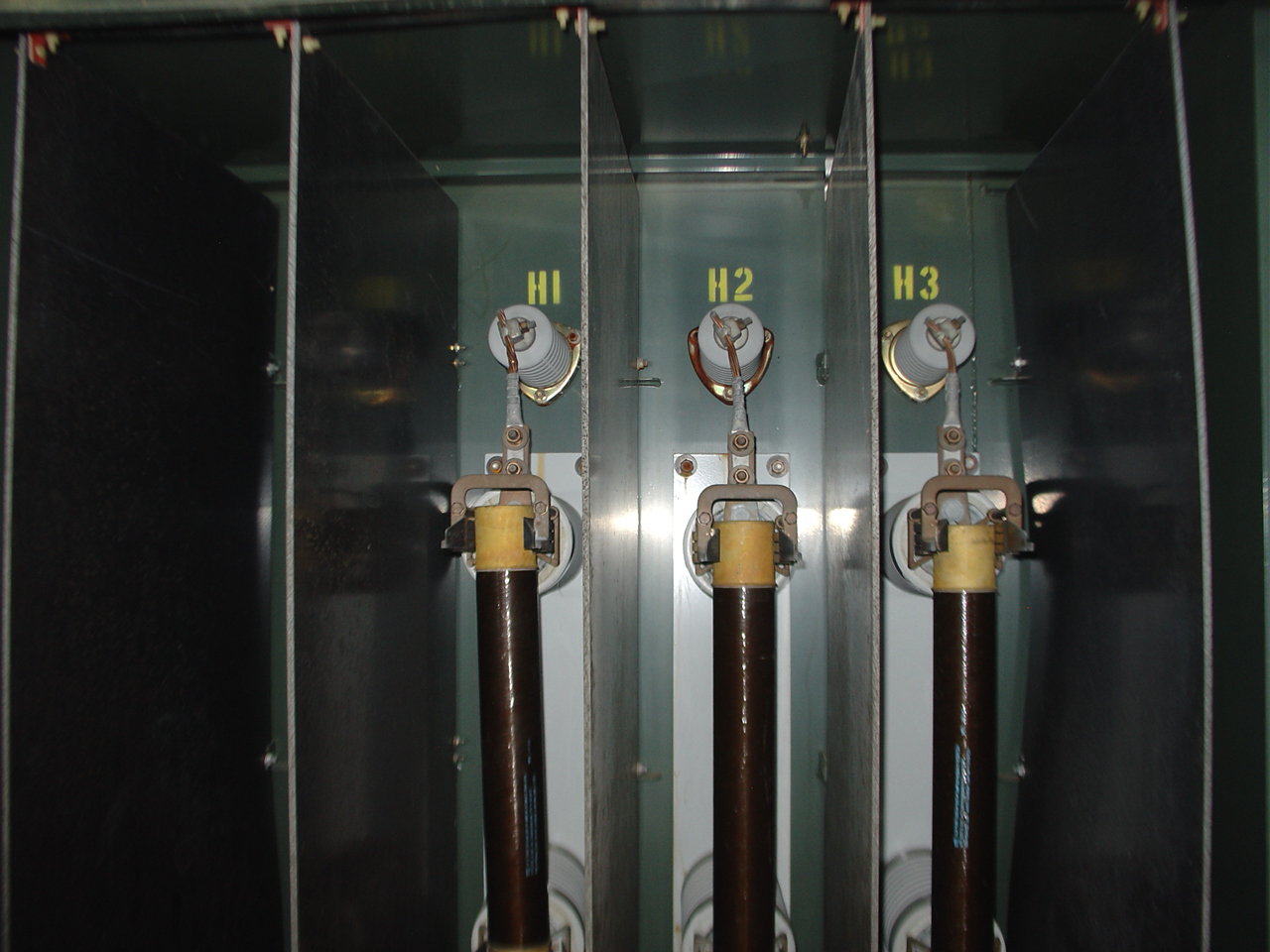

  • High Voltage Bushing: Sidewall Mounted

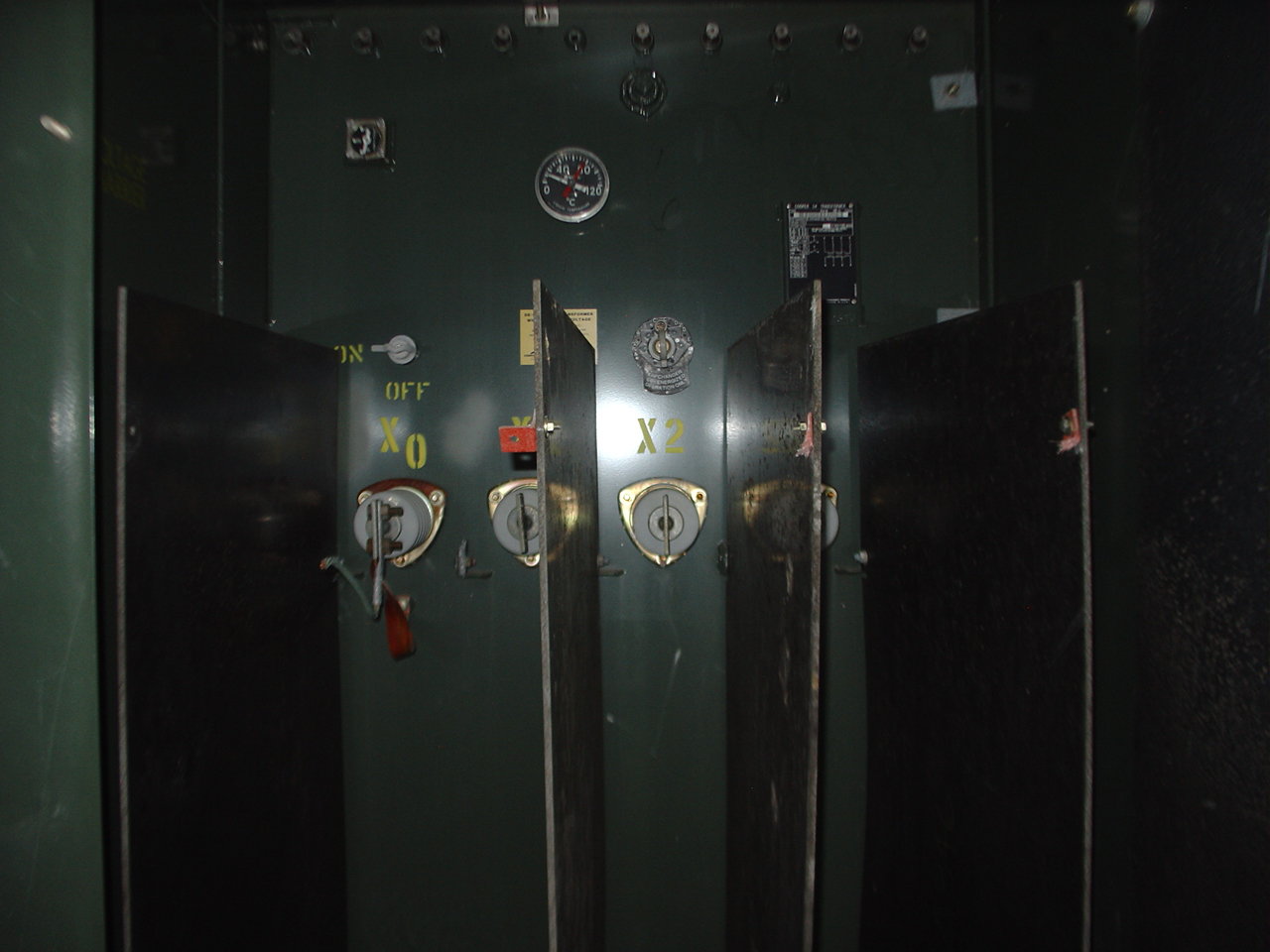

  • Low Voltage Bushing: Sidewall Mounted
  • HV2 Bushing:
  • LV2 Bushing:
  • Station Type: Pad Mount
  • Live Dead: Live Front
  • Feed: Radial Feed
  • Type: Oil Filled
  • Width:
  • Length:
  • Height:

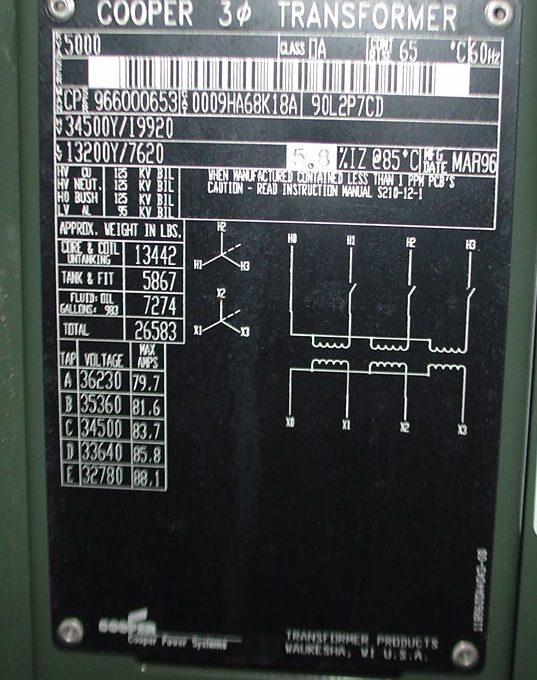

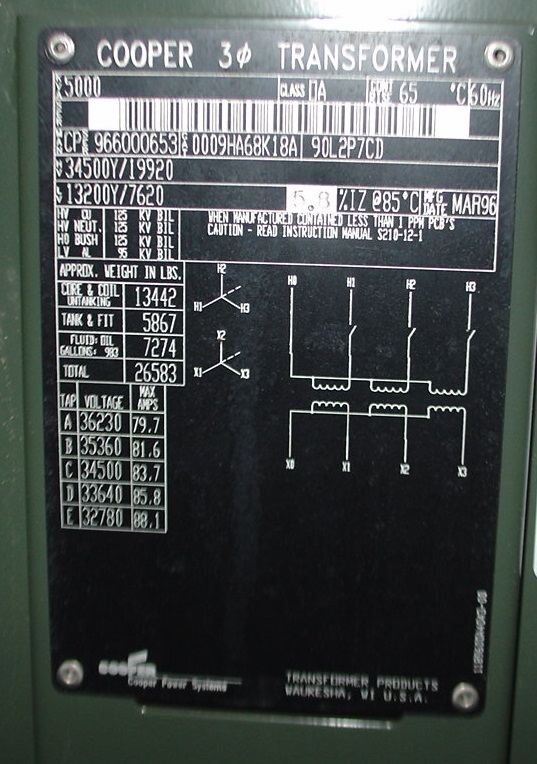

  • Weight: 26583
  • Phase: 3
  • HZ: 60
  • DOM: 1996
  • MFG: Cooper

Request a quote:
