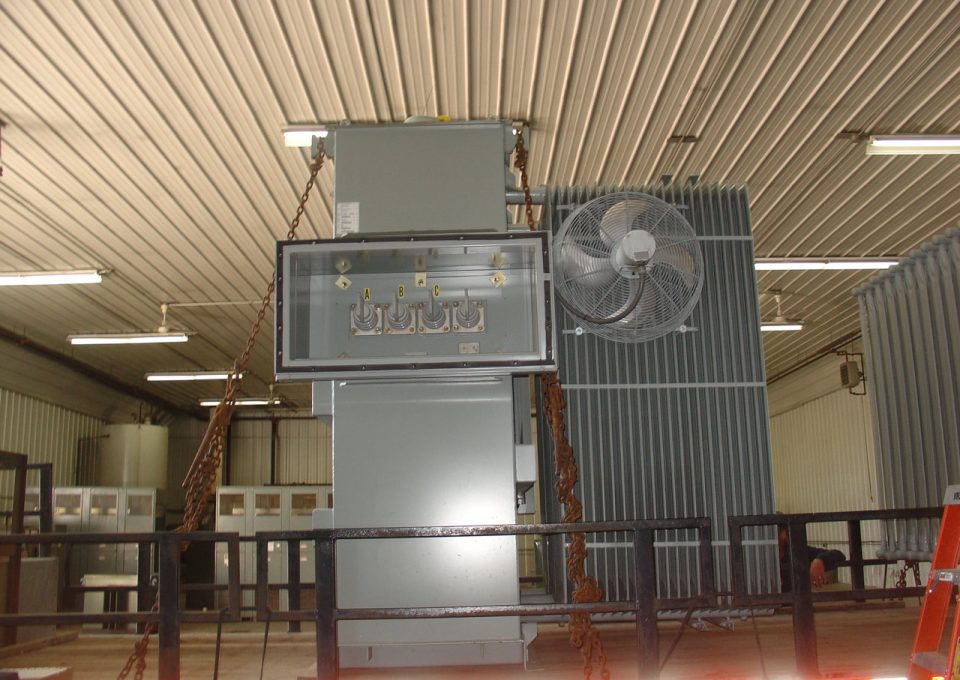

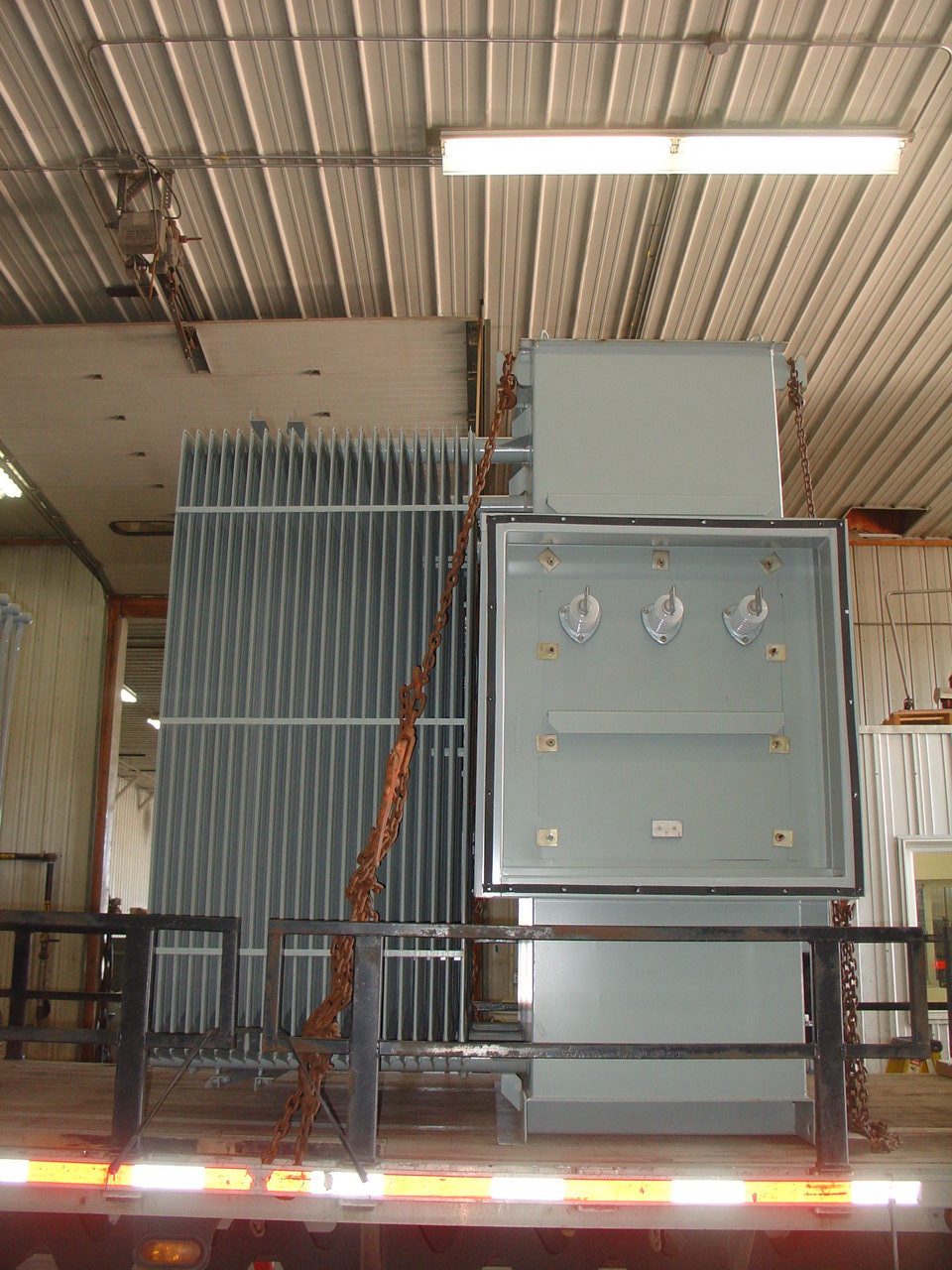

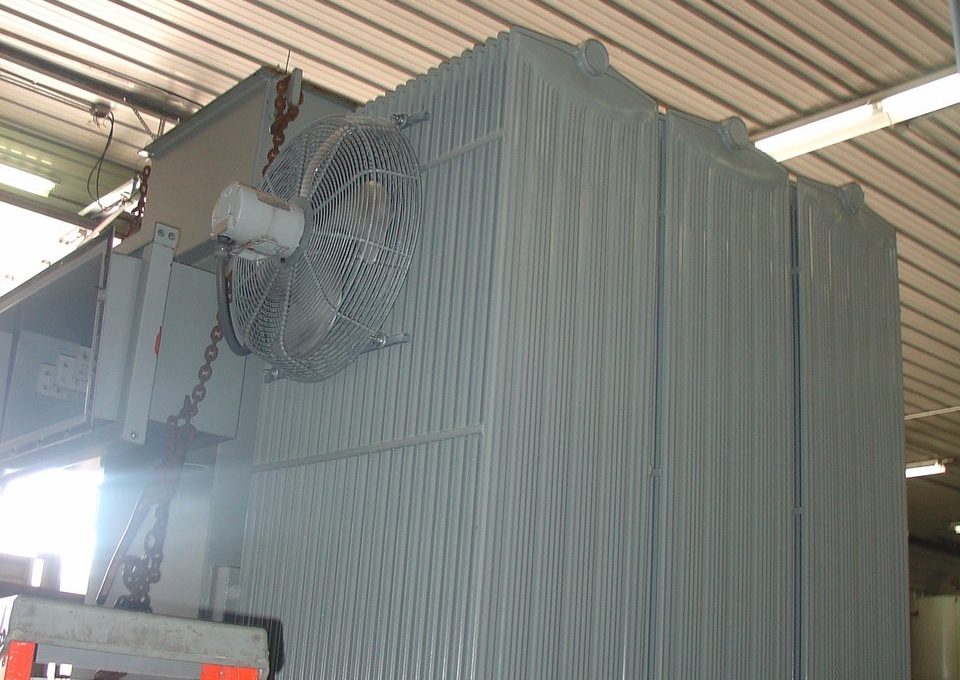

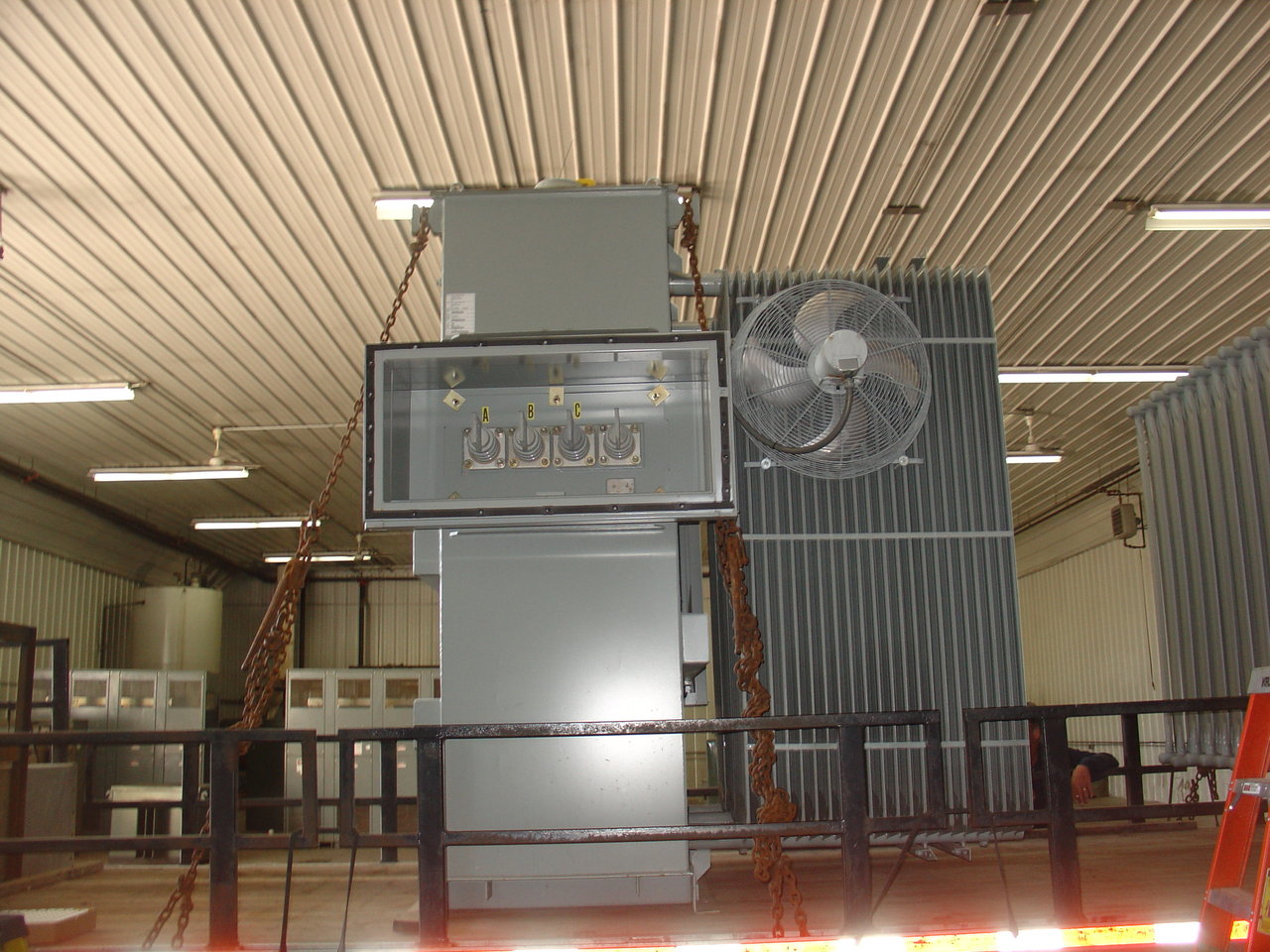

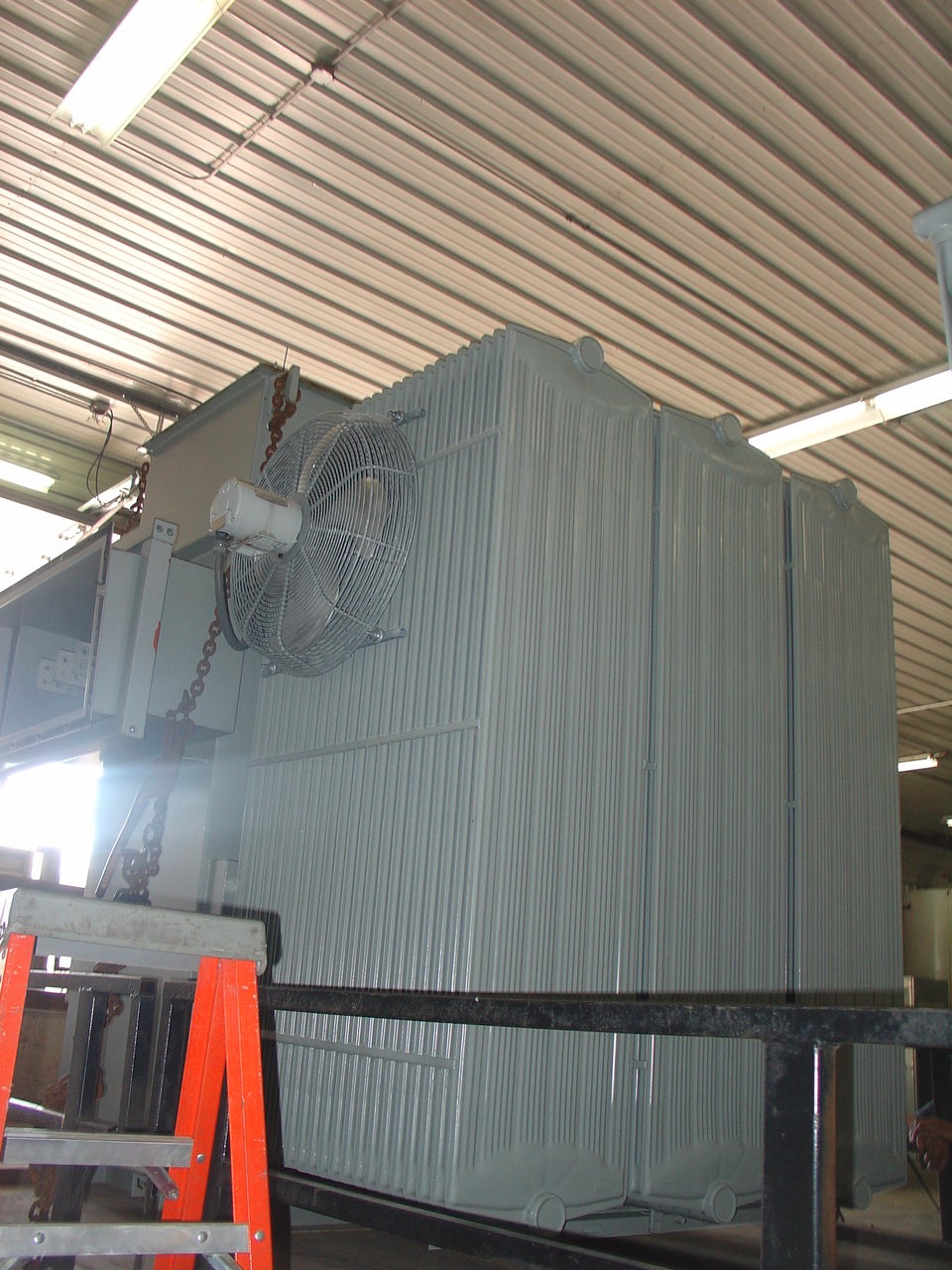

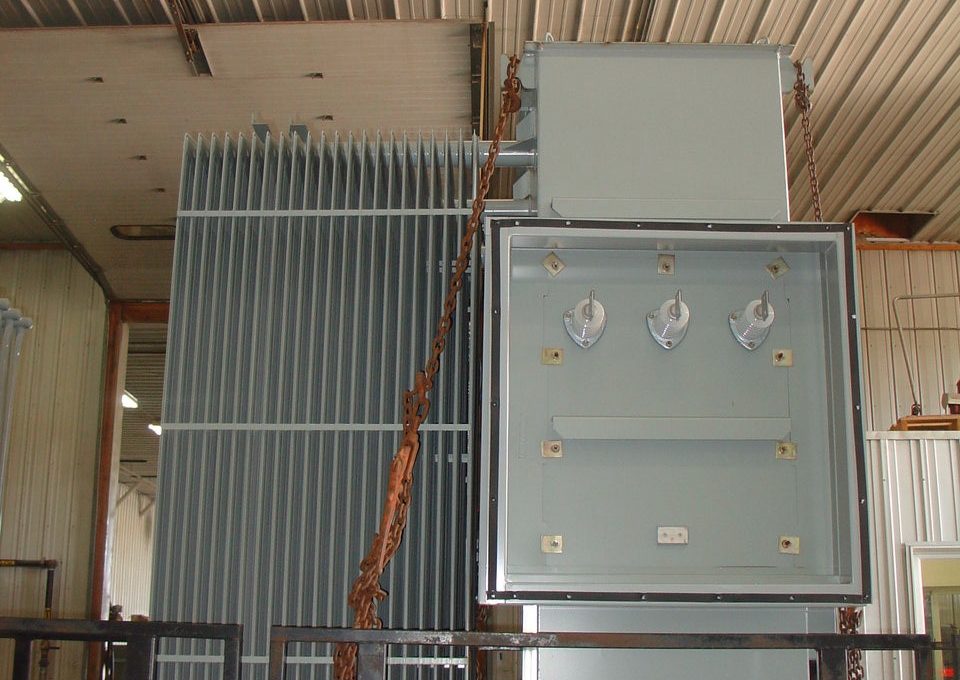

New Surplus Station Type Transformer, FR3 Filled, Copper Windings

Product ID: 5612

Never used FR3 filled transformer, base rated 3750 kva, copper windings

  • Size: 3.75/4.2/4.687/5.25
  • HV_H: 12470
  • HV 2:
  • Dual HV:
  • HV TC Type: OLTC
  • LV_1_X: 2400
  • LV_2_Y:
  • LV2 Type:
  • Dual LV:
  • LV TC Type:
  • See Notes: Yes
  • High Voltage Vector: Delta
  • Low Voltage Vector: Wye
  • High 2 Voltage Vector:
  • Low 2 Voltage Vector:
  • High Voltage Bushing:
  • Low Voltage Bushing:
  • HV2 Bushing:
  • LV2 Bushing:
  • Station Type: Station
  • Live Dead:
  • Feed:
  • Type: FR3
  • Width:
  • Length:
  • Height:
  • Weight: 19725
  • Phase: 3
  • HZ: 60
  • DOM: 2008

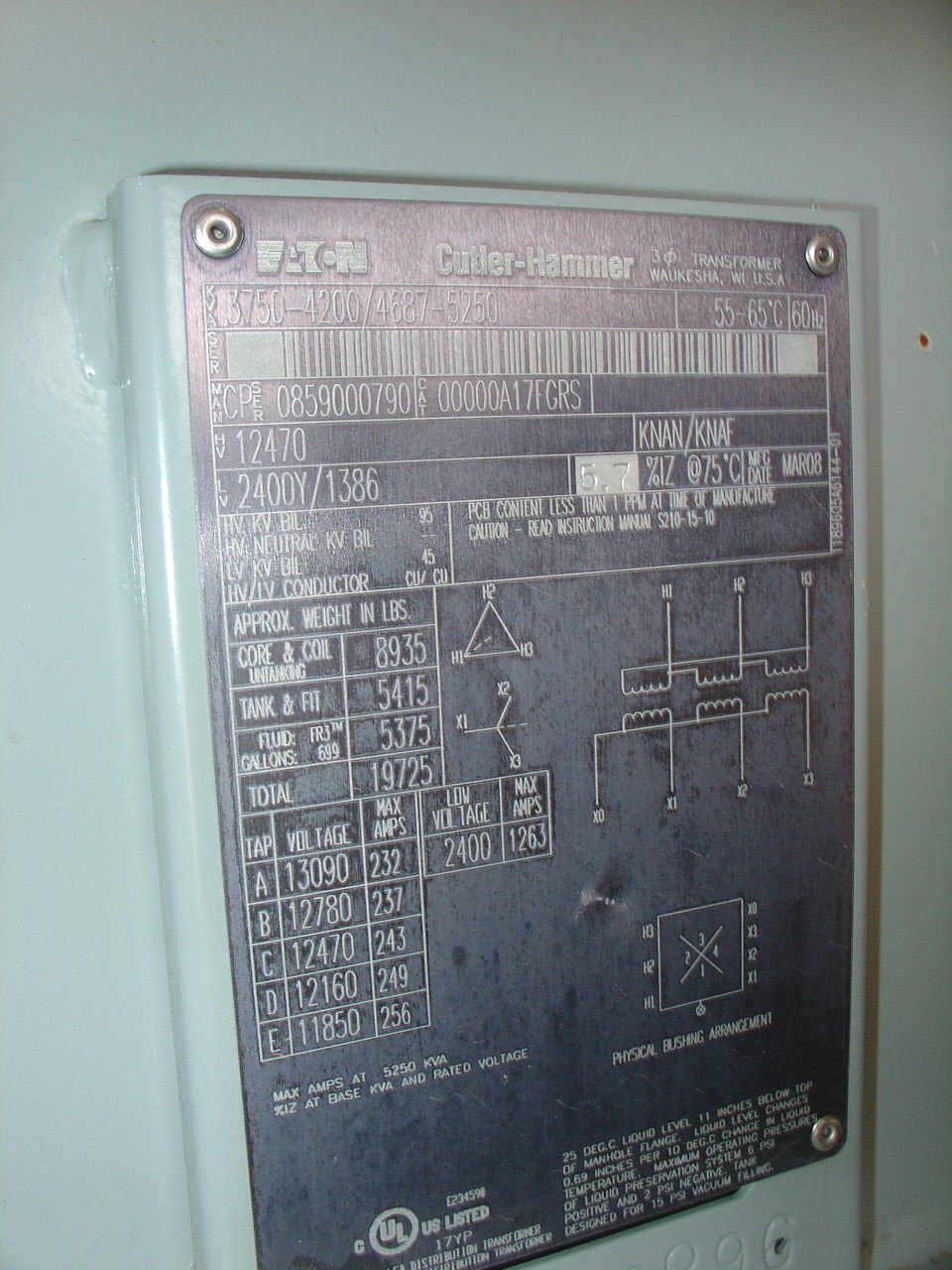

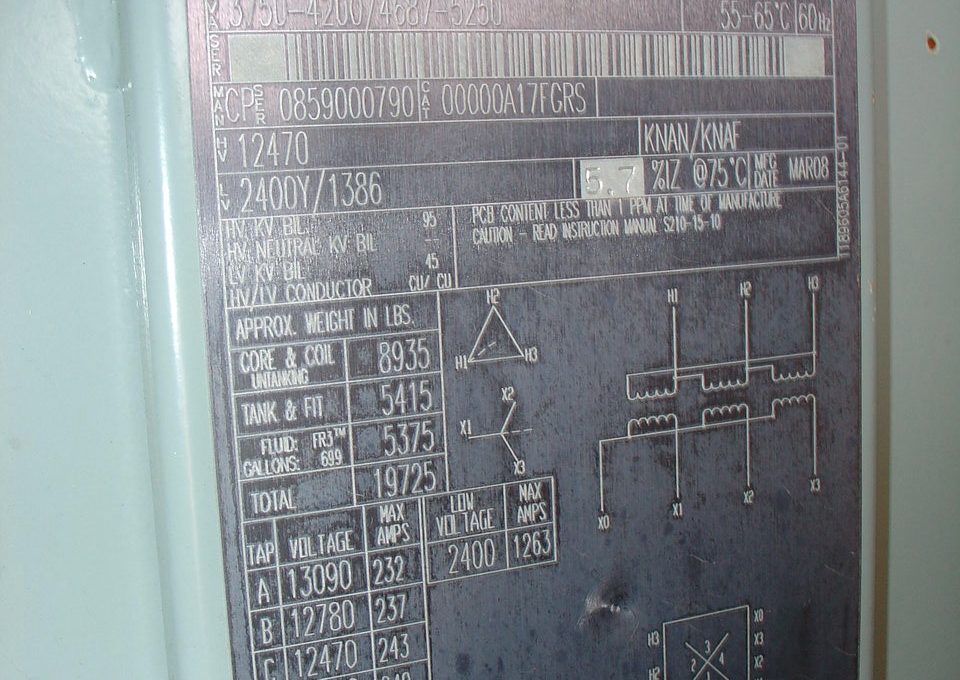

  • MFG: Eaton Cutler-Hammer
