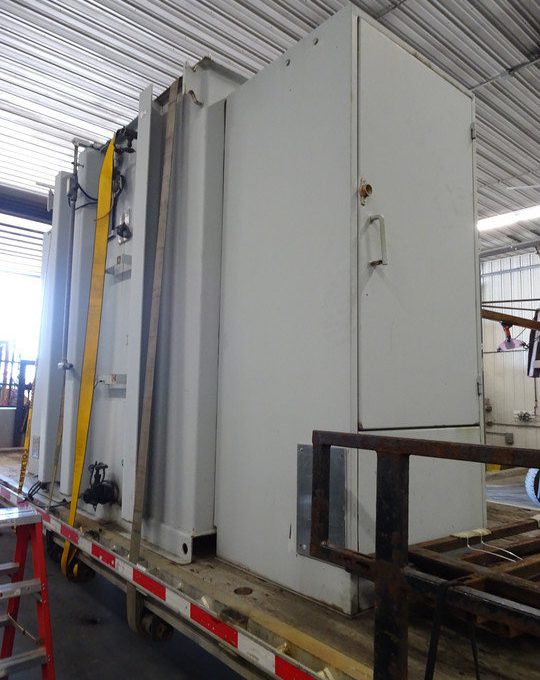

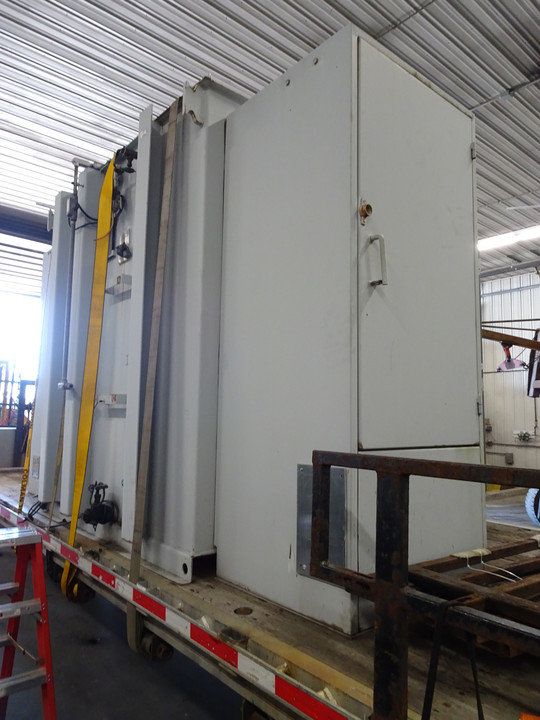

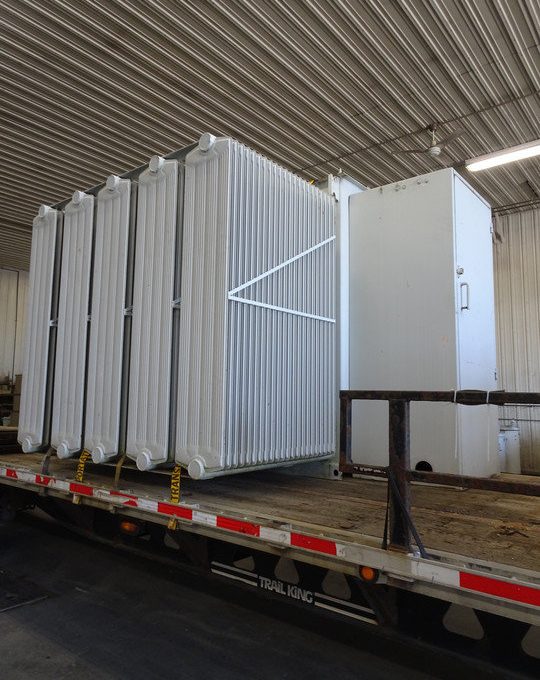

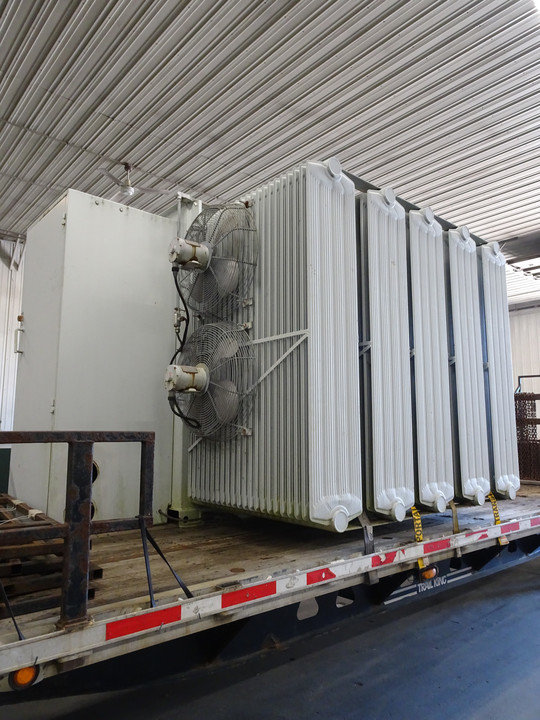

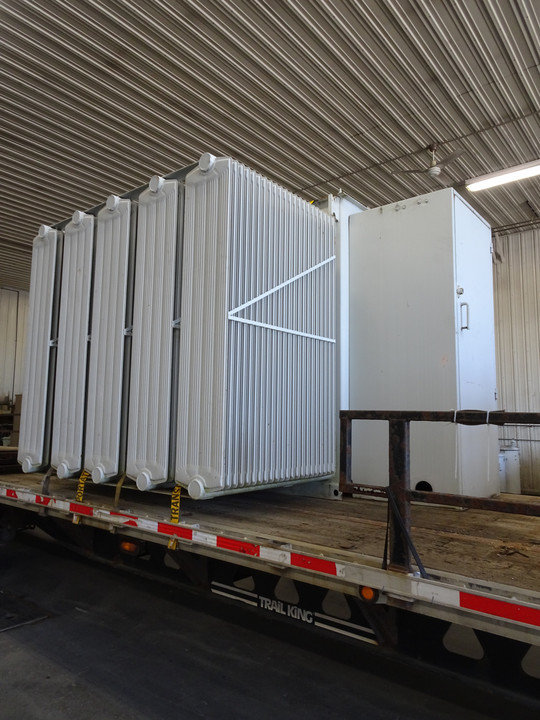

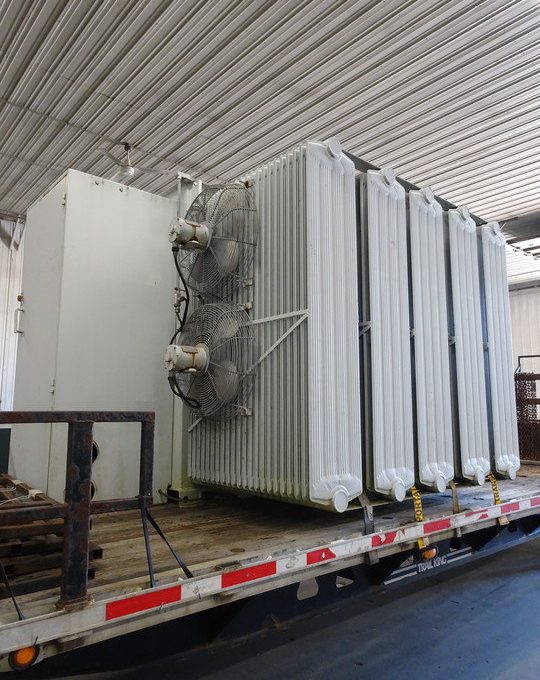

RTE Unit Substation 12.47 kV D – 4.16/2.4 kV Y

Product ID: 5720

RTE Unit Substation. Sidewall mounted primary and secondary bushings. Full length air terminal chambers. mineral oil filled. 12470 volts delta primary. 4160_2400 volts wye secondary. mineral oil filled

  • Size: 5/5.6/6/6.25 MVA
  • HV_H: 12470
  • HV 2:
  • Dual HV:
  • HV TC Type: Off Load TAp Changer
  • LV_1_X: 4160
  • LV_2_Y:
  • LV2 Type:
  • Dual LV:
  • LV TC Type:
  • See Notes: Yes
  • High Voltage Vector: Delta
  • Low Voltage Vector: Wye
  • High 2 Voltage Vector:
  • Low 2 Voltage Vector:
  • High Voltage Bushing: Sidewall Mounted Segment 2
  • Low Voltage Bushing: Sidewall Mounted Segment 4
  • HV2 Bushing:
  • LV2 Bushing:
  • Station Type: Substation Stepdown
  • Live Dead:
  • Feed:
  • Type: Mineral Oil Filled
  • Width:
  • Length:
  • Height:
  • Weight: 25350
  • Phase: 3
  • HZ: 60
  • DOM:
  • MFG: RTE

Request a quote:
