Pad Mount Transformer 2500 kva

Product ID: 5690

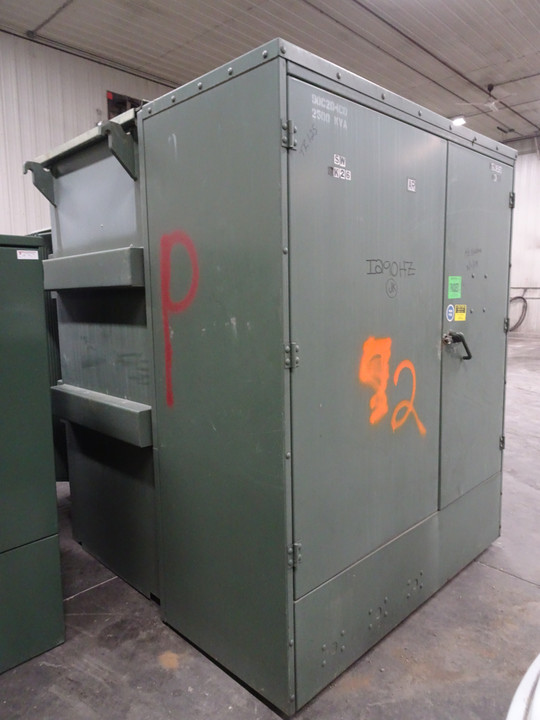

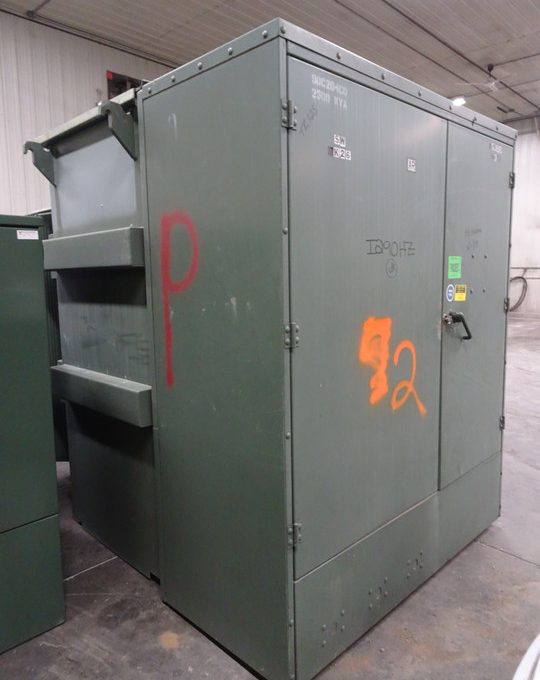

2500 kva Dead front radial feed pad mount, 34.5/19.9 kV Wye Primary, 480/277 volt Wye Secondary

  • Size: 2.5 MVA
  • HV_H: 34500
  • HV 2:
  • Dual HV:
  • HV TC Type: Off Circuit Tap Switch
  • LV_1_X: 480
  • LV_2_Y:
  • LV2 Type:
  • Dual LV:
  • LV TC Type:
  • See Notes: Yes
  • High Voltage Vector: Wye
  • Low Voltage Vector: Wye
  • High 2 Voltage Vector:
  • Low 2 Voltage Vector:

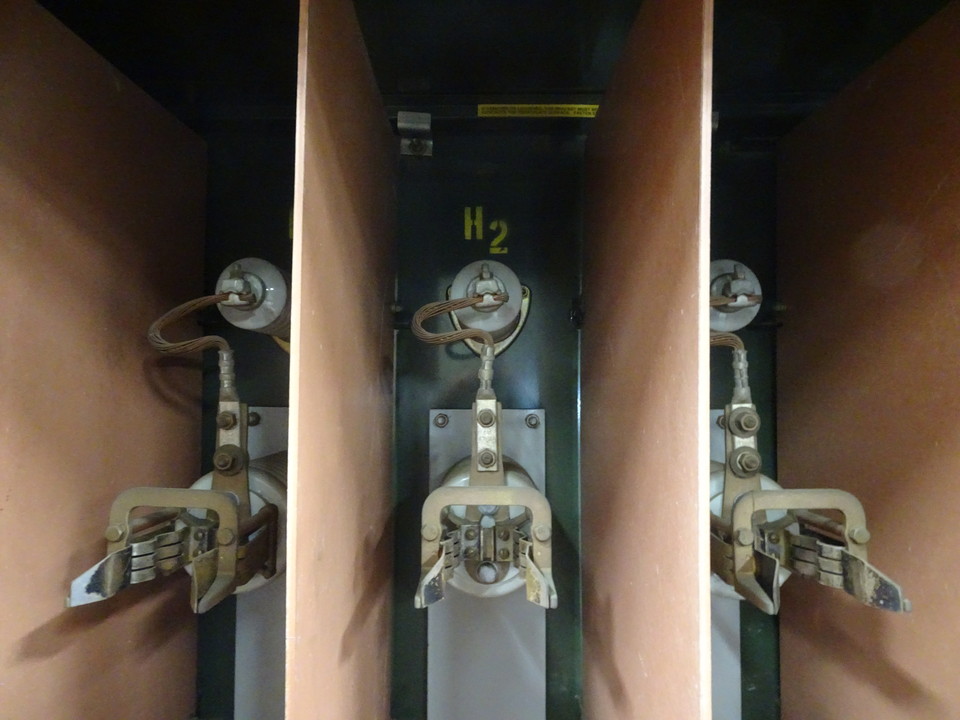

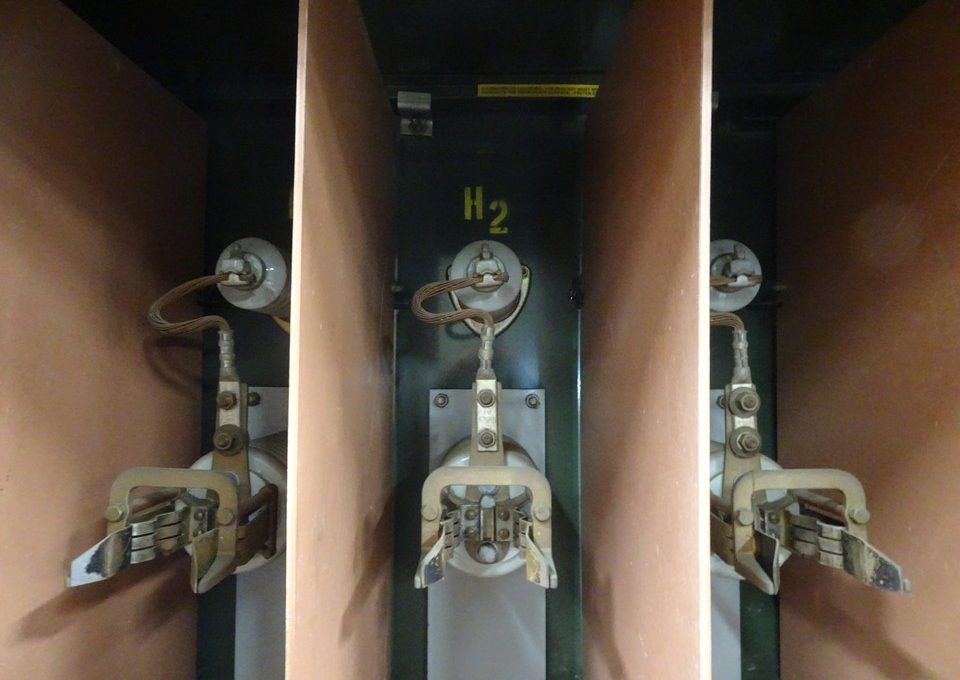

  • High Voltage Bushing: Sidewall

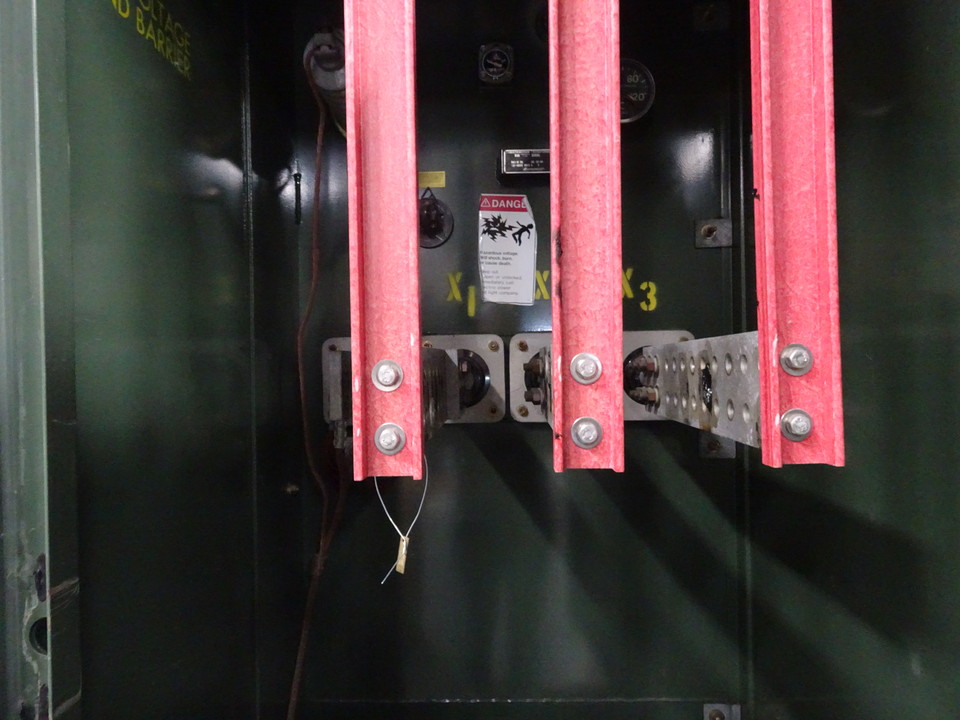

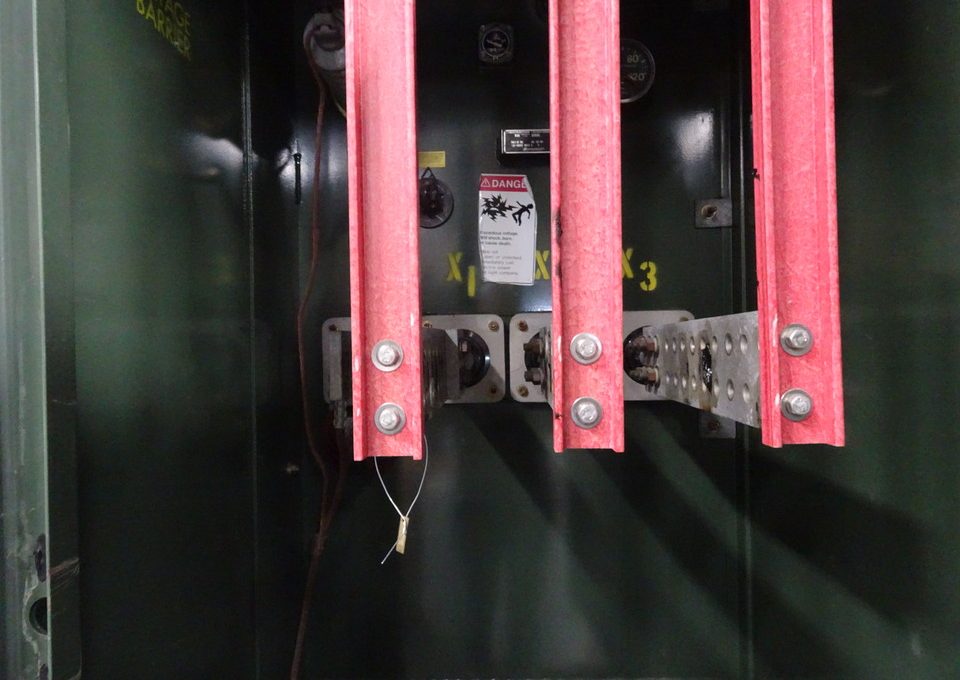

  • Low Voltage Bushing: Sidewall
  • HV2 Bushing:
  • LV2 Bushing:
  • Station Type: Pad Mount
  • Live Dead: Live
  • Feed: Radial
  • Type: Oil Filled
  • Width: 72
  • Length: 97
  • Height: 87
  • Weight: 17720
  • Phase: 3
  • HZ: 60
  • DOM: 1992

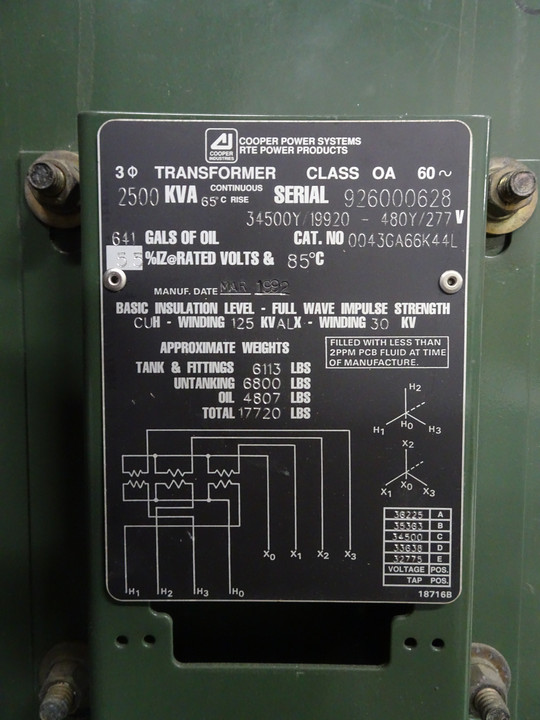

  • MFG: Cooper
