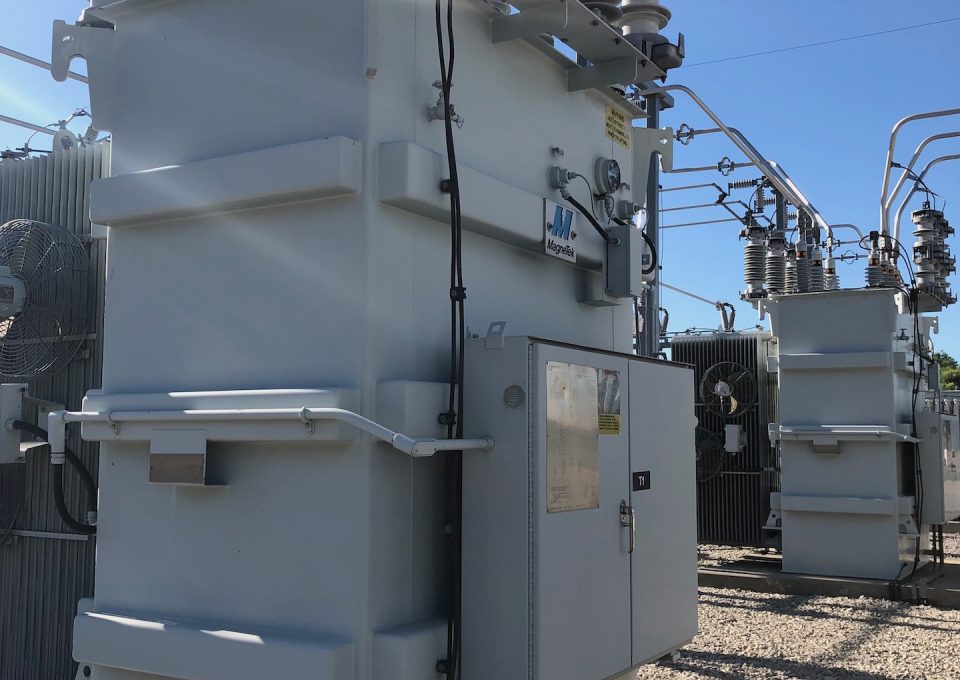

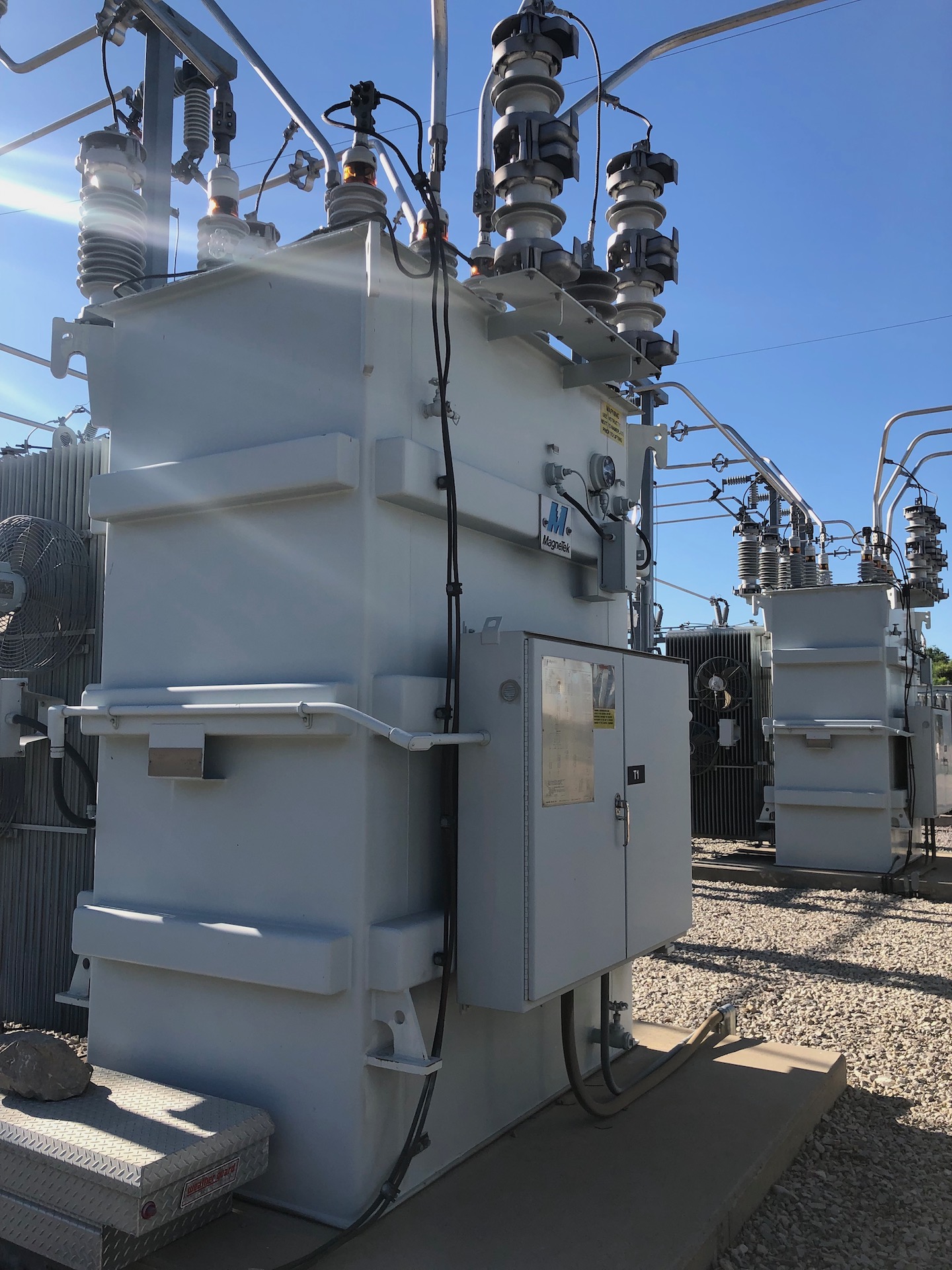

Magnetek 7 MVA Substation Transformer

Product ID: 5708

5/5.6/6.25/7 MVA 43.8 kV Wye to 12.47/7.2 X 4.16/2.4 kV Wye, Magnetek Substation Stepdown Transformer, Mineral Oil Filled

  • Size: 5/5.6/6.25/7 MVA
  • HV_H: 43800
  • HV 2:
  • Dual HV:
  • HV TC Type: Off Load Tap Changer
  • LV_1_X: 12470
  • LV_2_Y: 4157
  • LV2 Type:
  • Dual LV: 1
  • LV TC Type:
  • See Notes: Yes
  • High Voltage Vector: Delta
  • Low Voltage Vector: Wye
  • High 2 Voltage Vector:
  • Low 2 Voltage Vector: Wye
  • High Voltage Bushing: Top Cover Mounted
  • Low Voltage Bushing: Top Cover Mounted
  • HV2 Bushing:
  • LV2 Bushing: Top Cover Mounted
  • Station Type: Substation Stepdown
  • Live Dead:
  • Feed:
  • Type: Mineral Oil Filled
  • Width:
  • Length:
  • Height:
  • Weight: 42300
  • Phase: 3
  • HZ: 60
  • DOM: 1994
  • MFG: Magnetek/Waukesha
