Dual High Voltage LTC

Product ID: 5666

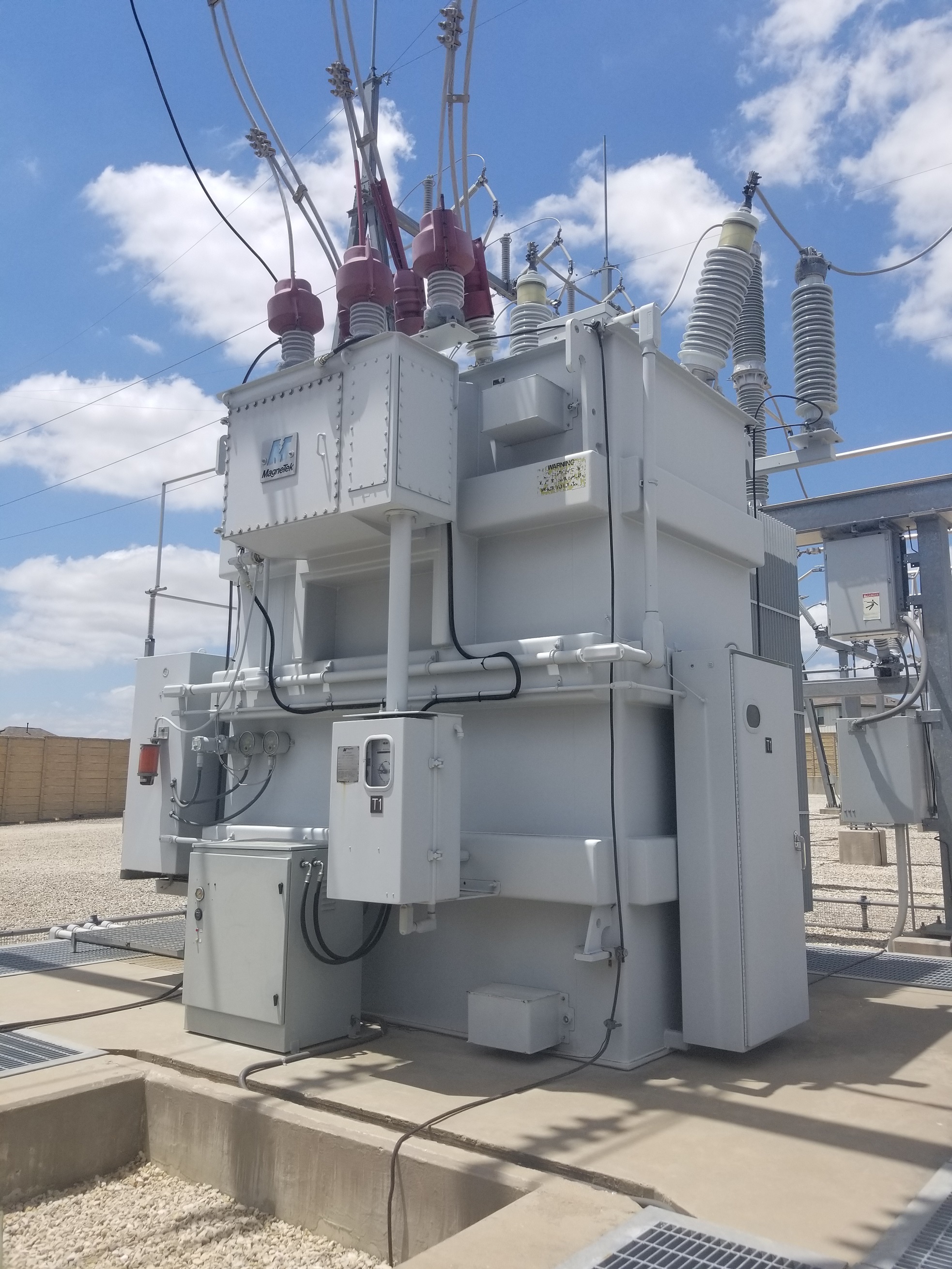

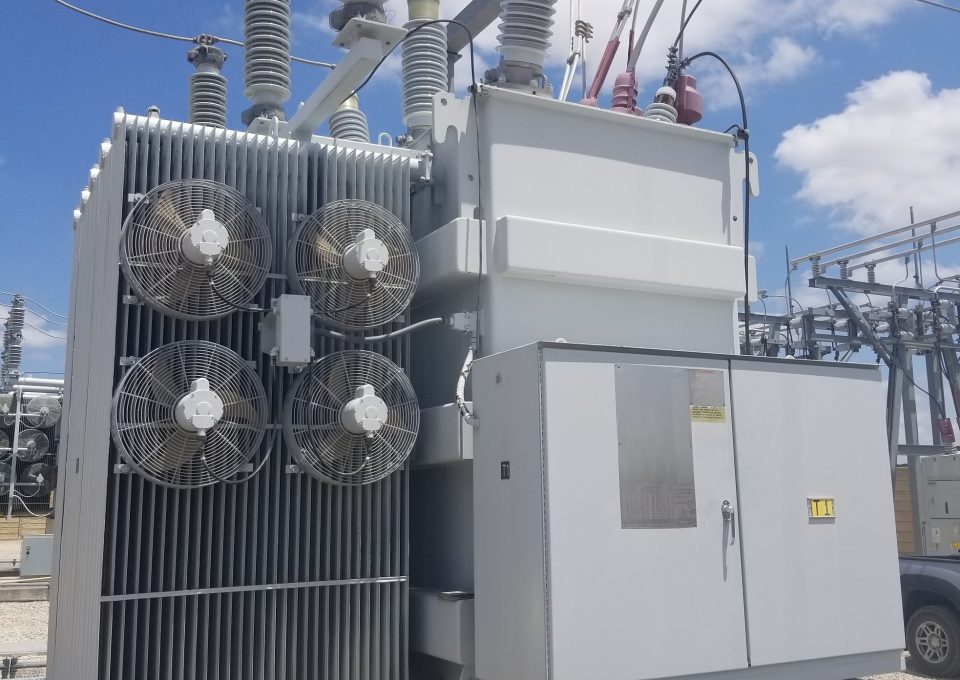

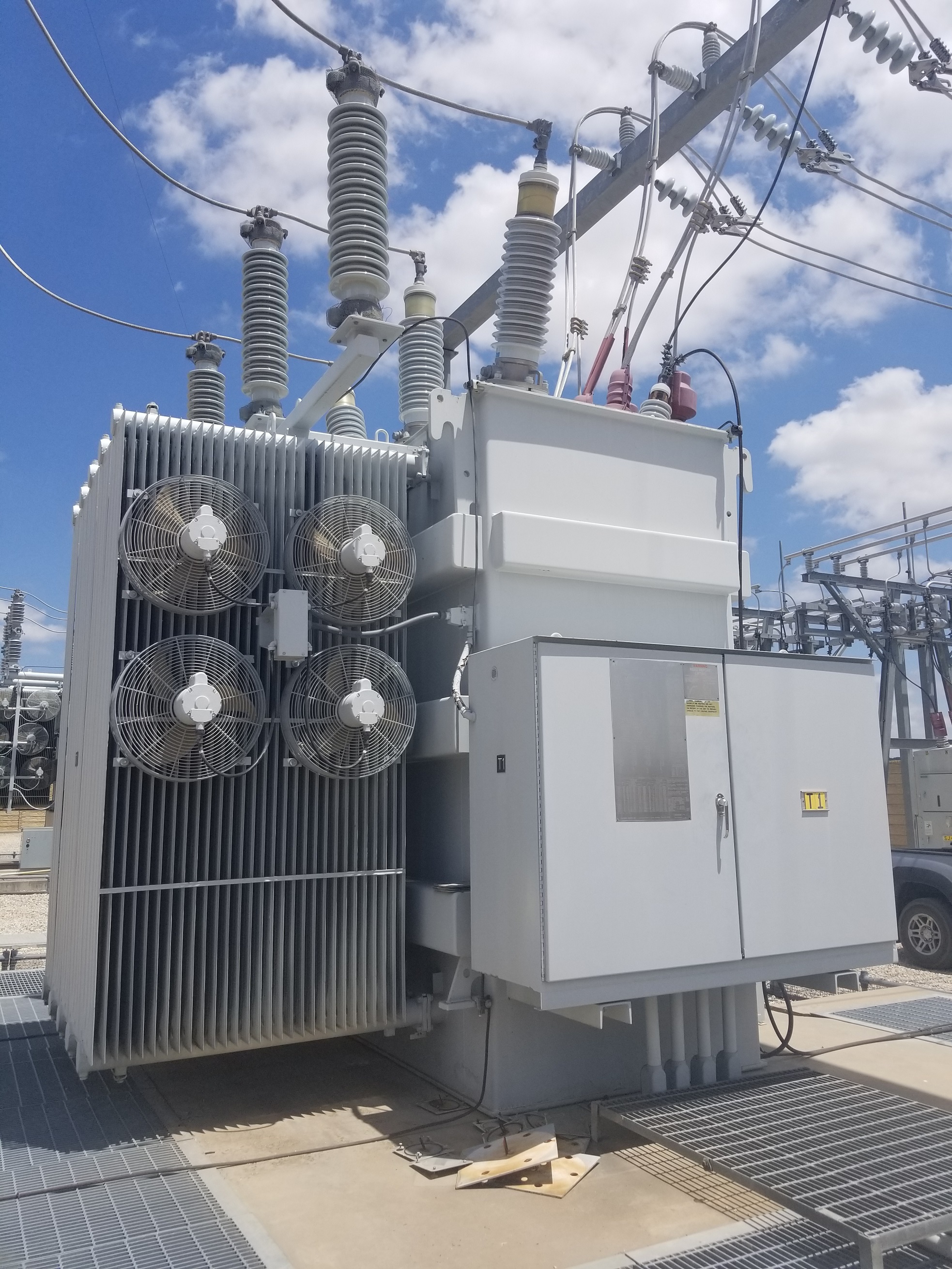

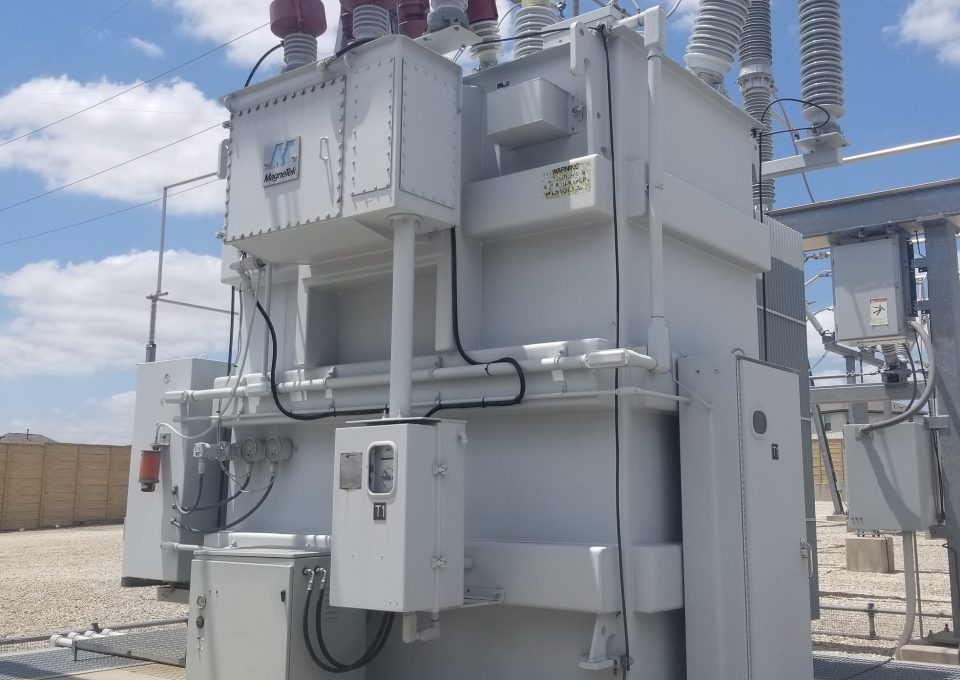

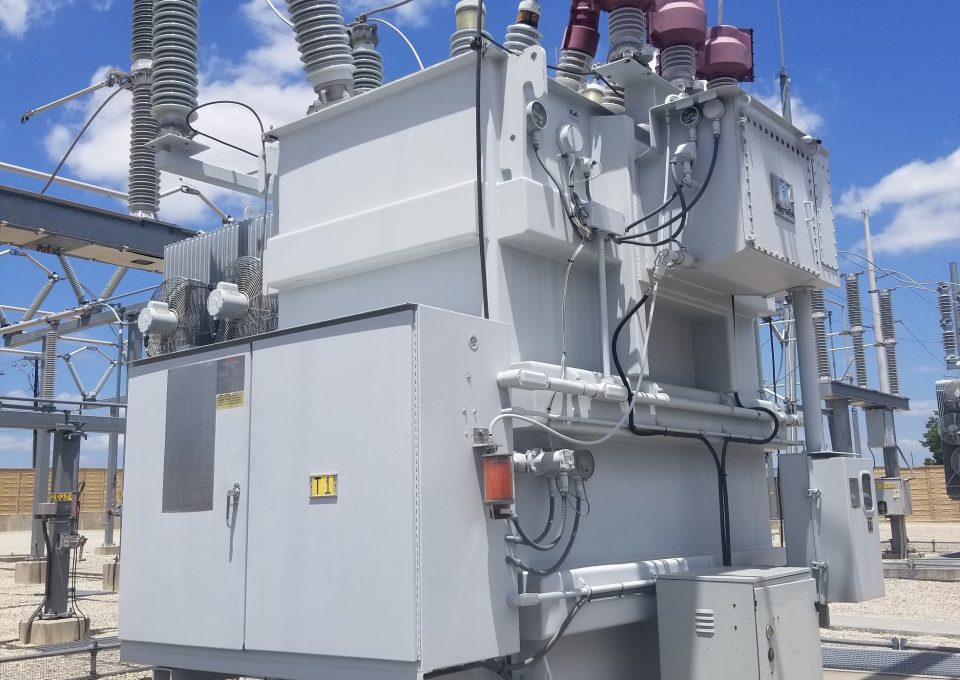

1991 Waukesha Dual High Voltage Primary 138 X 69 kV Delta, 26.18 kV Wye with Load Tap Changer LTC

  • Size: 12/16/20 MVA
  • HV_H: 138000
  • HV 2: 69000
  • Dual HV: 1
  • HV TC Type: Off Circuit Tap Switch
  • LV_1_X: 26180
  • LV_2_Y:
  • LV2 Type:
  • Dual LV:
  • LV TC Type: Load Tap Changer LTC
  • See Notes: Yes
  • High Voltage Vector: Delta
  • Low Voltage Vector: Wye
  • High 2 Voltage Vector: Delta
  • Low 2 Voltage Vector:
  • High Voltage Bushing: Top Mounted
  • Low Voltage Bushing: Top Mounted
  • HV2 Bushing:
  • LV2 Bushing:
  • Station Type: Substation Stepdown
  • Live Dead:
  • Feed:
  • Type: Oil Filled
  • Width:
  • Length:
  • Height:
  • Weight: 144800
  • Phase: 3
  • HZ: 60
  • DOM: 1991
  • MFG: Waukesha
