90 MVA GSU Transformer

Product ID: 5613

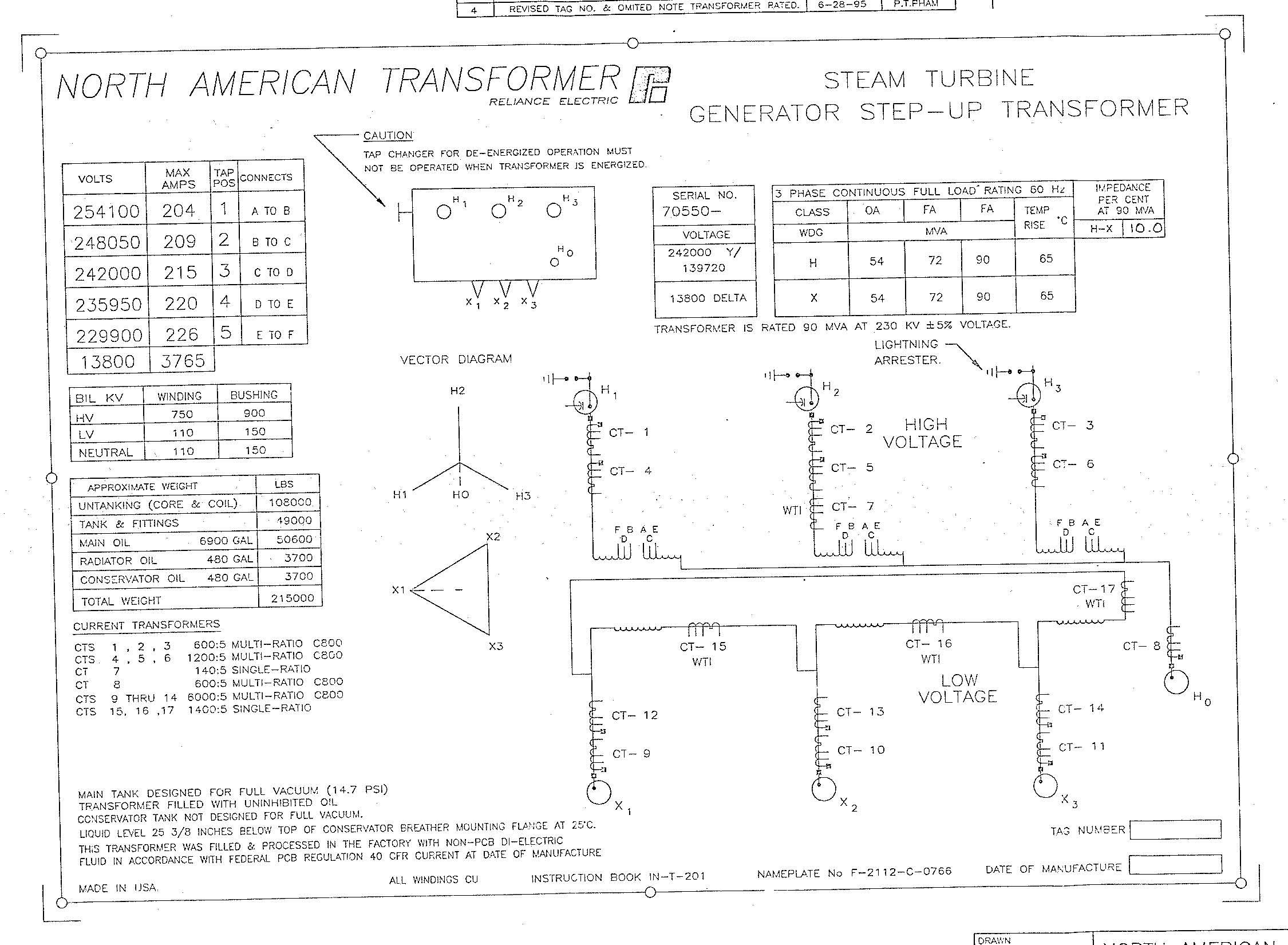

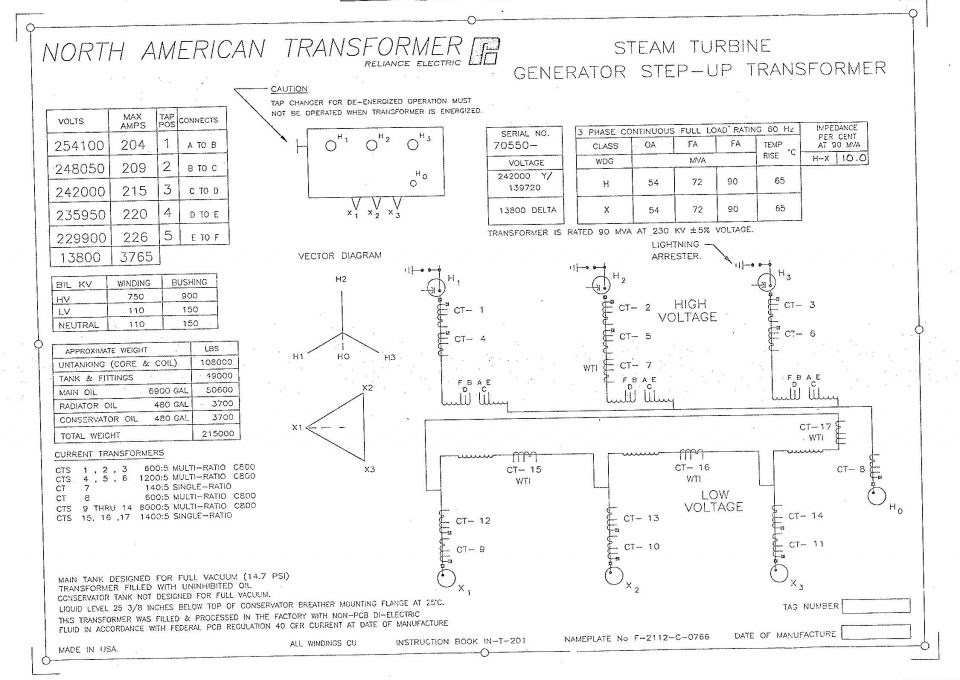

North American Transformer, Generator Step-up, 242 kV Wye to 13.8 kV Delta

  • Size: 54/72/90
  • HV_H: 242000
  • HV 2:
  • Dual HV:
  • HV TC Type: OLTC
  • LV_1_X: 13800
  • LV_2_Y:
  • LV2 Type:
  • Dual LV:
  • LV TC Type:
  • See Notes: Yes
  • High Voltage Vector: Wye
  • Low Voltage Vector: Delta
  • High 2 Voltage Vector:
  • Low 2 Voltage Vector:
  • High Voltage Bushing: Top
  • Low Voltage Bushing: Front Sidewall
  • HV2 Bushing:
  • LV2 Bushing:
  • Station Type: Generator Step-up
  • Live Dead:
  • Feed:
  • Type: Oil
  • Width:
  • Length:
  • Height:
  • Weight: 215000
  • Phase: 3
  • HZ: 60
  • DOM: 1994
  • MFG: North American Transformer
