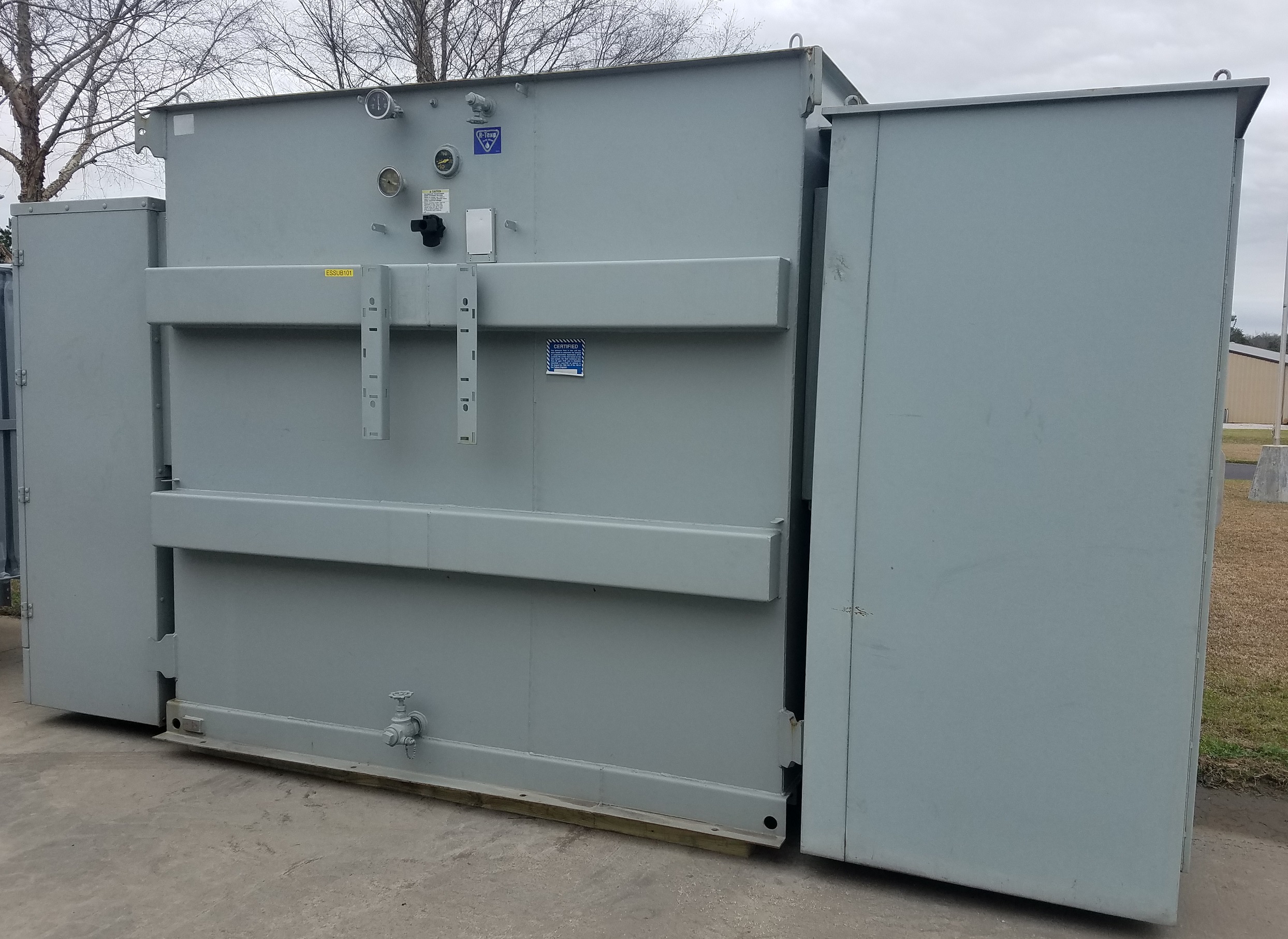

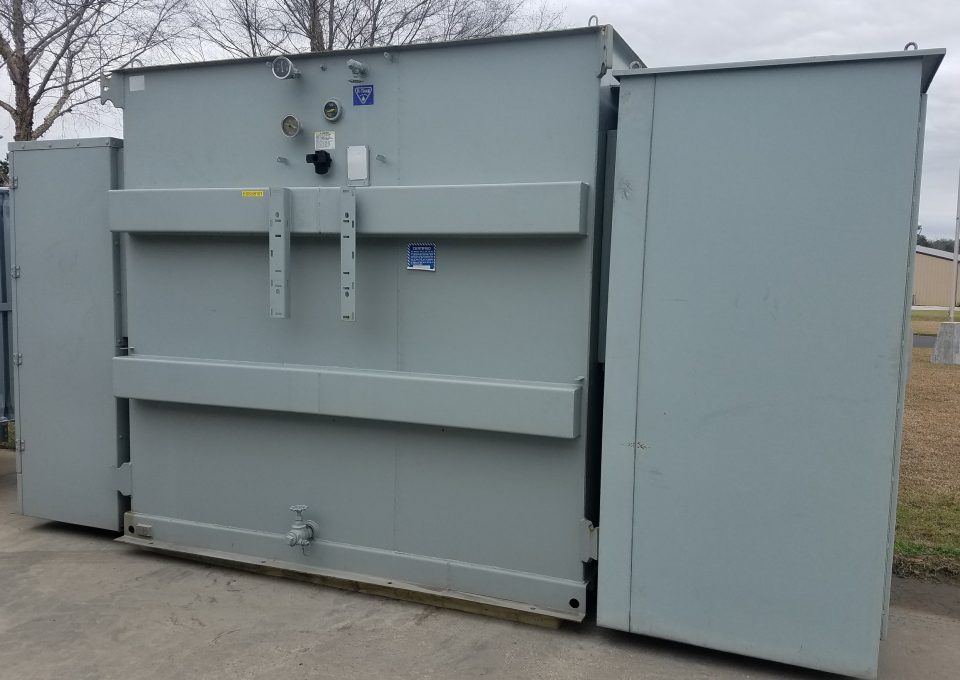

7500 kva Unit Substation

Product ID: 5689

7500 kva Unit Substation, 34.5 kV Delta Primary, Dead Front Radial Feed, C/W 15 kV 1200 amp Fused Disconnect, 4.16/2.4 kV Low Voltage, Air Terminal Chambers HV & LV

  • Size: 7.5/9.375 MVA
  • HV_H: 34500
  • HV 2:
  • Dual HV:
  • HV TC Type: Off Circuit Tap Changer
  • LV_1_X: 4160
  • LV_2_Y:
  • LV2 Type:
  • Dual LV:
  • LV TC Type:
  • See Notes: Yes
  • High Voltage Vector: Delta
  • Low Voltage Vector: Wye
  • High 2 Voltage Vector:
  • Low 2 Voltage Vector:
  • High Voltage Bushing: Dead Front End
  • Low Voltage Bushing: 4 Hole NEMA Spade
  • HV2 Bushing:
  • LV2 Bushing:
  • Station Type: Unit Substation
  • Live Dead: Dead Front
  • Feed: Radial
  • Type: Oil Filled
  • Width:
  • Length:
  • Height:
  • Weight: 37810
  • Phase: 3
  • HZ: 60
  • DOM: 2003
  • MFG: Cooper
