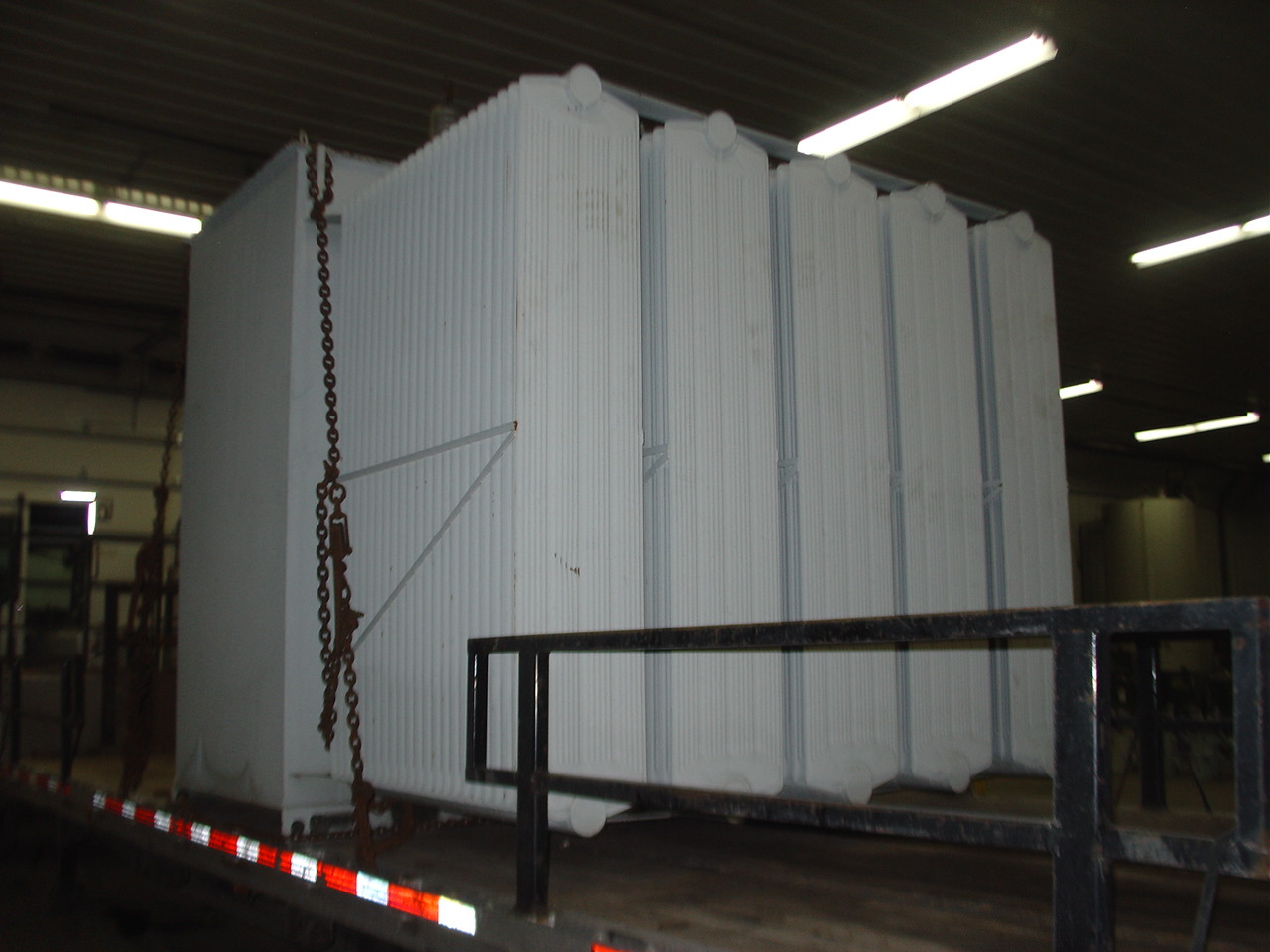

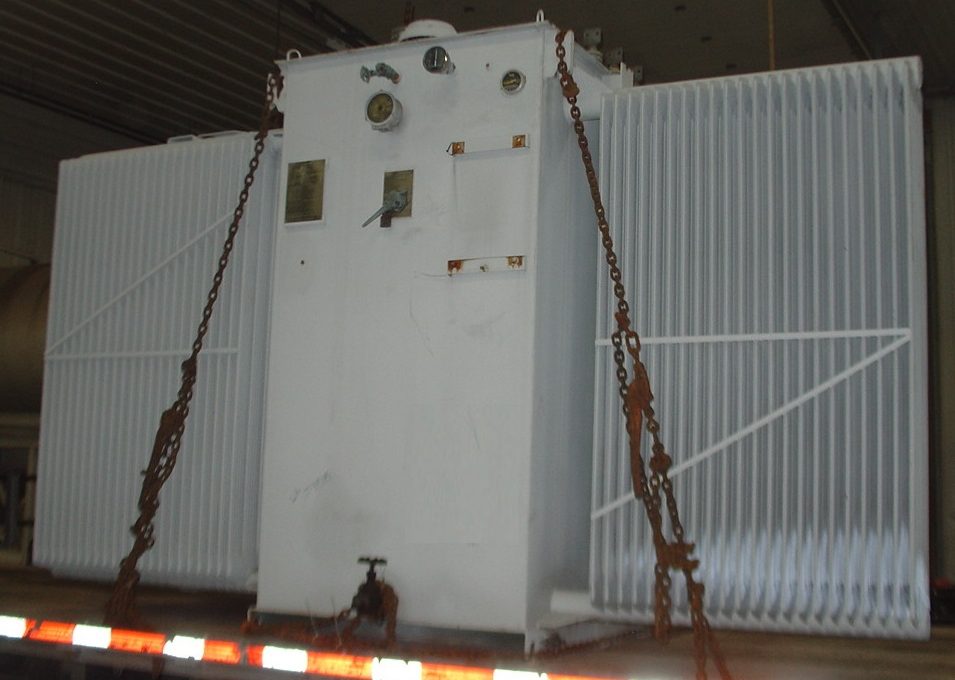

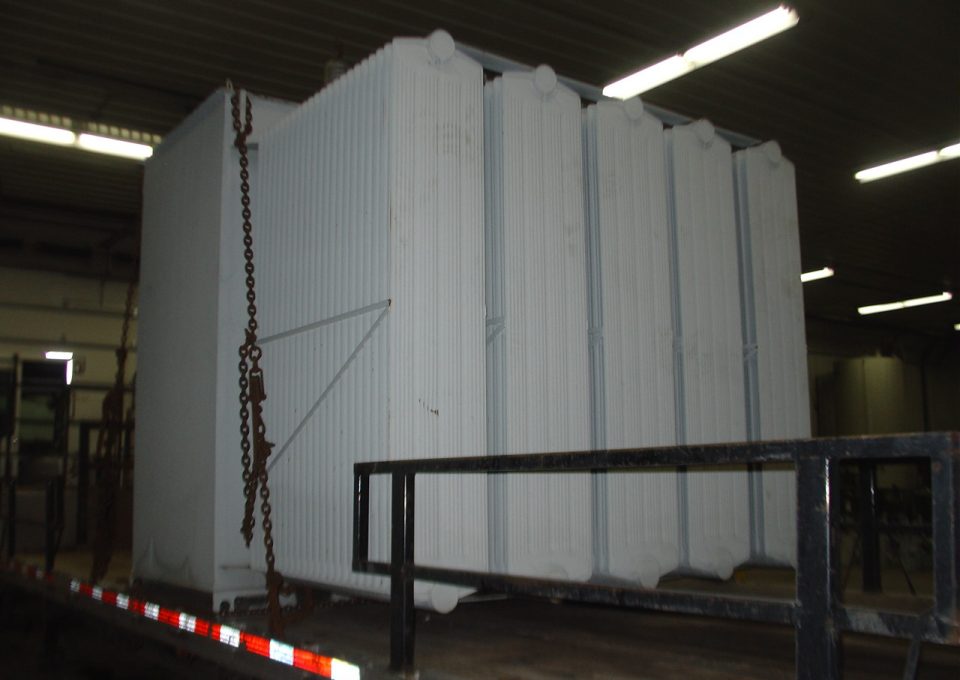

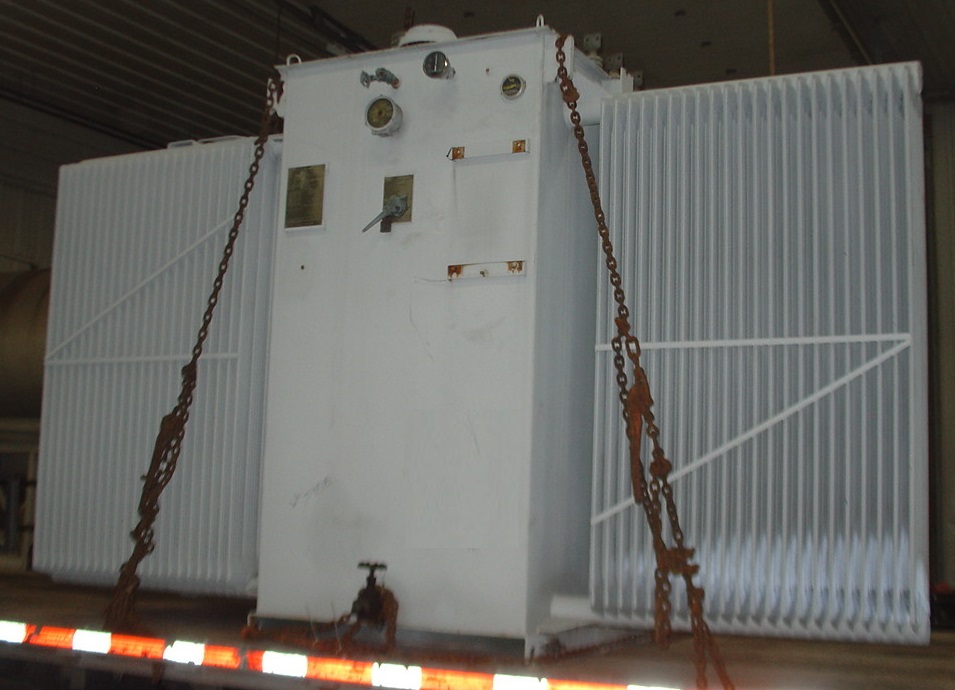

5/5.6/6.25/7 MVA RTE Substation Transformer

Product ID: 5656

5/5.6/6.25/7 MVA RTE Small Power Transformer, 34.4 kV Delta Primary, 12.47 kV Wye Secondary, Top/top bushing configuration

  • Size: 5/5.6/6.25/7 MVA
  • HV_H: 34400
  • HV 2:
  • Dual HV:
  • HV TC Type: OLTC
  • LV_1_X: 12470
  • LV_2_Y:
  • LV2 Type:
  • Dual LV:
  • LV TC Type:
  • See Notes: Yes
  • High Voltage Vector: Delta
  • Low Voltage Vector: Wye
  • High 2 Voltage Vector:
  • Low 2 Voltage Vector:
  • High Voltage Bushing: Top Mounted
  • Low Voltage Bushing: Top Mounted
  • HV2 Bushing:
  • LV2 Bushing:
  • Station Type: Substation Stepdown
  • Live Dead:
  • Feed:
  • Type: Oil Filled
  • Width:
  • Length:
  • Height:
  • Weight: 29805
  • Phase: 3
  • HZ: 60
  • DOM:
  • MFG: RTE Small Power

Request a quote:
