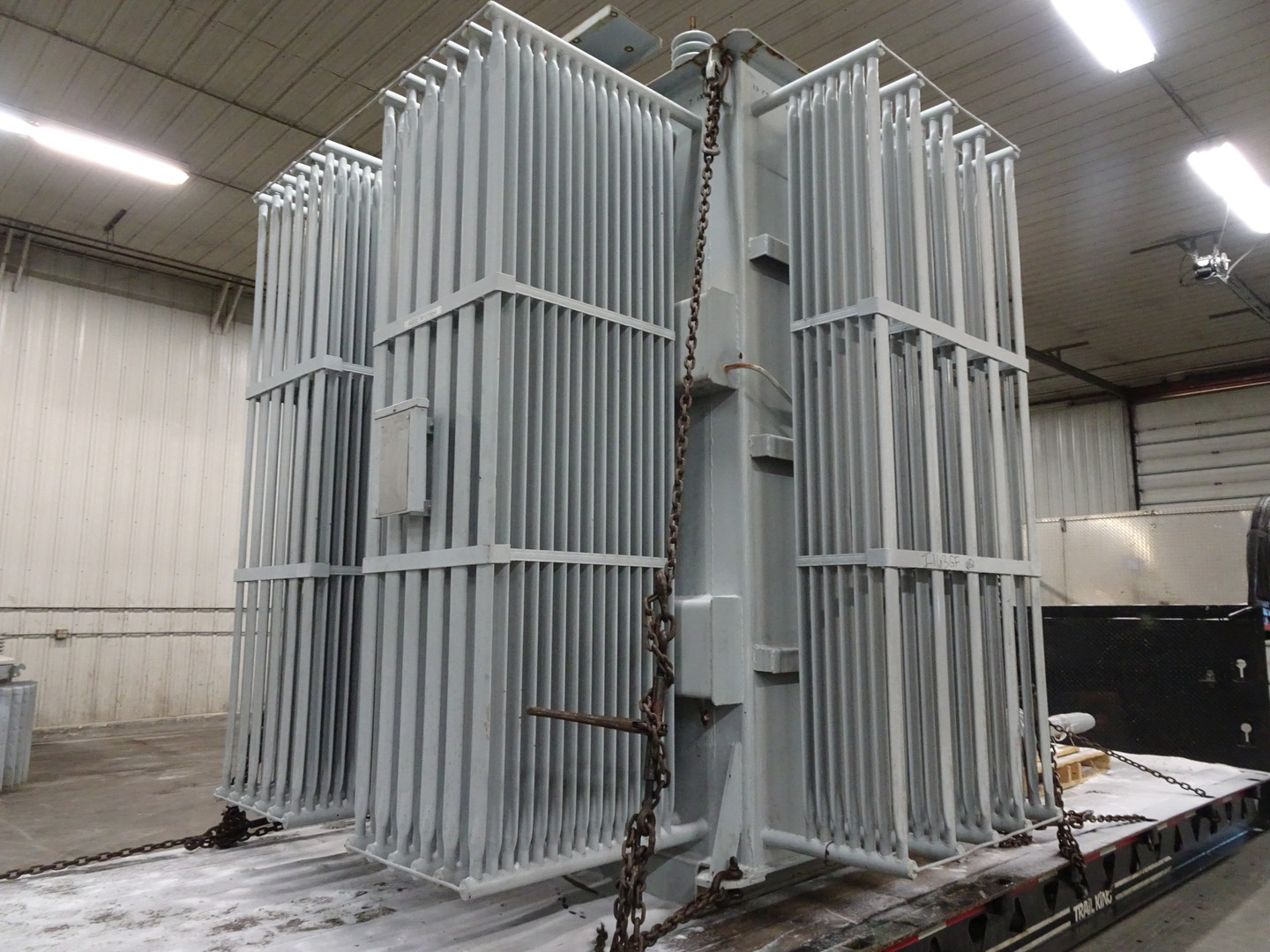

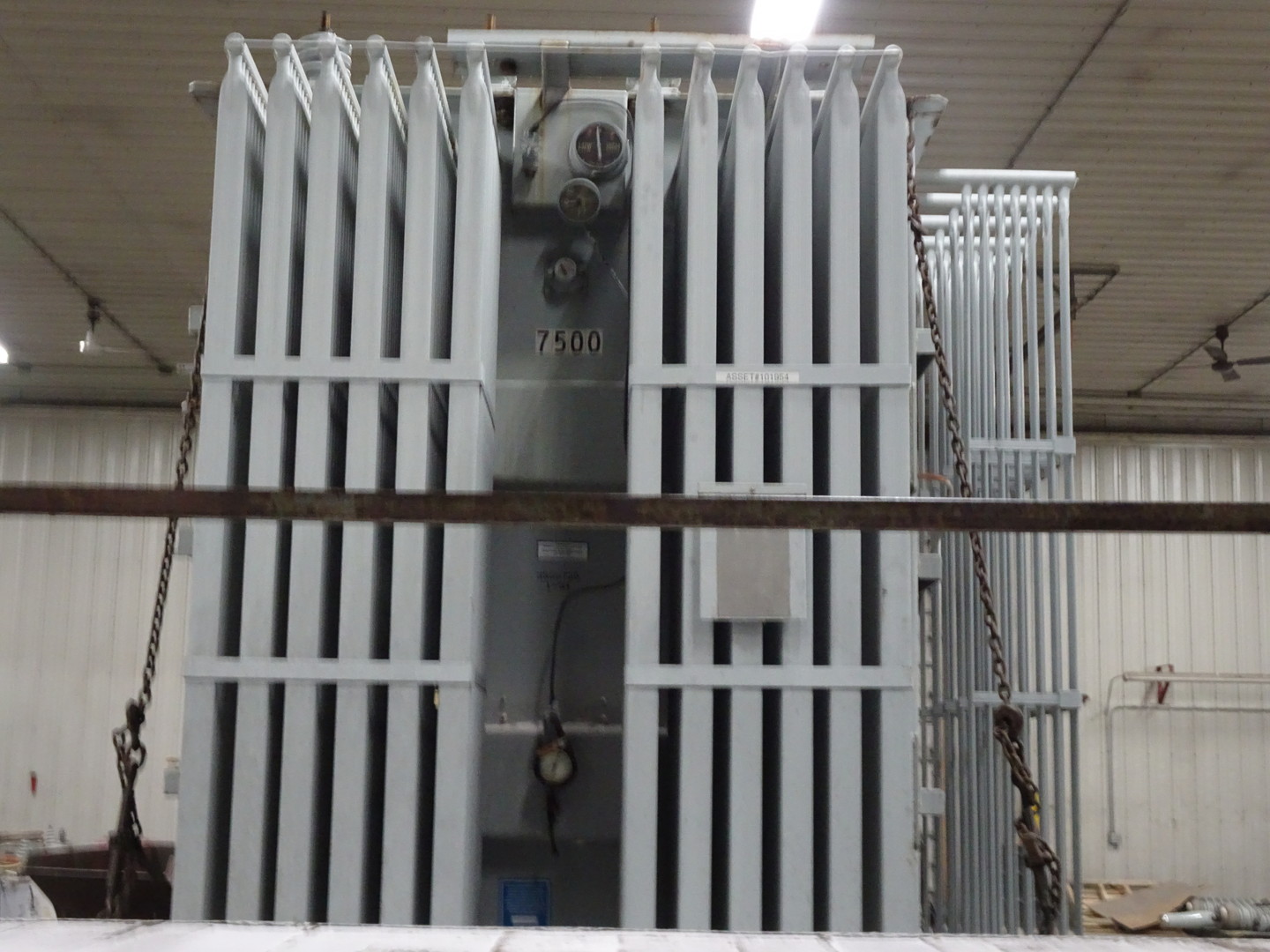

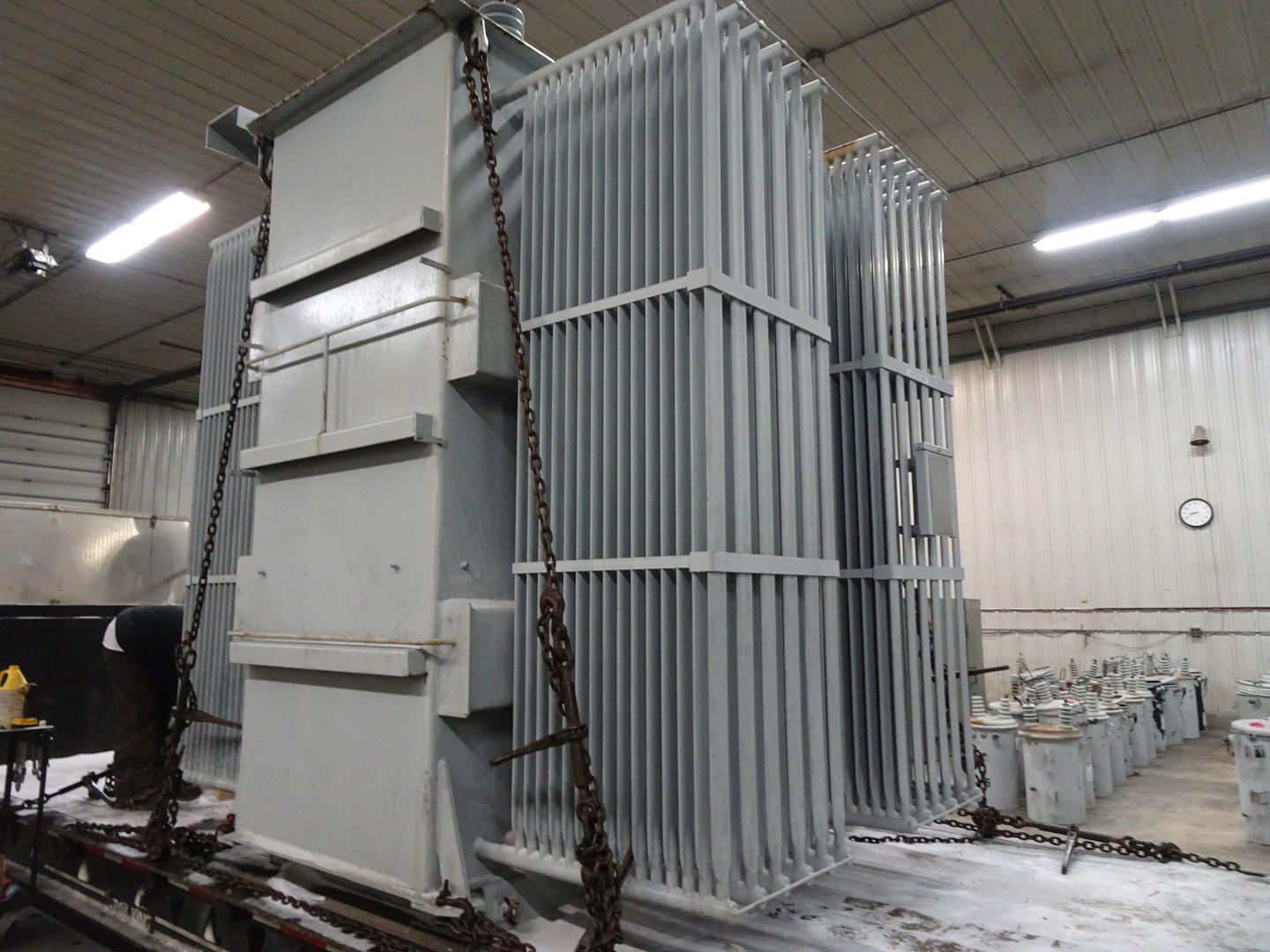

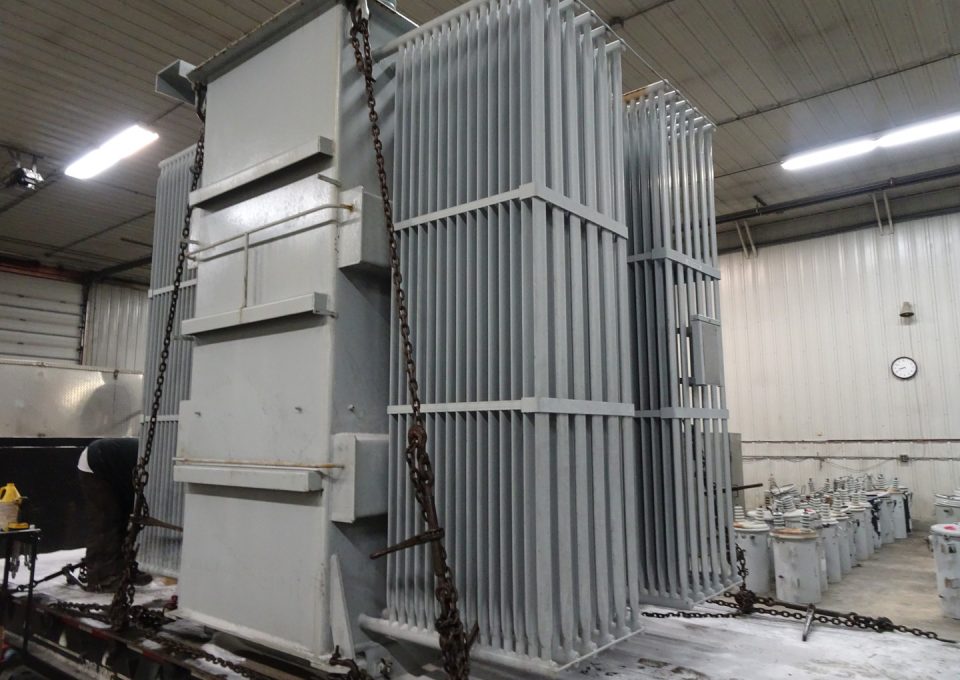

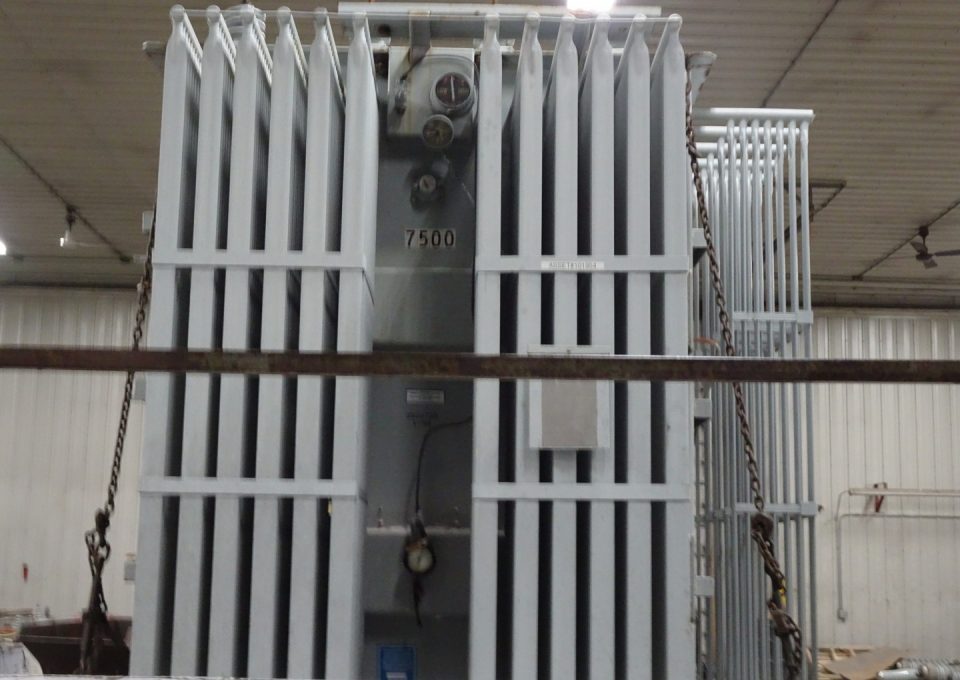

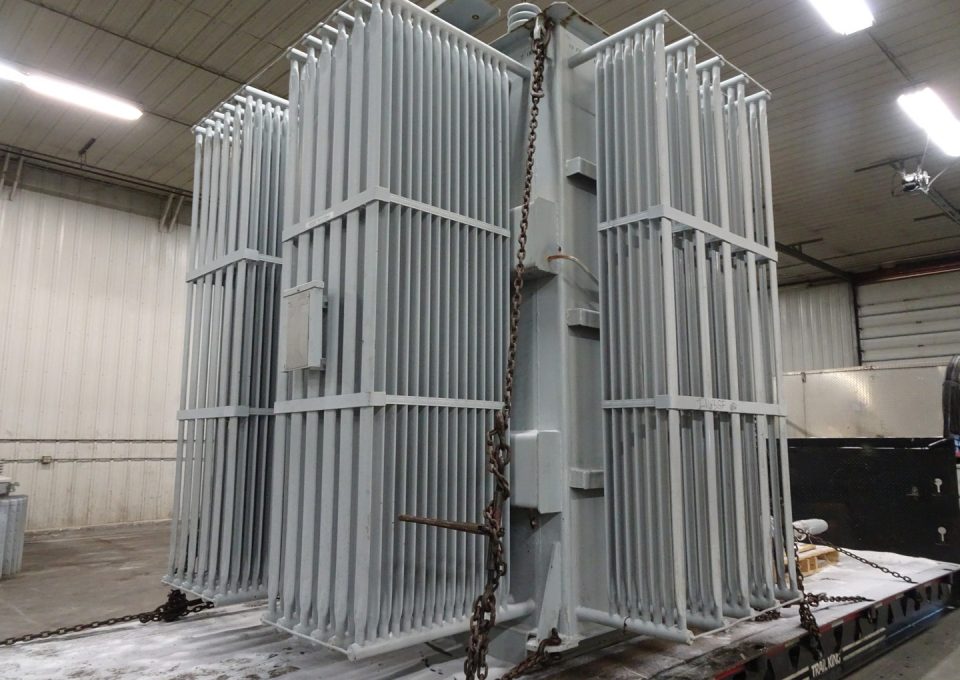

7.5/8.4/10.5 General Electric Substation Step down Transformer, 69 kV Delta – 13.09 kV Wye Oil Filled Transformer, OLTC, 6.9% Impedance

Product ID: 5622

7.5/8.4/10.5 General Electric Substation Step down Transformer, 69 kV Delta - 13.09 kV Wye Oil Filled Transformer Reconditioned three year warranty, 6.9% Impedance

  • Size: 7.5/8.4/10.5 MVA
  • HV_H: 69000
  • HV 2:
  • Dual HV:
  • HV TC Type: OLTC
  • LV_1_X: 13090
  • LV_2_Y:
  • LV2 Type:
  • Dual LV:
  • LV TC Type:
  • See Notes: Yes
  • High Voltage Vector: Delta
  • Low Voltage Vector: Wye
  • High 2 Voltage Vector:
  • Low 2 Voltage Vector:
  • High Voltage Bushing: Top
  • Low Voltage Bushing: Top
  • HV2 Bushing:
  • LV2 Bushing:
  • Station Type: Substation Step down
  • Live Dead:
  • Feed:
  • Type: Oil filled
  • Width:
  • Length:
  • Height:
  • Weight: 36000
  • Phase: 3
  • HZ: 60
  • DOM: 1980
  • MFG: General Electric
