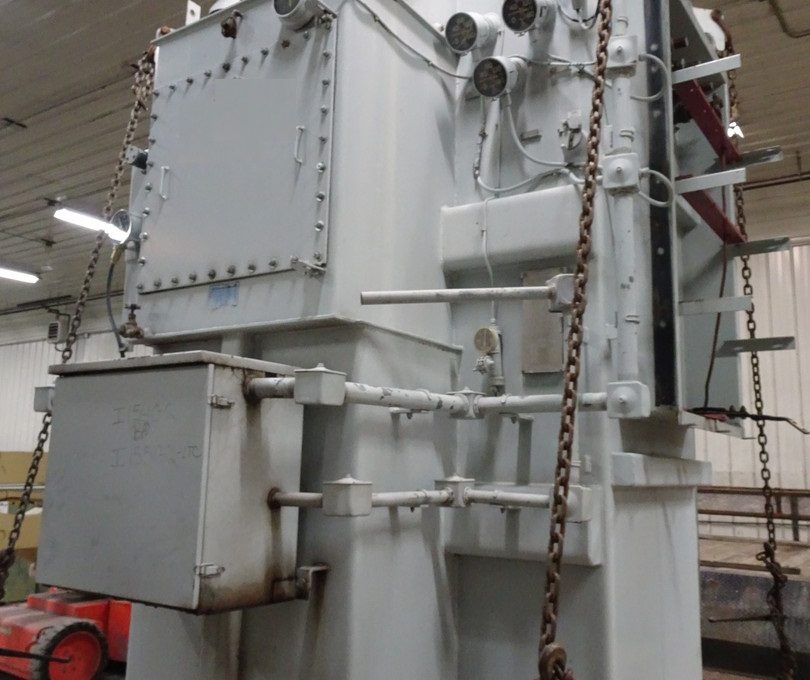

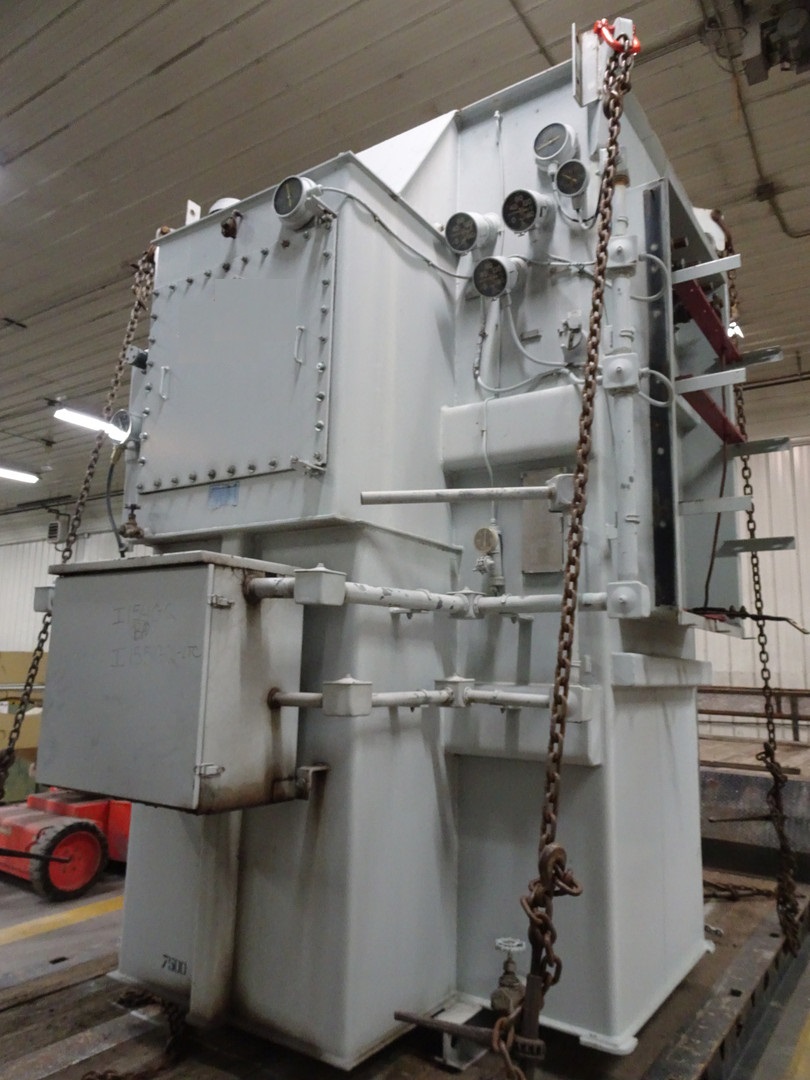

7.5/8.4 MVA 34.4 kV Delta – 4.16 kV Wye with LTC

Product ID: 5673

7.5/8.4 MVA 34.4 kV Delta to 4.16kV Wye Substation Stepdown Transformer with Load Tap Changer

  • Size: 7.5/8.4 MVA
  • HV_H: 34400
  • HV 2:
  • Dual HV:
  • HV TC Type: Off Load Tap Changer
  • LV_1_X: 4160
  • LV_2_Y:
  • LV2 Type:
  • Dual LV:

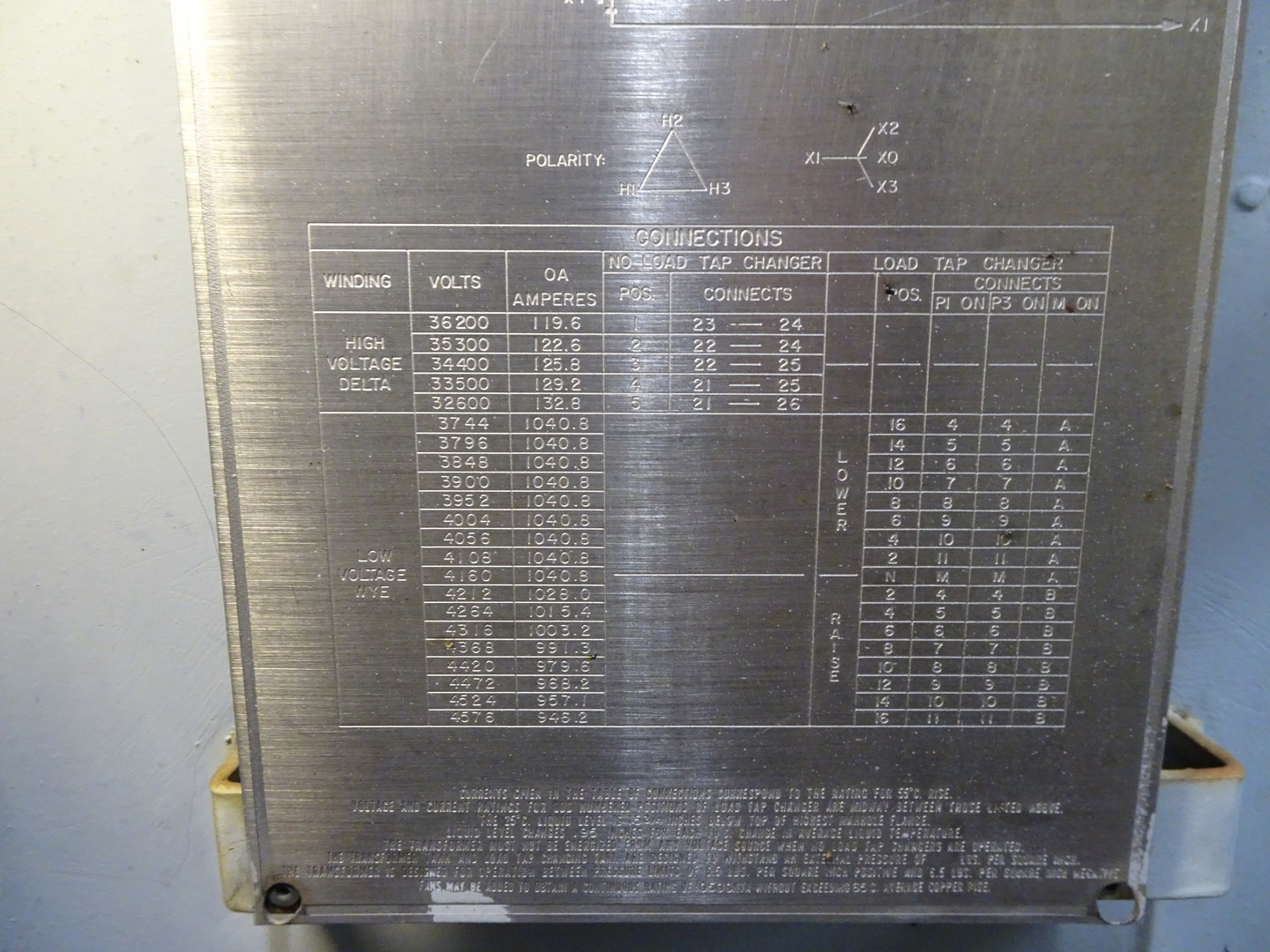

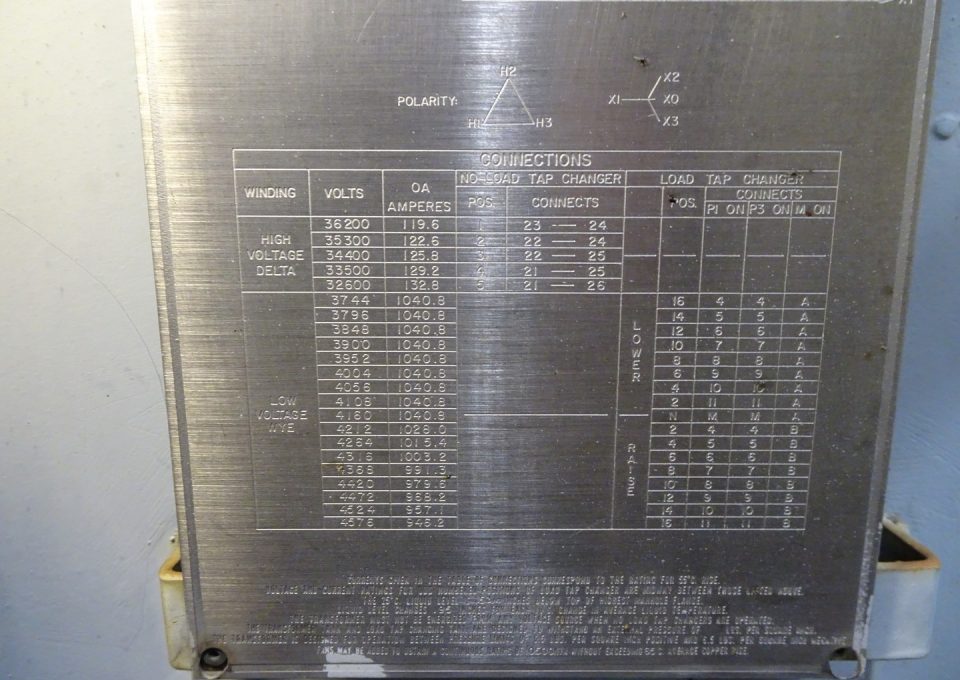

  • LV TC Type: Load Tap Changer
  • See Notes: Yes
  • High Voltage Vector: Delta
  • Low Voltage Vector: Wye
  • High 2 Voltage Vector:
  • Low 2 Voltage Vector:
  • High Voltage Bushing: Top Mounted
  • Low Voltage Bushing: Side wall Mounted
  • HV2 Bushing:
  • LV2 Bushing:
  • Station Type: Substation Stepdown
  • Live Dead:
  • Feed:
  • Type: Oil Filled

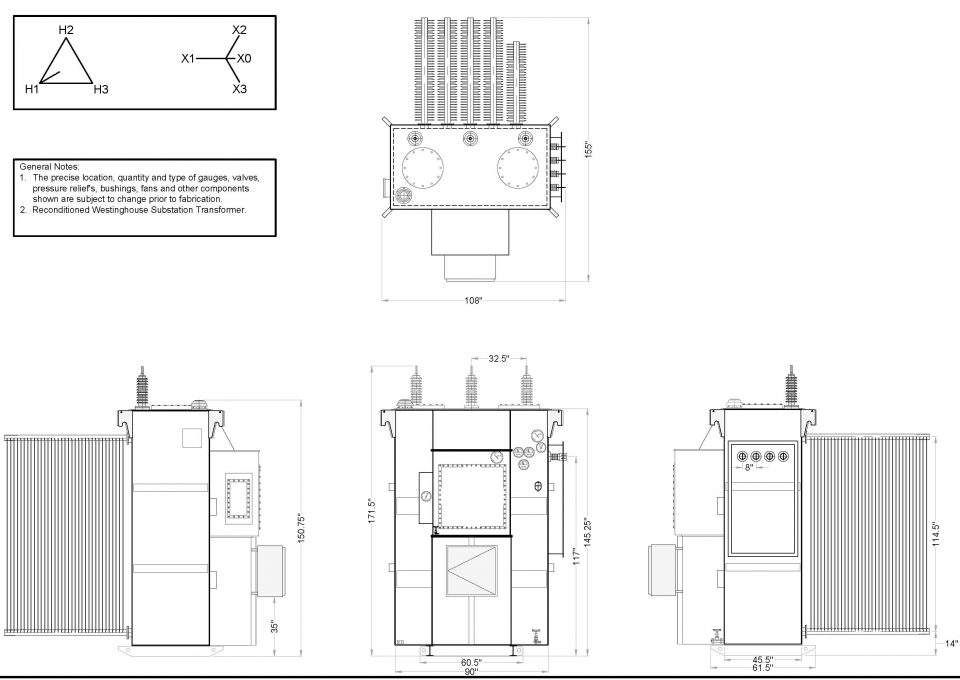

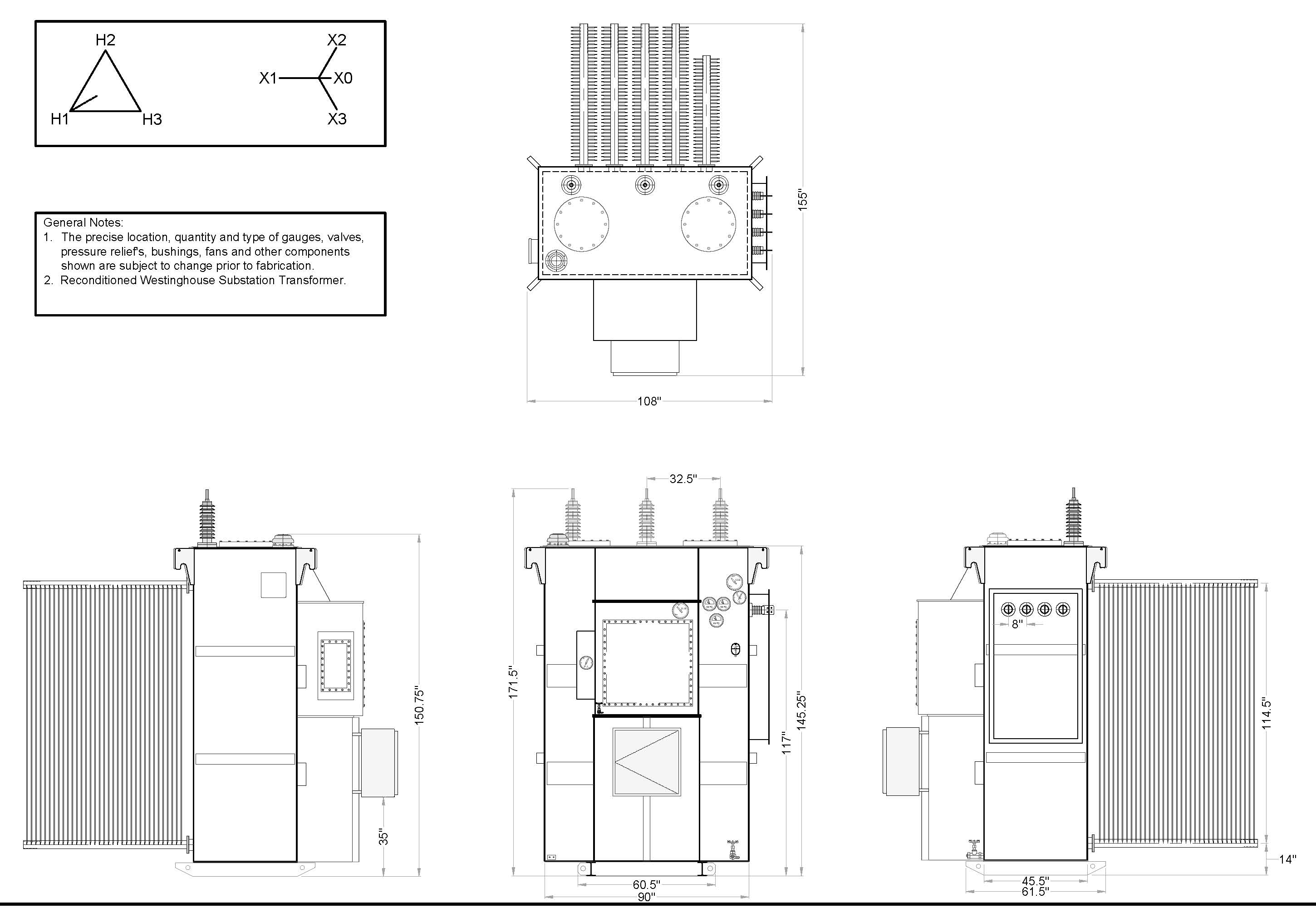

  • Width: 155
  • Length: 108
  • Height: 171.5
  • Weight: 53500
  • Phase: 3
  • HZ: 60
  • DOM:

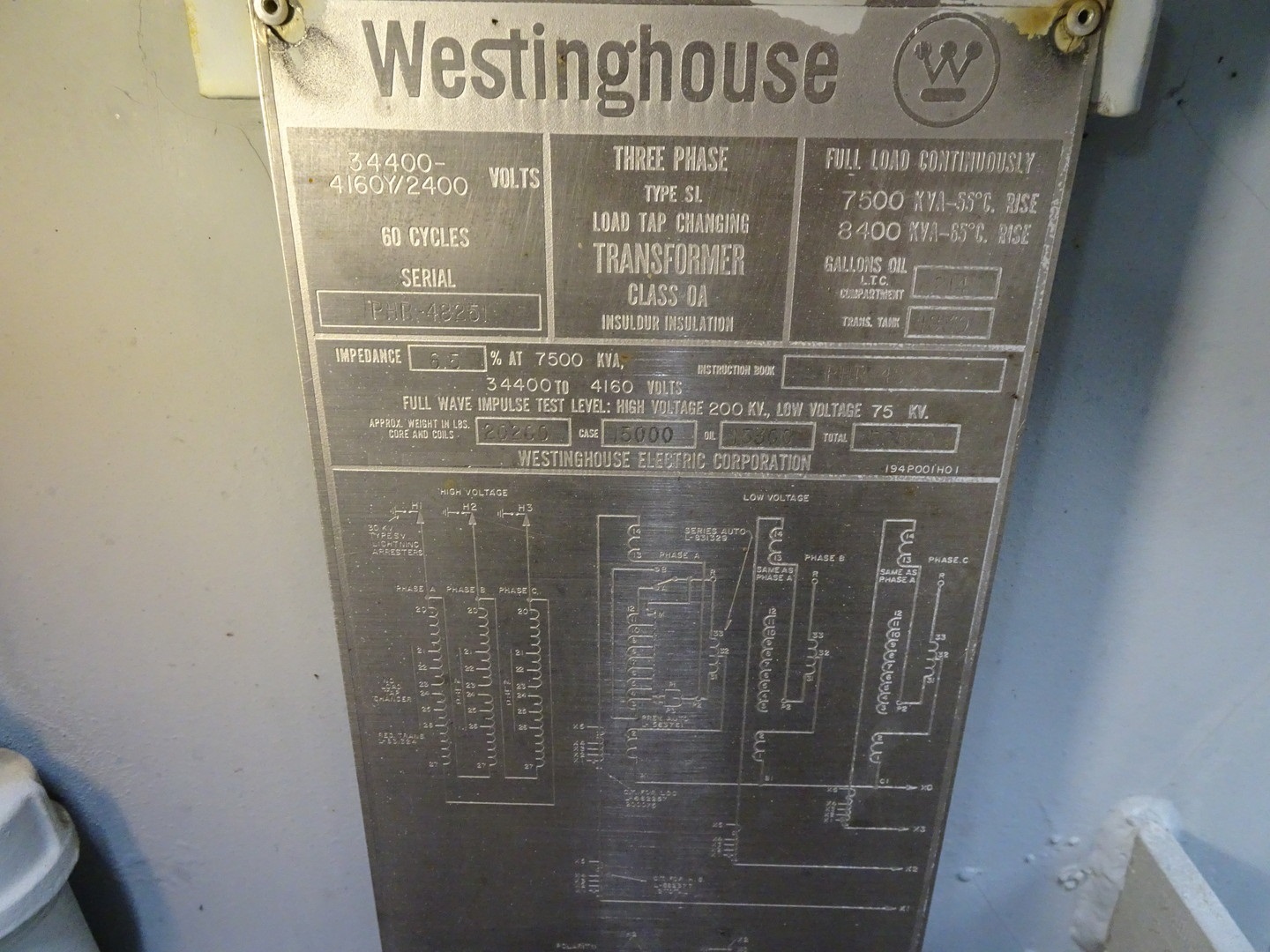

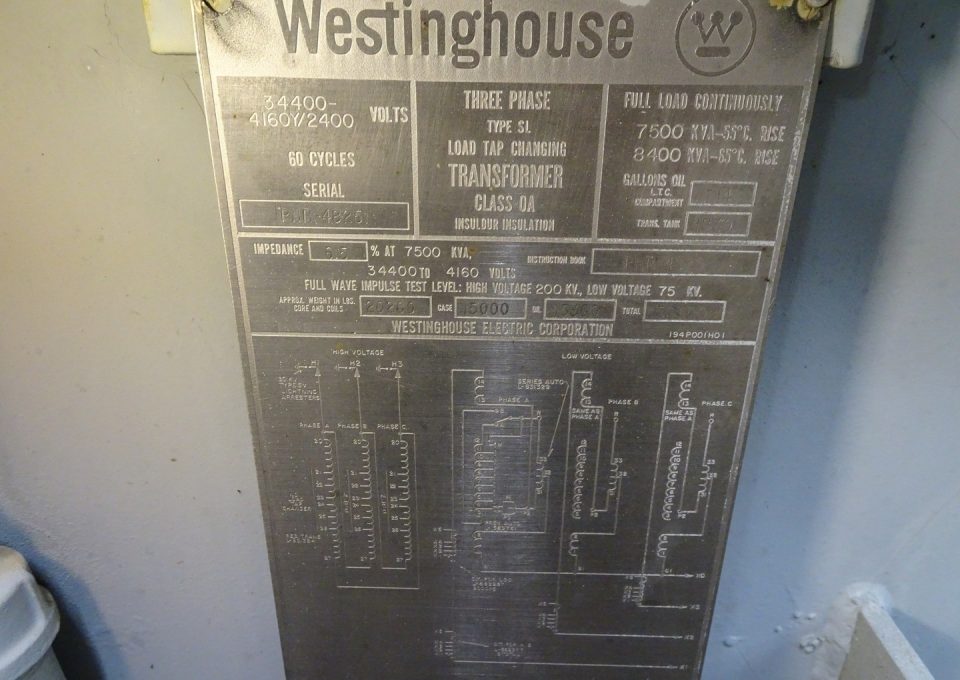

  • MFG: Westinghouse

Request a quote:
