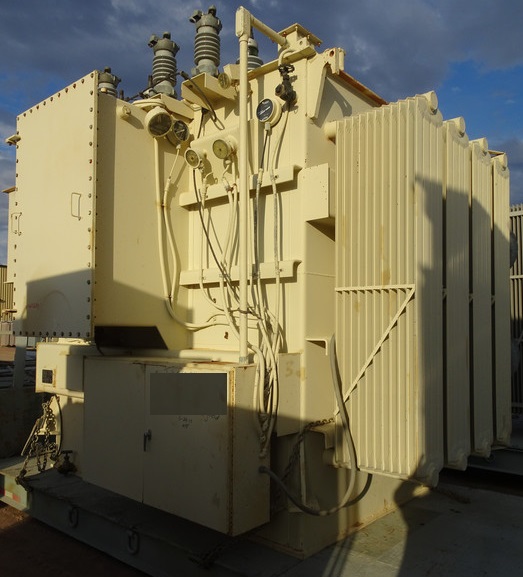

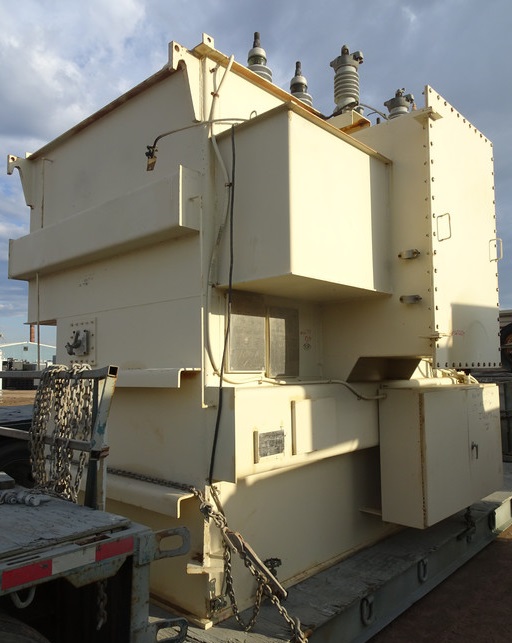

Delta Star 5 MVA LTC Transformer

Product ID: 5692

5/5.6 MVA 115 X 69 kV Delta to 25 kV Wye Load Tap Changing Transformer. Substation Stepdown, oil filled

  • Size: 5/5.6 MVA
  • HV_H: 115000
  • HV 2: 67000
  • Dual HV: 1
  • HV TC Type: Off Circuit Tap Switch
  • LV_1_X: 25000
  • LV_2_Y:
  • LV2 Type:
  • Dual LV:
  • LV TC Type: Load Tap Changer
  • See Notes: Yes
  • High Voltage Vector: Delta
  • Low Voltage Vector: Wye
  • High 2 Voltage Vector: Delta
  • Low 2 Voltage Vector:
  • High Voltage Bushing: Top Cover Mounted
  • Low Voltage Bushing: Top Cover Mounted
  • HV2 Bushing:
  • LV2 Bushing:
  • Station Type: Substation Stepdown
  • Live Dead:
  • Feed:
  • Type: Oil Filled
  • Width:
  • Length:
  • Height:
  • Weight: 80907
  • Phase: 3
  • HZ: 60
  • DOM:
  • MFG: Delta Star
