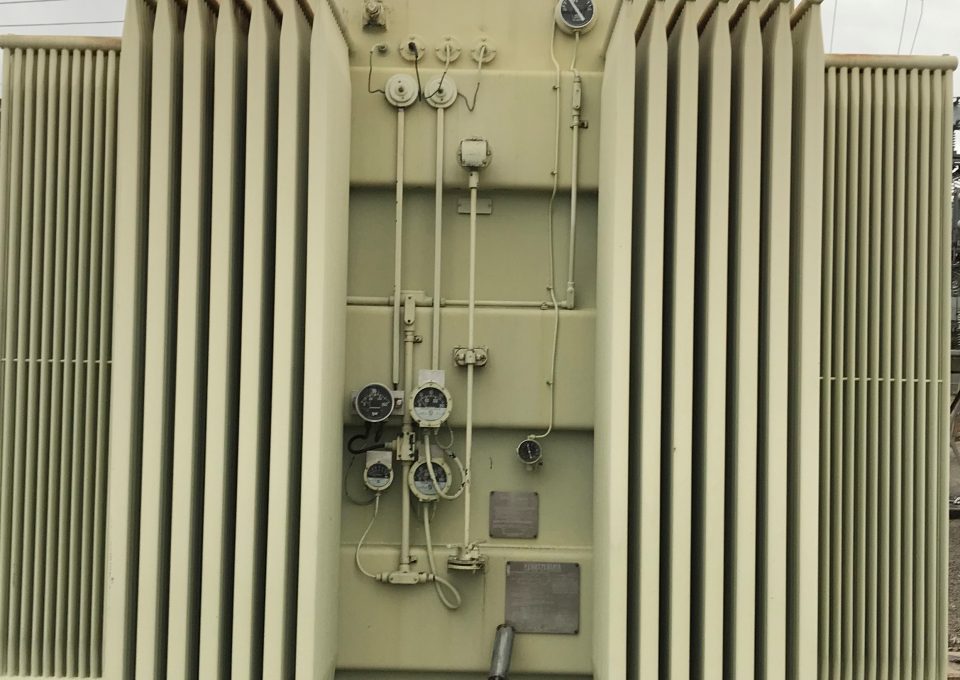

Pennsylvania Auto Transformer

Product ID: 5684

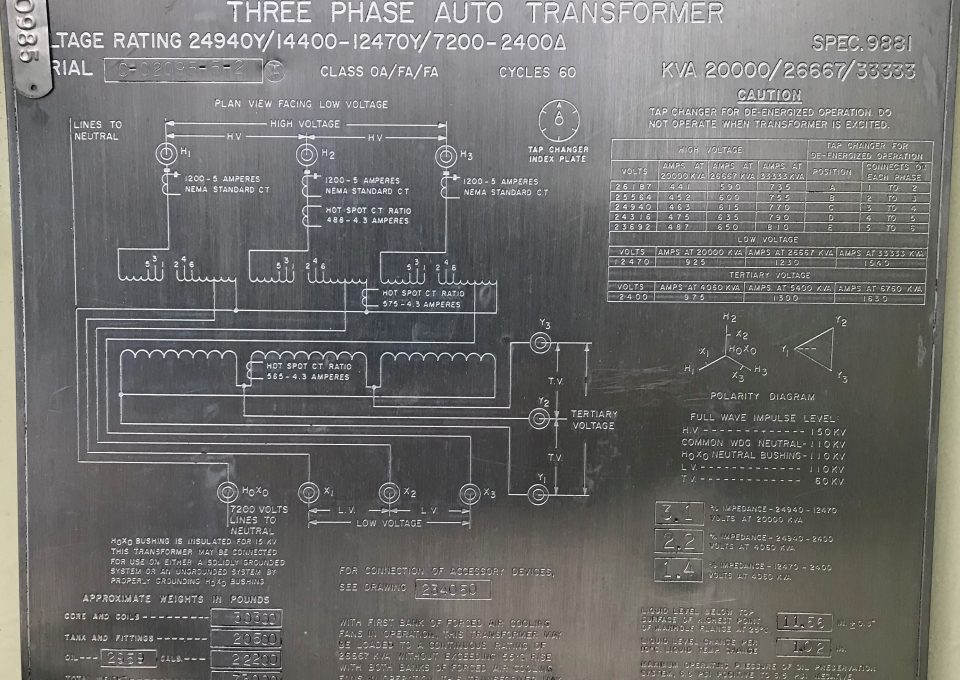

Pennsylvania Auto Transformer 24.9 kV Wye primary, 12.47 kV Wye Secondary, 2400 volt Delta Tertiary winding

  • Size: 20/26.66/33.33 MVA
  • HV_H: 24940
  • HV 2:
  • Dual HV:
  • HV TC Type: DETC
  • LV_1_X: 12470
  • LV_2_Y: 2400
  • LV2 Type: Tertiary
  • Dual LV:
  • LV TC Type:
  • See Notes: Yes
  • High Voltage Vector: Wye
  • Low Voltage Vector: Wye
  • High 2 Voltage Vector:
  • Low 2 Voltage Vector: Delta
  • High Voltage Bushing: Top
  • Low Voltage Bushing: Top
  • HV2 Bushing:
  • LV2 Bushing: Side wall
  • Station Type: Substation Step Down Auto Transformer
  • Live Dead:
  • Feed:
  • Type: Oil Filled
  • Width:
  • Length:
  • Height:
  • Weight: 73000
  • Phase: 3
  • HZ: 56
  • DOM:
  • MFG: Pennsylvania

Request a quote:





Transformer Network, Inc. | 301 S. Florence | Colman, SD 57017
800.724.2211 | sales@transformernet.com
