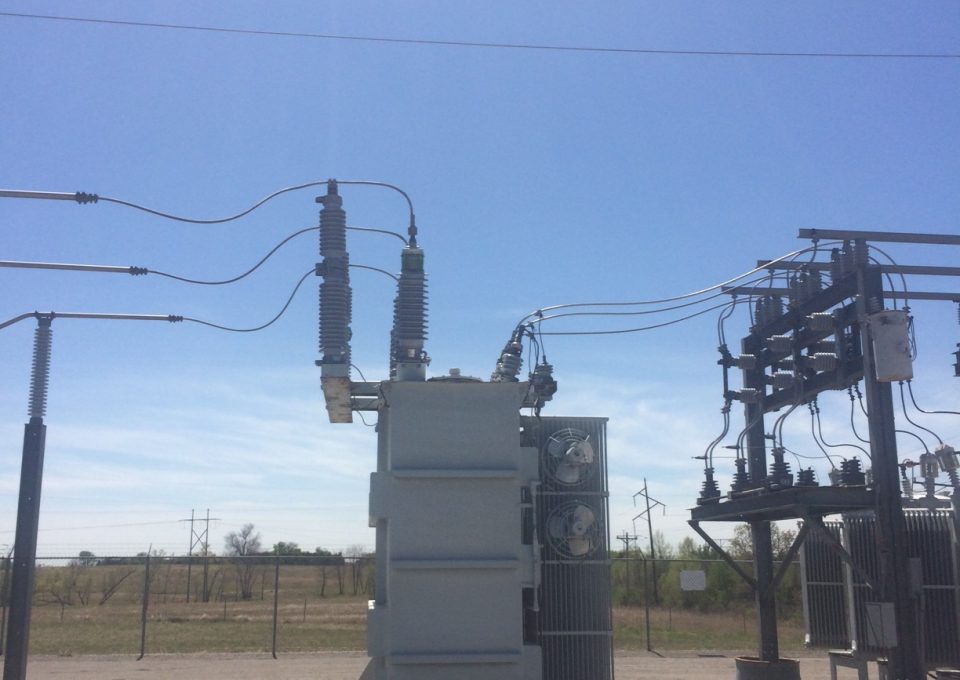

General Electric 7.5/10 MVA Substation Transformer, 138 kV Delta HV, 13.2 kV Wye LV

Product ID: 5617

7.5 MVA Base rated substation step down transformer, 138 kV Delta, 13.2 kV Wye

  • Size: 7.5/9.375/10
  • HV_H: 138000
  • HV 2:
  • Dual HV:
  • HV TC Type: OLTC
  • LV_1_X: 13200
  • LV_2_Y:
  • LV2 Type:
  • Dual LV:
  • LV TC Type:
  • See Notes: Yes
  • High Voltage Vector: Delta
  • Low Voltage Vector: Wye
  • High 2 Voltage Vector:
  • Low 2 Voltage Vector:
  • High Voltage Bushing: Top
  • Low Voltage Bushing: Top
  • HV2 Bushing:
  • LV2 Bushing:
  • Station Type: Substation Step Down
  • Live Dead:
  • Feed:
  • Type: Oil
  • Width:
  • Length:
  • Height:
  • Weight:
  • Phase: 3
  • HZ: 60
  • DOM: 1980
  • MFG: General Electric
